Video down an Ethernet cable

[spellmanuk]

I'm bored and want to mess about with this but want to know if you think it will be worth my time first. so the maximum recommended length of a hdmi cable is 15m (50ft) but if I say wanted to say use a monitor in another room would I be able to jerry rig an Ethernet cable to take a HDMI signal since you can take a cat6 cable 100m (325ft i think.)

[NinjaJc01]

2 minutes ago, peej said:

I'm bored and want to mess about with this but want to know if you think it will be worth my time first. so the maximum recommended length of a hdmi cable is 15m (50ft) but if I say wanted to say use a monitor in another room would I be able to jerry rig an Ethernet cable to take a HDMI signal since you can take a cat6 cable 100m (325ft i think.)

Cat6 is different. HDMI will still only go 15m, and needs more wires than a cat6 IIRC.

[ArmswieldTheHero]

Oh boy this sounds like a fun little project, I'll definitely be watching this thread.

[Electronics Wizardy]

There are 2 ways to do this



1. Over ip- You can use a remote desktop solution so put this down ip. It will be like any other network traffic.



2. Just using the cable. You need adapters like theesh https://www.amazon.com/Sabrent-Extension-Extender-200-Feet-HDMI-EXTC/dp/B001PT1A7C

[Enderman]

No, that's not how it works.

A display cable is very different from a network cable.

You cannot just stick HDMI connector on the end of any cable and have it transfer video.



To transfer video over an ethernet cable you need to have two devices on either end, like two computers, and then have one stream to the other (like the steam link thingy or whatever its called) or the nvidia equivalent.

[bgibbz]

12 minutes ago, peej said:

snip



9 minutes ago, NinjaJc01 said:

snap



6 minutes ago, Enderman said:

snip





While 1 cable doesn't offer enough bandwidth.... TWO does.





https://www.amazon.com/Sabrent-Extension-Extender-200-Feet-HDMI-EXTC/dp/B001PT1A7C





**I have never actually used this, i saw it on life hacker a while back**

[m0k]

linus runs an optical thunderbolt cable ...that should do the trick

[dalekphalm]

3 minutes ago, Enderman said:

No, that's not how it works.

A display cable is very different from a network cable.

You cannot just stick HDMI connector on the end of any cable and have it transfer video.



To transfer video over an ethernet cable you need to have two devices on either end, like two computers, and then have one stream to the other (like the steam link thingy or whatever its called) or the nvidia equivalent.

There are HDMI over Ethernet adapters though:

http://lifehacker.com/5918457/hdmi-over-ethernet-adapter-extends-hdmi-connections-up-to-98-feet-saves-money



@peej that's definitely the easiest way to achieve your goals.



However, the article notes that in many cases, you might be better off just spending the extra money to get an Active HDMI cable:

http://www.howtogeek.com/112636/htg-explains-do-you-really-need-expensive-cables/



Active HDMI cables can go far longer than the normal 15m (although I don't know what that new limit is).

[bgibbz]

Just now, mok said:

linus runs an optical thunderbolt cable ...that should do the trick

accept that entire project is about 700$... at that point its probably more cost efficient to buy another pc.

[ArmswieldTheHero]

Ohh I just thought of something, since you need two computers to do this maybe if you have a raspberry pi laying around you can use that?

[bgibbz]

1 minute ago, ArmswieldTheHero said:

Ohh I just thought of something, since you need two computers to do this maybe if you have a raspberry pi laying around you can use that?

why do you need two computers?

[ArmswieldTheHero]

1 minute ago, bgibbz said:

why do you need two computers?

I dont know, some guy up there said he needs two -shrugs-

[spellmanuk]

9 minutes ago, mok said:

linus runs an optical thunderbolt cable ...that should do the trick

yeah im not doing this because i need to my pc is 2 ft away from my monitor i want to do it as a proof of concept really lol

[Lolucoca]

you could theoretically send composite video down an ethernet cable as long as you got the adapter for it.

[spellmanuk]

Just now, Lolucoca said:

you could theoretically send composite video down an ethernet cable as long as you got the adapter for it.

so vga?

[Lolucoca]

@peej Theoretically, you could do that, but I doubt it would be a pleasant experience since every technology has its limits. You can try, but I don't think you're gonna have any fun doing so.

[kirashi]

13 minutes ago, ArmswieldTheHero said:

I dont know, some guy up there said he needs two -shrugs-

If you also read the other posts, you'd see you can do this using two Ethernet Cables of the same length and an HDMI over Ethernet adapter.

The cables don't even need to be Cat6 - Cat5e cables will work just fine, up to 200ft or so, depending on the HDMI over Ethernet adapter you use.

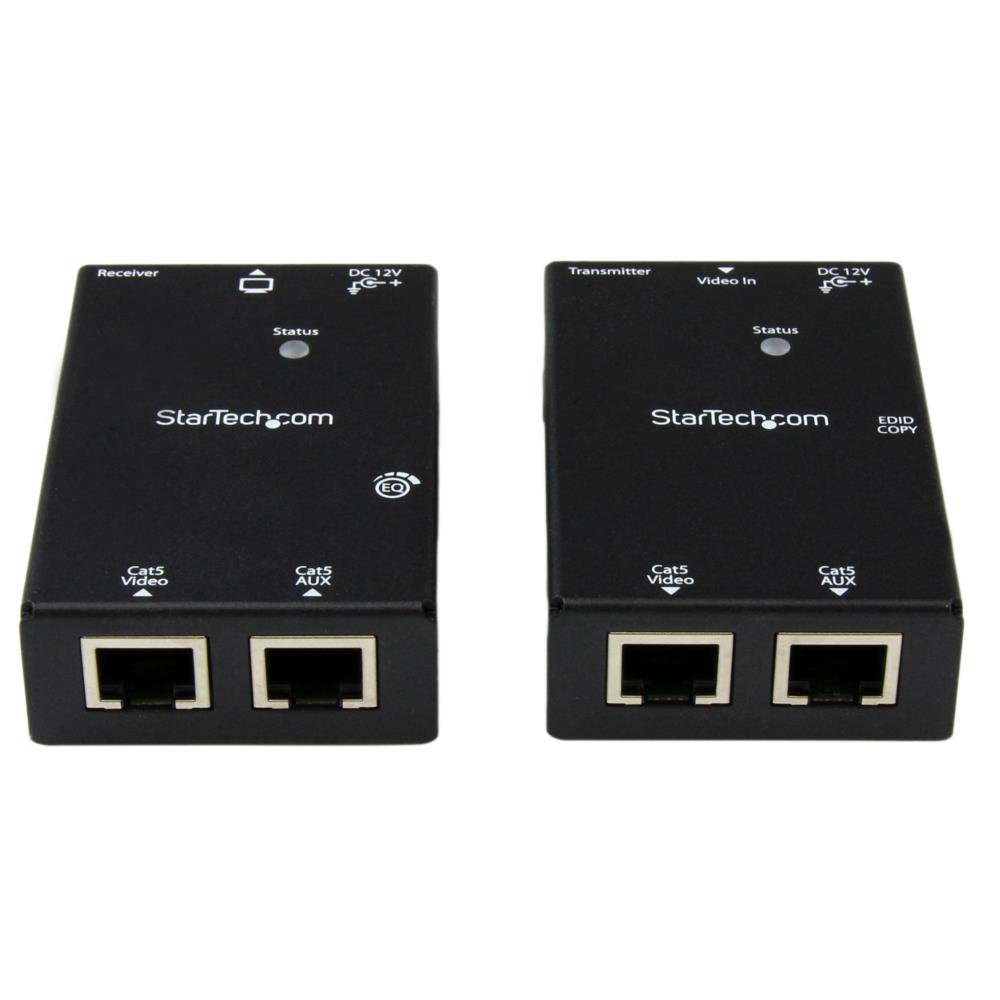

@peej either get an HDMI to Ethernet adapter kit, or directly wire it in because you're 2 feet away.

https://www.amazon.co.uk/Startech-HDMI-Extender-Power-Cable/dp/B00F4QM2GA/ref=sr_1_13?ie=UTF8&qid=1474572087&sr=8-13&keywords=hdmi+over+ethernet

[spellmanuk]

Just now, Lolucoca said:

@peej Theoretically, you could do that, but I doubt it would be a pleasant experience since every technology has its limits. You can try, but I don't think you're gonna have any fun doing so.



like i said i dont need to do it i just want to see what happens

[dalekphalm]

6 minutes ago, peej said:

like i said i dont need to do it i just want to see what happens



30 minutes ago, Electronics Wizardy said:

There are 2 ways to do this



1. Over ip- You can use a remote desktop solution so put this down ip. It will be like any other network traffic.



2. Just using the cable. You need adapters like theesh https://www.amazon.com/Sabrent-Extension-Extender-200-Feet-HDMI-EXTC/dp/B001PT1A7C



23 minutes ago, bgibbz said:









While 1 cable doesn't offer enough bandwidth.... TWO does.





https://www.amazon.com/Sabrent-Extension-Extender-200-Feet-HDMI-EXTC/dp/B001PT1A7C





**I have never actually used this, i saw it on life hacker a while back**



22 minutes ago, dalekphalm said:

There are HDMI over Ethernet adapters though:

http://lifehacker.com/5918457/hdmi-over-ethernet-adapter-extends-hdmi-connections-up-to-98-feet-saves-money



@peej that's definitely the easiest way to achieve your goals.



However, the article notes that in many cases, you might be better off just spending the extra money to get an Active HDMI cable:

http://www.howtogeek.com/112636/htg-explains-do-you-really-need-expensive-cables/



Active HDMI cables can go far longer than the normal 15m (although I don't know what that new limit is).



6 minutes ago, kirashi said:

If you also read the other posts, you'd see you can do this using two Ethernet Cables of the same length and an HDMI over Ethernet adapter.

The cables don't even need to be Cat6 - Cat5e cables will work just fine, up to 200ft or so, depending on the HDMI over Ethernet adapter you use.



@peej either get an HDMI to Ethernet adapter kit, or directly wire it in because you're 2 feet away.

https://www.amazon.co.uk/Startech-HDMI-Extender-Power-Cable/dp/B00F4QM2GA/ref=sr_1_13?ie=UTF8&qid=1474572087&sr=8-13&keywords=hdmi+over+ethernet

@peej - this

[spellmanuk]

3 minutes ago, dalekphalm said:

-snip-



hmmm okay i was just gunna do this because im bored but i dont particularly want to of have £80 to spend trying this out do you think that i could try jerry rigging this up another way

[dalekphalm]

1 hour ago, peej said:

hmmm okay i was just gunna do this because im bored but i dont particularly want to of have £80 to spend trying this out do you think that i could try jerry rigging this up another way

You could try splicing some HDMI cables into some ethernet cables and see if that works. All you'd need to do is match the pins. You'd need 2x Ethernet cables, and a single HDMI cable - cut it in half, splice each half to the ethernet cables, and just make sure to carefully track which pins on which cable you use.



With that in mind, there's a chance this won't work. It depends on whether any active conversion is happening or not. I do not know, personally, whether the adapter is active or passive.



But if you've got an HDMI cable and 2 ethernet cables you can spare to lose, it's worth a shot.

[spellmanuk]

Just now, dalekphalm said:

You could try splicing some HDMI cables into some ethernet cables and see if that works. All you'd need to do is match the pins. You'd need 2x Ethernet cables, and a single HDMI cable - cut it in half, splice each half to the ethernet cables, and just make sure to carefully track which pins on which cable you use.



With that in mind, there's a chance this won't work. It depends on whether any active conversion is happening or not. I do not know, personally, whether the adapter is active or passive.



But if you've got an HDMI cable and 2 ethernet cables you can spare to lose, it's worth a shot.



yeah this is what i thought but then if you look at the photos of the adapters they look like they have a dc jack so i think there might be some form of active conversion

[dalekphalm]

16 minutes ago, peej said:

yeah this is what i thought but then if you look at the photos of the adapters they look like they have a dc jack so i think there might be some form of active conversion

It might not be conversion - it might be a signal repeater. Since the reason why HDMI fails over 15m is signal degradation.



Either way, simply splicing the cables would not alleviate the problem, regardless of whether it's a repeater, or an active converter.

[spellmanuk]

4 minutes ago, dalekphalm said:

It might not be conversion - it might be a signal repeater. Since the reason why HDMI fails over 15m is signal degradation.



Either way, simply splicing the cables would not alleviate the problem, regardless of whether it's a repeater, or an active converter.



hmm i guess theres only one way to find out



TRY IT!!!



[Principis]

1 hour ago, peej said:

like i said i dont need to do it i just want to see what happens

Actually the whole thing would explode.
