RTX3070 stuck at idle core clock and max power consumption

Hi everyone,



I'm posting since you're my last hope. Here'smy problem : i have a Gigabyte GeForce RTX 3070 Eagle OC 8G (rev 1.0) that is not working properly. The card is stuck at 210 MHz (at idle, on desktop, browsers but also when gaming). The memory clock seems to be ok (boost up to 7000 MHz when launching a game or Heaven Benchmark). The card is also reporting 225W consumption on the GPU when idling, and 280W when in benchmark, even if the GPU's still at 210 MHz.

I can "overclock" it with Afterburner and do a + 1 000 MHz, so the card run a "normal" 1210 MHz. There are a few frame drop when using this profile in Afterburner, but consumption is still at 280W and temps are around 50°C.

I have tried multiple things to have it running properly again :

- Removing the driver (using DDU) and reinstalling them (multiple times)

- Completely fresh Windows install

- Flashing the BIOS (MOBO and graphic card using nvflash)

- Tried the card on my wife's computer



As you can imagine, neither of these worked for me, that's why i'm posting this.

I'm currently using my "old" KFA2/GALAX GeForce GTX 1070 on the same system, which work perfectly fine, but i would like to get back the 3070 to its full performance.



I used to watercool my PC, and had a leakage, but i dried the card, and it worked during multiple months after that, it doesn't seem damaged, but it could be a cause. Of course, the problem occured a few months after the end of the warranty.



So, if anyone have an idea, i'm all ears !

Thanks



PS : sorry if there are some mistakes in the post, english is not my native tongue

Link to comment
Share on other sites

Link to post
Share on other sites

Has the card ever worked normally for you (ideal clock speed), or has it never?

Link to comment
Share on other sites

Link to post
Share on other sites

It worked perfectly fine for about 2 years, and i noticed that problem when the game i was playing (Assassin's Creed Unity i think) dropped under 30 FPS in 1080p. The day before, the same game was running 120+FPS, and i did some benchmark from time to time (like after a cleaning, CPU repaste...) and it was working properly

Link to comment
Share on other sites

Link to post
Share on other sites

try setting power management mode to high performance in nvidia control panel. might help.

Link to comment
Share on other sites

Link to post
Share on other sites

35 minutes ago, Erhyll said:

The day before,

any changes, installs, uninstalls, windows updates the day before?

Note: Users receive notifications after Mentions & Quotes.

Feel free to ask any questions regarding my comments/build lists. I know a lot about PCs but not everything.

PC:

Ryzen 5 5600 |16GB DDR4 3200Mhz | B450 | GTX 1080 ti

PCs I used before:

Pentium G4500 | 4GB/8GB DDR4 2133Mhz | H110 | GTX 1050

Ryzen 3 1200 3,5Ghz / OC:4Ghz | 8GB DDR4 2133Mhz / 16GB 3200Mhz | B450 | GTX 1050

Ryzen 3 1200 3,5Ghz | 16GB 3200Mhz | B450 | GTX 1080 ti

Link to comment
Share on other sites

Link to post
Share on other sites

10 hours ago, ulookuglynoob said:

try setting power management mode to high performance in nvidia control panel. might help.

I tried to change it, and change the power management mode of Windows too, but if that was the problem, the fresh Windows install would have solve it ?



10 hours ago, podkall said:

any changes, installs, uninstalls, windows updates the day before?

No change, i closed the game, powered off the computer, and when booting it up the next day, the problem was there, but i didn't install any update on any software, or any other new software for that matter, i didn't change anything in the BIOS, i really didn't change anything at all, since it was working, i didn't see the point of changing anything, so, i'm clueless on what's happening...



Any way to test if the hardware is the problem (since another card work fine on the computer, and the 3070 doesn't work on another computer) ?

Link to comment
Share on other sites

Link to post
Share on other sites

20 hours ago, Erhyll said:

Tried the card on my wife's computer

didn't work?



what PSU does the PC have?

Note: Users receive notifications after Mentions & Quotes.

Feel free to ask any questions regarding my comments/build lists. I know a lot about PCs but not everything.

PC:

Ryzen 5 5600 |16GB DDR4 3200Mhz | B450 | GTX 1080 ti

PCs I used before:

Pentium G4500 | 4GB/8GB DDR4 2133Mhz | H110 | GTX 1050

Ryzen 3 1200 3,5Ghz / OC:4Ghz | 8GB DDR4 2133Mhz / 16GB 3200Mhz | B450 | GTX 1050

Ryzen 3 1200 3,5Ghz | 16GB 3200Mhz | B450 | GTX 1080 ti

Link to comment
Share on other sites

Link to post
Share on other sites

3 hours ago, podkall said:

didn't work?



what PSU does the PC have?

No, didn't work on any of the computers.

We have a dual system using a Phanteks power supply (a Revolt X 1200W). When i tried the 3070 on my wife's computer, it's not using the same PCI-E cable than on mine, and these cables still works fine for the 1070

Link to comment
Share on other sites

Link to post
Share on other sites

2 minutes ago, Erhyll said:

No, didn't work on any of the computers.

We have a dual system using a Phanteks power supply (a Revolt X 1200W). When i tried the 3070 on my wife's computer, it's not using the same PCI-E cable than on mine, and these cables still works fine for the 1070

I'm running out of ideas,



I could ask others that know more but it's not looking bright I'm affraid,


@PDifolco @Levent any experience with possible delayed water damage?:



On 4/16/2024 at 8:36 PM, Erhyll said:

I used to watercool my PC, and had a leakage, but i dried the card, and it worked during multiple months after that, it doesn't seem damaged, but it could be a cause. Of course, the problem occured a few months after the end of the warranty.



Note: Users receive notifications after Mentions & Quotes.

Feel free to ask any questions regarding my comments/build lists. I know a lot about PCs but not everything.

PC:

Ryzen 5 5600 |16GB DDR4 3200Mhz | B450 | GTX 1080 ti

PCs I used before:

Pentium G4500 | 4GB/8GB DDR4 2133Mhz | H110 | GTX 1050

Ryzen 3 1200 3,5Ghz / OC:4Ghz | 8GB DDR4 2133Mhz / 16GB 3200Mhz | B450 | GTX 1050

Ryzen 3 1200 3,5Ghz | 16GB 3200Mhz | B450 | GTX 1080 ti

Link to comment
Share on other sites

Link to post
Share on other sites

On 4/16/2024 at 9:36 PM, Erhyll said:

card is also reporting 225W consumption on the GPU when idling



On 4/16/2024 at 9:36 PM, Erhyll said:

I can "overclock" it with Afterburner and do a + 1 000 MHz, so the card run a "normal" 1210 MHz. There are a few frame drop when using this profile in Afterburner, but consumption is still at 280W and temps are around 50°C.



pull all your shunt resistors off the board and check their resistance.



ALSO before all that, check to see if you see anything abnormal in gpuz.  Here is my 3070 while furmark is running.

Spoiler


(note numbers are off by the order of of 1.66 as the card is of shunt modded with 3mr shunts).




mY sYsTeM iS Not pErfoRmInG aS gOOd As I sAW oN yOuTuBe. WhA t IS a GoOd FaN CuRVe??!!? wHat aRe tEh GoOd OvERclok SeTTinGS FoR My CaRd??  HoW CaN I foRcE my GpU to uSe 1o0%? BuT WiLL i HaVE Bo0tllEnEcKs? RyZEN dOeS NoT peRfORm BetTer wItH HiGhER sPEED RaM!!dId i WiN teH SiLiCON LotTerrYyOu ShoUlD dEsHrOuD uR GPUmy SYstEm iS UNDerPerforMiNg iN WarzONEcan mY Pc Run WiNdOwS 11 ?woUld BaKInG MY GRaPHics card fIX it? MultimETeR TeSTiNG!! aMd'S GpU DrIvErS aRe as goOD aS NviDia's YOU SHoUlD oVERCloCk yOUR ramS To 5000C18

Link to comment
Share on other sites

Link to post
Share on other sites

20 minutes ago, podkall said:

I'm running out of ideas,



I could ask others that know more but it's not looking bright I'm affraid,


@PDifolco @Levent any experience with possible delayed water damage?:





Yeah just dry everything really well and it'll work fine, got leakage on my board and GPU one time, took 2 days to fully dry !

But only if water don't contact anything electrical while the rig is on ... 😮



I suspect OP card has some  electrical/power delivery damage and reported wattage is doubled, it's a "reverse shunt mod" lol

Clock is wonky too, card is good for repair or trash bin

System : AMD R9  7950X3D CPU/ Asus ROG STRIX X670E-E board/ 2x32GB G-Skill Trident Z Neo 6000CL30 RAM ASUS TUF Gaming AMD Radeon RX 7900 XTX OC Edition GPU/ Phanteks P600S case /  Thermalright Peerless Assassin 120 cooler (with 2xArctic P12 Max fans) /  2TB WD SN850 NVme + 2TB Crucial T500  NVme  + 4TB Toshiba X300 HDD / Corsair RM850x PSU

Alienware AW3420DW 34" 120Hz 3440x1440p monitor / Logitech G915TKL keyboard (wireless) / Logitech G PRO X Superlight mouse / Audeze Maxwell headphones

Link to comment
Share on other sites

Link to post
Share on other sites

@PDifolco the water leakage was apparently months ago,



@PDifolco @Levent for a basic user I guess it means taking it to repair shop and hope they can fix whatever was damaged?

Note: Users receive notifications after Mentions & Quotes.

Feel free to ask any questions regarding my comments/build lists. I know a lot about PCs but not everything.

PC:

Ryzen 5 5600 |16GB DDR4 3200Mhz | B450 | GTX 1080 ti

PCs I used before:

Pentium G4500 | 4GB/8GB DDR4 2133Mhz | H110 | GTX 1050

Ryzen 3 1200 3,5Ghz / OC:4Ghz | 8GB DDR4 2133Mhz / 16GB 3200Mhz | B450 | GTX 1050

Ryzen 3 1200 3,5Ghz | 16GB 3200Mhz | B450 | GTX 1080 ti

Link to comment
Share on other sites

Link to post
Share on other sites

1 hour ago, podkall said:

@PDifolco the water leakage was apparently months ago,



@PDifolco @Levent for a basic user I guess it means taking it to repair shop and hope they can fix whatever was damaged?

Huh yes until you can do this  yourself, which is pretty rare, I've watched lots of vids from NorthWestRepair and still don't understand sh#t to what he's doing 😄



System : AMD R9  7950X3D CPU/ Asus ROG STRIX X670E-E board/ 2x32GB G-Skill Trident Z Neo 6000CL30 RAM ASUS TUF Gaming AMD Radeon RX 7900 XTX OC Edition GPU/ Phanteks P600S case /  Thermalright Peerless Assassin 120 cooler (with 2xArctic P12 Max fans) /  2TB WD SN850 NVme + 2TB Crucial T500  NVme  + 4TB Toshiba X300 HDD / Corsair RM850x PSU

Alienware AW3420DW 34" 120Hz 3440x1440p monitor / Logitech G915TKL keyboard (wireless) / Logitech G PRO X Superlight mouse / Audeze Maxwell headphones

Link to comment
Share on other sites

Link to post
Share on other sites

I will check my GPU-Z values but I guess it’s dead. I posted just to be sure that I didn’t forget to check something that could solve it just from software, but with very little hope, since the problem was the same on a different computer.

I will post the GPU-Z capture but guess i will have to buy a new one …

Link to comment
Share on other sites

Link to post
Share on other sites

  • 2 weeks later...

Hey, sorry for not responding for quite a while, i had lots of things to do.

So I just did a GPU-Z capture (and nVidia performances panel as well) with nothing running (except chrome). Here's what i get :


So something is bad, it shouldn't draw more than 200 Watts while doing nothing...

I also did a capture with Heaven running :


So, any idea of  what to do (instead of buying a new card) ?



Thank you

Link to comment
Share on other sites

Link to post
Share on other sites

Something is going on with the card itself. While GPU-Z indicates that it's pulling full power, the temperatures indicate otherwise. If the card was actually pulling 256W, I would expect the temperatures to be much higher, regardless of any clock speeds. So the solution here is to either repair the card, or purchase a new one. If you feel comfortable with it, you can try taking it apart and seeing if anything obvious shows up.

"It pays to keep an open mind, but not so open your brain falls out." - Carl Sagan.

"I can explain it to you, but I can't understand it for you" - Edward I. Koch

Link to comment
Share on other sites

Link to post
Share on other sites

Could be one of the shunt resistors is knocked or gone bad.

Link to comment
Share on other sites

Link to post
Share on other sites

Hello everyone !

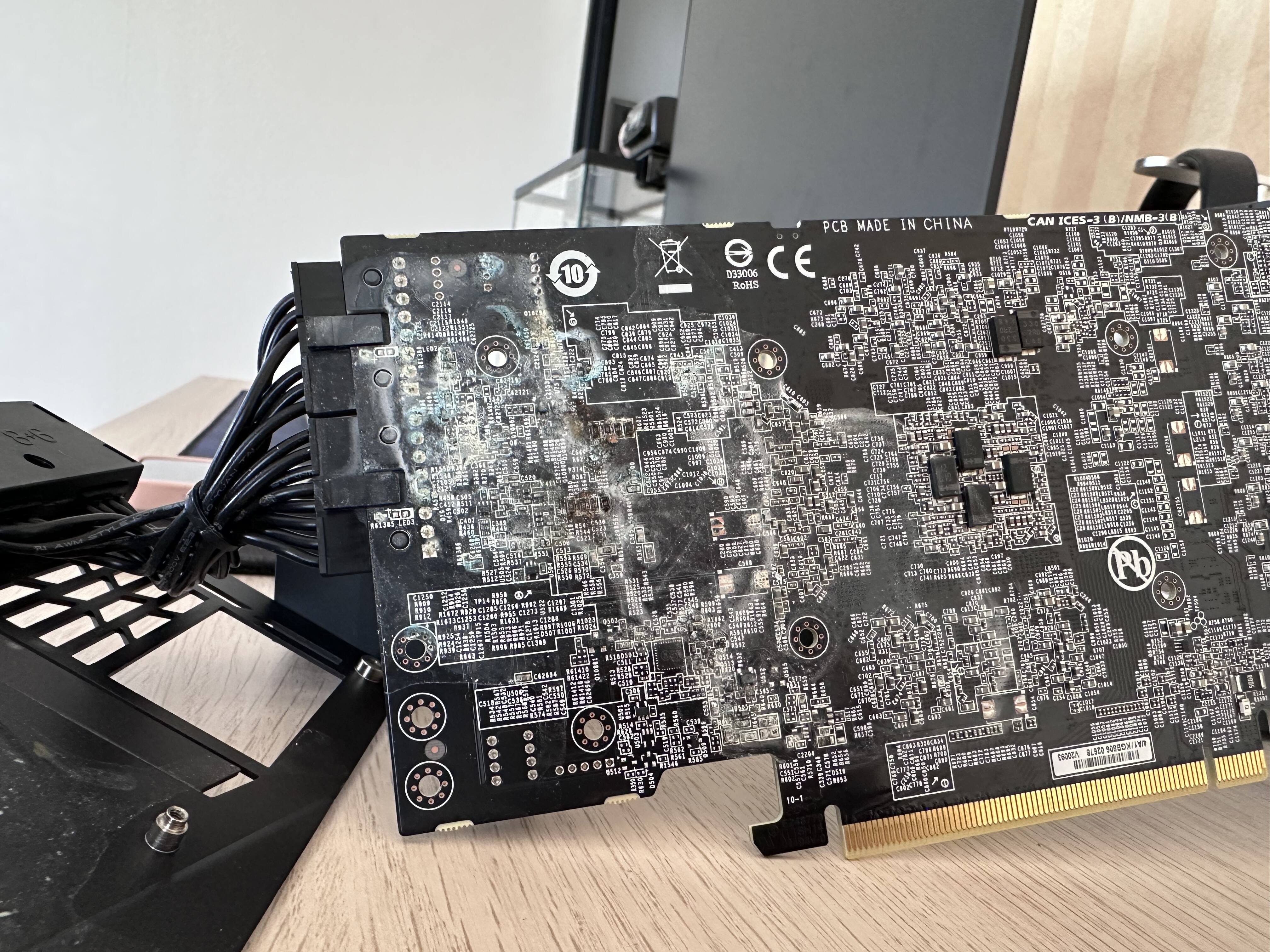

i had some free time today so i took apart the 3070. Guess there have been more water damage than i thought.

I won’t try to save this, so i think that it is officially dead now.



Thanks for the help anyway !IMG_0471.thumb.jpeg.105a2156fe481ba87c250446f5a9082e.jpeg
