Cheap Stream PC for PS4 build HELP

[fr4nk7749]

Hey everyone,

I'm a ps4 gamer and I just got an elgato HD60S so i could stream my PS4 as 1080p 60fps to OBS but unfortunately my computer is too old and doesn't have the necessary hardware to support the elgato. I wanted to try and build a rather cheap pc, around $500-$600, solely to stream. I will not be gaming on this computer and have never build a pc before. Any suggestions would be great appreciated and again its just for streaming.

                 Thanks!

[iKingRPG]

Can I send you a PC Part Picker list?

[iKingRPG]

Just now, iKingRPG said:

Can I send you a PC Part Picker list?

it is just a list of parts with prices



[iKingRPG]

13 minutes ago, fr4nk7749 said:

Hey everyone,

I'm a ps4 gamer and I just got an elgato HD60S so i could stream my PS4 as 1080p 60fps to OBS but unfortunately my computer is too old and doesn't have the necessary hardware to support the elgato. I wanted to try and build a rather cheap pc, around $500-$600, solely to stream. I will not be gaming on this computer and have never build a pc before. Any suggestions would be great appreciated and again its just for streaming.

                 Thanks!

Also, you could just try watching this Techquickie video: https://youtu.be/N5dqESQ1bmg

[fr4nk7749]

yeah i would love a list of components and any videos to help build it, I've never built one before so any/all help is greatly appreciated

[AskTJ]

Wont get much for $600. Look at used Ryzen 5 systems that have around 16GB ram, 8 minimum and see if you can negotiate around.

[AirSocial]

https://pcpartpicker.com/list/Y8Qm3b

CPUAMD - Ryzen 3 1200 3.1GHz Quad-Core Processor$94.00FREE$94.00Buy

MotherboardMSI - B350 PC MATE ATX AM4 Motherboard$79.99FREE$79.99Buy

MemoryCrucial - Ballistix Sport LT 8GB (2 x 4GB) DDR4-2400 Memory$99.99FREE$99.99Buy

StorageSanDisk - SSD PLUS 240GB 2.5" Solid State Drive$53.99FREE$53.99Buy

Video CardPowerColor - Radeon RX 560 - 896 4GB Video Card$152.99FREE$152.99Buy

CaseFractal Design - Focus G (Black) ATX Mid Tower Case$52.99FREE$52.99Buy

Power SupplyEVGA - B3 450W 80+ Bronze Certified Fully-Modular ATX Power Supply$56.07FREE$56.07Buy

Total (7 / 7 Items):$590.02

Something I just made quickly. Could 100% stream, also do decent gaming.

[fr4nk7749]

4 minutes ago, AirSocial said:

https://pcpartpicker.com/list/Y8Qm3b

CPUAMD - Ryzen 3 1200 3.1GHz Quad-Core Processor$94.00FREE$94.00Buy

MotherboardMSI - B350 PC MATE ATX AM4 Motherboard$79.99FREE$79.99Buy

MemoryCrucial - Ballistix Sport LT 8GB (2 x 4GB) DDR4-2400 Memory$99.99FREE$99.99Buy

StorageSanDisk - SSD PLUS 240GB 2.5" Solid State Drive$53.99FREE$53.99Buy

Video CardPowerColor - Radeon RX 560 - 896 4GB Video Card$152.99FREE$152.99Buy

CaseFractal Design - Focus G (Black) ATX Mid Tower Case$52.99FREE$52.99Buy

Power SupplyEVGA - B3 450W 80+ Bronze Certified Fully-Modular ATX Power Supply$56.07FREE$56.07Buy

Total (7 / 7 Items):$590.02

Something I just made quickly. Could 100% stream, also do decent gaming.

this will work with legato hd60s?

[AirSocial]

Just now, fr4nk7749 said:

this will work with legato hd60s?

Yes. RX cards are good for things like that. And Ryzen CPUs are way better than Intel for things like rendering, streaming, and recording because they have more cores and threads.

[AirSocial]

Hold up lemme change that CPU

[AirSocial]

Changed two things

https://pcpartpicker.com/list/tYX44q

[iKingRPG]

Made a list: https://pcpartpicker.com/list/pJwL4q

Edited July 25, 2018 by Crunchy Dragon

[iKingRPG]

1 minute ago, AirSocial said:

Changed two things

https://pcpartpicker.com/list/tYX44q

I included a capture card in mine is it good? https://pcpartpicker.com/list/tYX44q

[AirSocial]

Just now, iKingRPG said:

I included a capture card in mine is it good? https://pcpartpicker.com/list/tYX44q

Its not really that good. There is no GPU. He already has a Capture Card.

[iKingRPG]

Just now, iKingRPG said:

I included a capture card in mine is it good? https://pcpartpicker.com/list/tYX44q

Should i replace it with a GPU like you did? because then he has to buy an external dongle too.

[iKingRPG]

Just now, AirSocial said:

Its not really that good. There is no GPU. He already has a Capture Card.

OHH ok

[AirSocial]

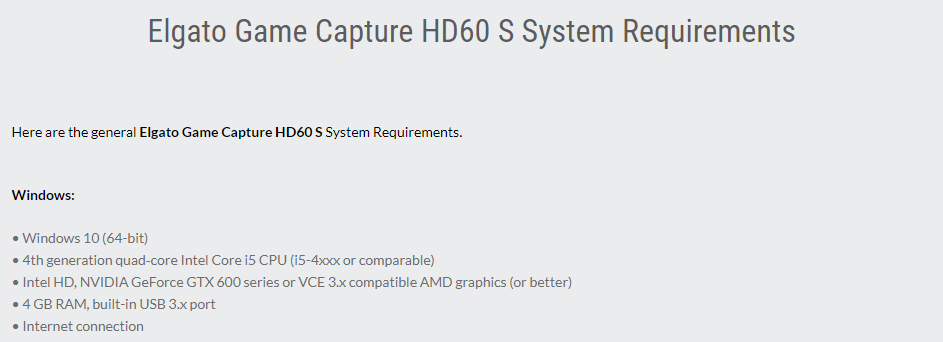

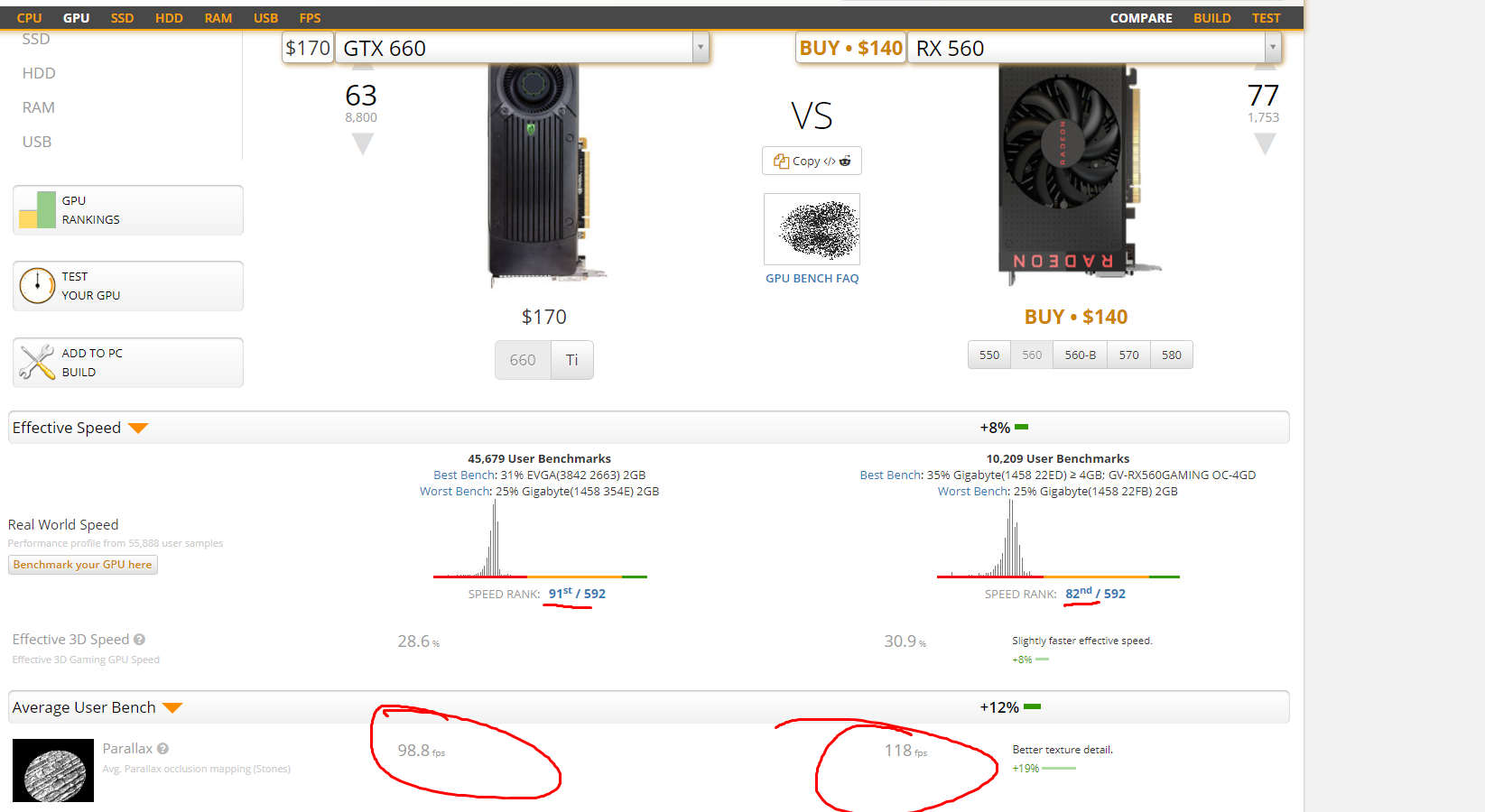

These are pictures showing the list I made would be more than the recommended specs for Elgato HD60S

https://pcpartpicker.com/list/tYX44q

Also it says atleast I5 4th gen, Thats a 6th gen and the Ryzen is better

[iKingRPG]

Just now, AirSocial said:

These are pictures showing the list I made would be more than the recommended specs for Elgato HD60S

https://pcpartpicker.com/list/tYX44q

true... ok

[Redicat]

PCPartPicker part list / Price breakdown by merchant

CPU: AMD - Ryzen 3 1200 3.1GHz Quad-Core Processor  ($89.99 @ SuperBiiz)
Motherboard: ASRock - A320M Pro4 Micro ATX AM4 Motherboard  ($64.06 @ Newegg Business)
Memory: Team - Elite Plus 8GB (1 x 8GB) DDR4-2400 Memory  ($70.98 @ Newegg)
Storage: Silicon Power - 128GB 2.5" Solid State Drive  ($28.99 @ Newegg)
Video Card: MSI - Radeon RX 560 - 1024 4GB LP OC Video Card  ($119.98 @ Newegg)
Case: Cooler Master - MasterBox Q300L MicroATX Mini Tower Case  ($45.98 @ Newegg)
Power Supply: SeaSonic - 520W 80+ Bronze Certified Fully-Modular ATX Power Supply  ($34.99 @ Newegg)
Total: $454.97
Prices include shipping, taxes, and discounts when available
Generated by PCPartPicker 2018-07-25 01:07 EDT-0400

[iKingRPG]

4 minutes ago, AirSocial said:

These are pictures showing the list I made would be more than the recommended specs for Elgato HD60S

https://pcpartpicker.com/list/tYX44q

https://pcpartpicker.com/list/8kwL4q done.

[Redicat]

1 minute ago, iKingRPG said:

https://pcpartpicker.com/list/8kwL4q done.

OVERKILL

[AirSocial]

2 minutes ago, iKingRPG said:

https://pcpartpicker.com/list/8kwL4q done.

The one I have is perfect for streaming. All you did was remove the Capture Card then added a GPU. I have an Elgato HD60. THey are really easy to power it. If he is using it just for streaming he should go Ryzen

[AirSocial]

1 minute ago, Redicat said:

OVERKILL

Your right, he could use a stock cooler and that board is overkill

[Redicat]

8 minutes ago, AirSocial said:

Your right, he could use a stock cooler and that board is overkill

Ryzen 1200 should do fine



PCPartPicker part list / Price breakdown by merchant

CPU: AMD - Ryzen 3 2200G 3.5GHz Quad-Core Processor  ($94.99 @ Newegg Marketplace)
Motherboard: ASRock - A320M Pro4 Micro ATX AM4 Motherboard  ($59.49 @ SuperBiiz)
Memory: Team - Elite Plus 8GB (1 x 8GB) DDR4-2400 Memory  ($70.98 @ Newegg)
Storage: Silicon Power - 128GB 2.5" Solid State Drive  ($28.99 @ Newegg)
Video Card: MSI - Radeon RX 560 - 1024 4GB LP OC Video Card  ($119.98 @ Newegg)
Case: Cooler Master - MasterBox Q300L MicroATX Mini Tower Case  ($45.98 @ Newegg)
Power Supply: SeaSonic - 520W 80+ Bronze Certified Fully-Modular ATX Power Supply  ($34.99 @ Newegg)
Total: $455.40
Prices include shipping, taxes, and discounts when available
Generated by PCPartPicker 2018-07-25 01:19 EDT-0400



• Some AMD A320 chipset motherboards may need a BIOS update prior to using Raven Ridge CPUs. Upgrading the BIOS may require a different CPU that is supported by older BIOS revisions.

ASK https://www.superbiiz.com for a BIOS update



[AskTJ]

I would drop the console and get a ryzen 7 system with a 1060 or RX580. You can use a controller with a USB wireless reciever or USB wired.
