CPU locked overclocking?

[Sir Asvald]

Hello people! I went into my bios to see if I could change the core clock on my CPU and it let me. I was wondering would it work? Especially when my CPU is locked, its an i5 4690 and my motherboard is Z97-A (please don't judge lol)



Thanks.





[Mr.Meerkat]

May as well give it a try?

[Sack]

Won't work unless it's a k processor. There were boards that could do this, but intel nuked it via a secret micro code delivered by windows update, and poof, no more overclocking non-k processors.

[Mr.Meerkat]

7 minutes ago, Sack said:

Won't work unless it's a k processor. There were boards that could do this, but intel nuked it via a secret micro code delivered by windows update, and poof, no more overclocking non-k processors.

That's skylake chips tho...he has a haswell chip so...

[Coaxialgamer]

shouldn't work , considering intel locks it in hardware . But why not try anyway ?

[Sir Asvald]

12 minutes ago, Mr.Meerkat said:

May as well give it a try?



2 minutes ago, Coaxialgamer said:

shouldn't work , considering intel locks it in hardware . But why not try anyway ?



12 minutes ago, Sack said:

Won't work unless it's a k processor. There were boards that could do this, but intel nuked it via a secret micro code delivered by windows update, and poof, no more overclocking non-k processors.

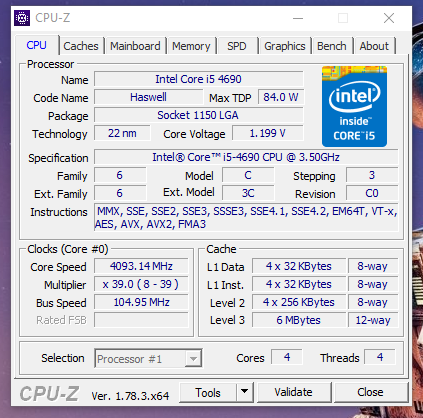

I got it to 4Ghz  I might increase it



[Mr.Meerkat]

Just now, Abdul201588 said:

I got it to 4Ghz  I might increase it

Thanks for proving @Sack and @Coaxialgamer wrong

[Coaxialgamer]

1 minute ago, Abdul201588 said:





I got it to 4Ghz  I might increase it





nothing weird there. 4690 has a boost ratio of 39 . You won't be getting more than 105 Bclock though...

[Tech Wizard]

Remember to adjust voltage for higher clocks. Keep us updated

[DildorTheDecent]

1 minute ago, Abdul201588 said:





I got it to 4Ghz  I might increase it





105MHz would be your limit usually.

[Coaxialgamer]

Just now, Mr.Meerkat said:

Thanks for proving @Sack and @Coaxialgamer wrong

nothing out of the ordinary in that pic . Just the cpu operating normally . You'll notice the Ratio doesn't exceed the max 39 listed by intel.

[Mr.Meerkat]

Just now, Coaxialgamer said:

nothing out of the ordinary in that pic . Just the cpu operating normally . You'll notice the Ratio doesn't exceed the max 39 listed by intel.

Hey, we never said anything about Multiplier or BCLK overclocking...

Soooo technically you were still wrong for assuming it was a multiplier OC

[Coaxialgamer]

Just now, Mr.Meerkat said:

Hey, we never said anything about Multiplier or BCLK overclocking...

Soooo technically you were still wrong for assuming it was a multiplier OC

Well actually , he mentionned the 4690 as "locked" , meaning the multiplier .

And he won't be getting more than 105mhz though

[Mr.Meerkat]

1 minute ago, Coaxialgamer said:

Well actually , he mentionned the 4690 as "locked" , meaning the multiplier .

And he won't be getting more than 105mhz though

Why don't we call both of us correct?

After all, we are both technically correct...

[Sir Asvald]

3 minutes ago, Coaxialgamer said:

Well actually , he mentionned the 4690 as "locked" , meaning the multiplier .

And he won't be getting more than 105mhz though



1 minute ago, Mr.Meerkat said:

Why don't we call both of us correct?

After all, we are both technically correct...



8 minutes ago, DildorTheDecent said:

105MHz would be your limit usually.

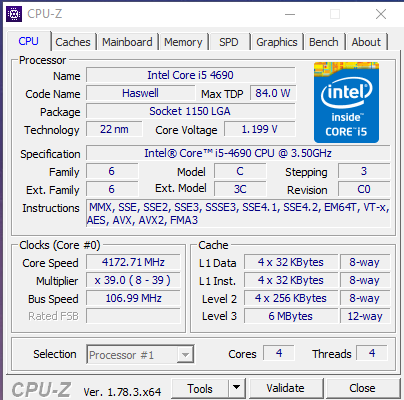

I tried 107MHz and it worked!





[Daniel Z.]

Can H97 still OC

[Coaxialgamer]

3 minutes ago, Abdul201588 said:





I tried 107MHz and it worked!





i doubt that's going to be stable for any length of time under load

[Sir Asvald]

Just now, Coaxialgamer said:

i doubt that's going to be stable for any length of time under load

Give me some apps and stress test it for.

[Coaxialgamer]

Just now, Abdul201588 said:

Give me some apps and stress test it for.

aida 64 stabilty test : FPU+CPU

[Tech Wizard]

12 minutes ago, Abdul201588 said:

Give me some apps and stress test it for.

Aida64, Prime95, IntelBurnTest

[Sir Asvald]

5 minutes ago, Coaxialgamer said:

aida 64 stabilty test : FPU+CPU

How long should I do for? 1 hour?

[Coaxialgamer]

Just now, Abdul201588 said:

How long should I do for? 1 hour?

at the very least . I don't expect it to last more than 15 minutes , but if you plan on using it 24/7 , you need at least 12 hours

[Sir Asvald]

2 minutes ago, Coaxialgamer said:

at the very least . I don't expect it to last more than 15 minutes , but if you plan on using it 24/7 , you need at least 12 hours

We will see.

[Sir Asvald]

26 minutes ago, Coaxialgamer said:

at the very least . I don't expect it to last more than 15 minutes , but if you plan on using it 24/7 , you need at least 12 hours

LOL. it failed at 25 minutes. Well at least at 105 works.  an extra 500mhz on a locked CPU
