inwin 805c Question

VMBRA_
By VMBRA_
in Power Supplies
 Share
Posted

Hi guys I just bought an inwin 805c and I am wondering if I can place a 360 mm AIO like corsair h150i pro inside of it, if I remove the HDD Trays, so I can have 2 fans perfectly aligned at the front.



If any owner of onw of those can tell I would be most grateful :)

Link to comment
Share on other sites
Link to post
Share on other sites
Posted
  • Author
12 minutes ago, Crunchy Dragon said:

Not a 360mm AIO, but you can fit up to a 280mm rad in the front.

the Idea was to fill all the available space in the front with RGB fans on the radiator. 3 seems to be good but I don't know if I can do that with a 280 mm radiator. I think only 2x fans, and don't know if they will fill the space. Never mounted an AIO before, only traditional air coolers so... Don't want to buy a thing so that when I start to mount it it won't fit or not be able to do what I want.

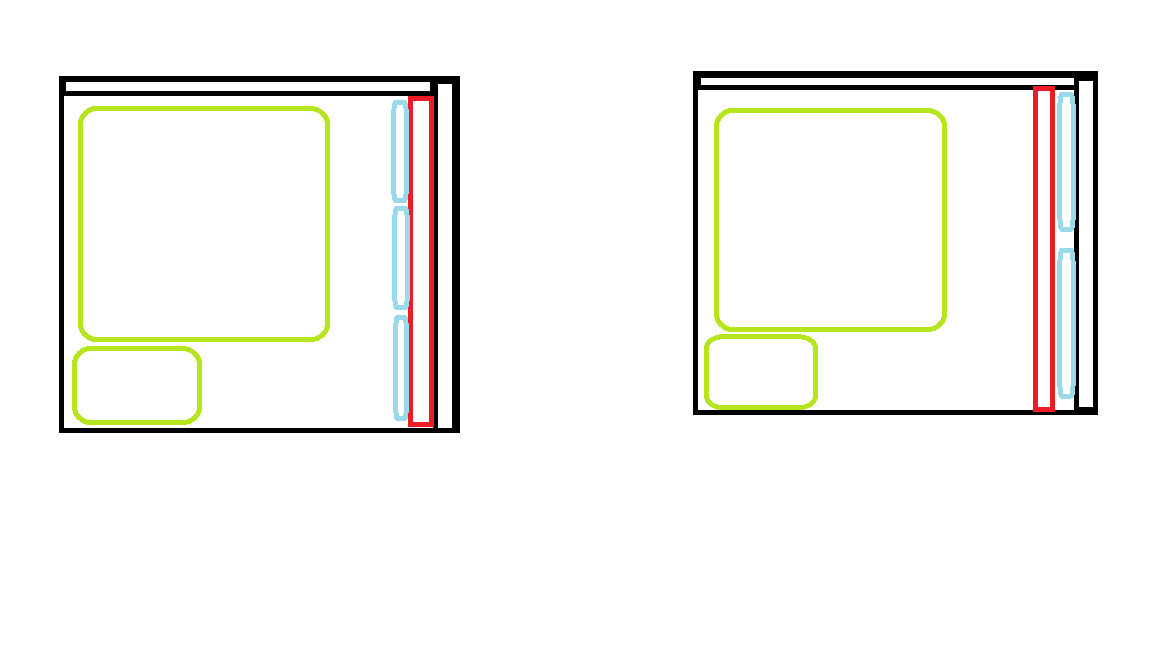

Like on this quickly made picture...



Black: the case

Red: the radiator

Blue: the fans

Green: PSU and MoBo



Please point me on the right direction.



Sem Título.png

Link to comment
Share on other sites
Link to post
Share on other sites
Posted
4 minutes ago, VMBRA_ said:

the Idea was to fill all the available space in the front with RGB fans on the radiator. 3 seems to be good but I don't know if I can do that with a 280 mm radiator. I think only 2x fans, and don't know if they will fill the space. Never mounted an AIO before, only traditional air coolers so... Don't want to buy a thing so that when I start to mount it it won't fit or not be able to do what I want.

Like on this quickly made picture...



Black: the case

Red: the radiator

Blue: the fans

Green: PSU and MoBo



Please point me on the right direction.



-snip-

Your case does not support more than 2 fans in the front of the case. These can be 2x120mm fans, or 2x140mm fans.



Quote
  • 2 x 120/140mm Front Fan
  • 1 x 120 Rear Fan (Pre-installed)
  • 2 x 120mm Bottom Fan
  • 1 x 280mm Front Radiator
  • 1 x 120mm Rear Radiator
  • CPU Heatsink Compatible
    - CPU die surface to side panel height: 156mm Maximum

https://www.in-win.com/en/gaming-chassis/805#product_spec

Quote or tag me( @Crunchy Dragon) if you want me to see your reply

If a post solved your problem/answered your question, please consider marking it as "solved"

Community Standards // Join Floatplane!

Link to comment
Share on other sites
Link to post
Share on other sites
Posted
  • Author
4 minutes ago, Crunchy Dragon said:

Your case does not support more than 2 fans in the front of the case. These can be 2x120mm fans, or 2x140mm fans.



https://www.in-win.com/en/gaming-chassis/805#product_spec

ok will try a corsair 280mm (like a 110i or a 115i) and change the radiator fans with 2x corsair LL140 RGB fans.

thanks by the way :)

Link to comment
Share on other sites
Link to post
Share on other sites
Posted
40 minutes ago, VMBRA_ said:

Hi guys I just bought an inwin 805c

F

40 minutes ago, VMBRA_ said:

I am wondering if I can place a 360 mm AIO like corsair h150i pro inside of it, if I remove the HDD Trays, so I can have 2 fans perfectly aligned at the front.

You can get it to work if you make some modifications

https://pcpartpicker.com/b/VP2RsY

But honestly this case isnt worth it. It looks amazing but the case has no airflow what-so-ever. I would strongly recommend a different case if you have the ability to return it

"Put as much effort into your question as you'd expect someone to give in an answer"- @Princess Luna

Make sure to Quote posts or tag the person with @[username] so they know you responded to them!

 RGB Build Post 2019 --- Rainbow 🦆 2020 --- Velka 5 V2.0 Build 2021

Purple Build Post ---  Blue Build Post --- Blue Build Post 2018 --- Project ITNOS

CPU i7-4790k    Motherboard Gigabyte Z97N-WIFI    RAM G.Skill Sniper DDR3 1866mhz    GPU EVGA GTX1080Ti FTW3    Case Corsair 380T

Storage Samsung EVO 250GB, Samsung EVO 1TB, WD Black 3TB, WD Black 5TB    PSU Corsair CX750M    Cooling Cryorig H7 with NF-A12x25

Link to comment
Share on other sites
Link to post
Share on other sites
Posted
  • Author
8 minutes ago, TVwazhere said:

F

You can get it to work if you make some modifications

https://pcpartpicker.com/b/VP2RsY

But honestly this case isnt worth it. It looks amazing but the case has no airflow what-so-ever. I would strongly recommend a different case if you have the ability to return it

I cannot return it atm. and yes in those pictures you linked I saw what I want to do. So I already completely removed the HDD bay. Is that all the modifications I will ever need? will h150i fit in there?

I will only start to build it in september, when i get back to Portugal. In the meantime im gathering information so I can plan ahead what I will do.

Link to comment
Share on other sites
Link to post
Share on other sites
Posted
1 minute ago, VMBRA_ said:

I cannot return it atm. and yes in those pictures you linked I saw what I want to do. So I already completely removed the HDD bay. Is that all the modifications I will ever need? will h150i fit in there?

The modification to get a 360mm rad to fit is shown in the pictures and mentioned in the description.

"Put as much effort into your question as you'd expect someone to give in an answer"- @Princess Luna

Make sure to Quote posts or tag the person with @[username] so they know you responded to them!

 RGB Build Post 2019 --- Rainbow 🦆 2020 --- Velka 5 V2.0 Build 2021

Purple Build Post ---  Blue Build Post --- Blue Build Post 2018 --- Project ITNOS

CPU i7-4790k    Motherboard Gigabyte Z97N-WIFI    RAM G.Skill Sniper DDR3 1866mhz    GPU EVGA GTX1080Ti FTW3    Case Corsair 380T

Storage Samsung EVO 250GB, Samsung EVO 1TB, WD Black 3TB, WD Black 5TB    PSU Corsair CX750M    Cooling Cryorig H7 with NF-A12x25

Link to comment
Share on other sites
Link to post
Share on other sites
Posted
  • Author
4 minutes ago, TVwazhere said:

The modification to get a 360mm rad to fit is shown in the pictures and mentioned in the description.

Didn't saw the cut u did before :D ye u just need to cut the lid and it will pass down. :D thank you very much :D

soooo. in your opinion... think a corsair h150i will fit there?

Link to comment
Share on other sites
Link to post
Share on other sites
Posted
2 minutes ago, VMBRA_ said:

Didn't saw the cut u did before :D ye u just need to cut the lid and it will pass down. :D thank you very much :D

soooo. in your opinion... think a corsair h150i will fit there?

There is physically enough space for a 360mm to fit there. Radiators are usually a standard length width and thickness especially on AIOs.



Cutting the front bracket for mounting the fans and Rad would void any ability to return the case in the future. If you're concerned with that I would suggest getting a 280mm RAD instead, or a new case.

"Put as much effort into your question as you'd expect someone to give in an answer"- @Princess Luna

Make sure to Quote posts or tag the person with @[username] so they know you responded to them!

 RGB Build Post 2019 --- Rainbow 🦆 2020 --- Velka 5 V2.0 Build 2021

Purple Build Post ---  Blue Build Post --- Blue Build Post 2018 --- Project ITNOS

CPU i7-4790k    Motherboard Gigabyte Z97N-WIFI    RAM G.Skill Sniper DDR3 1866mhz    GPU EVGA GTX1080Ti FTW3    Case Corsair 380T

Storage Samsung EVO 250GB, Samsung EVO 1TB, WD Black 3TB, WD Black 5TB    PSU Corsair CX750M    Cooling Cryorig H7 with NF-A12x25

Link to comment
Share on other sites
Link to post
Share on other sites
Posted
  • Author
1 minute ago, TVwazhere said:

There is physically enough space for a 360mm to fit there. Radiators are usually a standard length width and thickness especially on AIOs.



Cutting the front bracket for mounting the fans and Rad would void any ability to return the case in the future. If you're concerned with that I would suggest getting a 280mm RAD instead, or a new case.

I am not worried about warranties. I just want to build "the thing" like I planned :)
by the way, you sir were really helpful, thank you :)
