OBS - High Encoding, High CPU Usage Warning

Aidanh1994
 Share
Posted
Hi all,

I'm having problems recording with OBS. I don't get any in game lag or anything, however when I watch the footage the quality is low and it stutters.

I've noticed that when I'm recording I get the "High Encoding, High CPU usage" warning whilst recording, but my bitrate is at 8000 at the moment. Wanting to record in 1080p also.

My current specs are:

i7 4790k
8gb RAM
2x 780 TI in SLI

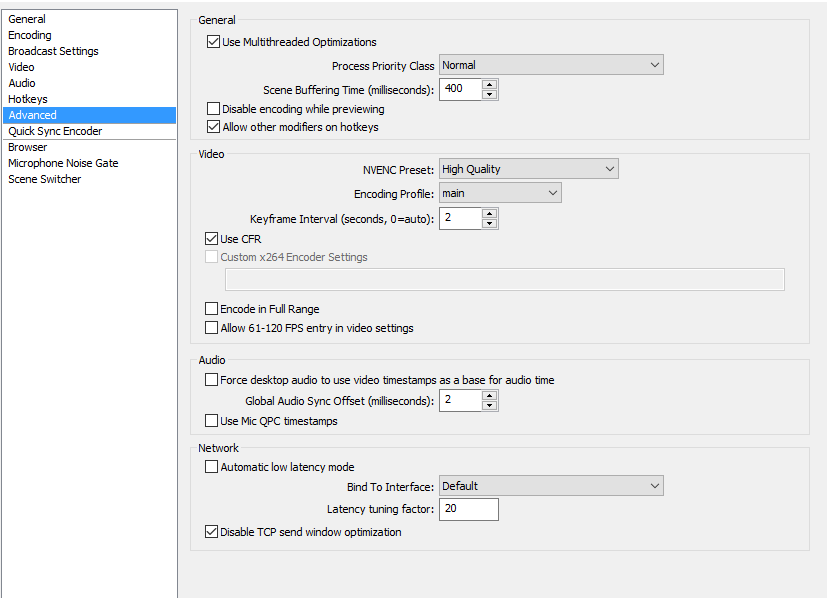

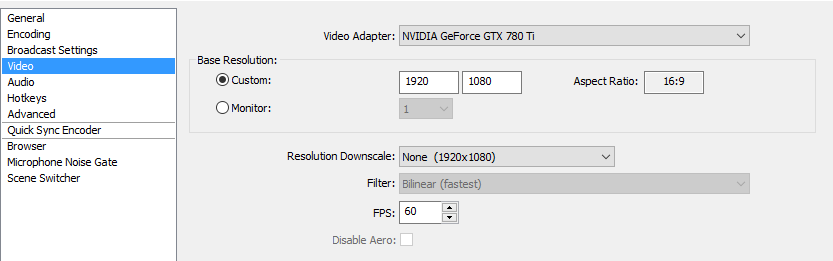

OBS Settings are:


I mean my systems pretty decent, so I'm not sure what's going on at all?

Anyone got any ideas at all?

Thanks,

Aidan
Link to comment
https://linustechtips.com/topic/612760-obs-high-encoding-high-cpu-usage-warning/
Share on other sites
Link to post
Share on other sites
Posted

what is your storage drive

NEW PC build: Blank Heaven   minimalist white and black PC     Old S340 build log "White Heaven"        The "LIGHTCANON" flashlight build log        Project AntiRoll (prototype)        Custom speaker project

Spoiler

Ryzen 3950X | AMD Vega Frontier Edition | ASUS X570 Pro WS | Corsair Vengeance LPX 64GB | NZXT H500 | Seasonic Prime Fanless TX-700 | Custom loop | Coolermaster SK630 White | Logitech MX Master 2S | Samsung 980 Pro 1TB + 970 Pro 512GB | Samsung 58" 4k TV | Scarlett 2i4 | 2x AT2020



Link to post
Share on other sites
Posted
1 minute ago, Aidanh1994 said:

A 1tb HDD, it is fairly old to be honest.

k it probably cant handle the high bitrate

you need a good HDD or SSD

or reduce bitrate a lot

NEW PC build: Blank Heaven   minimalist white and black PC     Old S340 build log "White Heaven"        The "LIGHTCANON" flashlight build log        Project AntiRoll (prototype)        Custom speaker project

Spoiler

Ryzen 3950X | AMD Vega Frontier Edition | ASUS X570 Pro WS | Corsair Vengeance LPX 64GB | NZXT H500 | Seasonic Prime Fanless TX-700 | Custom loop | Coolermaster SK630 White | Logitech MX Master 2S | Samsung 980 Pro 1TB + 970 Pro 512GB | Samsung 58" 4k TV | Scarlett 2i4 | 2x AT2020



Link to post
Share on other sites
Posted
5 minutes ago, Aidanh1994 said:

so if I change the path to the SSD I have it should be ok?



Or do I have to reinstall OBS to the SSD?

yes you just need to change the path

NEW PC build: Blank Heaven   minimalist white and black PC     Old S340 build log "White Heaven"        The "LIGHTCANON" flashlight build log        Project AntiRoll (prototype)        Custom speaker project

Spoiler

Ryzen 3950X | AMD Vega Frontier Edition | ASUS X570 Pro WS | Corsair Vengeance LPX 64GB | NZXT H500 | Seasonic Prime Fanless TX-700 | Custom loop | Coolermaster SK630 White | Logitech MX Master 2S | Samsung 980 Pro 1TB + 970 Pro 512GB | Samsung 58" 4k TV | Scarlett 2i4 | 2x AT2020



Link to post
Share on other sites
Posted
3 minutes ago, Aidanh1994 said:



It didn't work unfortunately :/

:(

whats your CPU usage while recording

NEW PC build: Blank Heaven   minimalist white and black PC     Old S340 build log "White Heaven"        The "LIGHTCANON" flashlight build log        Project AntiRoll (prototype)        Custom speaker project

Spoiler

Ryzen 3950X | AMD Vega Frontier Edition | ASUS X570 Pro WS | Corsair Vengeance LPX 64GB | NZXT H500 | Seasonic Prime Fanless TX-700 | Custom loop | Coolermaster SK630 White | Logitech MX Master 2S | Samsung 980 Pro 1TB + 970 Pro 512GB | Samsung 58" 4k TV | Scarlett 2i4 | 2x AT2020



Link to post
Share on other sites
Posted
22 minutes ago, Aidanh1994 said:
Hi all,

I'm having problems recording with OBS. I don't get any in game lag or anything, however when I watch the footage the quality is low and it stutters.

I've noticed that when I'm recording I get the "High Encoding, High CPU usage" warning whilst recording, but my bitrate is at 8000 at the moment. Wanting to record in 1080p also.

My current specs are:

i7 4790k
8gb RAM
2x 780 TI in SLI

OBS Settings are:


I mean my systems pretty decent, so I'm not sure what's going on at all?

Anyone got any ideas at all?

Thanks,

Aidan

uncheck both CBR options, and change your bitrate from 8000kbps to 5000kbps (which is still about twice what you see in a 1080p youtube video)

Please spend as much time writing your question, as you want me to spend responding to it.  Take some time, and explain your issue, please!

Spoiler

If you need to learn how to install Windows, check here:  http://linustechtips.com/main/topic/324871-guide-how-to-install-windows-the-right-way/

Event Viewer 101: https://youtu.be/GiF9N3fJbnE



Link to post
Share on other sites
Posted

I think unfortunately you might just be lacking the raw CPU power to record games with high CPU usage at 1080p 60FPS. The high CPU usage warning means you are getting up in the 90's on your CPU usage percent. It shouldn't have anything to do with the hard drive.

Lenovo Ideapad 720s 14 inch ------ One day I'll have a desktop again...

Link to post
Share on other sites
Posted
38 minutes ago, Spork829 said:

I think unfortunately you might just be lacking the raw CPU power to record games with high CPU usage at 1080p 60FPS. The high CPU usage warning means you are getting up in the 90's on your CPU usage percent. It shouldn't have anything to do with the hard drive.

his cpu has 4 cores 8 threads so that can be the cause. i recorded using OBS with 2 xeon x5650s and had no problems at all

"Learn from yesterday, live for today, hope for tomorrow. The important thing is not to stop questioning." -Albert Einstein

Link to post
Share on other sites
Posted
1 minute ago, glitchmaster0001 said:

his cpu has 4 cores 8 threads so that can be the cause. i recorded using OBS with 2 xeon x5650s and had no problems at all

I mean I record games just fine with my i5 4460, but that's at usually at 720p and 30 or 60 FPS. You need an extremely beefy CPU such as those Xeons to record a highly CPU- bound games at 1080p 60 FPS, that's just the way it is.

Lenovo Ideapad 720s 14 inch ------ One day I'll have a desktop again...

Link to post
Share on other sites
Posted
  • Author

Thanks for the advice guys. I'll give it a go when I get back home tomorrow.



From all the videos I've watched etc I was under the impression my i7 4790k would cut it for 1080p 60 FPS, but I assume not now?



Put it this way I'm trying to record CSGO at the moment, which isn't all that taxing, but I'm assuming it's probably CPU Intensive?

Link to post
Share on other sites
