Board for my demonic processor

Andyg666
By Andyg666
in CPUs, Motherboards, and Memory
 Share
Posted

Ok at the end of the line here I have a Ryzen 3 2300x processor and have tackled it in 3 different motherboards with all the same result no display or post so after looking I see my boards are not compatible with this chip so what I'm asking is does anyone actually know what board this chip will work in I'm looking at this

Aorus B450 AORUS M (Socket AM4/B450/DDR4/S-ATA 600/Micro ATX)




  1. Aorus B450 AORUS M (Socket AM4/B450/DDR4/S-ATA 600/Micro ATX)

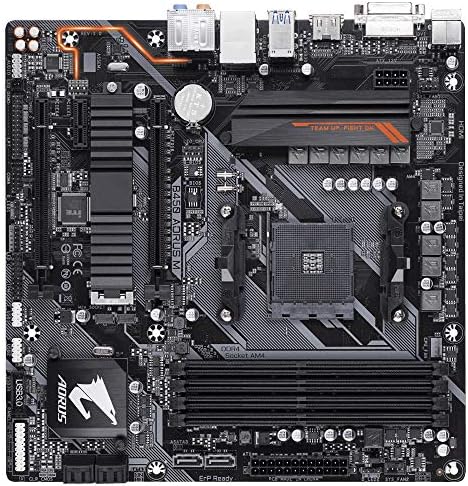

  2. 610-+NSSypL._AC_SY780_.jpg
  3. 51LR3zl4GNL._AC_SY350_.jpg
  4. 61Alhwyn9FL._AC_SY350_.jpg
  5. 61Xjj6vCodL._AC_SY350_.jpg

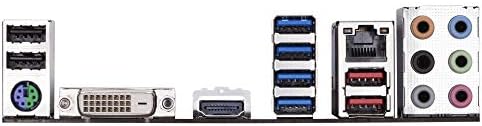

  6. 418WkXVCcSL._AC_SY350_.jpg
  7. 619CQkM3KlL._SY350_PKmb-play-button-over
    `
Link to comment
https://linustechtips.com/topic/1403560-board-for-my-demonic-processor/
Share on other sites
Link to post
Share on other sites
Posted
5 minutes ago, Andyg666 said:

Thank you i will have a look I have already tried Asus prime A320m-K and same board -R again I will have a look just this board was easily available for me

But you ARE using a dedicated GPU and plugging into that correct?

Current Network Layout:

Current Build Log/PC:

Storage Server Setup:



Prior Build Log/PC:

Link to post
Share on other sites
Posted

You'll want a MB with FlashBack. That allows for flashing the BIOS with just power, the MB, and a USB thumb drive. No CPU or RAM is required.



It's possible you just need the BIOS updated, or you've got some incompatible sticks of RAM. It's also possible you have a faulty GPU preventing the MB from POSTing.

Link to post
Share on other sites
Posted
1 minute ago, Andyg666 said:

Hey buddy no I have just been using the onboard hdmi I'm waiting on my new GPU was just setting it all up

The CPU doesn't have a built-in GPU, so you are not going to get video out of the mobo.

NOTE: I no longer frequent this site. If you really need help, PM/DM me and my e.mail will alert me.

Link to post
Share on other sites
Posted
4 minutes ago, Andyg666 said:

Great I will get a card fitted tomorrow and see what happens fingers crossed but just incase would a B450 be compatible even if I need separate GPU thanks for the info .

Yah, a B450 should work with the CPU just fine.

Current Network Layout:

Current Build Log/PC:

Storage Server Setup:



Prior Build Log/PC:

Link to post
Share on other sites
Posted
3 hours ago, Andyg666 said:

Hey buddy no I have just been using the onboard hdmi I'm waiting on my new GPU was just setting it all up

That HDMI port doesn't work with your CPU,you need to connect your display to a GPU.

The board you have now is probably working,you just need a GPU to display a picture...

A PC Enthusiast since 2011
AMD Ryzen 7 5700X@4.65GHz | GIGABYTE RTX 3080 GAMING OC | 4x 8GB Micron Rev.E (D9VPP) 3800MHz 16-19-14-21-58
Link to post
Share on other sites
Posted
  • Author

Ok well I have stuck an older AMD RADEON R5 340X C870 2GB DDR3 in my B450 gaming board but still I have no display I am using a DP to HDMI converter do you think this could be causing any grief I'm about to pack it up and hide it all away lol.

Build is.

B450 gaming motherboard.

Ryzen 3 2600x wraith cooler

AMD RADEON R5 340X 2GB DDR3 (Temp)

8gb ddr4 ram

Won't get into drives but surely this should post .. all I get is no signal arghhhh...













Link to post
Share on other sites
Posted

What are you plugging the monitor into? Motherboard or GPU?

When you turn it on, do any fans light up or spin?

What power supply are you using and what connectors do you have plugged into the GPU?

What motherboard are you using?





Edit:

I'm assuming it's the Gigabyte B450 Aorus M you linked in the first post. Do any of the debug LEDs light up? Number 22 in this picture.


I'm not actually trying to be as grumpy as it seems.

I will find your mentions of Ikea or Gnome and I will /s post.

Project Hot Box

CPU 13900k, Motherboard Gigabyte Aorus Elite AX, RAM CORSAIR Vengeance 4x16gb 5200 MHZ, GPU Zotac RTX 4090 Trinity OC, Case Fractal Pop Air XL, Storage Sabrent Rocket Q4 2tb, CORSAIR Force Series MP510 1920GB NVMe, CORSAIR FORCE Series MP510 960GB NVMe, PSU CORSAIR HX1000i, Cooling Corsair XC8 CPU block, Bykski GPU block, 360mm and 280mm radiator, Displays Odyssey G9, LG 34UC98-W 34-Inch,Keyboard Mountain Everest Max, Mouse Mountain Makalu 67, Sound AT2035, Massdrop 6xx headphones, Go XLR

Oppbevaring

CPU i9-9900k, Motherboard, ASUS Rog Maximus Code XI, RAM, 48GB Corsair Vengeance LPX 32GB 3200 mhz (2x16)+(2x8) GPUs Asus ROG Strix 2070 8gb, PNY 1080, Nvidia 1080, Case Mining Frame, 2x Storage Samsung 860 Evo 500 GB, PSU Corsair RM1000x and RM850x, Cooling Asus Rog Ryuo 240 with Noctua NF-12 fans



Why is the 5800x so hot?





Link to post
Share on other sites
Posted
6 minutes ago, Andyg666 said:

Ok it's a gigabyte ab350 gaming board.

Plugged into GPU.

Lights up led on motherboard and GPU lights up and fans spin when booted

500w Psu









Make sure you quote or we don't get notifications that you replied. I happened to have this thread open still.

It seems like revision 1 of that motherboard didn't have debug LEDs, but some of the newer ones have them in the bottom right corner near the front panel connectors and bottom Sata connector. Does yours?


I'm not actually trying to be as grumpy as it seems.

I will find your mentions of Ikea or Gnome and I will /s post.

Project Hot Box

CPU 13900k, Motherboard Gigabyte Aorus Elite AX, RAM CORSAIR Vengeance 4x16gb 5200 MHZ, GPU Zotac RTX 4090 Trinity OC, Case Fractal Pop Air XL, Storage Sabrent Rocket Q4 2tb, CORSAIR Force Series MP510 1920GB NVMe, CORSAIR FORCE Series MP510 960GB NVMe, PSU CORSAIR HX1000i, Cooling Corsair XC8 CPU block, Bykski GPU block, 360mm and 280mm radiator, Displays Odyssey G9, LG 34UC98-W 34-Inch,Keyboard Mountain Everest Max, Mouse Mountain Makalu 67, Sound AT2035, Massdrop 6xx headphones, Go XLR

Oppbevaring

CPU i9-9900k, Motherboard, ASUS Rog Maximus Code XI, RAM, 48GB Corsair Vengeance LPX 32GB 3200 mhz (2x16)+(2x8) GPUs Asus ROG Strix 2070 8gb, PNY 1080, Nvidia 1080, Case Mining Frame, 2x Storage Samsung 860 Evo 500 GB, PSU Corsair RM1000x and RM850x, Cooling Asus Rog Ryuo 240 with Noctua NF-12 fans



Why is the 5800x so hot?





Link to post
Share on other sites
Posted
  • Author

Sweet just got a second adapter delivered from zon plugged it into GPU and hey post display and installed already I would like to thank everyone who took the time to help me on the way been quite a learning curve for me as the last time I built a pc the only component colour available was cream lol again thanks to you all I will post some pics once I do my cable management..
