Hey there. Could be either of three things: Power, Reset, or LED. Hedging my bets on it being the LED control, under the blind assumption that Power and Reset have already been labelled.

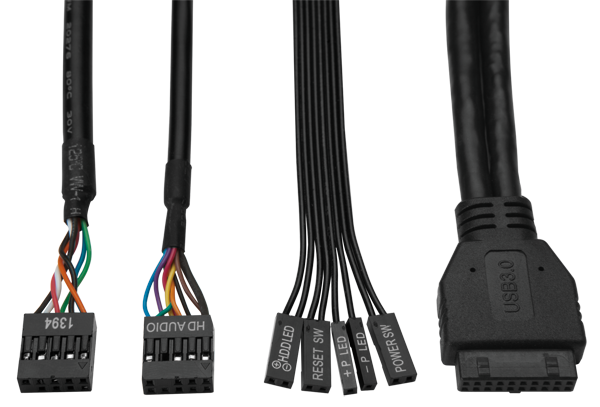

57009iC995475B97618D64?v=1.0

Cable 3: LED, Reset, and Power all have 2 pins.



I'd suggest the same things as the others: (1) process of elimination if possible, but if not, (2) follow the cable back to the front panel and identify which button/port it connects to.
