Is this dangerous?

_THEON_
By _THEON_
in Cooling
 Share
Posted

Hi everyone,

recently, I have picked up folding, and today I opened HWInfo mostly just out of curiosity and I was shocked to see that my CPU cores (9700K, no OC) were sitting at ~ 95°C.

Furthermore, the voltage was cranked up to ~ 1.4V, and the clock was sitting at ~4900MHz.

These temps and the voltage seemed very unsafe to me, which brings me to the reason of this post.

Are these temperatures and voltages unsafe?

Do I have to limit the voltage? If yes, how?

Do I need a better cooler (currently using an Noctua NH-D9L)?

Is there anything else that I might need to take care of?



Thank you for your replies!

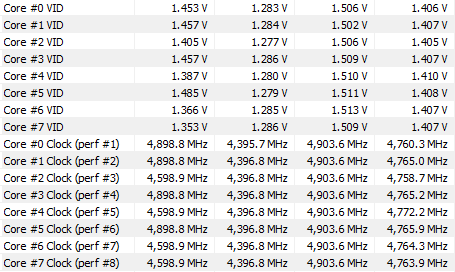

Annotation 2019-09-29 212212.png

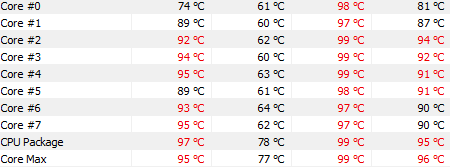

Annotation 2019-09-29 212245.png

Link to comment
https://linustechtips.com/topic/1109055-is-this-dangerous/
Share on other sites
Link to post
Share on other sites
Posted
6 minutes ago, _THEON_ said:

Hi everyone,

recently, I have picked up folding, and today I opened HWInfo mostly just out of curiosity and I was shocked to see that my CPU cores (9700K, no OC) were sitting at ~ 95°C.

Furthermore, the voltage was cranked up to ~ 1.4V, and the clock was sitting at ~4900MHz.

These temps and the voltage seemed very unsafe to me, which brings me to the reason of this post.

Are these temperatures and voltages unsafe?

Do I have to limit the voltage? If yes, how?

Do I need a better cooler (currently using an Noctua NH-D9L)?

Is there anything else that I might need to take care of?



Thank you for your replies!



95c is quite hot but not unsafe yet according to Intel ARK 100c is the max allowed temperature for this CPU. It won't hurt to get some more cooling though. Maybe the CPU cooler is dusty? Not sure about the voltage. The BIOS settings are at default and voltage limits are enabled within the BIOS? Then it should be safe.



Source : https://ark.intel.com/content/www/us/en/ark/products/186604/intel-core-i7-9700k-processor-12m-cache-up-to-4-90-ghz.html

Link to comment
https://linustechtips.com/topic/1109055-is-this-dangerous/#findComment-12928599
Share on other sites
Link to post
Share on other sites
Posted

reapply thermal paste, also check if BIOS is at default

Don't forget to use the "Quote" feature or mention me ( @Gegger) if you want me to see your reply!

Community Standards // Forum Quickstart Guide // Floatplane // Forum FAQ // The Parrot Gang
Banned by Linus in the "banning game" thread who added insult to injury by putting this crap in my sig >(

WE ARE THE DARK SIDE Don't be a light theme peasant

Spoiler

             ........:oo:........

           o//ssssssssyhhysssss+////o               .''''''''''''''.

          mddmmm/::ddddddddddddddmmmyss::/mmN       |   PARTY ON   |

          o..+oodddmmmhhhhhhhhhhhdmmmmmdddooy       | ,............'

         h::oyyhddmmm+++///////////++++++mmmddy::s  |/

      Nyyo[[sddhyyyyy::::::::::::::::::::yyymmh//oyym

     h..:oohmm+:://///::::////////////////+mmmmms..sNN

     m++sddmmm+::hddhhy::+ddddddddddddddhhhmmmmmdhh+++d

    Nsssyyhmmhssooodmmhhh::+mmdyyyyyyyyddddddmmmmmmmmo::d

   mmd../mmmmmo::shhdmmhhh::+mmhooooooooyhhmmmmmmmmmmmyssdmm

  +++++smmdddo::///dmmhhh::+mmhooooooooooommmmmddddmmmdd/++m

 ``+hhhmmhoo/:::::oooooossymmhooooooooyyymmdoooooydddmmo//N

 ++:mmmmmy:::::::::::::/yyhmmhooooooooyhhmmd:::::+yyhmmyssddd

ooommmmmy:::::::::::::://ommhooooooooooommd:::::://shhdmm+..

yyhmmh++/::::::::::::::::+mmhooooooooyyymmd::::::::/++hmm+//

dddmmh++/::::::::::::::::+mmhooooooooyhhddh:::::::::::hmmysshhd

mmmmmdhhs::::::::::::::::+mmhoooooooohhhhhy:::::::::::hmmhhh``+

mmmmmh++/::::::::::::::::+mmdhhsooooodmm++/:::::::::::hmmsss``+

dddmmhoo+::::::::::::::::+dddddyssyyydmm::::::::::::::hmmsoo++o

dddmmdhho::::::::::::::::+hhdmmddddmmmmm::::::::::::::hmmsooNNN

mmmmmh///::::::::::::::::+hhdmmmmmmmmddd::::::::::::::hmmsoo++/

yyhmmdss+::::::::::::::::/ooydddmmmmmsoo::::::::::::::yddhyy::+

++ommmmmy:::::::::::::::::::ohhdmmddd/::::::::::::::::shhdmmsssNNNmmN

..+mmmmmy:::::::::::::::::::://shh+//:::::::::::::::::://dmmmmdoo+..o

``+dddmmhss+:::::::::::::::::::+++/::::::::::::::::::::::ooodddhhysshNNy++m ``+hhdmmdhhs///:::::::::::::::::::::::::::::::::::::::::::::yyymmmmmmmmo++hNNmdd ``+hhdmmdhhhhh+:::::::::::::::::::::::::::::::::::::::::::::::/hhhhhdmmmmmsoo... ``+ddmmmdhhhhhyyyyyyyyyyyo:::::::::::::::::::::::::::::::::::::+++++sdddmmdhhsss//+ ``+mmmmmhsshhhhhhhhhhhhhhy++/:::::::::::::::::::::::::::::::::::::::+ssyyydmmddd///hhd ``+mmmmmy::shhhhhhhhhhhhhhhhs:::::::::::::::::::::::::::::::::::::::::::::ymmmmmmmh../ ``+mmmmmy:://////////////ohhhyy+::::::::::::::::::::::::::::::::::::::::::///hddmmmhhs++s ``+mmmmmhssssssssssssssssydddddysssssssssssssssssssssssssssssssssssssssssssssdddmmmmmy::s ``+mmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmhooh



Link to comment
https://linustechtips.com/topic/1109055-is-this-dangerous/#findComment-12928625
Share on other sites
Link to post
Share on other sites
Posted

All core boost will obviously push a bunch more heat out, but... these CPUs are made to handle it. If they get too hot they slow down and that's it.



If you can increase cooling it'll always be better.

F@H
Desktop: i9-13900K, ASUS Z790-E, 64GB DDR5-6000 CL36, RTX3080, 2TB MP600 Pro XT, 2TB SX8200Pro, 2x16TB Ironwolf RAID0, Corsair HX1200, Antec Vortex 360 AIO, Thermaltake Versa H25 TG, Samsung 4K curved 49" TV, 23" secondary, Mountain Everest Max

Mobile SFF rig: i9-9900K, Noctua NH-L9i, Asrock Z390 Phantom ITX-AC, 32GB, GTX1070, 2x1TB SX8200Pro RAID0, 2x5TB 2.5" HDD RAID0, Athena 500W Flex (Noctua fan), Custom 4.7l 3D printed case



Asus Zenbook UM325UA, Ryzen 7 5700u, 16GB, 1TB, OLED



GPD Win 2

Link to comment
https://linustechtips.com/topic/1109055-is-this-dangerous/#findComment-12928636
Share on other sites
Link to post
Share on other sites
Posted

1.4v is high for stock. Check and make sure that Multi-core Enhancement isn't enabled. It's effectivley an auto-oc that's often enabled by default.

If you ever need help with a build, read the following before posting: http://linustechtips.com/main/topic/3061-build-plan-thread-recommendations-please-read-before-posting/
Also, make sure to quote a post or tag a member when replying or else they won't get a notification that you replied to them.

Link to comment
https://linustechtips.com/topic/1109055-is-this-dangerous/#findComment-12928795
Share on other sites
Link to post
Share on other sites
Posted
  • Author

I just checked the BIOS and found that I had activated some Enhanced Torbo that I took for the all core boost, but simply "increases all CPU cores to maximum turbo ratio".
I set it to auto for now, and the temps are in the mid 80s.

The voltage also went down by ~ 0.1V

Link to comment
https://linustechtips.com/topic/1109055-is-this-dangerous/#findComment-12928853
Share on other sites
Link to post
Share on other sites
Posted
21 hours ago, _THEON_ said:

I just checked the BIOS and found that I had activated some Enhanced Torbo that I took for the all core boost, but simply "increases all CPU cores to maximum turbo ratio".
I set it to auto for now, and the temps are in the mid 80s.

The voltage also went down by ~ 0.1V

If you are into tweaking, you can get even lower voltage by setting it to adaptive and setting offset. However, I can't help further as I haven't learned that part of tweaking myself (I have constant manual voltage).

^^^^ That's my post ^^^^
<-- This is me --- That's your scrollbar -->
vvvv Who's there? vvvv

Link to comment
https://linustechtips.com/topic/1109055-is-this-dangerous/#findComment-12931043
