Does it still support 144hz?

[Danny7811]

Hello! I have two 144hz monitor and I wanna connect one monitor with one hdmi 2.0 and the other one with dvi but the monitor has dvi-i dual link and the graphics card support dvi-d dual link, so can I use a dvi-i to dvi-d cable does it still support 144hz?



my monitor has 1 dvi-i port, 1 hdmi port and one vga port





[Crunchy Dragon]

Yes.

[Danny7811]

4 minutes ago, Crunchy Dragon said:

Yes.

Oh but the dvi cable doesnt support sound so, can I use hdmi to two hdmi does it still support 144hz?

[Princess Luna]

DVI-I and DVI-D are identical when it comes down to the digital output, only difference is that the I also carries analog signal if needed, therefore dual link DVI-D to dual link DVI-I will still provide you 1080p144hz.

[Crunchy Dragon]

1 minute ago, Danny7811 said:

Oh but the dvi cable doesnt support sound so, can I use hdmi to two hdmi does it still support 144hz?

HDMI will support 144Hz as well. You can also use DisplayPort if your GPU/monitor support that.

[Princess Luna]

Just now, Danny7811 said:

Oh but the dvi cable doesnt support sound so, can I use hdmi to two hdmi does it still support 144hz?

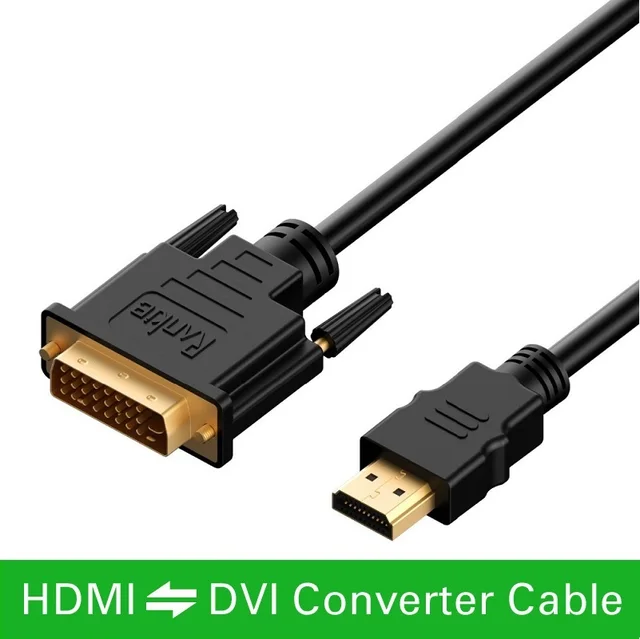

It depends on the HDMI revision, could buy a Dual Link DVI to HDMI cable like these:





They carry out sound, I was rather amazed when I first saw it work on my old GTX 560 Ti, connected DVI-I of the GPU on the HDMI of the TV and sound! much wow!



you can read the old thread here if you want:



[Danny7811]

1 minute ago, Crunchy Dragon said:

HDMI will support 144Hz as well. You can also use DisplayPort if your GPU/monitor support that.

Ok, thanks for the reply!

[emosun]

1 minute ago, Princess Cadence said:

It depends on the HDMI revision, could buy a Dual Link DVI to HDMI cable like these:

I feel like the gpu have to support audio out from the dvi port which i remember was a thing on old video cards but not sure if new ones still do that.

much in the same way new gpu's no longer output analog signals via the dvi port

[Princess Luna]

2 minutes ago, emosun said:

I feel like the gpu have to support audio out from the dvi port which i remember was a thing on old video cards but not sure if new ones still do that.

That was a feature of DVI-I which is present up to Maxwell cards, only Pascal ditched it for the DVI-D only.

[emosun]

5 minutes ago, Princess Cadence said:

That was a feature of DVI-I which is present up to Maxwell cards, only Pascal ditched it for the DVI-D only.

I mean audio transmission via dvi i think isn't universal. At least that's how it is on my hd 2000-3000 series cards as back in the day those cards didn't have native hdmi , and nvidia gpu didn't either and needed audio passthrough from the motherboard before they started using their own onboard audio


Quote

Some DVI-D sources use non-standard extensions to output HDMI signals including audio (e.g. ATI 3000-series and NVIDIA GTX 200-series).^[9] Some multimedia displays use a DVI to HDMI adapter to input the HDMI signal with audio. Exact capabilities vary by video card specifications.

basically i don't think modern gpu's output audio via dvi anymore now that they have native hdmi.

[mortino]

10 minutes ago, Princess Cadence said:

That was a feature of DVI-I which is present up to Maxwell cards, only Pascal ditched it for the DVI-D only.

I'm running audio over dvi on 2 pascal cards right now.

[Glenwing]

1 hour ago, Danny7811 said:

Hello! I have two 144hz monitor and I wanna connect one monitor with one hdmi 2.0 and the other one with dvi but the monitor has dvi-i dual link and the graphics card support dvi-d dual link, so can I use a dvi-i to dvi-d cable does it still support 144hz?



my monitor has 1 dvi-i port, 1 hdmi port and one vga port

You may want to read the cable guide at the top of this section.
