Does this not affect anything?

[IMPERIUS]

Take a look at these two mobos:



1. http://www.gigabyte.com/products/product-page.aspx?pid=4665#ov(rev. 1.0)

2. http://www.gigabyte.com/products/product-page.aspx?pid=5001#ov(rev. 2.1)



As you can see there are less cpu contacts in the middle on the 2.1 rev as on the 1.0. Does this affect anything? Also, why would gigabyte do this (or anyone else)?



thanks

[iamdarkyoshi]

Its the same thing, probably a different socket manucafturer and the photos look different at that angle.

[runit3]

Where are you seeing that there are less pins in the socket on either revision? Both should have 1150 :huh:

[DevilishBooster]

Take a look at these two mobos:



1. http://www.gigabyte.com/products/product-page.aspx?pid=4665#ov(rev. 1.0)

2. http://www.gigabyte.com/products/product-page.aspx?pid=5001#ov(rev. 2.1)



As you can see there are less cpu contact pins on the 2.1 rev as on the 1.0. Does this affect anything? Also, why would gigabyte do this (or anyone else)?



thanks

They have the same number of pins.... They're both LGA 1150...

[IMPERIUS]

Where are you seeing that there are less pins in the socket on either revision? Both should have 1150 :huh:



Maybe I didn't use the correct term, I meant the bigger thing in the middle of the socket

@DevilishBooster

[Samfisher]

They have the same number of pins.... They're both LGA 1150...

@IMPERIUS





OP is mentioning the contacts in the middle of the socket.





http://www.gigabyte.com/fileupload/product/2/4665/8481_big.jpg



vs

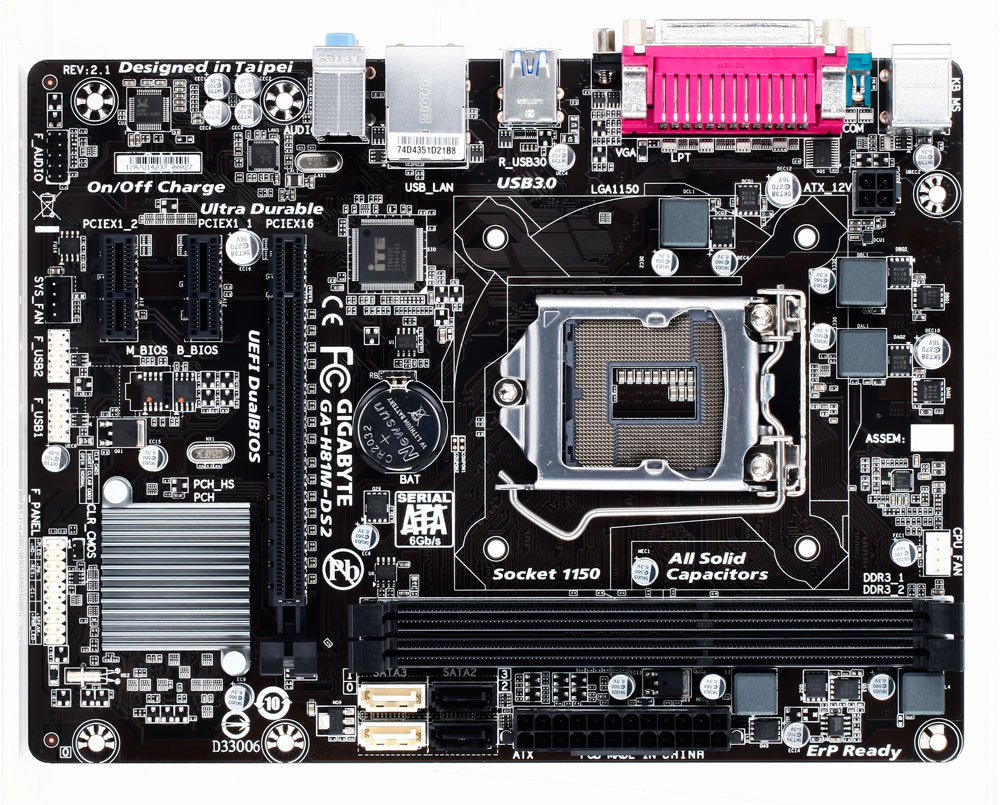

http://www.gigabyte.com/fileupload/product/2/5001/10388_big.jpg

[MeltingPoint]

By the looks of those things, they are capacitors. Shouldn't make any practical difference between the two.





Also, why would gigabyte do this (or anyone else)?





Probably an improvement or some changes in the design. Revisions work that way.

[DevilishBooster]

OP is mentioning the contacts in the middle of the socket.

Oh, those aren't pins. I'm not 100% sure on what they exactly are, but they've always looked a lot like ICs and Caps to me. Without looking at the specs, they probably made changes to the layout so that it was more efficient/used less parts.

[Johannes_Lazor]

Those are only resistors(or caps), They are in place for stability, Just different ways to get the same result, When there are more of them the heat will be more spread out.

[runit3]

Maybe I didn't use the correct term, I meant the bigger thing in the middle of the socket

@DevilishBooster

Those are not contact pins, they do not touch the CPU

http://images.bit-tech.net/content_images/2013/06/intel-core-i5-4670k-haswell-cpu-review/4670k-1-1280x1024.jpg



The bits you're talking about are capacitors, both on the CPU itself, as well as the socket. My best guess as to why Gigabyte would change up the design is the cost to manufacture the board in that configuration. I would assume no impact on performance aside from possibly overclocking, which the H81's aren't really designed for anyways.

[MeltingPoint]

Those are most likely capacitors. Resistors are usually black while caps (ceramic type) are brownish.
