Windforce fans dead - replacement help?

Go to solution Solved by Guest,

any suggestions for a fairly cheap one around 100$?

You could probably pick up something like a 280x or something like that on craigslist or ebay.

I was wondering if anyone here has had experience in replacing gpu fans.



It looks like i'd be comfortable putting on a kraken g10 onto this card without problems, but that looks like it would cost me at least 45 bucks minimum. even with a ghetto solution.



So, if i could replace the fans for 10-20 bucks that would be ideal...but i don't know how to go about obtaining/replacing these fans. Any help would be appreciated even if you just tell me its a lost cause.

The Vinyl Decal guy.

Celestial-Uprising  A Work In-Progress

Link to comment
https://linustechtips.com/topic/315518-windforce-fans-dead-replacement-help/
Share on other sites

Link to post
Share on other sites

So, if i could replace the fans for 10-20 bucks that would be ideal...but i don't know how to go about obtaining/replacing these fans. Any help would be appreciated even if you just tell me its a lost cause.

Contact Gigabyte, if the card is still under warranty they will most likely do something about it.

"Rawr XD"

Link to post
Share on other sites

I wouldnt replace them as i dont think you can buy replacement fans.

I would do one of the following.

1. Watercool

2.RMA

Its a rather old card that's only worth around 60$ on the bay just for extra info



so, way out of warranty

The Vinyl Decal guy.

Celestial-Uprising  A Work In-Progress

Link to post
Share on other sites

What card is it?

CPU: R5 5800X3D Motherboard - MSI X570 Gaming Plus RAM - 32GB Corsair DDR4 GPU - XFX 7900 XTX 4GB Case - NZXT H5 Flow (White) Storage - 2X 4TB Samsung 990 Pro PSU - Corsair RM100E Cooling - Corsair H100i Elite Capellix Keyboard Corsair K70 (Brown Switches)  Mouse - Corsair Nightsword RGB

Link to post
Share on other sites

In that case i would try to replace it but be prepared for the worst. If it that old i would reccomend getting a new one.

any suggestions for a fairly cheap one around 100$?

The Vinyl Decal guy.

Celestial-Uprising  A Work In-Progress

Link to post
Share on other sites

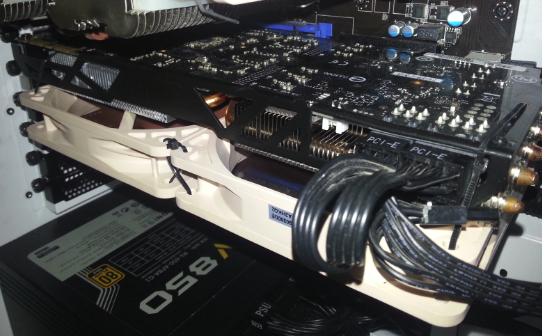

The Windforce cooler tends to be very friendly with having 120mm fans strapped to it.

If you ever need help with a build, read the following before posting: http://linustechtips.com/main/topic/3061-build-plan-thread-recommendations-please-read-before-posting/
Also, make sure to quote a post or tag a member when replying or else they won't get a notification that you replied to them.

Link to post
Share on other sites

The Windforce cooler tends to be very friendly with having 120mm fans strapped to it.



You could probably pick up something like a 280x or something like that on craigslist or ebay.

I somehow acquired another windforce 6950 today...so I can use that one, however I have some thermal pads on the way, as well as some mx-2 since I wanted a non conductive thermal paste, how would one go about attaching said fans?... also if i'm using a 700W psu would i be okay cross firing these?



If my calcs are right max crossfire would draw would be 589W, not sure how close I should get my psu isn't 80+ to my knowledge.

The Vinyl Decal guy.

Celestial-Uprising  A Work In-Progress

Link to post
Share on other sites

I somehow acquired another windforce 6950 today...so I can use that one, however I have some thermal pads on the way, as well as some mx-2 since I wanted a non conductive thermal paste, how would one go about attaching said fans?... also if i'm using a 700W psu would i be okay cross firing these?



If my calcs are right max crossfire would draw would be 589W, not sure how close I should get my psu isn't 80+ to my knowledge.

The 6950 and 280x cannot be cf'ed.

It should be pretty easy to attach the fans using zipties.


If you ever need help with a build, read the following before posting: http://linustechtips.com/main/topic/3061-build-plan-thread-recommendations-please-read-before-posting/
Also, make sure to quote a post or tag a member when replying or else they won't get a notification that you replied to them.

Link to post
Share on other sites

The 6950 and 280x cannot be cf'ed.

It should be pretty easy to attach the fans using zipties.


I meant I picked up ANOTHER 6950



Edit: so if i get this one new fans then i will have 2 working ones.

The Vinyl Decal guy.

Celestial-Uprising  A Work In-Progress

Link to post
Share on other sites

I meant I picked up ANOTHER 6950

Edit: so if i get this one new fans then i will have 2 working ones.

A decent 700w would be enough for a 6950 cf.

If you ever need help with a build, read the following before posting: http://linustechtips.com/main/topic/3061-build-plan-thread-recommendations-please-read-before-posting/
Also, make sure to quote a post or tag a member when replying or else they won't get a notification that you replied to them.

Link to post
Share on other sites

I had a Gigabyte GTX 570 Windforce that I was able to take a few screws out of the front metal casing of the card and kinda loosened it without completely taking it apart to get to the fans. I then took out the dead fan and looked up the fan's part number and was able to find a replacement on eBay for around 10 bucks.

Link to post
Share on other sites
