Is this the correct air setup?

[Jordaniel]

Is this the correct setup for the corsair graphite 760T, I am planning on getting a second GPU and I want to make sure the set up is correct. Any help would be greatly appropriated.



Thanks Jordan

[Askew]

To me, all of them are backwards apart from the exhaust.

[Jordaniel]

To me, all of them are backwards apart from the exhaust.

Isn't it best to have a negative pressure thou?

[Askew]

Isn't it best to have a negative pressure thou?



In a filtered case, positive is best as stuff will stay free from dust in the case, negative sucks it in through all the cracks.

[Jordaniel]

In a filtered case, positive is best as stuff will stay free from dust in the case, negative sucks it in through all the cracks.

Oh, well what is better for the temperatures?

[loccilucas]

no heat rises, so the general rule is to have the back and top as exhaust and everything else intaking.

[loccilucas]

Oh, well what is better for the temperatures?

The difference in temps between negative and positive is nothing really.

[Jordaniel]

The difference in temps between negative and positive is nothing really.

Okay well would the h100i be impacted from pushing the hot air out rather than having cool air through the radiator

[loccilucas]

Okay well would the h100i be impacted from pushing the hot air out rather than having cool air through the radiator

no, it might increase temps by 1 or 2'c but nothing worth worrying about.

[Jordaniel]

Okay so you would say have the two radiator fans outtake and then the rear exhaust and the rest intake?

[AMICLG]

I'd make the front/bottom fans intakes and the rear/top exhaust to keep some positive pressure and have the heat rise.

[Jordaniel]

I'd make the front/bottom fans intakes and the rear/top exhaust to keep some positive pressure and have the heat rise.

That would be three and three so neutral?

[DoubleY]

Front/bottom fans are always intakes. Back/top fans are always outtakes. Simple.

[Jordaniel]

Front/bottom fans are always intakes. Back/top fans are always outtakes. Simple.

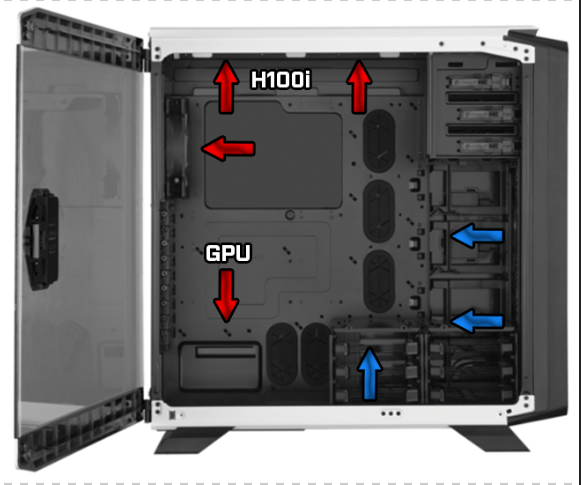

So this would be better?

[AMICLG]

That would be three and three so neutral?

You can lower the exhaust fans RPM so it's positive to help prevent dust but fan filters pretty much take care of that and you want the top to be exhaust because heat rises.

[DoubleY]





So this would be better?

Yes, that is the "normal" way to do it.

[Lays]

Try to keep a 3:1 intake to exhaust ratio, usually works best in my experience.



You could actually use every fan as an intake, and then leave the exhaust fan on the back as an exhaust.

I recommend this ^

[LogicalDrm]





So this would be better?



You still got GPU bit wrong there. The GPU has 3 intake fans which exhaust hot air around the GPU heatsink. So GPU gets fresh air from front and bottom.

[coen113]

i would invert every one of them, except the one in the back
