Haswell temps

[topsu]

What kind of temps are you getting with haswell?



Voltage: 1.2v

Clock: 4.2 Ghz

Temps: 75c core max.



Cooling: Custom loop (d5 + 360mm rad + ek supermacy)



Not delidded and my cpu block may not be seated properly.



I haven't found much info about haswell temps with watercooling so I wanted to ask you guys.

[tryphaa]

Yea, I don't know what kind of custom loop you have, but there is no way that block is seated correctly.

[topsu]

Yea, I don't know what kind of custom loop you have, but there is no way that block is seated correctly.



Well my temps are similiar to what I found here so that is why I had to ask you guys:



http://www.hardocp.com/article/2013/06/01/intel_haswell_i74770k_ipc_overclocking_review/7#.U0R0zPl_uio

[VSG]

At peak, those temps are average. They are indicative of a bad TIM job- usually not your fault though.

[d33g33]

I had really bad temps on my 3770k. On the stock cooler with no OC 1 core was hitting 100 degrees. After installing 2x 240mm rads it was still over 80 degrees. I reseated over and over but nothing helped. Delidded and now temps struggle to hit. 60degrees with a 1.35v 4.6ghz OC...

[topsu]

I had really bad temps on my 3770k. On the stock cooler with no OC 1 core was hitting 100 degrees. After installing 2x 240mm rads it was still over 80 degrees. I reseated over and over but nothing helped. Delidded and now temps struggle to hit. 60degrees with a 1.35v 4.6ghz OC...



I am thinking about delidding as soon as I can afford to buy new cpu if something goes wrong. =/

[d33g33]

Yeah it's a risky move... When I spent $1200 on water cooling gear and the thing still wasn't cool though I was pissed...

[CCap]

Right now I'm running a 4770k @4.0Ghz with 1.2v (only because I didn't have time to burn test, I lowered it to 4.0 because it guaranteed stability) and I don't hit more than 60c with the cooling of an H100i under load. Tonight I am going to try to hit at least 4.3 with 1.2, but we'll see how it goes.

[topsu]

Right now I'm running a 4770k @4.0Ghz with 1.2v (only because I didn't have time to burn test, I lowered it to 4.0 because it guaranteed stability) and I don't hit more than 60c with the cooling of an H100i under load. Tonight I am going to try to hit at least 4.3 with 1.2, but we'll see how it goes.



So you mean like playing games or something like that?



Try your temps in like ibt.

[CCap]

So you mean like playing games or something like that?



Try your temps in like ibt.

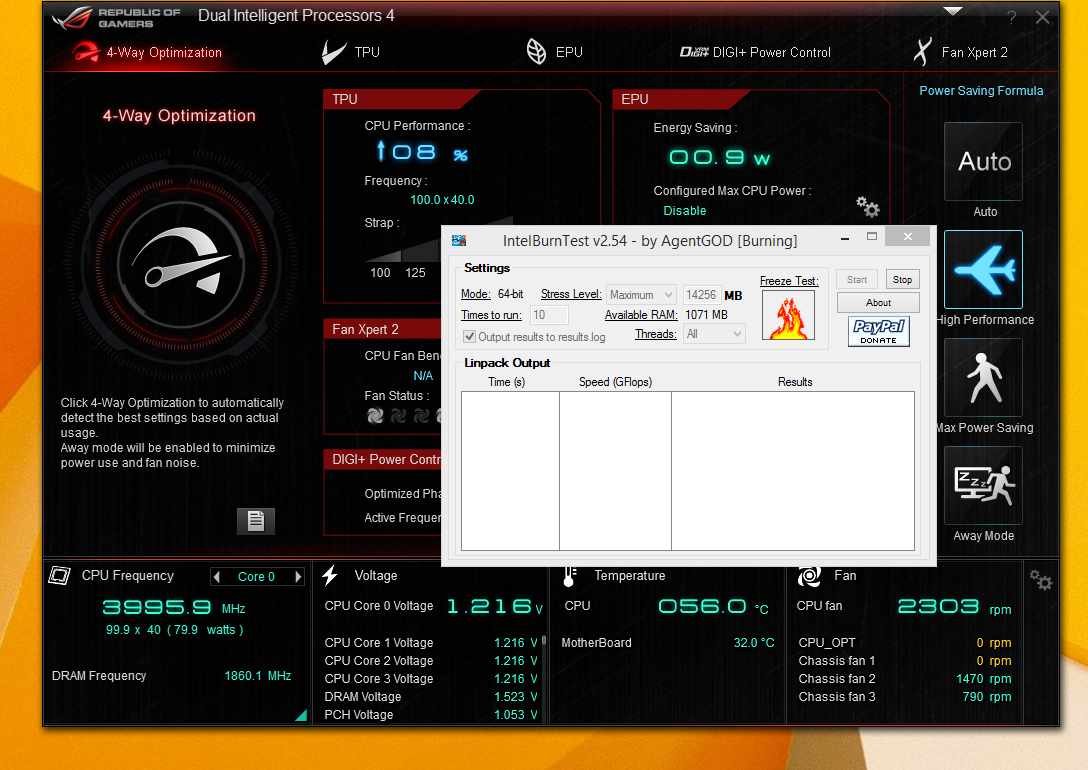

After half an hour.

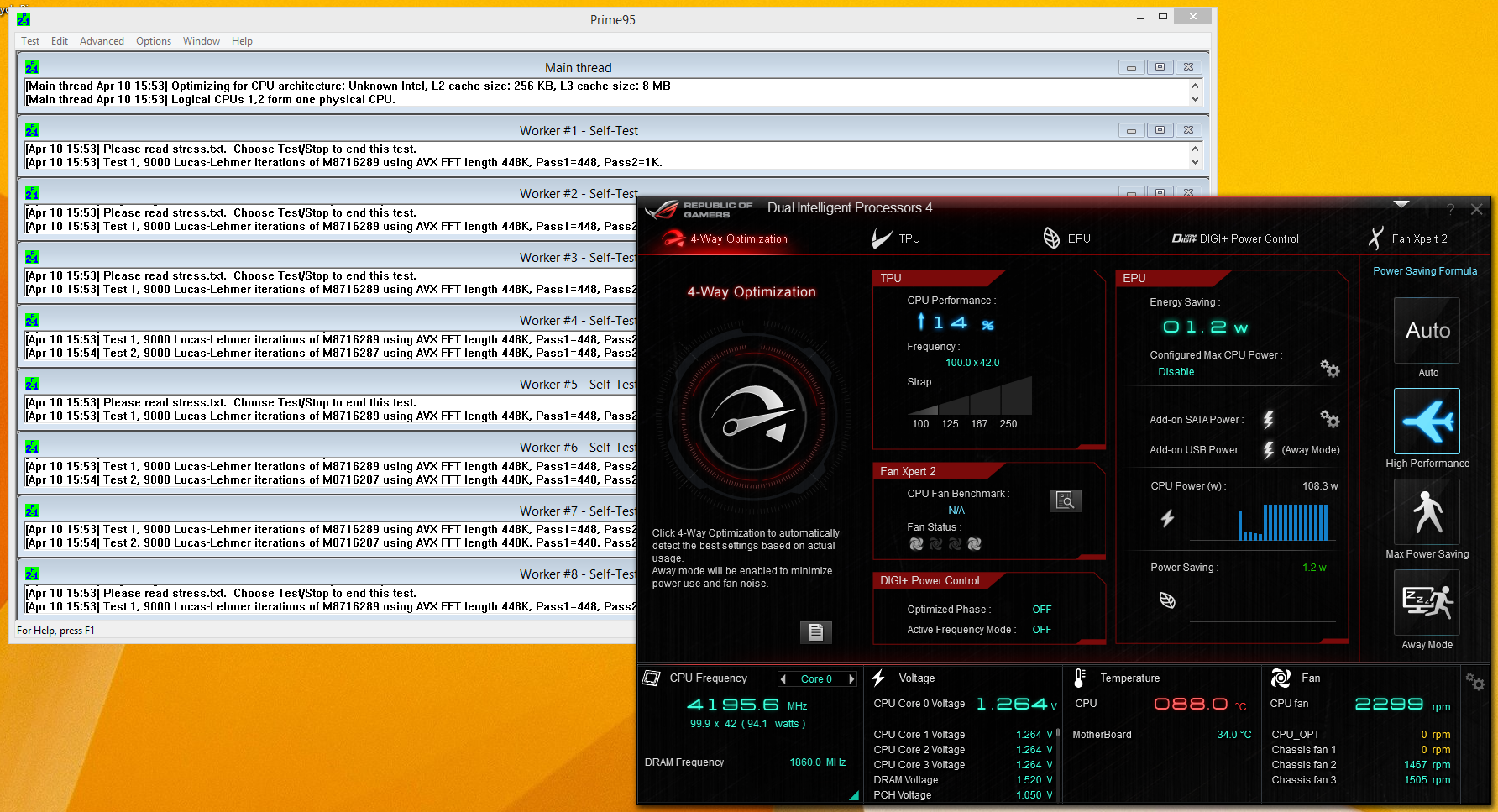

EDIT: I upped the volts by .05 and this happened... wtf? (using p95 this time on max loads)

[flibberdipper]

After half an hour.

EDIT: I upped the volts by .05 and this happened... wtf? (using p95 this time on max loads)

Don't use Prime95 on Haswell. I think it's the adaptive voltage that makes it go ballistic.

It's probably the crappy TIM under the CPU's heatspreader.

[CCap]

It's probably the crappy TIM under the CPU's heatspreader.

well back to itb it is...

[flibberdipper]

well back to itb it is...

Oh, not you. I was talking to the OP.

[CCap]

Oh, not you. I was talking to the OP.

I quoted the wrong post, i knew you weren't talking to me on that one lol

[flibberdipper]

I quoted the wrong post, i knew you weren't talking to me on that one lol

Oh. Nevermind.
