Should i replace my psu?

nerner5509
By nerner5509
in Power Supplies
 Share
Posted

Hello, I have a brand new 650W PSU, the Seasonic SSR-650FM and i have all the parts I need besides a CPU. I have the evga RTX 2080 super and I'm not sure if I should buy the 9900K or the KS because of power consumption. ( I have no time and idea how to oc and I prefer to buy it OC'ed out of the box and i don't mind paying the difference). I'm not planning to oc anything further and my main use case is gaming. I also have 4 case fans (3 of them are RGB), the dark rock pro 4 cpu cooler, corsair LPX 16GBX2 3000MHZ CL15, 1TB nvme SSD, 1TB 860 EVO III SSD, 4TB HDD and my mobo is the z390 auros pro. is my PSU is capable enough to handle these components?

Link to comment
https://linustechtips.com/topic/1121322-should-i-replace-my-psu/
Share on other sites
Link to post
Share on other sites
Posted

Don't worry, the Seasonic 650W is plenty.

M.S.C.E. (M.Sc. Computer Engineering), IT specialist in a hospital, 32+ years of gaming, 20+ years of computer enthusiasm, Geek, Trekkie, anime fan

  • Main PC: AMD Ryzen 7 5800X3D - EK AIO 360 D-RGB - Arctic Cooling MX-4 - Asus Prime X570-P - 4x8GB DDR4 3200 HyperX Fury CL16 - Sapphire AMD Radeon 6950XT Nitro+ - 1TB Kingston Fury Renegade - 2TB Kingston Fury Renegade - 512GB ADATA SU800 - 960GB Kingston A400 - Seasonic PX-850 850W  - custom black ATX and EPS cables - Fractal Design Define R5 Blackout - Windows 11 x64 23H2 - 3 Arctic Cooling P14 PWM PST - 5 Arctic Cooling P12 PWM PST
  • Peripherals: LG 32GK650F - Dell P2319h - Logitech G Pro X Superlight with Tiger Ice - Madlions MAD 68HE Pro - EndGame Gear MPC890 - Genius HF 1250B - Akliam PD4 - Sennheiser HD 560s - Tripowin Vivace - Simgot EM6L - Truthear Zero - QKZ x HBB - 7Hz Salnotes Zero - Logitech C270 - Behringer PS400 - BM700  - Colormunki Smile - Speedlink Torid - Jysk Stenderup - LG 24x External DVD writer - Konig smart card reader
  • Laptop: Acer E5–575G-386R 15.6" 1080p (i3 6100U + 12GB DDR4 (4GB+8GB) + GeForce 940MX + 256GB nVME) Win 10 Pro x64 22H2 - Logitech G305 + AAA Lithium battery
  • Networking: Asus TUF Gaming AX6000 - Huawei OptiXstar EG8145X6-10 - 1000/500 Mbps fiber optic Internet access
  • TV and gadgets: TCL 50EP680 50" 4K LED + Sharp HT-SB100 75W RMS soundbar - Samsung Galaxy Tab A8 10.1" - OnePlus 13 16GB/512GB - OnePlus 9 256GB - Olymous Cameda C-160 - GameBoy Color - Miyoo A30 Spruce
  • Streaming/Server/Storage PC: AMD Ryzen 5 3600 - LC-Power LC-CC-120 - MSI B450 Tomahawk Max - 2x4GB ADATA 2666 DDR4 - 120GB Kingston V300 - Toshiba DT01ACA100 1TB - Toshiba DT01ACA200 2TB - 2x WD Green 2TB - Sapphire Pulse AMD Radeon R9 380X - 550W EVGA G3 SuperNova - Chieftec Giga DF-01B - White Shark Spartan X keyboard - Roccat Kone Pure Military Desert strike - Logitech S-220 - Philips 226L
  • Livingroom PC (dad uses): AMD FX 8300 - Arctic Freezer 64 - Asus M5A97 R2.0 Evo - 2x4 GB DDR3 1833 Kingston - MSI Radeon HD 7770 1GB OC - 120GB Adata SSD - 500W Fractal Design Essence - DVD-RW - Samsung SM 2253BW - Logitech G710+ - wireless vertical mouse - MS 2.0 speakers
Link to post
Share on other sites
Posted
  • Author
11 minutes ago, seon123 said:

It's fine. The 2080 Super is a 250W card, so expect the system to draw about 320W under a gaming load. Seasonic likes to do fairly sketchy crap, but it will be able to output 320W without issue.

Well true, but the KS draws around 250 too if i remember correctly so its 500W~ just these two beasts

Link to post
Share on other sites
Posted
28 minutes ago, nerner5509 said:

Well true, but the KS draws around 250 too if i remember correctly so its 500W~ just these two beasts

Maybe in some fantasy universe, by not in this one.

Spoiler

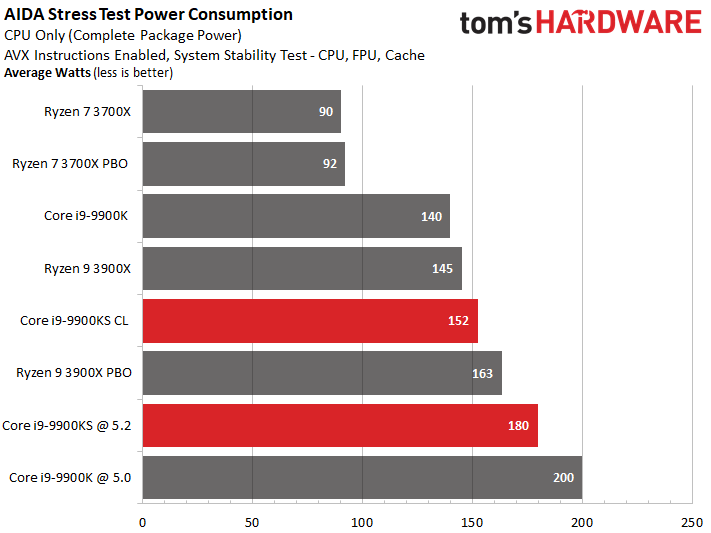

https://www.tomshardware.com/features/intel-special-edition-core-i9-9900ks-benchmarked/2

That is also under a synthetic workload, and way higher than what you'd get while gaming. You are not going to max out both the CPU and GPU under any realistic workload. The total amount that the system draws from the PSU during gaming is pretty much GPU TDP + 70W. That's a fairly accurate estimate, no matter the system.



Even if the 9900KS used 250W while gaming, that would leave plenty for the rest of the system.

:)

Link to post
Share on other sites
Posted
36 minutes ago, nerner5509 said:

Well true, but the KS draws around 250 too if i remember correctly so its 500W~ just these two beasts

My i9 9900K at 5ghz 1.34v uses about 180W on max load (reported on XTU) so I don't think the i9 9900KS really gets to 250W on any realistic scenario.

Personal Desktop":

CPU: Intel Core i7 10700K @5ghz |~| Cooling: bq! Dark Rock Pro 4 |~| MOBO: Gigabyte Z490UD ATX|~| RAM: 16gb DDR4 3333mhzCL16 G.Skill Trident Z |~| GPU: RX 6900XT Sapphire Nitro+ |~| PSU: Corsair TX650M 80Plus Gold |~| Boot:  SSD WD Green M.2 2280 240GB |~| Storage: 1x3TB HDD 7200rpm Seagate Barracuda + SanDisk Ultra 3D 1TB |~| Case: Fractal Design Meshify C Mini |~| Display: Toshiba UL7A 4K/60hz |~| OS: Windows 10 Pro.

Luna, the temporary Desktop:

CPU: AMD R9 7950XT  |~| Cooling: bq! Dark Rock 4 Pro |~| MOBO: Gigabyte Aorus Master |~| RAM: 32G Kingston HyperX |~| GPU: AMD Radeon RX 7900XTX (Reference) |~| PSU: Corsair HX1000 80+ Platinum |~| Windows Boot Drive: 2x 512GB (1TB total) Plextor SATA SSD (RAID0 volume) |~| Linux Boot Drive: 500GB Kingston A2000 |~| Storage: 4TB WD Black HDD |~| Case: Cooler Master Silencio S600 |~| Display 1 (leftmost): Eizo (unknown model) 1920x1080 IPS @ 60Hz|~| Display 2 (center): BenQ ZOWIE XL2540 1920x1080 TN @ 240Hz |~| Display 3 (rightmost): Wacom Cintiq Pro 24 3840x2160 IPS @ 60Hz 10-bit |~| OS: Windows 10 Pro (games / art) + Linux (distro: NixOS; programming and daily driver)
Link to post
Share on other sites
Posted
  • Author
24 minutes ago, Princess Luna said:

My i9 9900K at 5ghz 1.34v uses about 180W on max load (reported on XTU) so I don't think the i9 9900KS really gets to 250W on any realistic scenario.

All right i see, i guess i was misinformed about the KS power draw. Thank you all guys! I'll go and buy the KS :)
