Would this fan setup work?

[Aytex]

So I want to change my ram to 16 gb's and change the colors

https://pcpartpicker.com/part/kingston-memory-hx318c10fbk28

https://pcpartpicker.com/part/kingston-memory-hx316c10frk28

(should work right? same speed voltage cas)



But idk if the ram is too high?

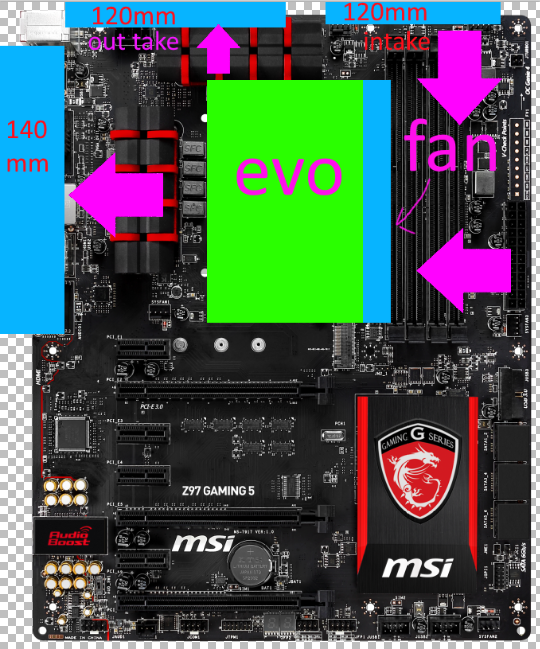

so right now my fans are liek this

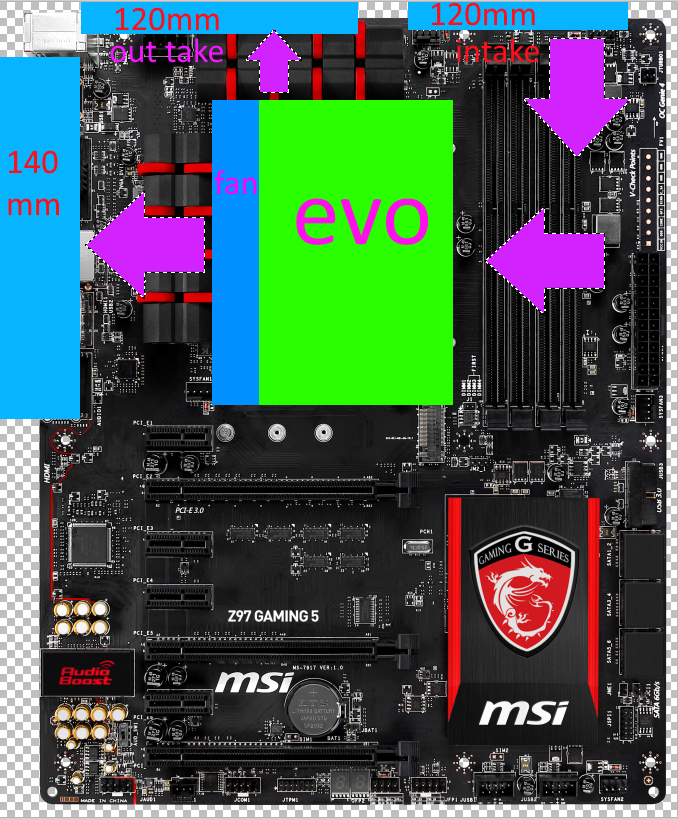

if it changed it to this, do you think it would have a heavy impact

[FuzzyYellow]

that shouldn't affect the temperatures any.

[Kobathor]

Do you have more intakes than outtakes? If not, then you want more intakes.



That fan setup looks kinda silly. I'd have all the intakes on the front and the outtakes on the back and maybe one on top.



That RAM will work together. Though, my Hyper 212 EVO makes one of my RAM slots unusable with any RAM that has a heatsink (I have that same RAM.) So, I don't think you'd be able to populate all 4 DIMMs.

[,,,,,,,,,,,,,,,,,,,,,,,,,,]

That RAM is pretty standard height. Changing the fan around will not effect temperatures.

[Aytex]

Do you have more intakes than outtakes? If not, then you want more intakes.



That fan setup looks kinda silly. I'd have all the intakes on the front and the outtakes on the back and maybe one on top.

i've tried that and this setup gets better cooling, the front fans (3 120mm's) pushing to the cpu when one of the top is outtake, thus giving less air to the cpu cooler -.-

[Aytex]

That RAM will work together. Though, my Hyper 212 EVO makes one of my RAM slots unusable with any RAM that has a heatsink (I have that same RAM.) So, I don't think you'd be able to populate all 4 DIMMs.

but i want to fill them all

im a asthetic freak

why do you think im getting 2 different colors in the first place

[Jacktastic-Mofo]

Nah, that setup looks like it would be fine to me, that ram is pretty short so you might be able to keep its current orientation. If you need to go shorter Corsair Vengeance LP is just the height of RAM and a mm or two more.

[Kobathor]

i've tried that and this setup gets better cooling, the front fans (3 120mm's) pushing to the cpu when one of the top is outtake, thus giving less air to the cpu cooler -.-

It's about air pressure, not sending air directly at the cooler. That fan setup creates turbulence directly at the CPU cooler, making it hard for the cooler's fan to grab the air. Remove the one on the top that's doing intake, keep the exhaust one.

[Kobathor]

but i want to fill them all

im a asthetic freak

why do you think im getting 2 different colors in the first place

I know why you're getting 4 DIMMs, I'm just saying the Hyper 212 might make one unusable. Might.

[Aytex]

It's about air pressure, not sending air directly at the cooler. That fan setup creates turbulence directly at the CPU cooler, making it hard for the cooler's fan to grab the air. Remove the one on the top that's doing intake, keep the exhaust one.

what do i do with the other intake then, put it on the far front of the top (case is h440)

[TheKDub]

General rule of thumb for me, front + bottom = intake, rear + top = exhaust. (if there's a sidepanel vent, then intake there as well, or if this setup would create negative pressure, front + top + bottom as intakes, rear as exhaust)

[Kobathor]

what do i do with the other intake then, put it on the far front of the top (case is h440)

Don't put an intake on top. It will move the air headed towards the CPU cooler away from it. If all the front intakes are filled then just take it out of your case.

[TheKDub]

what do i do with the other intake then, put it on the far front of the top (case is h440)



For that top intake, just flip the fan around, leave the rad in the same spot.

[Aytex]

For that top intake, just flip the fan around, leave the rad in the same spot.

i dont have a rad



Don't put an intake on top. It will move the air headed towards the CPU cooler away from it. If all the front intakes are filled then just take it out of your case.

oh wait i can just put it on my cpu cooler lol

[TheKDub]

i dont have a rad



oh wait i can just put it on my cpu cooler lol



Oops, I'm tired, it looked like you had a really weird radiator setup, and I didn't even think about the fact there was a 212 evo in there

[Kobathor]

i dont have a rad



oh wait i can just put it on my cpu cooler lol

Oh yeah.. Push/pull on the 212 actually works pretty well.

[Justin the asian]

Lol i have the same fan setup as you and it works

[ManWithBeard1990]

The Hyper212 typically does work slightly better in pull but the pull fan and the exhaust fan so close to each other will reduce the efficiency of both.

[LogicalDrm]

Fury will fit under 212 Evos fan. For sure. And having push or pull on CPU cooler doesn't matter at all in terms of temps.
