Suggested overclock speed?

LightCode Gaming
 Share
Go to solution Solved by arronleeds,

... Oh. xD Whoops!

use 26.6 and if 4.3ghz isnt stable at 1.15v then bump  it up to 1.18v, try it again, then if its still not stable bump it up by 0.1, so 1.19v etc.

Posted

So I have an i5 4690k @3.5 (3.9 turbo).

The max I have recently gotten it to with my Hyper 212 EVO is 57C on two of the cores; avg of 55.5C under load.
Idle has gone as low as 29C.

What should I shoot for?

I don't know very much about OCing, aside from the fact that you want voltage to stay as low as possible.

GIGABYTE Z97MX-G5 | 16GB DDR3 | I5 4690k @ 4.4ghz | 1TB SSHD, 500GB HDD, 128GB SSD | GTX 1070 8GB | Corsair Graphite 230 | EVGA 650W | Hyper 212 EVO



Cinebench R15: 636(all cores), 127FPS



Link to comment
https://linustechtips.com/topic/443865-suggested-overclock-speed/
Share on other sites
Link to post
Share on other sites
Posted

I went for 1.25V and 4.2GHz on my 4670k with a H100i. It's a safe place to start I'd say.

My Gaming Rig;  Motherboard - ASUS Maximus VI Hero | CPU - Intel i5 4670k @4.5Ghz 1.25v | GPU - GIGABYTE GTX 980 @Stock | RAM -  16GB Corsair Vengeance @1866Mhz | CPU Cooler - Corsair H100i | Storage #1 - Samsung 840 Basic 250GB SSD | Storage #2 - Sandisk II 480GB SSD | Storage #3 - 2TB 7200rpm 64mb HDD | PSU - Corsair HX750 | Case - Fractal Design R4 |

Link to post
Share on other sites
Posted
  • Author

do 4.3GHz OC



I went for 1.25V and 4.2GHz on my 4670k with a H100i. It's a safe place to start I'd say.

So change the multiplier or the clock speed?

And I would assume do it through the mobo bios?

GIGABYTE Z97MX-G5 | 16GB DDR3 | I5 4690k @ 4.4ghz | 1TB SSHD, 500GB HDD, 128GB SSD | GTX 1070 8GB | Corsair Graphite 230 | EVGA 650W | Hyper 212 EVO



Cinebench R15: 636(all cores), 127FPS



Link to post
Share on other sites
Posted

let me ask my buddy who has the same cooler and cpu.

Gpu: MSI 4G GTX 970 | Cpu: i5 4690k @4.6Ghz 1.23v | Cpu Cooler: Cryorig r1 ultimate | Ram: 1600mhz 2x8Gb corsair vengeance | Storage: sandisk ultra ii 128gb (os) 1TB WD Green | Psu: evga supernova g1 650watt | Case: fractal define s windowed |

Link to post
Share on other sites
Posted

i have 4690k and i run it @4.6 GHz with 1.50 V and under stresstesting to bring out max temps it never gets hotter than 77C (using antec kuhler 650)

WTF ARE YOU DOING!!!!!!! 1.5v!!!!!!!!!



thats a very very bad chip, mine can do 4.6ghz at 1.23v



you're gonna have a broken cpu very soon.

Gpu: MSI 4G GTX 970 | Cpu: i5 4690k @4.6Ghz 1.23v | Cpu Cooler: Cryorig r1 ultimate | Ram: 1600mhz 2x8Gb corsair vengeance | Storage: sandisk ultra ii 128gb (os) 1TB WD Green | Psu: evga supernova g1 650watt | Case: fractal define s windowed |

Link to post
Share on other sites
Posted

So I have an i5 4690k @3.5 (3.9 turbo).

The max I have recently gotten it to with my Hyper 212 EVO is 57C on two of the cores; avg of 55.5C under load.

Idle has gone as low as 29C.

What should I shoot for?

I don't know very much about OCing, aside from the fact that you want voltage to stay as low as possible.

my friend has his at 4.5ghz, 1.19v and it hits around 70c with the same cooler, you may need more voltage depending on your chip, but aim for 4.4-4.5ghz.

Gpu: MSI 4G GTX 970 | Cpu: i5 4690k @4.6Ghz 1.23v | Cpu Cooler: Cryorig r1 ultimate | Ram: 1600mhz 2x8Gb corsair vengeance | Storage: sandisk ultra ii 128gb (os) 1TB WD Green | Psu: evga supernova g1 650watt | Case: fractal define s windowed |

Link to post
Share on other sites
Posted
  • Author

my friend has his at 4.5ghz, 1.19v and it hits around 70c with the same cooler, you may need more voltage depending on your chip, but aim for 4.4-4.5ghz.

I'll get back to this after class~ I like to test stability when I have large chunks of time available.

What should I look for to spot instability on OC?

GIGABYTE Z97MX-G5 | 16GB DDR3 | I5 4690k @ 4.4ghz | 1TB SSHD, 500GB HDD, 128GB SSD | GTX 1070 8GB | Corsair Graphite 230 | EVGA 650W | Hyper 212 EVO



Cinebench R15: 636(all cores), 127FPS



Link to post
Share on other sites
Posted

I'll get back to this after class~ I like to test stability when I have large chunks of time available.

What should I look for to spot instability on OC?

you will get a bluescreen if its not stable.

Gpu: MSI 4G GTX 970 | Cpu: i5 4690k @4.6Ghz 1.23v | Cpu Cooler: Cryorig r1 ultimate | Ram: 1600mhz 2x8Gb corsair vengeance | Storage: sandisk ultra ii 128gb (os) 1TB WD Green | Psu: evga supernova g1 650watt | Case: fractal define s windowed |

Link to post
Share on other sites
Posted

sorry my mistake!

1.15V

was gonna say xD



thats a very nice oc is that for  a low voltage.

Gpu: MSI 4G GTX 970 | Cpu: i5 4690k @4.6Ghz 1.23v | Cpu Cooler: Cryorig r1 ultimate | Ram: 1600mhz 2x8Gb corsair vengeance | Storage: sandisk ultra ii 128gb (os) 1TB WD Green | Psu: evga supernova g1 650watt | Case: fractal define s windowed |

Link to post
Share on other sites
Posted
  • Author

Will be doing the OC TOMORROW due to lack of time today.

GIGABYTE Z97MX-G5 | 16GB DDR3 | I5 4690k @ 4.4ghz | 1TB SSHD, 500GB HDD, 128GB SSD | GTX 1070 8GB | Corsair Graphite 230 | EVGA 650W | Hyper 212 EVO



Cinebench R15: 636(all cores), 127FPS



Link to post
Share on other sites
Posted
  • Author

do 4.3GHz OC



I went for 1.25V and 4.2GHz on my 4670k with a H100i. It's a safe place to start I'd say.



i have 4690k and i run it @4.6 GHz with 1.50 V and under stresstesting to bring out max temps it never gets hotter than 77C (using antec kuhler 650)

Got it to 4.19

Tried doing 4.4 in the bios, but the bios froze O_o

Did a cinebench stress test, got up to 76C. Haven't checked idle yet.

The thing that worries me is the voltage keeps going to 1.336... I didn't see an option to change voltage.



GIGABYTE Z97MX-G5 | 16GB DDR3 | I5 4690k @ 4.4ghz | 1TB SSHD, 500GB HDD, 128GB SSD | GTX 1070 8GB | Corsair Graphite 230 | EVGA 650W | Hyper 212 EVO



Cinebench R15: 636(all cores), 127FPS



Link to post
Share on other sites
Posted
  • Author

RESET TO DEFAULT FOR NOW!
I don't like the heat it was producing and I want to know its safe before I keep it there...

GIGABYTE Z97MX-G5 | 16GB DDR3 | I5 4690k @ 4.4ghz | 1TB SSHD, 500GB HDD, 128GB SSD | GTX 1070 8GB | Corsair Graphite 230 | EVGA 650W | Hyper 212 EVO



Cinebench R15: 636(all cores), 127FPS



Link to post
Share on other sites
Posted

RESET TO DEFAULT FOR NOW!

I don't like the heat it was producing and I want to know its safe before I keep it there...

download intel xtu and il help you from there.

Gpu: MSI 4G GTX 970 | Cpu: i5 4690k @4.6Ghz 1.23v | Cpu Cooler: Cryorig r1 ultimate | Ram: 1600mhz 2x8Gb corsair vengeance | Storage: sandisk ultra ii 128gb (os) 1TB WD Green | Psu: evga supernova g1 650watt | Case: fractal define s windowed |

Link to post
Share on other sites
Posted
  • Author

download intel xtu and il help you from there.

Have it up and running. Now what?

GIGABYTE Z97MX-G5 | 16GB DDR3 | I5 4690k @ 4.4ghz | 1TB SSHD, 500GB HDD, 128GB SSD | GTX 1070 8GB | Corsair Graphite 230 | EVGA 650W | Hyper 212 EVO



Cinebench R15: 636(all cores), 127FPS



Link to post
Share on other sites
Posted

So change the multiplier or the clock speed?

And I would assume do it through the mobo bios?

multiplier and go for something around 4.3. Just watch out for temps

The Brokish Boy v1: CPU: i7-8700k GPU: MSI Gaming X GTX ti MOBO: Asus ROG Maximus X Code Ram: G.Skill Trident Z 4x8gb 3200mhz DRIVES: 2x3TB WD Black , 500gb Samsung 850 EVO SSD, 500gb 970 EVO SSD Case: be quiet! Dark Base Pro 900 Black Headphone: ATH-MSR7 Mic: Blue Yeti Monitors: 27" BenQ GW2765 1440p; IPS, 27" Acer Predator XB271HU 1440p; VA

Link to post
Share on other sites
Posted

Have it up and running. Now what?

what you want to do is go into "all controls" then you see the "core voltage" set this to around 1.15v and next to it make sure its "static", then you want to set your cores so that theyre all the same, start off at around 4.2ghz, if you get a bluescreen up the voltage, if you dont keep going up by 0.1Ghz, so 4.2,4.3 etc.

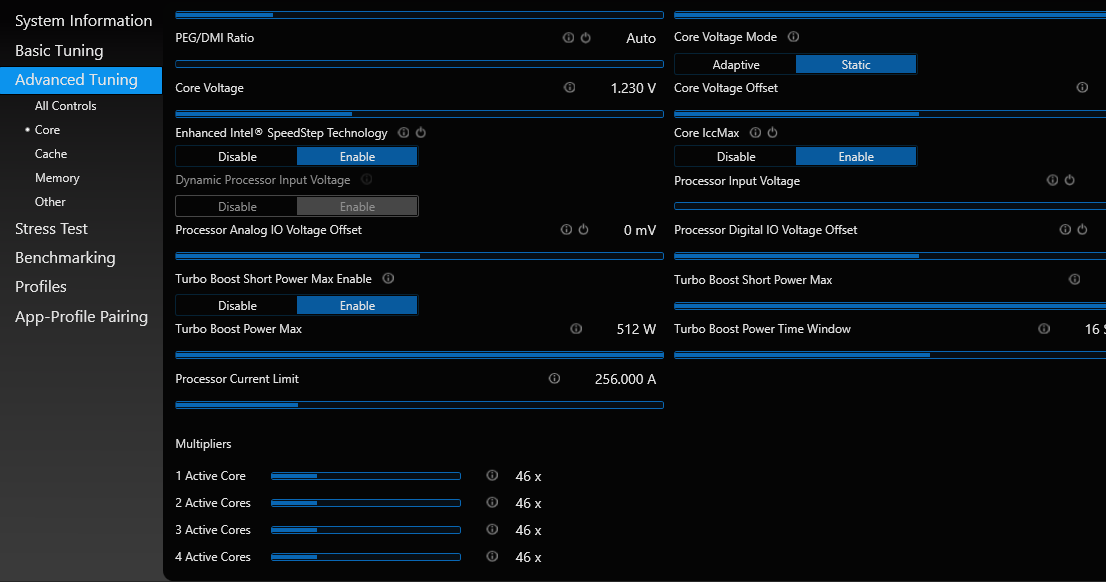

this is what mine looks like






Gpu: MSI 4G GTX 970 | Cpu: i5 4690k @4.6Ghz 1.23v | Cpu Cooler: Cryorig r1 ultimate | Ram: 1600mhz 2x8Gb corsair vengeance | Storage: sandisk ultra ii 128gb (os) 1TB WD Green | Psu: evga supernova g1 650watt | Case: fractal define s windowed |

Link to post
Share on other sites
Posted
  • Author

what you want to do is go into "all controls" then you see the "core voltage" set this to around 1.15v and next to it make sure its "static", then you want to set your cores so that theyre all the same, start off at around 4.2ghz, if you get a bluescreen up the voltage, if you dont keep going up by 0.1Ghz, so 4.2,4.3 etc.



this is what mine looks like






I assume i have to restart it every time I change it?

GIGABYTE Z97MX-G5 | 16GB DDR3 | I5 4690k @ 4.4ghz | 1TB SSHD, 500GB HDD, 128GB SSD | GTX 1070 8GB | Corsair Graphite 230 | EVGA 650W | Hyper 212 EVO



Cinebench R15: 636(all cores), 127FPS



Link to post
Share on other sites
Posted

I assume i have to restart it every time I change it?

no. all you do is change it and click apply.

Gpu: MSI 4G GTX 970 | Cpu: i5 4690k @4.6Ghz 1.23v | Cpu Cooler: Cryorig r1 ultimate | Ram: 1600mhz 2x8Gb corsair vengeance | Storage: sandisk ultra ii 128gb (os) 1TB WD Green | Psu: evga supernova g1 650watt | Case: fractal define s windowed |

Link to post
Share on other sites
Posted
  • Author

no.

Ok... Then why didn't my speed go up after applying?

GIGABYTE Z97MX-G5 | 16GB DDR3 | I5 4690k @ 4.4ghz | 1TB SSHD, 500GB HDD, 128GB SSD | GTX 1070 8GB | Corsair Graphite 230 | EVGA 650W | Hyper 212 EVO



Cinebench R15: 636(all cores), 127FPS



Link to post
Share on other sites
Posted
  • Author

no. all you do is change it and click apply.

Do i have to change cache speed?

GIGABYTE Z97MX-G5 | 16GB DDR3 | I5 4690k @ 4.4ghz | 1TB SSHD, 500GB HDD, 128GB SSD | GTX 1070 8GB | Corsair Graphite 230 | EVGA 650W | Hyper 212 EVO



Cinebench R15: 636(all cores), 127FPS



Link to post
Share on other sites
Posted

Ok... Then why didn't my speed go up after applying?

did you test it..... did you run a benchmark tool, did you click apply?



no all you do is change the core multiplier at the bottom.



show me what urs looks like.

Gpu: MSI 4G GTX 970 | Cpu: i5 4690k @4.6Ghz 1.23v | Cpu Cooler: Cryorig r1 ultimate | Ram: 1600mhz 2x8Gb corsair vengeance | Storage: sandisk ultra ii 128gb (os) 1TB WD Green | Psu: evga supernova g1 650watt | Case: fractal define s windowed |

Link to post
Share on other sites
Posted
  • Author

Multiple programs say its running at 3.5 when I have it set for 4.2...

I did hit apply. and i'm running the intel benchmark.

GIGABYTE Z97MX-G5 | 16GB DDR3 | I5 4690k @ 4.4ghz | 1TB SSHD, 500GB HDD, 128GB SSD | GTX 1070 8GB | Corsair Graphite 230 | EVGA 650W | Hyper 212 EVO



Cinebench R15: 636(all cores), 127FPS



Link to post
Share on other sites
