Overclocks Not Displaying Correctly.

iDeJayDzn
 Share
Posted

So i overclocked my system ages ago and noticed this when i first did it but i've only just remembered to ask someone about it.



CPU-Z displays 2133Mhz instead of 3000Mhz (The speed of my kit)

http://prntscr.com/88glcz

http://prntscr.com/88gli3



GeForce Experience displays my processor at 3.3Ghz not 4.4Ghz

http://prntscr.com/88gm59



MSI Control Center displays the same 3.3Ghz but shows the correct ring ratio as x44.

http://prntscr.com/88gtyp



I don't know why its happening and its confusing the hell out of me. OC Genie is disabled and i'm not sure if XMP is enabled or it's just set to 3200 MHz. (RAM)(3200 because only 2800 and 3200 are select-able)

                                                      Professional Graphics Designer | Case: NZXT Phantom Orange and Black | Motherboard: MSI SLI PLUS X99S

                                                                                                        CPU: Intel i7 5820K | Graphics Card: Zotac nVidia 1080 AMP!

                                   RAM: Corsair Vengeance 16GB DDR4 2400Mhz | Storage: Samsung 850 PRO 256GB, Western Digital Black 3TB & Western Digital Red 3TB |

                                                        Monitors: Acer Predator XB271HU 27", Acer Predator XB270HAbprz 27" and BenQ GL240 24" | PSU: Corsair AX860i |

Link to comment
https://linustechtips.com/topic/436868-overclocks-not-displaying-correctly/
Share on other sites
Link to post
Share on other sites
Posted

What MSI CC is displaying in the upper right hand corner is the name of the CPU that Intel has chosen. You'll see the same thing in CPU-Z. Same goes for Geforce Experience.

"It pays to keep an open mind, but not so open your brain falls out." - Carl Sagan.

"I can explain it to you, but I can't understand it for you" - Edward I. Koch

"I didn't die! I performed a tactical reset!" - Apollolol

Link to post
Share on other sites
Posted
  • Author

GeForce experience displays STOCK speed not OC'd speed.

Same with MSI





What MSI CC is displaying in the upper right hand corner is the name of the CPU that Intel has chosen. You'll see the same thing in CPU-Z. Same goes for Geforce Experience.



So how would i see what speeds my CPU and RAM are running at?

                                                      Professional Graphics Designer | Case: NZXT Phantom Orange and Black | Motherboard: MSI SLI PLUS X99S

                                                                                                        CPU: Intel i7 5820K | Graphics Card: Zotac nVidia 1080 AMP!

                                   RAM: Corsair Vengeance 16GB DDR4 2400Mhz | Storage: Samsung 850 PRO 256GB, Western Digital Black 3TB & Western Digital Red 3TB |

                                                        Monitors: Acer Predator XB271HU 27", Acer Predator XB270HAbprz 27" and BenQ GL240 24" | PSU: Corsair AX860i |

Link to post
Share on other sites
Posted

So how would i see what speeds my CPU and RAM are running at?

CPU-Z displays live clocks.

"It pays to keep an open mind, but not so open your brain falls out." - Carl Sagan.

"I can explain it to you, but I can't understand it for you" - Edward I. Koch

"I didn't die! I performed a tactical reset!" - Apollolol

Link to post
Share on other sites
Posted
  • Author

CPU-Z displays live clocks.



The highest speed i see my CPU go at is 3099 from 1199.

                                                      Professional Graphics Designer | Case: NZXT Phantom Orange and Black | Motherboard: MSI SLI PLUS X99S

                                                                                                        CPU: Intel i7 5820K | Graphics Card: Zotac nVidia 1080 AMP!

                                   RAM: Corsair Vengeance 16GB DDR4 2400Mhz | Storage: Samsung 850 PRO 256GB, Western Digital Black 3TB & Western Digital Red 3TB |

                                                        Monitors: Acer Predator XB271HU 27", Acer Predator XB270HAbprz 27" and BenQ GL240 24" | PSU: Corsair AX860i |

Link to post
Share on other sites
Posted

The highest speed i see my CPU go at is 3099 from 1199.

In order to see your RAM frequency, go to the Memory tab. You will see the actual frequency, not your effective frequency. Are you stressing your CPU while looking at CPU-Z or at least have Windows set to High Performance?

"It pays to keep an open mind, but not so open your brain falls out." - Carl Sagan.

"I can explain it to you, but I can't understand it for you" - Edward I. Koch

"I didn't die! I performed a tactical reset!" - Apollolol

Link to post
Share on other sites
Posted

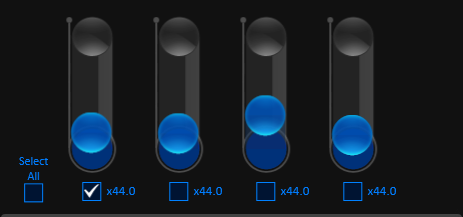

bb7edf9c14ed950a3f48a73cd7d14370.png sync all the cores to run at the same speed (select all) . That screen shot makes me think that only one core is being overclocked.

Our Grace. The Feathered One. He shows us the way. His bob is majestic and shows us the path. Follow unto his guidance and His example. He knows the one true path. Our Saviour. Our Grace. Our Father Birb has taught us with His humble heart and gentle wing the way of the bob. Let us show Him our reverence and follow in His example. The True Path of the Feathered One. ~ Dimboble-dubabob III

Link to post
Share on other sites
Posted
  • Author

bb7edf9c14ed950a3f48a73cd7d14370.png sync all the cores to run at the same speed (select all) . That screen shot makes me think that only one core is being overclocked.



I never used it for overclocking so i'll do that now.

http://prntscr.com/88h2d4



In order to see your RAM frequency, go to the Memory tab. You will see the actual frequency, not your effective frequency. Are you stressing your CPU while looking at CPU-Z or at least have Windows set to High Performance?



I had it set to high performance on W7 but last week i OEM'd my system and reinstalled Windows 10 fresh so i have no idea where that setting is in Windows 10. Start menu isnt that much help with shit half the time anyways.

                                                      Professional Graphics Designer | Case: NZXT Phantom Orange and Black | Motherboard: MSI SLI PLUS X99S

                                                                                                        CPU: Intel i7 5820K | Graphics Card: Zotac nVidia 1080 AMP!

                                   RAM: Corsair Vengeance 16GB DDR4 2400Mhz | Storage: Samsung 850 PRO 256GB, Western Digital Black 3TB & Western Digital Red 3TB |

                                                        Monitors: Acer Predator XB271HU 27", Acer Predator XB270HAbprz 27" and BenQ GL240 24" | PSU: Corsair AX860i |

Link to post
Share on other sites
Posted

I never used it for overclocking so i'll do that now.

http://prntscr.com/88h2d4





I had it set to high performance on W7 but last week i OEM'd my system and reinstalled Windows 10 fresh so i have no idea where that setting is in Windows 10. Start menu isnt that much help with shit half the time anyways.

Using the search bar, type in Control Panel and open the desktop app that comes up. Once that opens, navigate to System and Security and then click on Power Options.

"It pays to keep an open mind, but not so open your brain falls out." - Carl Sagan.

"I can explain it to you, but I can't understand it for you" - Edward I. Koch

"I didn't die! I performed a tactical reset!" - Apollolol

Link to post
Share on other sites
Posted

I never used it for overclocking so i'll do that now.

Ideally do the overclocking in the bios.



There's much more control there than trying to use the bundled software.



And learning the bios also helps with any future PC problems if it comes to that.

Our Grace. The Feathered One. He shows us the way. His bob is majestic and shows us the path. Follow unto his guidance and His example. He knows the one true path. Our Saviour. Our Grace. Our Father Birb has taught us with His humble heart and gentle wing the way of the bob. Let us show Him our reverence and follow in His example. The True Path of the Feathered One. ~ Dimboble-dubabob III

Link to post
Share on other sites
Posted
  • Author

Ideally do the overclocking in the bios.



There's much more control there than trying to use the bundled software.



And learning the bios also helps with any future PC problems if it comes to that.



My BIOS is aids. Trust me. I've been through it. I changed all my OC's in the BIOS for CPU and RAM but some of the stuff that is needed is either mislabelled or missing altogether. Starting to wish i got another board when i built it.



Using the search bar, type in Control Panel and open the desktop app that comes up. Once that opens, navigate to System and Security and then click on Power Options.



Change my power settings. How do i go about stressing RAM/CPU? All i know of is AIDA64 but you need to request a trial period for that and i cant be bothered searching for a tor for it.

                                                      Professional Graphics Designer | Case: NZXT Phantom Orange and Black | Motherboard: MSI SLI PLUS X99S

                                                                                                        CPU: Intel i7 5820K | Graphics Card: Zotac nVidia 1080 AMP!

                                   RAM: Corsair Vengeance 16GB DDR4 2400Mhz | Storage: Samsung 850 PRO 256GB, Western Digital Black 3TB & Western Digital Red 3TB |

                                                        Monitors: Acer Predator XB271HU 27", Acer Predator XB270HAbprz 27" and BenQ GL240 24" | PSU: Corsair AX860i |

Link to post
Share on other sites
Posted

So i overclocked my system ages ago and noticed this when i first did it but i've only just remembered to ask someone about it.



CPU-Z displays 2133Mhz instead of 3000Mhz (The speed of my kit)

http://prntscr.com/88glcz

http://prntscr.com/88gli3



GeForce Experience displays my processor at 3.3Ghz not 4.4Ghz

http://prntscr.com/88gm59



MSI Control Center displays the same 3.3Ghz but shows the correct ring ratio as x44.

http://prntscr.com/88gtyp



I don't know why its happening and its confusing the hell out of me. OC Genie is disabled and i'm not sure if XMP is enabled or it's just set to 3200 MHz. (RAM)(3200 because only 2800 and 3200 are select-able)







Don't click on the SPD tab to see memory speed, look at the "memory tab"



Then take the freq and x2 and that's your actual speed.




Stuff:  i7 7700k @ (dat nibba succ) | ASRock Z170M OC Formula | G.Skill TridentZ 3600 c16 | EKWB 1080 @ 2100 mhz  |  Acer X34 Predator | R4 | EVGA 1000 P2 | 1080mm Radiator Custom Loop | HD800 + Audio-GD NFB-11 | 850 Evo 1TB | 840 Pro 256GB | 3TB WD Blue | 2TB Barracuda

Hwbot: http://hwbot.org/user/lays/

FireStrike 980 ti @ 1800 Mhz http://hwbot.org/submission/3183338 http://www.3dmark.com/3dm/11574089

Link to post
Share on other sites
Posted
  • Author

Don't click on the SPD tab to see memory speed, look at the "memory tab"



Then take the freq and x2 and that's your actual speed.






So it looks like my latency is sky high from what it should be :(

http://prntscr.com/88h96e

                                                      Professional Graphics Designer | Case: NZXT Phantom Orange and Black | Motherboard: MSI SLI PLUS X99S

                                                                                                        CPU: Intel i7 5820K | Graphics Card: Zotac nVidia 1080 AMP!

                                   RAM: Corsair Vengeance 16GB DDR4 2400Mhz | Storage: Samsung 850 PRO 256GB, Western Digital Black 3TB & Western Digital Red 3TB |

                                                        Monitors: Acer Predator XB271HU 27", Acer Predator XB270HAbprz 27" and BenQ GL240 24" | PSU: Corsair AX860i |

Link to post
Share on other sites
Posted

So it looks like my latency is sky high from what it should be :(

http://prntscr.com/88h96e



Seems like normal latency to me for 3200 DDR4.



Depending on what ram kit you get I think they get as low at 3200 16-16-16-36

Stuff:  i7 7700k @ (dat nibba succ) | ASRock Z170M OC Formula | G.Skill TridentZ 3600 c16 | EKWB 1080 @ 2100 mhz  |  Acer X34 Predator | R4 | EVGA 1000 P2 | 1080mm Radiator Custom Loop | HD800 + Audio-GD NFB-11 | 850 Evo 1TB | 840 Pro 256GB | 3TB WD Blue | 2TB Barracuda

Hwbot: http://hwbot.org/user/lays/

FireStrike 980 ti @ 1800 Mhz http://hwbot.org/submission/3183338 http://www.3dmark.com/3dm/11574089

Link to post
Share on other sites
Posted
  • Author

Turns out CPU-Z has a built in CPU stresser and my ram runs at 62% with it. 4367MHz on my CPU so it runs near enough to the x44 Ratio.

No idea how a slight OC on a 5820K beats a 5930K either but sure; http://prntscr.com/88hewf

                                                      Professional Graphics Designer | Case: NZXT Phantom Orange and Black | Motherboard: MSI SLI PLUS X99S

                                                                                                        CPU: Intel i7 5820K | Graphics Card: Zotac nVidia 1080 AMP!

                                   RAM: Corsair Vengeance 16GB DDR4 2400Mhz | Storage: Samsung 850 PRO 256GB, Western Digital Black 3TB & Western Digital Red 3TB |

                                                        Monitors: Acer Predator XB271HU 27", Acer Predator XB270HAbprz 27" and BenQ GL240 24" | PSU: Corsair AX860i |

Link to post
Share on other sites
Posted

Turns out CPU-Z has a built in CPU stresser and my ram runs at 62% with it. 4367MHz on my CPU so it runs near enough to the x44 Ratio.

No idea how a slight OC on a 5820K beats a 5930K either but sure; http://prntscr.com/88hewf

A 5930K is a six core CPU just like the 5820K and uses the same architecture. If the 5820K is clocked higher than a 5930K, it will perform better.

"It pays to keep an open mind, but not so open your brain falls out." - Carl Sagan.

"I can explain it to you, but I can't understand it for you" - Edward I. Koch

"I didn't die! I performed a tactical reset!" - Apollolol

Link to post
Share on other sites
Posted
  • Author

A 5930K is a six core CPU just like the 5820K and uses the same architecture. If the 5820K is clocked higher than a 5930K, it will perform better.



Suppose. I still think i might grab a 6000 series CPU with a Z100 board. Hate this BIOS and i have these random BSODs every now and again. Yet to run the stresser but i think it's my CPU.
