Red watercooling help

[ItxCrow]

Hey, I needed a watercooling for the build I was planning to make, here is the part list :



PCPartPicker part list / Price breakdown by merchant

CPU: Intel Core i7-4790K 4.0GHz Quad-Core Processor  ($322.99 @ NCIX US)
Motherboard: Asus MAXIMUS VII HERO ATX LGA1150 Motherboard  ($208.99 @ Amazon)
Memory: Corsair Vengeance Pro 16GB (2 x 8GB) DDR3-2133 Memory  ($186.99 @ Amazon)
Storage: Samsung 840 EVO 250GB 2.5" Solid State Drive  ($129.99 @ NCIX US)
Storage: Western Digital BLACK SERIES 1TB 3.5" 7200RPM Internal Hard Drive  ($74.49 @ OutletPC)
Video Card: Asus GeForce GTX 780 Ti 3GB DirectCU II Video Card (2-Way SLI)  ($619.99 @ NCIX US)
Video Card: Asus GeForce GTX 780 Ti 3GB DirectCU II Video Card (2-Way SLI)  ($619.99 @ NCIX US)
Case: Corsair 750D ATX Full Tower Case  ($129.99 @ NCIX US)
Power Supply: Corsair RM 1000W 80+ Gold Certified Fully-Modular ATX Power Supply  ($139.99 @ Newegg)
Case Fan: Corsair Air Series AF140 Quiet Edition 67.8 CFM 140mm  Fan  ($19.99 @ Micro Center)
Case Fan: Corsair Air Series AF140 Quiet Edition 67.8 CFM 140mm  Fan  ($19.99 @ Micro Center)
Keyboard: Corsair Vengeance K70 Wired Gaming Keyboard  ($114.99 @ Amazon)
Mouse: Mionix NAOS 8200 Wired Laser Mouse  ($62.99 @ Amazon)
Total: $2651.37
Prices include shipping, taxes, and discounts when available
Generated by PCPartPicker 2014-07-26 12:24 EDT-0400

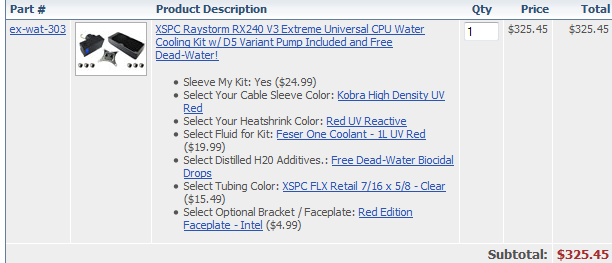

This is a watercooling someone suggested me,









The red/black cooler kit fits perfect in my build,

but will it keep my cpu cooled?

and Will it fit in the Case? and not hanging outside the case, because I've seen some videos about that.



My budget is 500$, and It's only for the CPU



Or should I get red tubing instead of Transparant

Thanks, Crow

[Altecice]

What IS your system?

[ItxCrow]

What IS your system?

In the first line

[Shaqo_Wyn]

Hey, I needed a watercooling for the build I was planning to make, here is the part list :



PCPartPicker part list / Price breakdown by merchant

CPU: Intel Core i7-4790K 4.0GHz Quad-Core Processor  ($322.99 @ NCIX US)

Motherboard: Asus MAXIMUS VII HERO ATX LGA1150 Motherboard  ($208.99 @ Amazon)

Memory: Corsair Vengeance Pro 16GB (2 x 8GB) DDR3-2133 Memory  ($186.99 @ Amazon)

Storage: Samsung 840 EVO 250GB 2.5" Solid State Drive  ($129.99 @ NCIX US)

Storage: Western Digital BLACK SERIES 1TB 3.5" 7200RPM Internal Hard Drive  ($74.49 @ OutletPC)

Video Card: Asus GeForce GTX 780 Ti 3GB DirectCU II Video Card (2-Way SLI)  ($619.99 @ NCIX US)

Video Card: Asus GeForce GTX 780 Ti 3GB DirectCU II Video Card (2-Way SLI)  ($619.99 @ NCIX US)

Case: Corsair 750D ATX Full Tower Case  ($129.99 @ NCIX US)

Power Supply: Corsair RM 1000W 80+ Gold Certified Fully-Modular ATX Power Supply  ($139.99 @ Newegg)

Case Fan: Corsair Air Series AF140 Quiet Edition 67.8 CFM 140mm  Fan  ($19.99 @ Micro Center)

Case Fan: Corsair Air Series AF140 Quiet Edition 67.8 CFM 140mm  Fan  ($19.99 @ Micro Center)

Keyboard: Corsair Vengeance K70 Wired Gaming Keyboard  ($114.99 @ Amazon)

Mouse: Mionix NAOS 8200 Wired Laser Mouse  ($62.99 @ Amazon)

Total: $2651.37

Prices include shipping, taxes, and discounts when available

Generated by PCPartPicker 2014-07-26 12:24 EDT-0400



The red/black cooler kit fits perfect in my build,

but will it keep my cpu cooled?

and Will it fit in the Case? and not hanging outside the case, because I've seen some videos about that



Or should I get red tubing instead of Transparant

Thanks, Crow

What's your budget? Do you plan on adding the GPU's to the loop in the future?

[ItxCrow]

What's your budget? Do you plan on adding the GPU's to the loop in the future?

My budget is max 500$, and no, only the Cpu

[Shaqo_Wyn]

My budget is max 500$, and no, only the Cpu

Oke, you could do a 240 or 360mm (if you're not using the 5.25" bays) Alphacool XT45.



Red 1/2 ID 3/4 OD Primochill Advanced LRT tubing. Swiftech Apogee XL waterblock (and use the included red color film on the LED light) or a IMO cleaner looking EK Supremacy waterblock.



EK D5 140mm XRES/pump top combo with a Swiftech MCP655 PWM pump.



Bitspower or Monsoon compression fittings 1/2 ID 3/4 OD, you'll need 6.



With a 360 XT45, bitspower fittings and the EK block it'll be about $450 or less. This is more than enough for an OC'ed 4790K and leaves pretty of room for future expansion, if you decide afterwards that you do want the GPU's in there. You can have cheaper loop that still performs great with a 240 XT45, monsoon fittings, the swiftech block and DDC pump and EK res/pump top combo. (taken into account that you only want to do the CPU). $350-$380.



Just have a look at all the components I've stated (FrozenCPU) and decide what looks you like etc, the looks is personal opinion and how much you're willing to spend.

[Leonard]

That kit will keep the CPU very cool but if your budget is $500 i would suggest you build one from scrap and you can tailor it to your color scheme. See if you like this:-

1xRadiator = $59.99

1xCPU Block = $44.99

1xPump/reservoir $149.99

2xCompression Fittings = $60

2xSilver Bullets = $11.99

3xFans = $47.85

8 feet of Tube = $44

1xdye = $9.99

2xRed Cold Cathode $4.99

1xFan Splitter = $11.49

2xRed 5mm tailed LED for the reservoir tube = $4



Total = $449.28 Change is for shipping i guess.

[ItxCrow]

That kit will keep the CPU very cool but if your budget is $500 i would suggest you build one from scrap and you can tailor it to your color scheme. See if you like this:-

1xRadiator = $59.99

1xCPU Block = $44.99

1xPump/reservoir $149.99

2xCompression Fittings = $60

2xSilver Bullets = $11.99

3xFans = $47.85

8 feet of Tube = $44

1xdye = $9.99

2xRed Cold Cathode $4.99

1xFan Splitter = $11.49

2xRed 5mm tailed LED for the reservoir tube = $4



Total = $449.28 Change is for shipping i guess.

and some money for the coolant

[Leonard]

and some money for the coolant

Yeah a large bottle of high grade distilled water and then you mix the feser dye into it to get the red color. Not sure if you can get that where you live but if not well just add pre-mixed coolant.
