Cannot align motherboard in case

Spam78
 Share
Posted

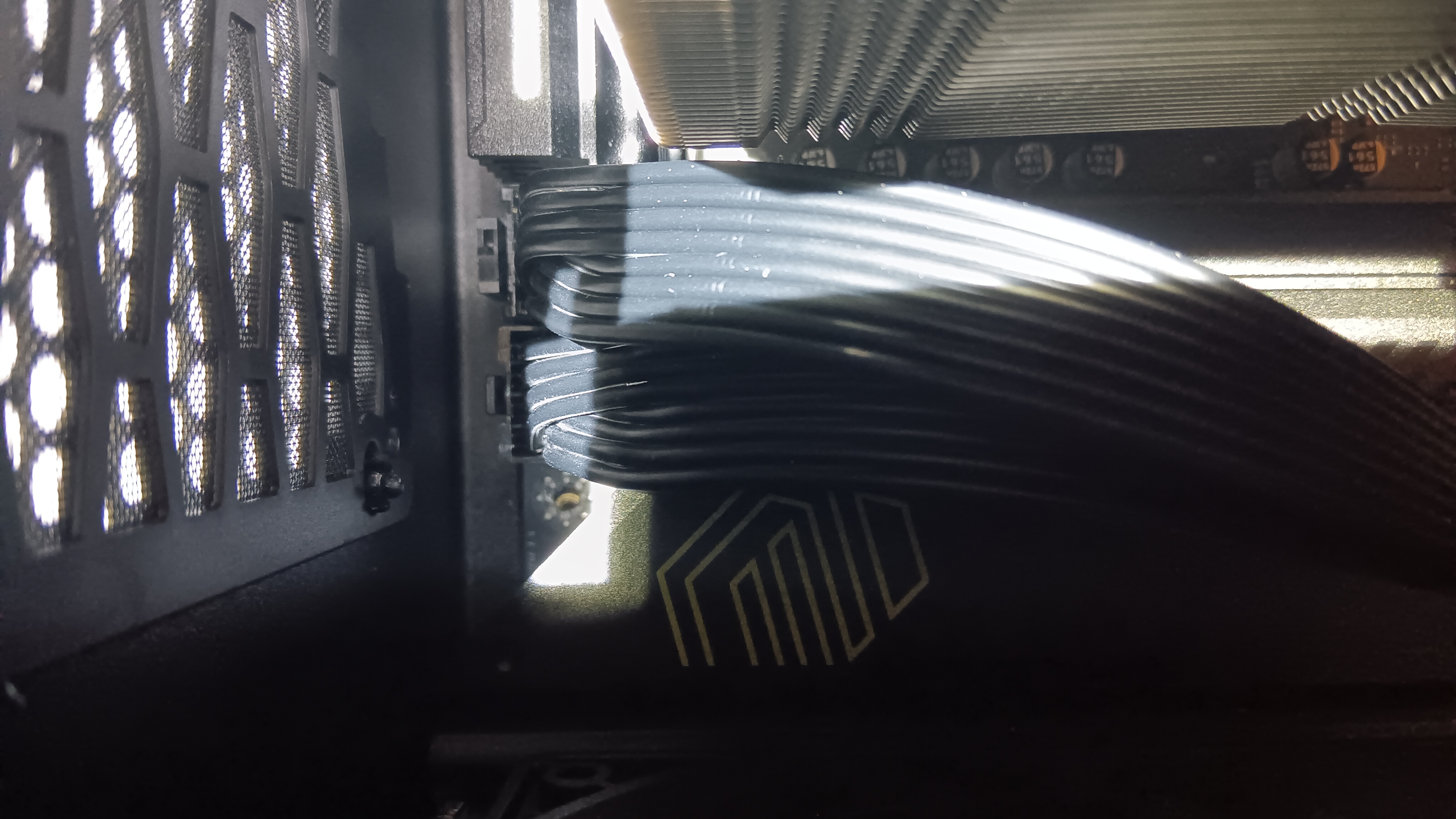

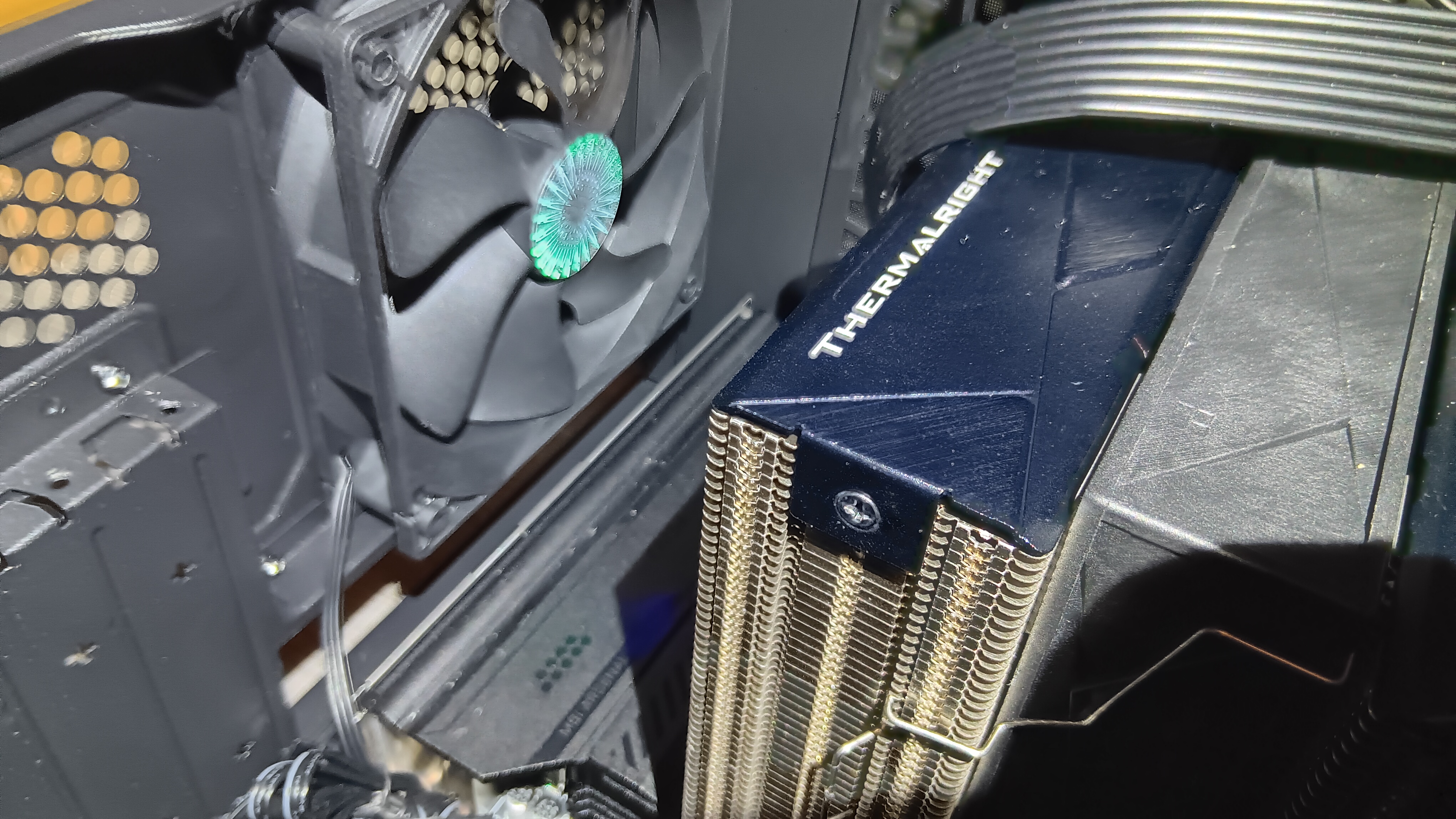

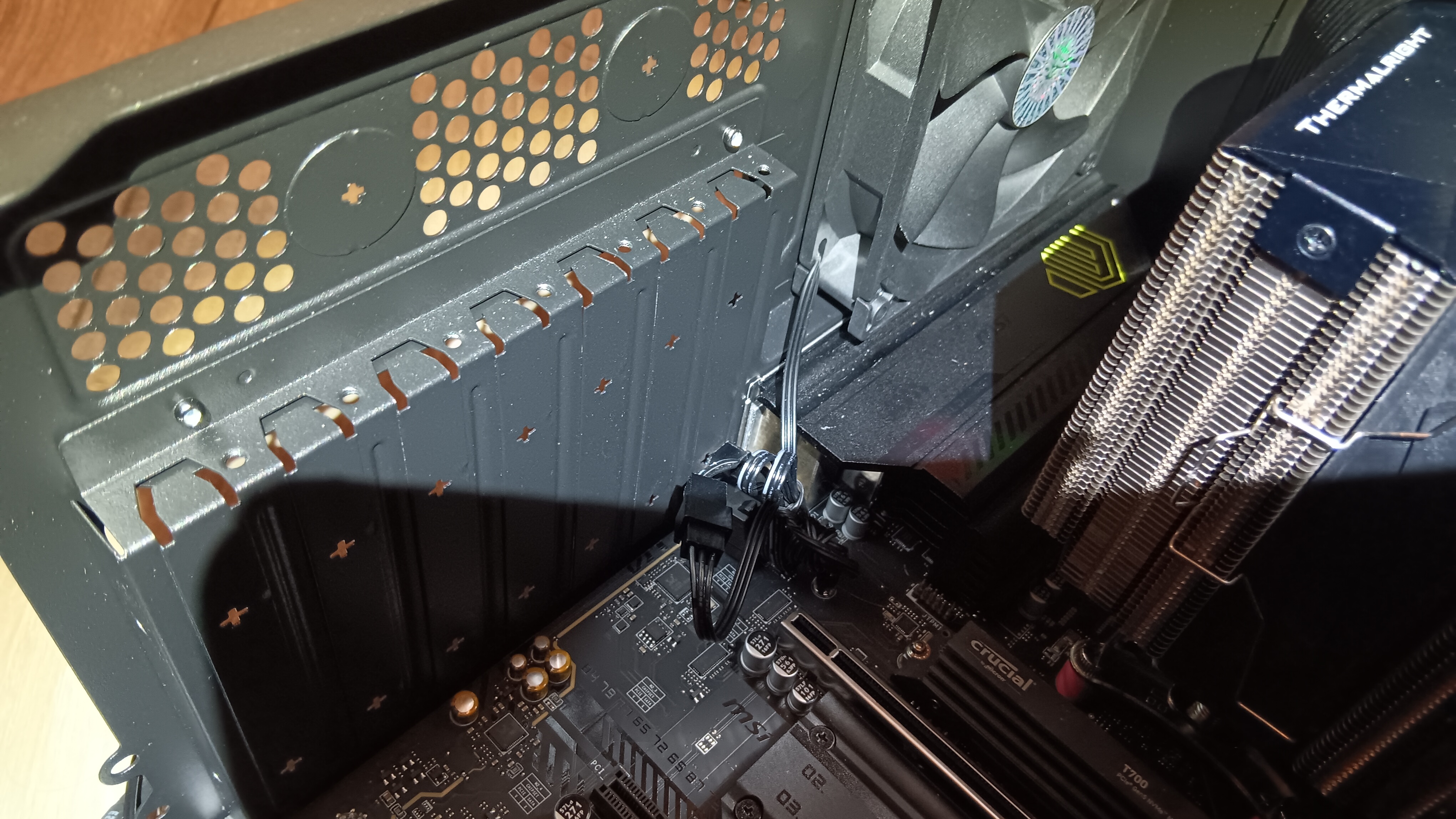

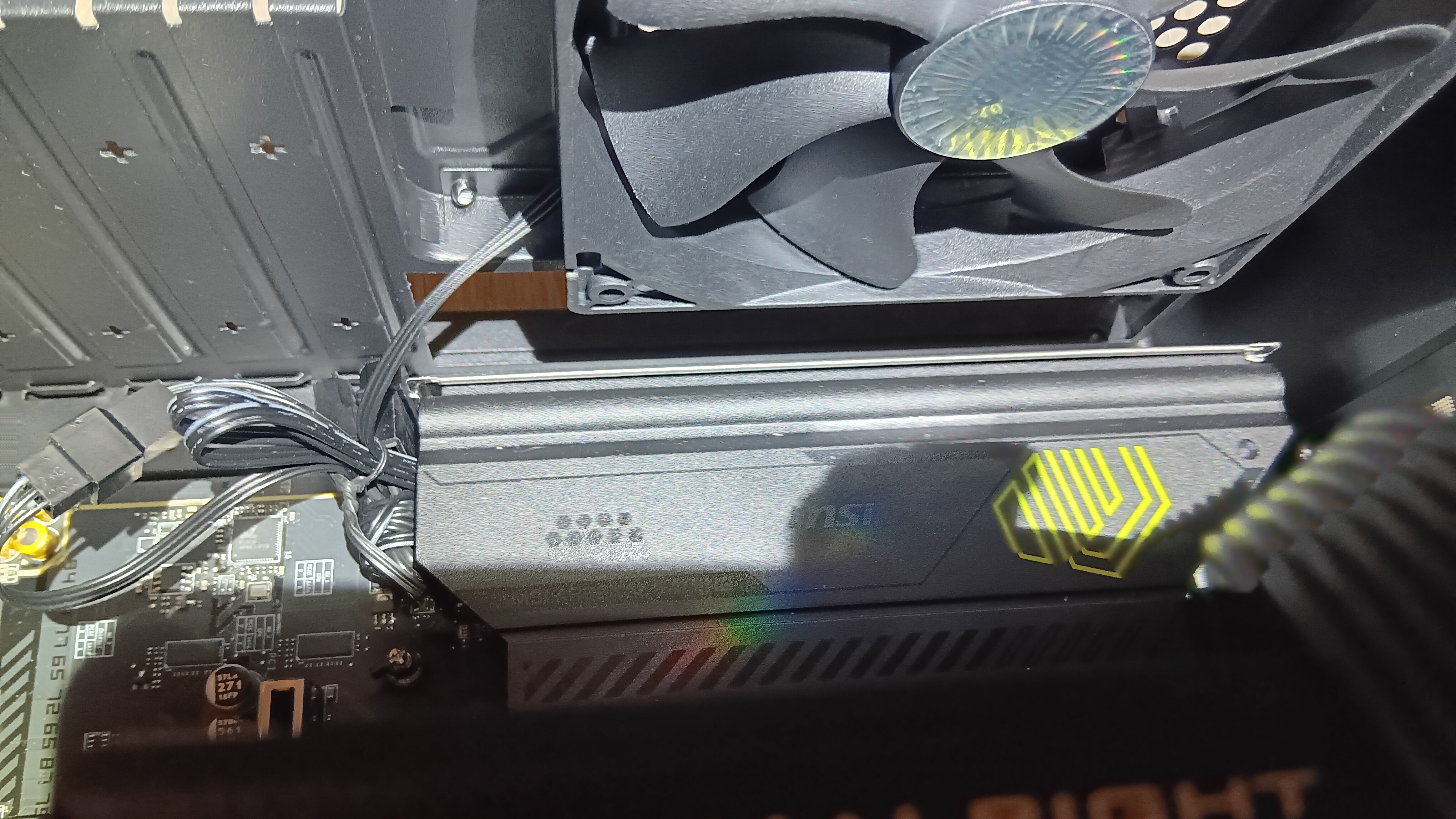

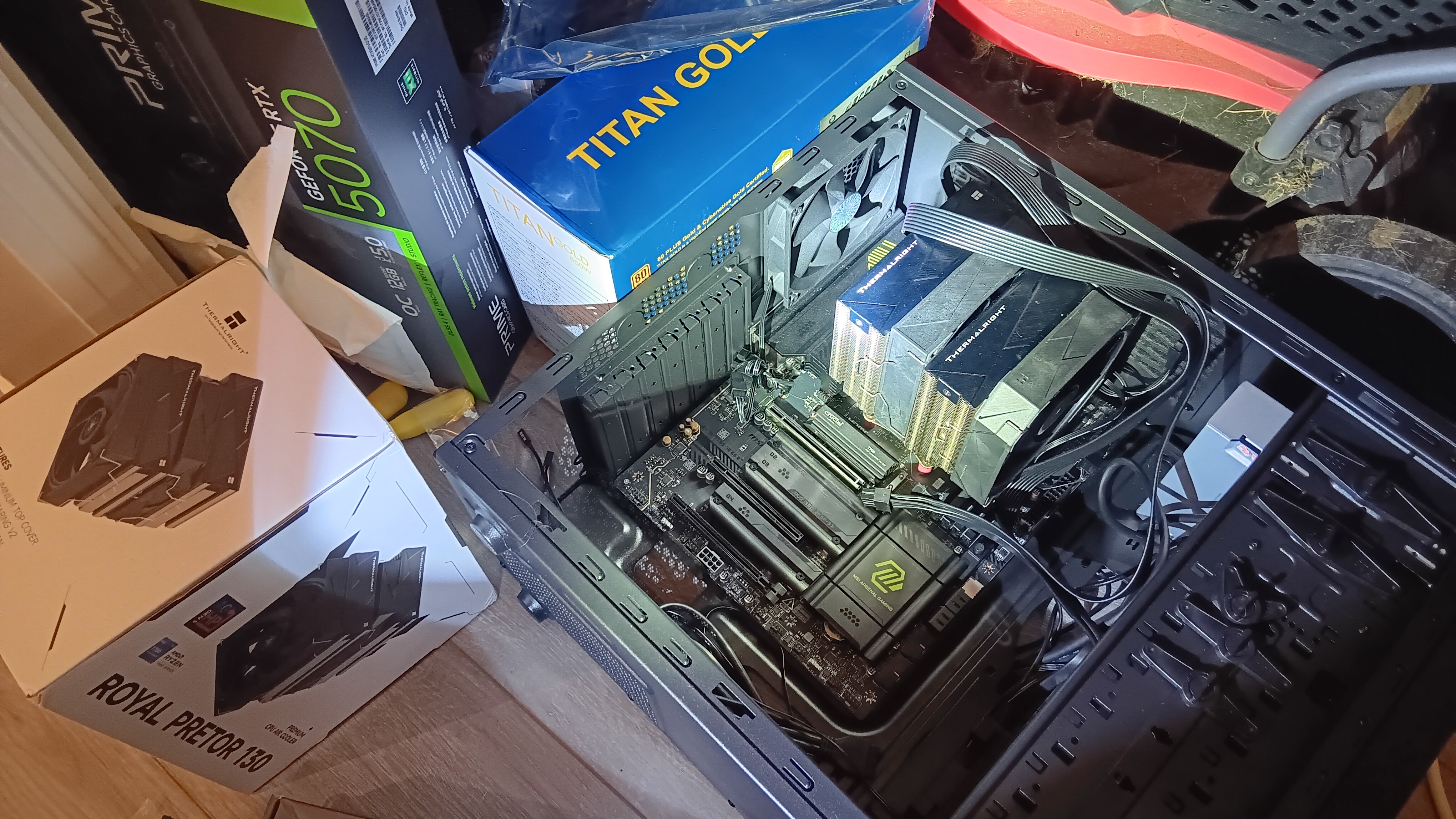

First time builder here. I cannot get the motherboard to align with the stays to screw in. The IO shield (which is preattached) looks to be in the correct place, yet the position of the stays seem to want it to go further through the hole in the case, which it will not go, no matter how much force I use. In this position, the stays on the top row are only half visible through the holes in the motherboard, so cannot be screwed into. I've double checked for obstructions from cables, but there is nothing I can spot that would be in the way. Is there something I'm doing wrong, or is there a problem with the motherboard or case, and if so is there anything I can do to fix it?



Motherboard: MSI MAG B850 Tomahawk Max WiFi (ATX form factor)

Case: Cooler Master N400

Pictures:

Link to comment
https://linustechtips.com/topic/1635097-cannot-align-motherboard-in-case/
Share on other sites
Link to post
Share on other sites
Posted
6 minutes ago, Spam78 said:

First time builder here. I cannot get the motherboard to align with the stays to screw in. The IO shield (which is preattached) looks to be in the correct place, yet the position of the stays seem to want it to go further through the hole in the case, which it will not go, no matter how much force I use. In this position, the stays on the top row are only half visible through the holes in the motherboard, so cannot be screwed into. I've double checked for obstructions from cables, but there is nothing I can spot that would be in the way. Is there something I'm doing wrong, or is there a problem with the motherboard or case, and if so is there anything I can do to fix it?



Motherboard: MSI MAG B850 Tomahawk Max WiFi (ATX form factor)

Case: Cooler Master N400

Pictures:

Hey, welcome to the Forum.

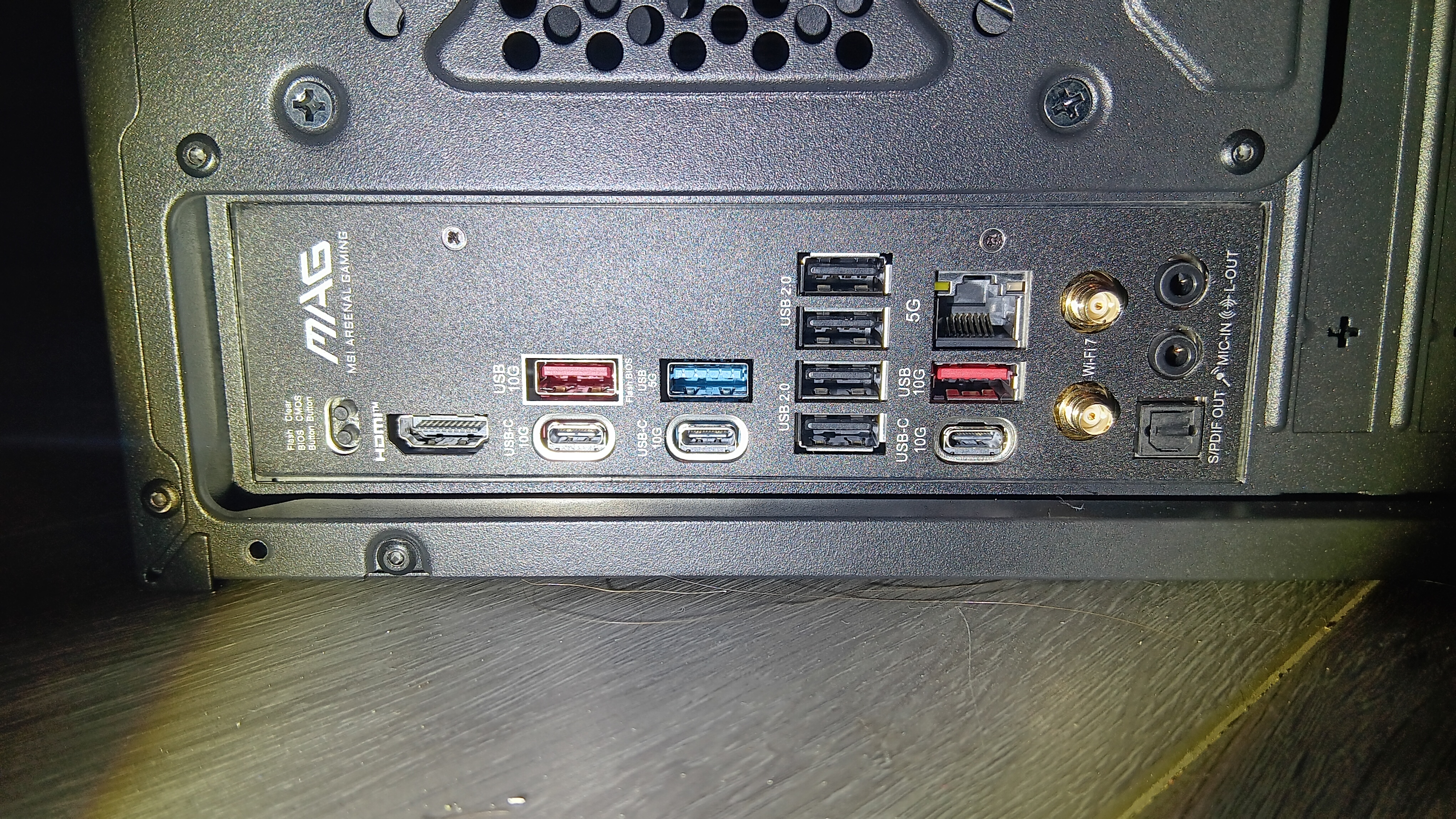

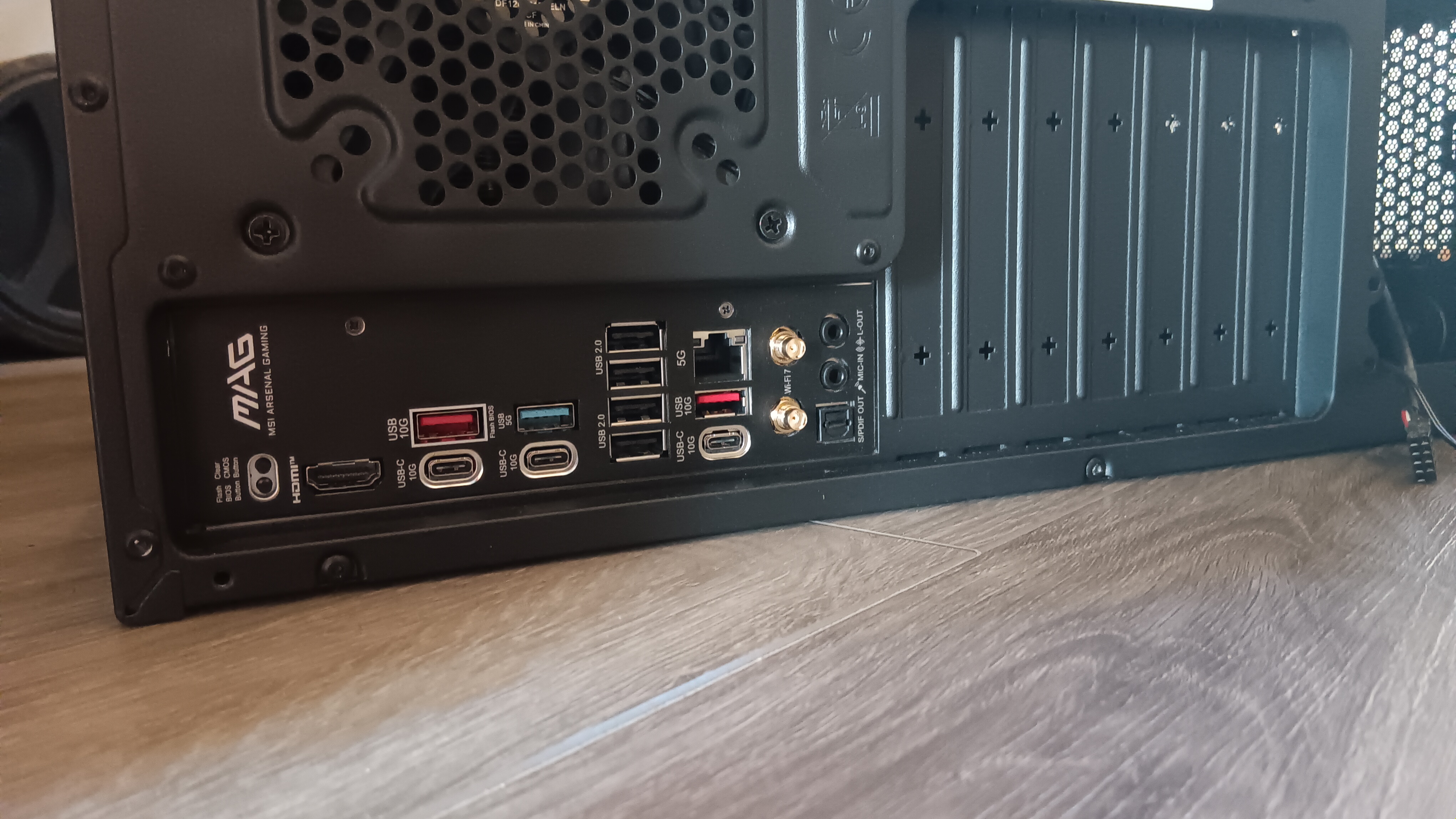

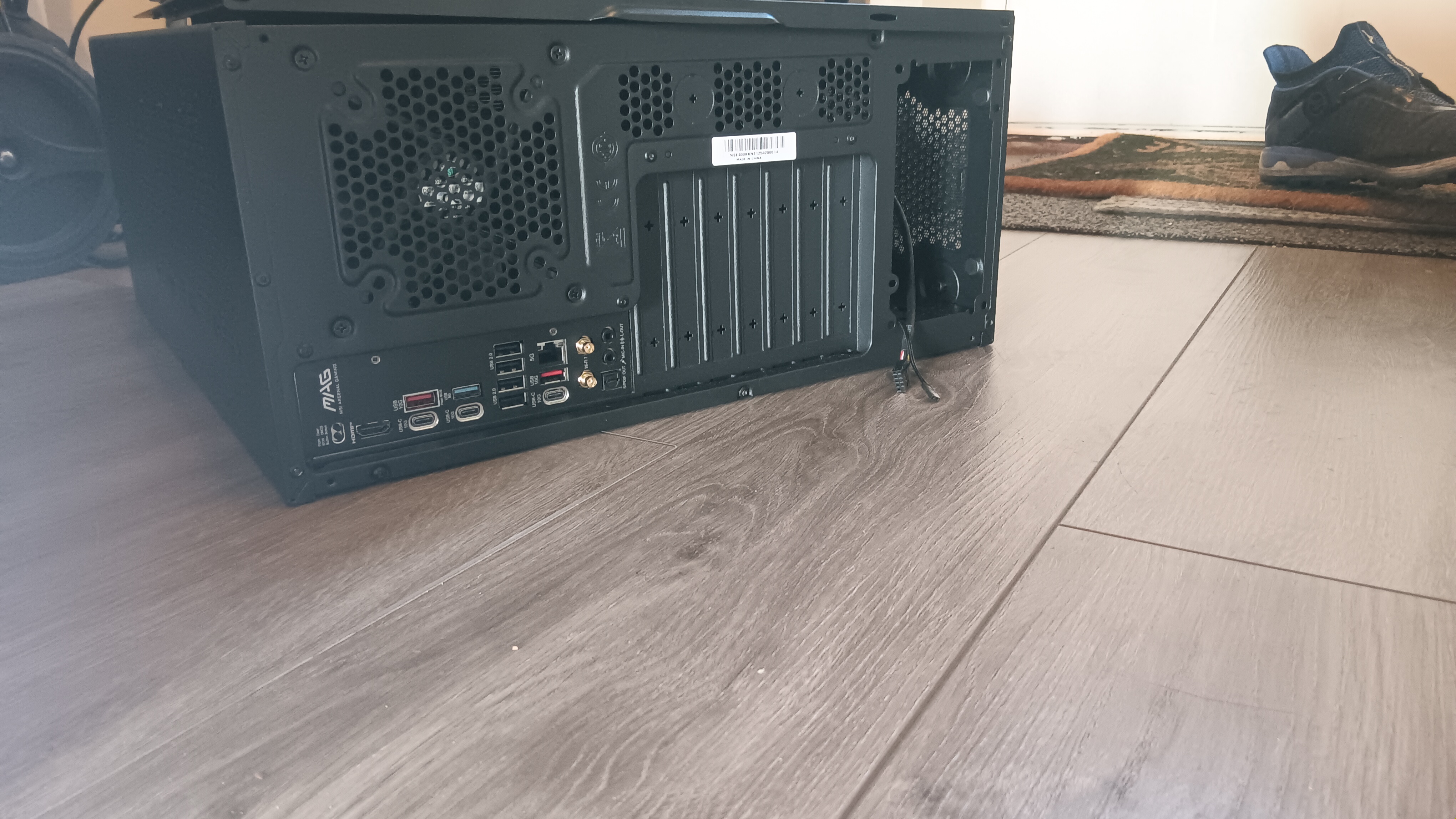

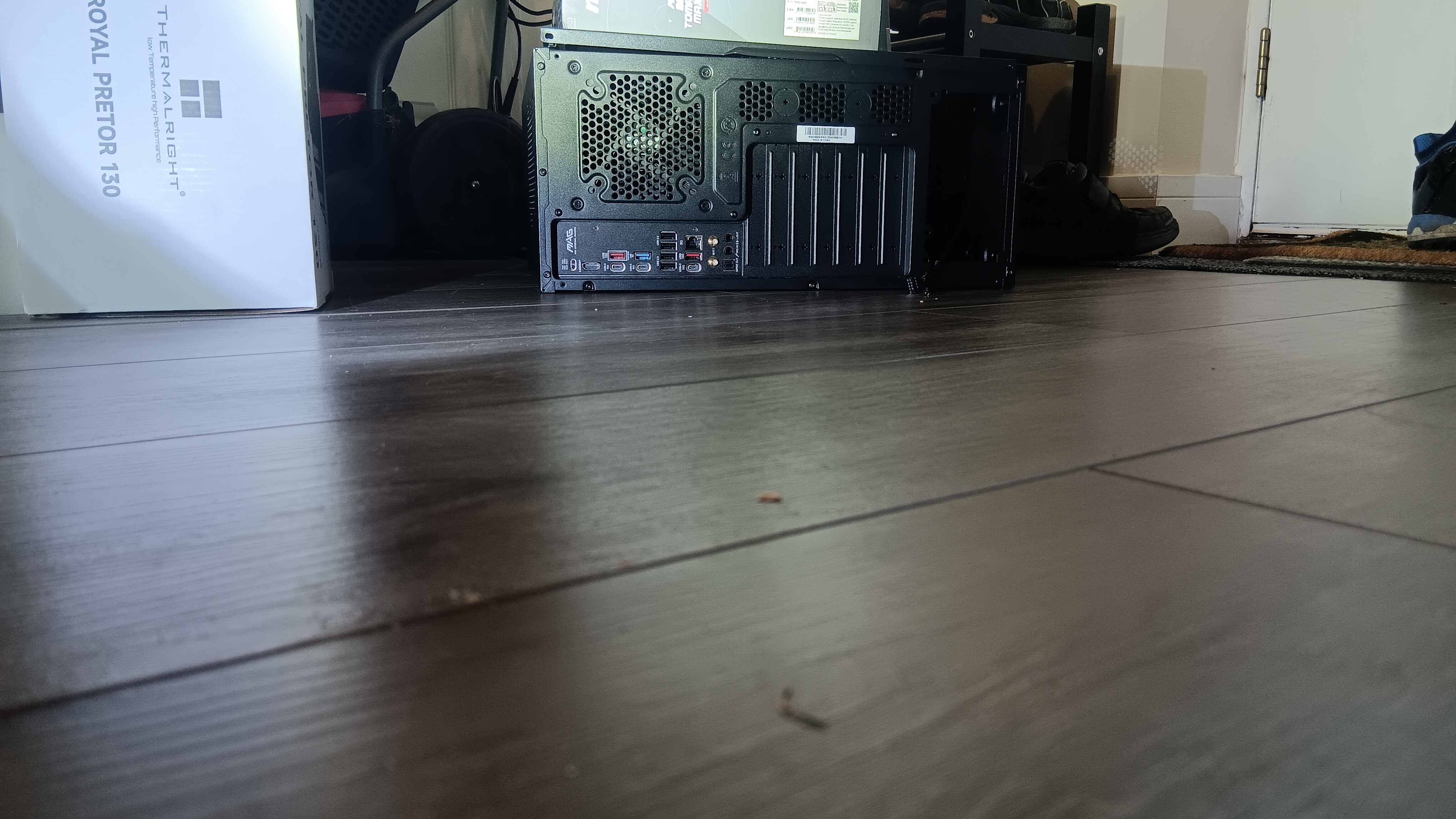

Can you take a few more pictures of the back of the case like the first picture in your post?
Take it from a few different angles and distances.



Something looks a bit off.

Link to post
Share on other sites
Posted

Align your board with the holes first, seems you've pushed the I/O shield out of place then holes don't align anymore

AMD R9  7950X3D CPU/ Asus ROG STRIX X670E-E board/ 2x32GB G-Skill Trident Z Neo 6000CL30 RAM / ASUS TUF Gaming AMD Radeon RX 7900 XTX OC Edition GPU/ Phanteks P600S case /  Arctic Liquid Freezer III 360 ARGB cooler/  2TB WD SN850 NVme + 2TB Crucial T500  NVme  + 4TB Toshiba X300 HDD / Corsair RM850x PSU/ Alienware AW3420DW 34" 120Hz 3440x1440p monitor / ASUS ROG AZOTH keyboard/ Logitech G PRO X Superlight mouse / Audeze Maxwell headphones

Link to post
Share on other sites
Posted
  • Author
4 hours ago, Hinjima said:

Hey, welcome to the Forum.



Can you take a few more pictures of the back of the case like the first picture in your post?
Take it from a few different angles and distances.



Something looks a bit off.

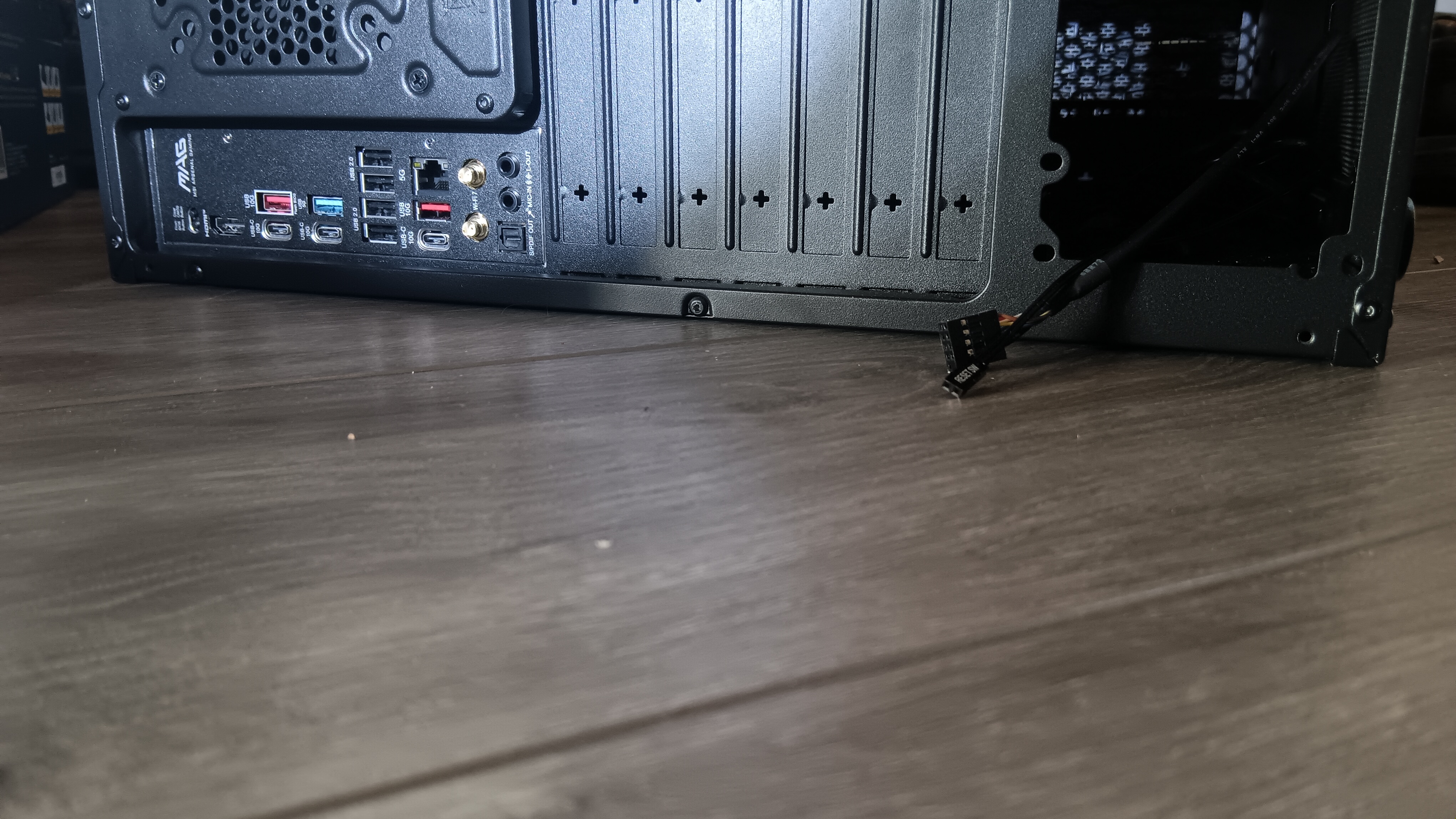

It does seem to be at a slight angle. I have tried tilting the motherboard, but still wasn't able to get it to fit.



3 hours ago, PDifolco said:

Align your board with the holes first, seems you've pushed the I/O shield out of place then holes don't align anymore

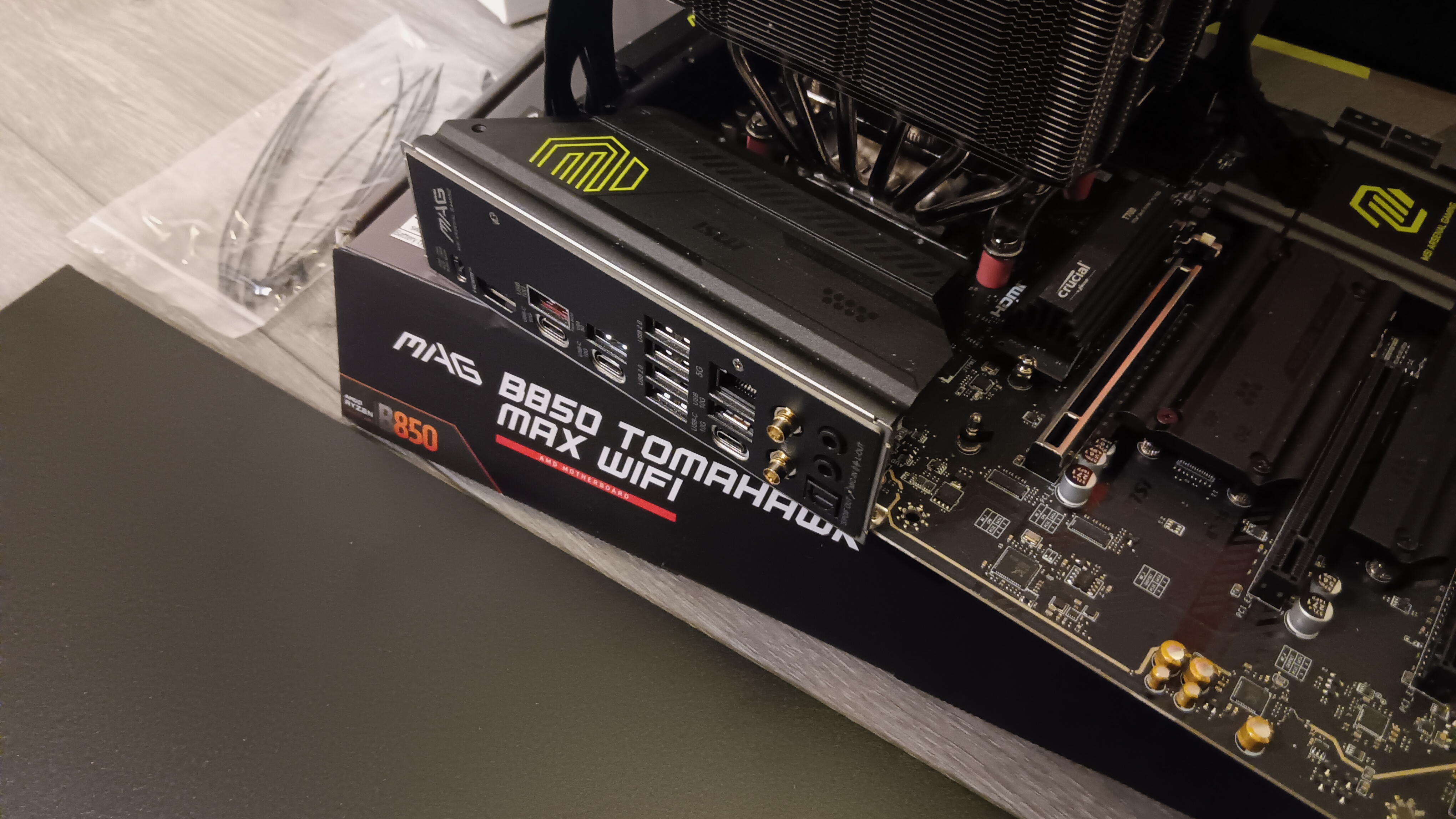

I couldn't align the board with the holes in the first place, hence the issue. This motherboard comes with the I/O shield pre-attached.

1 hour ago, leclod said:

It probably wouldn't be a problem if some screws are missing

In its current orientation, I can't get the entire top row of screws in, which would be more of a problem.

Link to post
Share on other sites
Posted (edited)
11 minutes ago, Spam78 said:

In its current orientation, I can't get the entire top row of screws in, which would be more of a problem.

I understand your concern but I doubt it's necessary.

Recently I saw a video where someone tried to brake a motherboard, it wasn't easy.

You could just try it, mount the cooler and move it slightly to assess the weakness.

(also you could slightly unscrew the stand-offs to have them slightly moving)

Edited by leclod

If you don't quote us, we won't know you answered

Link to post
Share on other sites
Posted
9 minutes ago, Spam78 said:

It does seem to be at a slight angle. I have tried tilting the motherboard, but still wasn't able to get it to fit.



I couldn't align the board with the holes in the first place, hence the issue. This motherboard comes with the I/O shield pre-attached.

In its current orientation, I can't get the entire top row of screws in, which would be more of a problem.

That does look okay.  You don't really need all screws in the motherboard to be able to use it safely.

I ran with only 2 screws in my board for many years.



It does look okay how it sits now though, are you able to use at least one screw at the top?

Link to post
Share on other sites
Posted
On 4/5/2026 at 6:19 AM, Spam78 said:

First time builder here. I cannot get the motherboard to align with the stays to screw in. The IO shield (which is preattached) looks to be in the correct place, yet the position of the stays seem to want it to go further through the hole in the case, which it will not go, no matter how much force I use. In this position, the stays on the top row are only half visible through the holes in the motherboard, so cannot be screwed into. I've double checked for obstructions from cables, but there is nothing I can spot that would be in the way. Is there something I'm doing wrong, or is there a problem with the motherboard or case, and if so is there anything I can do to fix it?



Motherboard: MSI MAG B850 Tomahawk Max WiFi (ATX form factor)

Case: Cooler Master N400

Pictures:

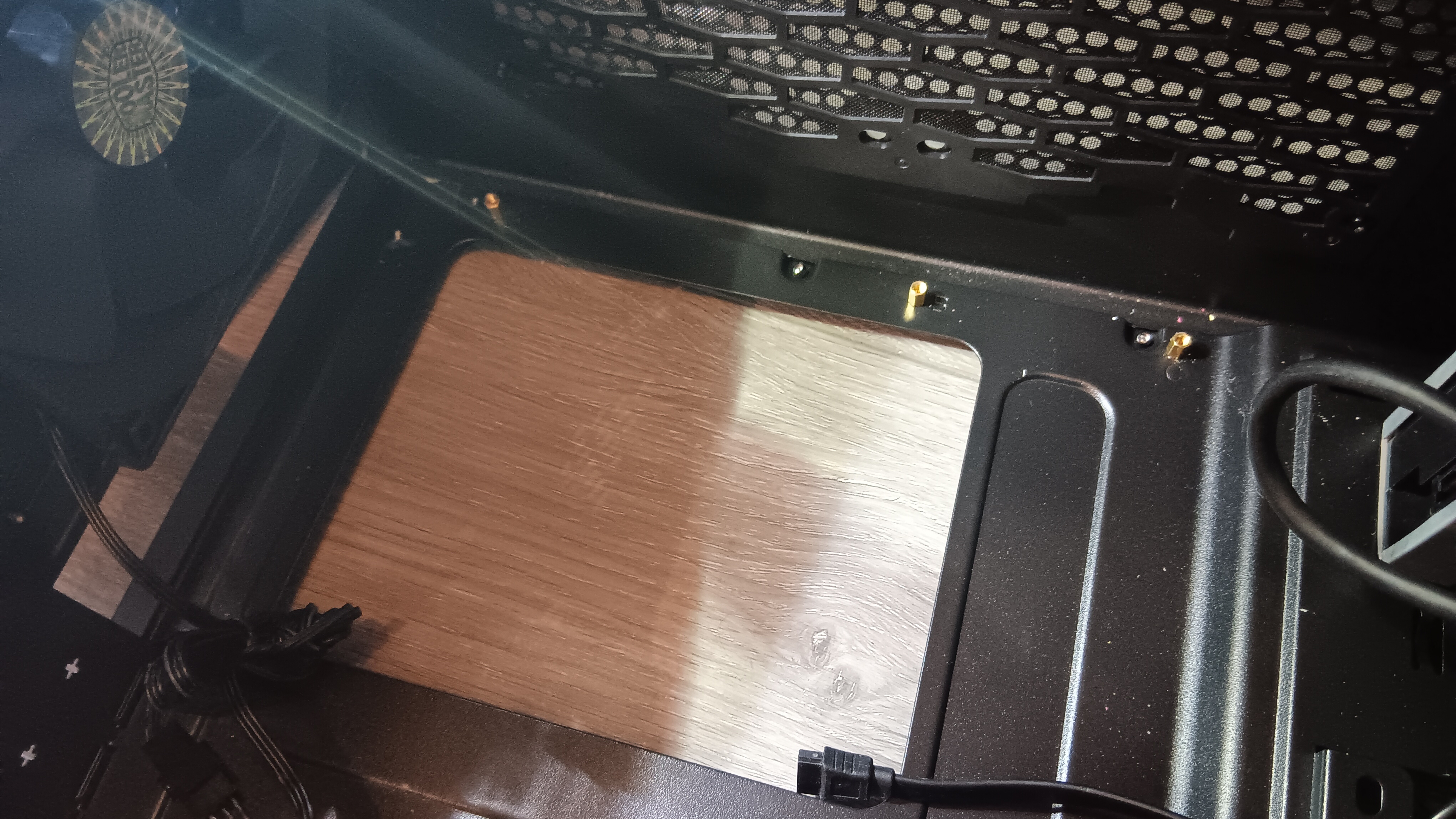

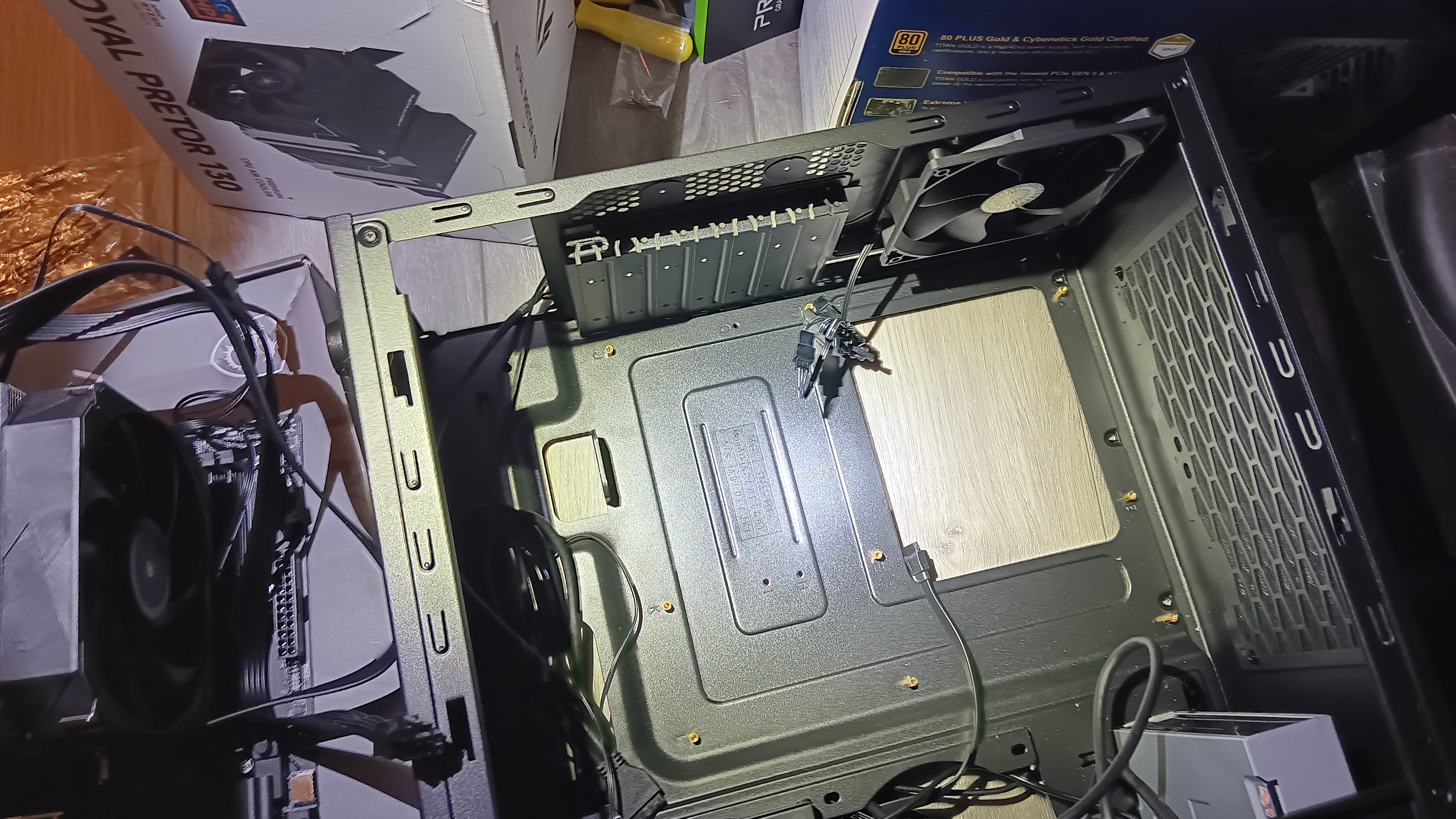

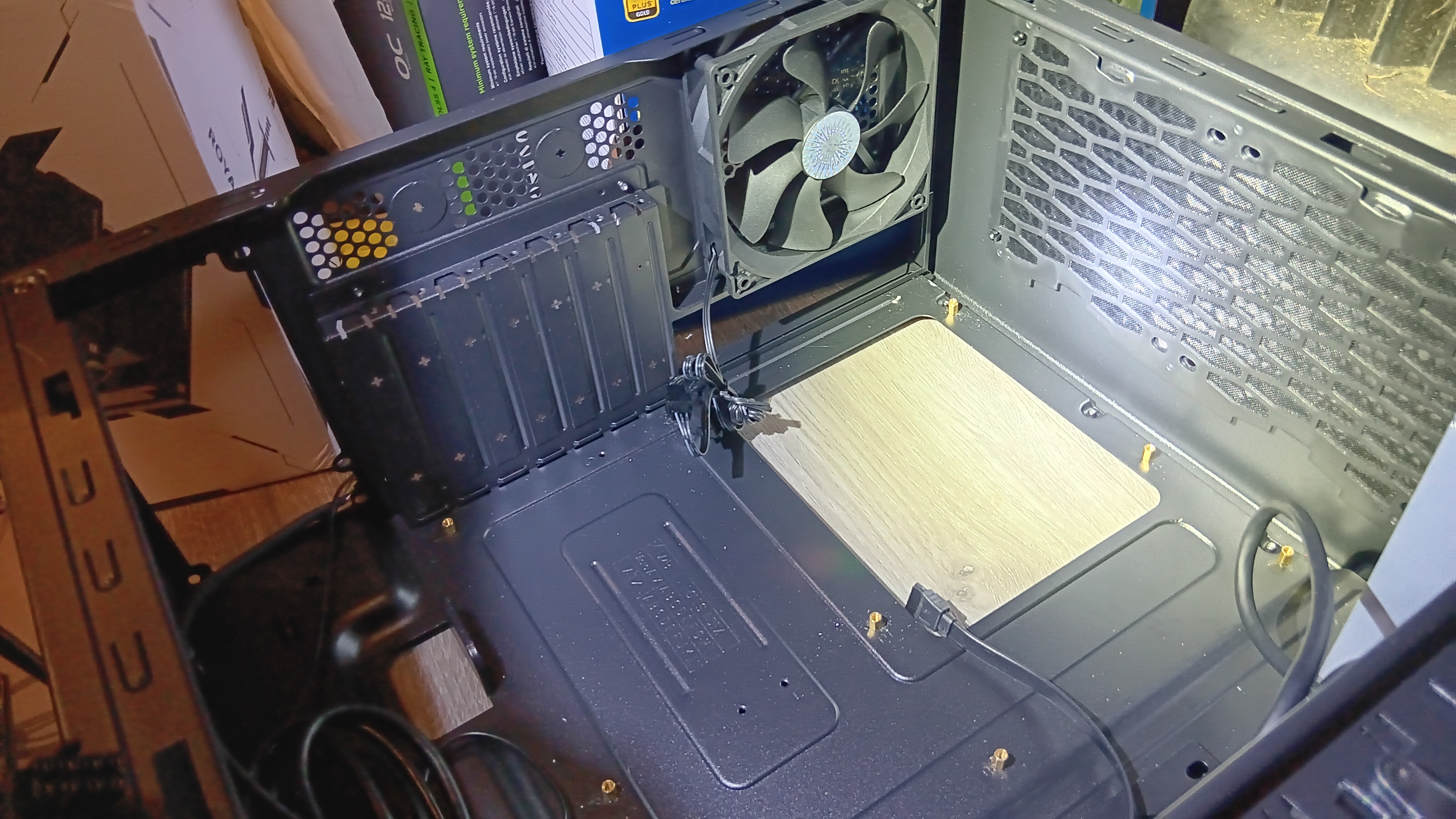

Did you install the standoffs into the case yourself? If so, is the standoff I circled in red slightly taller than the others, almost as if it would fit through a mounting screw hole in the motherboard? If yes, move it to the center where it's supposed to be, then try to position the motherboard again.
