[HELP]Pc Crashing

[GrizzlyBear0]

So for the last few days my pc has been freezing and then crashing after and sometimes the screen goes black and it also crashes where i have to forcefully restart the pc in both scenarios

Now i'm here to ask for help to narrow down as which part could be causing this issue and how i can test each one and find out



Thanks in advance to anyone willing to help :)

[cacoe]

First up, post full specs, if you're not sure how to get the specifics, download a free program called CPUZ and post screenshots of each tab

https://www.cpuid.com/softwares/cpu-z.html



Next up, we'll want temps so download hwinfo64

https://www.hwinfo.com/download/



When installed, tick the sensor only box and post a screenshot of basically everything

[GrizzlyBear0]

[GrizzlyBear0]

16 minutes ago, cacoe said:

First up, post full specs, if you're not sure how to get the specifics, download a free program called CPUZ and post screenshots of each tab

https://www.cpuid.com/softwares/cpu-z.html



Next up, we'll want temps so download hwinfo64

https://www.hwinfo.com/download/



When installed, tick the sensor only box and post a screenshot of basically everything

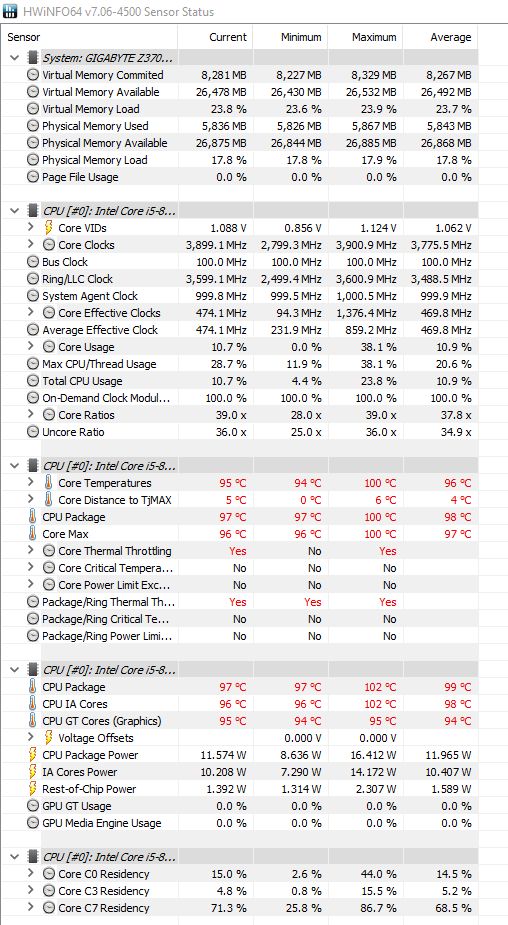

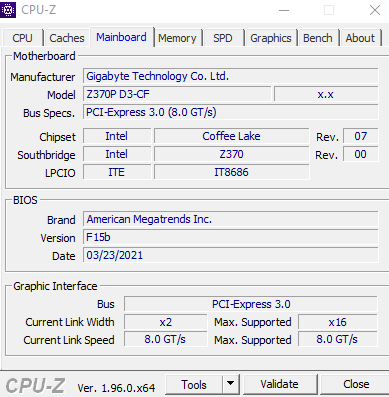

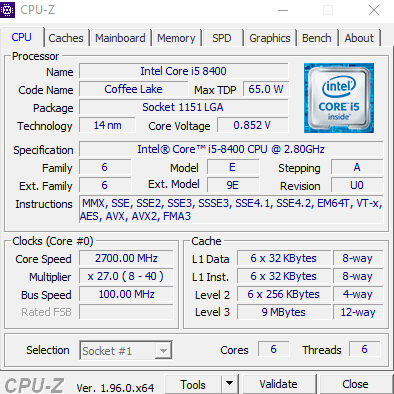

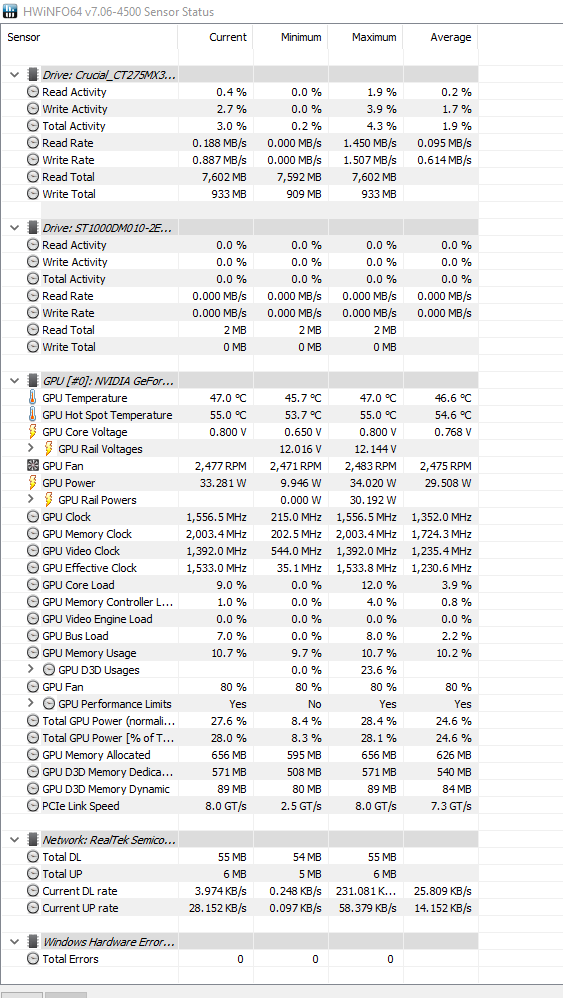

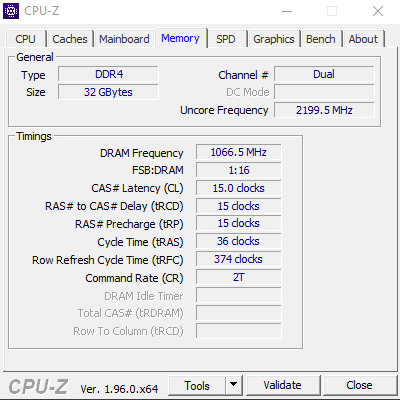

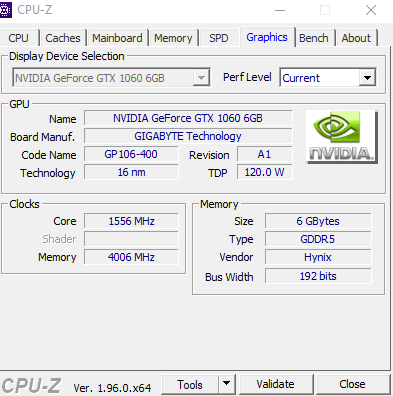

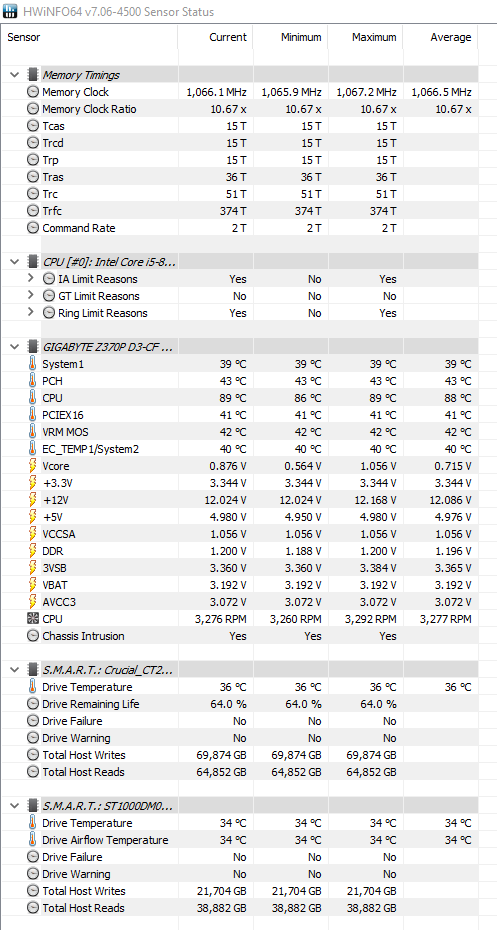

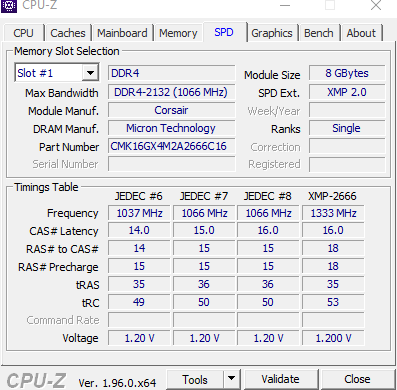

Here you go

[Latvian Video]

1 minute ago, GrizzlyBear0 said:

Your cpu is thermal throttling, what cooler do you have?

[cacoe]

3 minutes ago, GrizzlyBear0 said:

That's one hot-a-potato!



CPU overheating, can you post a photo of your case's internals too as well as posting the cooler?

[GrizzlyBear0]

1 minute ago, Latvian Video said:

Your cpu is thermal throttling, what cooler do you have?

A fan? not sure which type.

[Latvian Video]

Just now, GrizzlyBear0 said:

A fan? not sure which type.

Can you send a pic of the pc without the side panel, if you know how to take it off

[cacoe]

A photo of your case open might be sufficient

[GrizzlyBear0]

6 minutes ago, cacoe said:

A photo of your case open might be sufficient



[GrizzlyBear0]

16 minutes ago, Latvian Video said:

Can you send a pic of the pc without the side panel, if you know how to take it off

Here you go

[cacoe]

If you turn off the pc and put pressure on the corners of the CPU fan, is there any "give" at all? Your fan on the cpu cooler is clearly spinning but is the actual plate making contact with the CPU is what I'm wondering.



Edit - just to be clear, not the actual fan, the 4 "spokes" on the corners of the cooler.

[cacoe]

More thoughts - You have a stock intel cooler, it isn't great but it should do the job, or at least to a much better extent than it actually is. Your fan is working, so the cooler either isn't making proper contact with the CPU or you have a really bad thermal paste application (or no thermal paste at all!), can't imagine it'd be anything else.

[ageekhere]

Really need a better cooler, maybe a 120 AIO CPU cooler, it can both cool the cpu and exhaust hot air out the back of the pc case.

[cacoe]

10 minutes ago, ageekhere said:

Really need a better cooler, maybe a 120 AIO CPU cooler, it can both cool the cpu and exhaust hot air out the back of the pc case.

Agreed a better cooler would be the best result (I'd personally advise against a 120mm AIO, bit pointless imo, just get quality air cooling in this case) but even the stock Intel cooler shouldn't perform this bad.



Not sure if theres's space for intake fans on the case based on the photos, could be a bad case design for airflow in general, still shouldn't be throttling though.

[GrizzlyBear0]

13 minutes ago, cacoe said:

Agreed a better cooler would be the best result (I'd personally advise against a 120mm AIO, bit pointless imo, just get quality air cooling in this case) but even the stock Intel cooler shouldn't perform this bad.



Not sure if theres's space for intake fans on the case based on the photos, could be a bad case design for airflow in general, still shouldn't be throttling though.



16 minutes ago, ageekhere said:

Really need a better cooler, maybe a 120 AIO CPU cooler, it can both cool the cpu and exhaust hot air out the back of the pc case.



17 minutes ago, cacoe said:

More thoughts - You have a stock intel cooler, it isn't great but it should do the job, or at least to a much better extent than it actually is. Your fan is working, so the cooler either isn't making proper contact with the CPU or you have a really bad thermal paste application (or no thermal paste at all!), can't imagine it'd be anything else.



31 minutes ago, cacoe said:

If you turn off the pc and put pressure on the corners of the CPU fan, is there any "give" at all? Your fan on the cpu cooler is clearly spinning but is the actual plate making contact with the CPU is what I'm wondering.



Edit - just to be clear, not the actual fan, the 4 "spokes" on the corners of the cooler.

Any chance it would be something else that's the problem?

[cacoe]

5 minutes ago, GrizzlyBear0 said:







Any chance it would be something else that's the problem?

IMO it's unlikely to be anything else. Your cooler isn't great but the fan is clearly working and should be providing more cooling than it currently is. It's not making proper contact with the CPU to the point where it's transferring heat from the CPU to the heatsink. Only two things it could be are it's not connected to your mobo right (not seated correctly) or insufficient thermal paste.

[ageekhere]



2 minutes ago, cacoe said:

IMO it's unlikely to be anything else. Your cooler isn't great but the fan is clearly working. It's not making proper contact to the point where it's transferring heat from the CPU to the heatsink. Only two things it could be are it's not connected to your mobo right or insufficient thermal paste.

Try new thermal paste first, if you still have overheating issues you may need a better cooler.
