Hi my name is Trey and my friend attempted at building a gaming pc but gave up and gave me the parts I noticed he is missing ram and a hard drive but besides tho problems I wanted to persevere and hack away at this project till I completed it. The parts I received is a AB350-gaming mother board. A 1tb we blue ssd. A 1060 to single graphics card I believe some of them he didn’t give me the boxes for. He also didn’t give me the mother box manual. I have a three pack of four pin Corsair rgb fans. And a cooler master case. I have already installed the mother board into the case as ATX pins. Everything went smoothly till I trided find where I plugged in the pins for the front panel stuff (power on, off etc) and could find it. I would just like some help if someone could. If you request my email please let me know I need help. (Edit I forgot to mention I got a AMD ryzen 5)

Link to comment
https://linustechtips.com/topic/1090844-i-need-some-help-alot/
Share on other sites
Link to post
Share on other sites
Posted
14 minutes ago, Etho1 said:

noticed he is missing ram and a hard drive



14 minutes ago, Etho1 said:

1tb we blue ssd

Looks like you won't need a hard drive then



14 minutes ago, Etho1 said:

Everything went smoothly till I trided find where I plugged in the pins for the front panel stuff (power on, off etc) and could find it.

On the manufacturer's website you can always download a PDF manual for your motherboard and find out the pins



https://www.gigabyte.com/us/Motherboard/GA-AB350-Gaming-rev-1x/support#support-dl

14 minutes ago, Etho1 said:

I got a AMD ryzen 5

Which one? If it's second gen there's the slight possibility of you needing some extra steps.

I WILL find your ITX build thread, and I WILL recommend the SIlverstone Sugo SG13B



Primary PC:

i7 8086k - EVGA Z370 Classified K - G.Skill Trident Z RGB - WD SN750 - Jedi Order Titan Xp - Hyper 212 Black (with RGB Riing flair) - EVGA G3 650W - dual booting Windows 11 and Fedora Linux - Black and green theme, Razer brainwashed me.

Draws 400 watts under max load, for reference.



PSU tier list

How many watts do I need?

PSU misconceptions, protections explained, group reg is bad

Link to comment
https://linustechtips.com/topic/1090844-i-need-some-help-alot/#findComment-12782703
Share on other sites
Link to post
Share on other sites
Posted

on most boards, there are little markings near the connectors. try looking for small markings that say stuff like "-PWR SW+" (Power Switch) and "-RST SW+" (Reset Switch). make sure to line them up correctly, and not plug them into the wrong places. on the cables that are connected to the case you should look for a small black arrow at the tip. this arrow indicates that the side that it is on should be connected to the side where the "+" symbol is on the motherboard.

Link to comment
https://linustechtips.com/topic/1090844-i-need-some-help-alot/#findComment-12783153
Share on other sites
Link to post
Share on other sites
Posted

Yes, it's compatible.

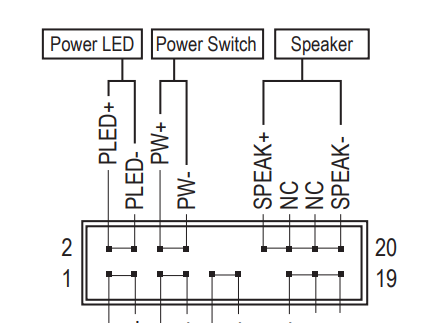

The pwr_switch header for the case connects to the power switch pins in the group of pins labeled f_panel.

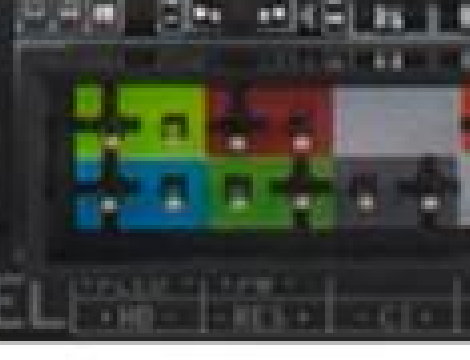

It's the top right of the 9pins and is color coded in red.


If you ever need help with a build, read the following before posting: http://linustechtips.com/main/topic/3061-build-plan-thread-recommendations-please-read-before-posting/
Also, make sure to quote a post or tag a member when replying or else they won't get a notification that you replied to them.

Link to comment
https://linustechtips.com/topic/1090844-i-need-some-help-alot/#findComment-12784767
Share on other sites
Link to post
Share on other sites
Posted
  • Author
10 hours ago, WoodenMarker said:

Yes, it's compatible.

The pwr_switch header for the case connects to the power switch pins in the group of pins labeled f_panel.

It's the top right of the 9pins and is color coded in red.


I just couldn’t find a place to plug them in because I’m total the front panel has 8 holes and I could only find plugs with 9 pins. Also the car says usb where the pins are what does that mean and is that where I plug them in

Link to comment
https://linustechtips.com/topic/1090844-i-need-some-help-alot/#findComment-12786167
Share on other sites
Link to post
Share on other sites
Posted
13 hours ago, Etho1 said:

I just couldn’t find a place to plug them in because I’m total the front panel has 8 holes and I could only find plugs with 9 pins. Also the car says usb where the pins are what does that mean and is that where I plug them in

Car?

Do you see the f_panel label? The group of headers are at the top right of it or above the f_panel layout diagram on the motherboard.
