Need help with ram clearance

issawo
By issawo
in Cooling
 Share
Posted

Hello i got MSI MAG Z390 Tomahawk and i5 9600k and looking for cpu cooler i want the be queit dark rock pro 4 but can i use the all ram slots ? The ram in mind hyper x predator non rgb or what cpu cooler would u guys suggest i plan to oc the cpu

Link to comment
Share on other sites
Link to post
Share on other sites
Posted

You could get the noctua NH-D15 because it has movable fans

I WILL find your ITX build thread, and I WILL recommend the SIlverstone Sugo SG13B



Primary PC:

i7 8086k - EVGA Z370 Classified K - G.Skill Trident Z RGB - WD SN750 - Jedi Order Titan Xp - Hyper 212 Black (with RGB Riing flair) - EVGA G3 650W - dual booting Windows 10 and Linux - Black and green theme, Razer brainwashed me.

Draws 400 watts under max load, for reference.



How many watts do I need? ATX 3.0 & PCIe 5.0 spec, PSU misconceptions, protections explained, group reg is bad

Link to comment
Share on other sites
Link to post
Share on other sites
Posted
  • Author
1 minute ago, fasauceome said:

You could get the noctua NH-D15 because it has movable fans

I dont like how noctua looks

Link to comment
Share on other sites
Link to post
Share on other sites
Posted
2 minutes ago, fasauceome said:

You could get the noctua NH-D15 because it has movable fans

Eh, the hyper x predator ram is very tall, I don't think you could move the fan out of the way enough while still fitting in a mid-tower case.



You could buy the NH-D15S, which is the single fan version. Or just.... you know... not install the 2nd fan.

Link to comment
Share on other sites
Link to post
Share on other sites
Posted
  • Author
1 minute ago, corrado33 said:

Eh, the hyper x predator ram is very tall, I don't think you could move the fan out of the way enough while still fitting in a mid-tower case.



You could buy the NH-D15S, which is the single fan version. Or just.... you know... not install the 2nd fan.

What about aio cooler with good performance around 90$ ?

Link to comment
Share on other sites
Link to post
Share on other sites
Posted
3 minutes ago, issawo said:

What about aio cooler with good performance around 90$ ?

Might want to go ask the "water cooling" section of the forum. We don't deal with liquids here. ;)



That said, I don't think you'll find an AIO around $90 that will sufficiently cool your CPU.

Link to comment
Share on other sites
Link to post
Share on other sites
Posted
  • Author

so you are sayin there is no way i fit 4 ram slots with dr 4

Link to comment
Share on other sites
Link to post
Share on other sites
Posted
5 minutes ago, issawo said:

so you are sayin there is no way i fit 4 ram slots with dr 4

Here, let me do the research for you.



Dark Rock Pro has a ram clearance of 40mm according to the dimensions.



https://www.bequiet.com/admin/ImageServer.php?ID=3c506a15636@be-quiet.net&rand=aacb5c72365228152b595775b5d7b78b&lang=1&force=true&download=true&omitPreview=true



The hyper x predator ram has a height of 42.2 mm.



https://www.hyperxgaming.com/us/memory/predator-ddr4



You could very likely just move the fan up 2 mm and be fine using all 4 slots. Or buy shorter ram.

Link to comment
Share on other sites
Link to post
Share on other sites
Posted
12 minutes ago, issawo said:

What about aio cooler with good performance around 90$ ?

H100i might do it

I WILL find your ITX build thread, and I WILL recommend the SIlverstone Sugo SG13B



Primary PC:

i7 8086k - EVGA Z370 Classified K - G.Skill Trident Z RGB - WD SN750 - Jedi Order Titan Xp - Hyper 212 Black (with RGB Riing flair) - EVGA G3 650W - dual booting Windows 10 and Linux - Black and green theme, Razer brainwashed me.

Draws 400 watts under max load, for reference.



How many watts do I need? ATX 3.0 & PCIe 5.0 spec, PSU misconceptions, protections explained, group reg is bad

Link to comment
Share on other sites
Link to post
Share on other sites
Posted
19 hours ago, fasauceome said:

You could get the noctua NH-D15 because it has movable fans

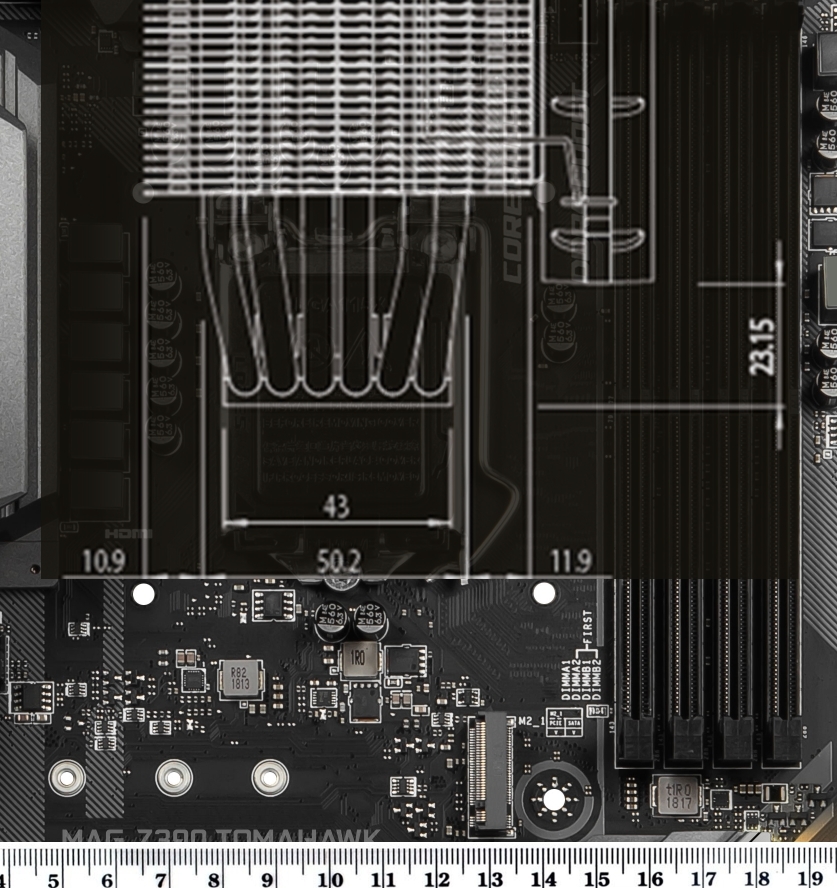

Pretty much every cooler has movable fan. Thats not the issue. Main issue with cooler compatibility is cooler fins extending over RAM slots.



19 hours ago, issawo said:

so you are sayin there is no way i fit 4 ram slots with dr 4

With non-pro you can fit all 4. And only thing you need to do is to move fan to other side as pull.

^^^^ That's my post ^^^^
<-- This is me --- That's your scrollbar -->
vvvv Who's there? vvvv

Link to comment
Share on other sites
Link to post
Share on other sites
Posted

The fan will block the first ram slot. If you move the fan to the other side in pull, it should fit fine but performance will be slightly worse.




There might be a better option available. Where are you shopping / located?

If you ever need help with a build, read the following before posting: http://linustechtips.com/main/topic/3061-build-plan-thread-recommendations-please-read-before-posting/
Also, make sure to quote a post or tag a member when replying or else they won't get a notification that you replied to them.

Link to comment
Share on other sites
Link to post
Share on other sites
Posted

I will always recommend the Thermalright Le Grand Macho RT as it doesn't have any RAM clearance issue for the same performance to NH-D15, and it's less stress to think about performance by moving the fan from here to there, lift the fan by this high because the RAMs are this high and the clearance is that high.

Le Grand Macho RT will just simply plug-and-play rather than plug-and-pray.

My system specs:

Spoiler

CPU: Intel Core i7-8700K, 5GHz Delidded LM || CPU Cooler: Noctua NH-C14S w/ NF-A15 & NF-A14 Chromax fans in push-pull cofiguration || Motherboard: MSI Z370i Gaming Pro Carbon AC || RAM: Corsair Vengeance LPX DDR4 2x8Gb 2666 || GPU: EVGA GTX 1060 6Gb FTW2+ DT || Storage: Samsung 860 Evo M.2 SATA SSD 250Gb, 2x 2.5" HDDs 1Tb & 500Gb || ODD: 9mm Slim DVD RW || PSU: Corsair SF600 80+ Platinum || Case: Cougar QBX + 1x Noctua NF-R8 front intake + 2x Noctua NF-F12 iPPC top exhaust + Cougar stock 92mm DC fan rear exhaust || Monitor: ASUS VG248QE || Keyboard: Ducky One 2 Mini Cherry MX Red || Mouse: Logitech G703 || Audio: Corsair HS70 Wireless || Other: XBox One S Controler

My build logs:



Link to comment
Share on other sites
Link to post
Share on other sites
Posted
On 12/10/2018 at 5:18 AM, issawo said:

What about aio cooler with good performance around 90$ ?

Then be prepare for this kind of risk. This is not always happen but, you have to be consequent to any of your choice and decision with all the risks that follows.
