Unknown Beep Code

[ZacharyX]

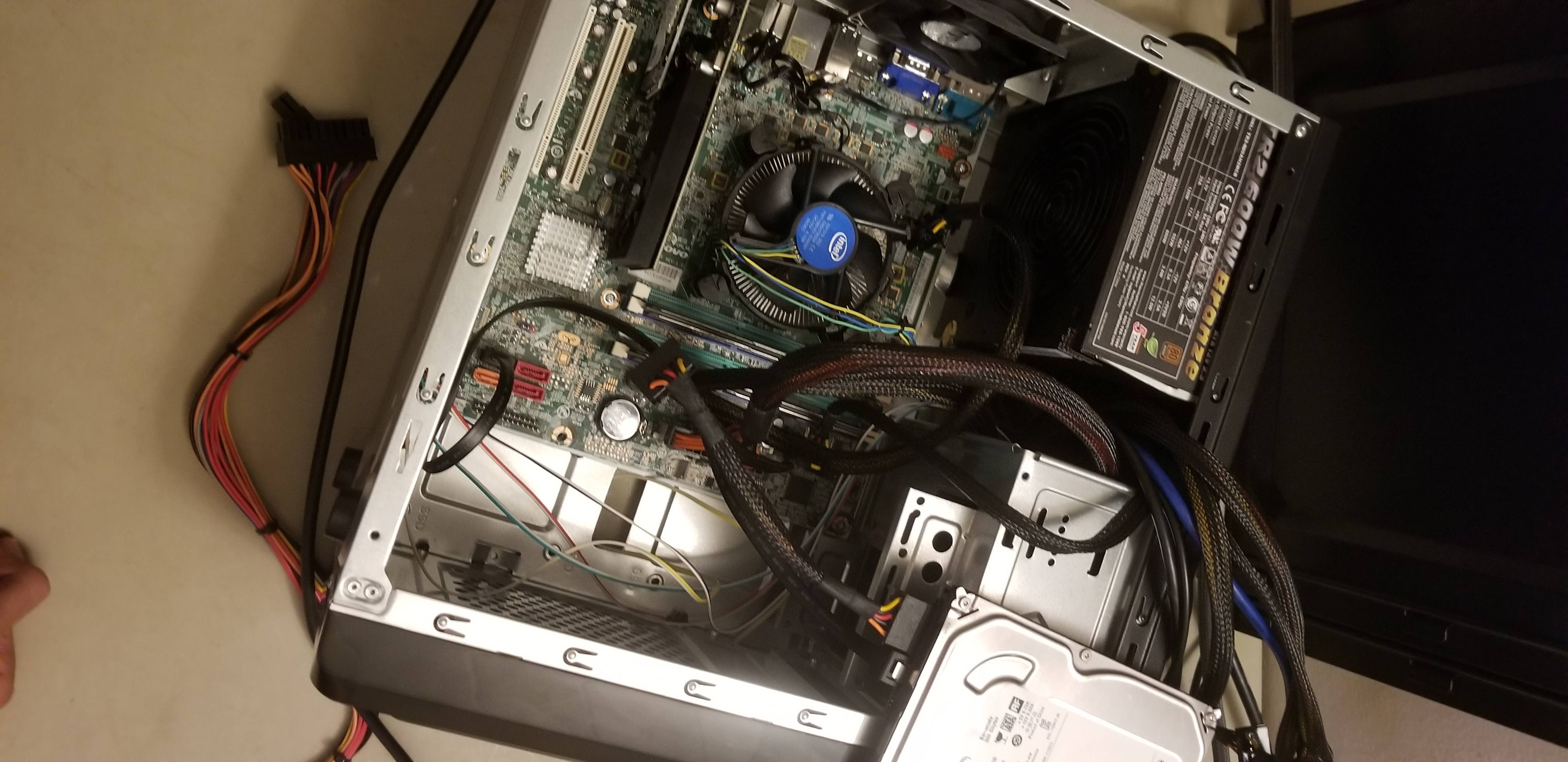

So I built my new computer and press the reset switch and it came on with 1 beep then turned off. After that I kept on pressing the reset switch because I thought it was the power so I thought something messed up. first of all I wasent pressing the power button so I started to mess with cmos and then I noticed I wasn't pressing the power button then I pressed it and it gave me 3 short beeps 3 long beeps and 1 more short beep.

[narrdarr]

specs? or model?

[ZacharyX]

I5 3570

Gt 1030

8gb 4x2 elite team 1600 non ecc

Lenovo m91p is6xm



This is the sound of the beeps

20180715_171745.mp4

[narrdarr]

can't find the the correct match for the code, but can you pull all the ram out and try booting. then try different slot. lets see what beeps you get then

[ZacharyX]

1 hour ago, narrdarr said:

can't find the the correct match for the code, but can you pull all the ram out and try booting. then try different slot. lets see what beeps you get then

I tried this with 2 differnt ram sticks and trading it bewteen 2 and 4 and 1 and 2 slots and nothing happen

[ZacharyX]

5 minutes ago, ZacharyX said:

I tried this with 2 differnt ram sticks and trading it bewteen 2 and 4 and 1 and 2 slots and nothing happen also I took out all the ram and same thing



[ZacharyX]

This is the sound when the ram sticks are pulled

20180716_054010.mp4

[narrdarr]

i think its a ram issue. have you tried only 1 dimm? it should be slotted into slot 2

[narrdarr]

just found the manual. it a ram issues

[ZacharyX]

5 hours ago, narrdarr said:

i think its a ram issue. have you tried only 1 dimm? it should be slotted into slot 2

I've tried all slots and it have the same problem

[narrdarr]

either of your kits 1.35v or are they all 1.5v?

[narrdarr]

i had an issues awhile back. where the dimm was shifting just so slightly before locking in causing problems. make sure its square and push down evenly.

also remove all power before switching dimms and turning.



1. power down

2. remove battery

3. hold power button to drain all power of the motherboard.

4. remove dimm(s)

5. reinstall centered and with even force

6. add battery

7. plug in and turn on

[ZacharyX]

Is the battery cmos?

[ZacharyX]

So you want me to power down my computer unplug it then remove the cmos battery then hold the power button for 10 second then  remove my ram sticks then reinstall it with even force on both size then install battery then replug.

[ZacharyX]

I tried this and it makes the same sound

[ZacharyX]

There are 1.5

[narrdarr]

i would try a 1.35v kit. and after that i don't have any other advice
