Project: Unknown

CA8OOS3 · May 2, 2017

Ok so this build I called Project Unknown because some of the things with this system I had never seen or heard of really. I truly believe I got an amazing deal on this system and I hope everyone enjoys it.

This is what my ststem looked like when I first got it. Nothing fancy running straight distilled water. With nasty looking lines.

Parts List:

CASE: Corsair Obsidian 900D

CPU: i7 5820k

CPU WB: XSPC RAYSTORM 3

MB: Gigabyte X99 GA-Gaming 5 (ver 1)

RAM: ADATA XPG Z1 DDR4 (2x4GB) ( Don't know the Mhz )

GPU: Gigabyte Windforce GTX 970 4GB

GPU WB: EKWB FC Solution FC970 GTX WF3

PSU: EVGA 1300w SuperNOVA G2

NZXT SENTRY 3

BASIC DVD RW DRIVE.

Koolance 480mm Rad

XSPC 360mm Rad

XSPC Photon 270mm

D5 Pump

11 Cosair SP120

4 Corsair LED fans. ( dont know what model they are )

Qnix 27in LED 1440p

Razer Deathstalker Elite (the one with the screen on the 10 key pad)

Thermaltake m1000 Mouse

Some bluetooth microsoft keyboard and mouse

Zalman Case ( the one where the top fins open up)

Bitfenix Case ( the one that has the LCD on the front)

Google Pixel 32GB

LG G5 ( Bricked )

I guess that is it. I got all of this for $500. Guy i got it from just didn't want the stuff anymore and he was moving to upstate NY so score for me. So after getting it home and looking at it, i decided the guys runs were ugly as hell. i mean litterally lines were too long and just flopping around. I also noticed when i got it home how filthy it was on the inside from all the dust. So began the teardown of the system. (Wish I would have taken pictures.) but i cleaned everything. Had to order a replacement mounting kit for the Raystorm v3 because he installed it wrong and it was missing a spring. Well got the repacement mount in today and began the reassembly. ( I did clean everything.)

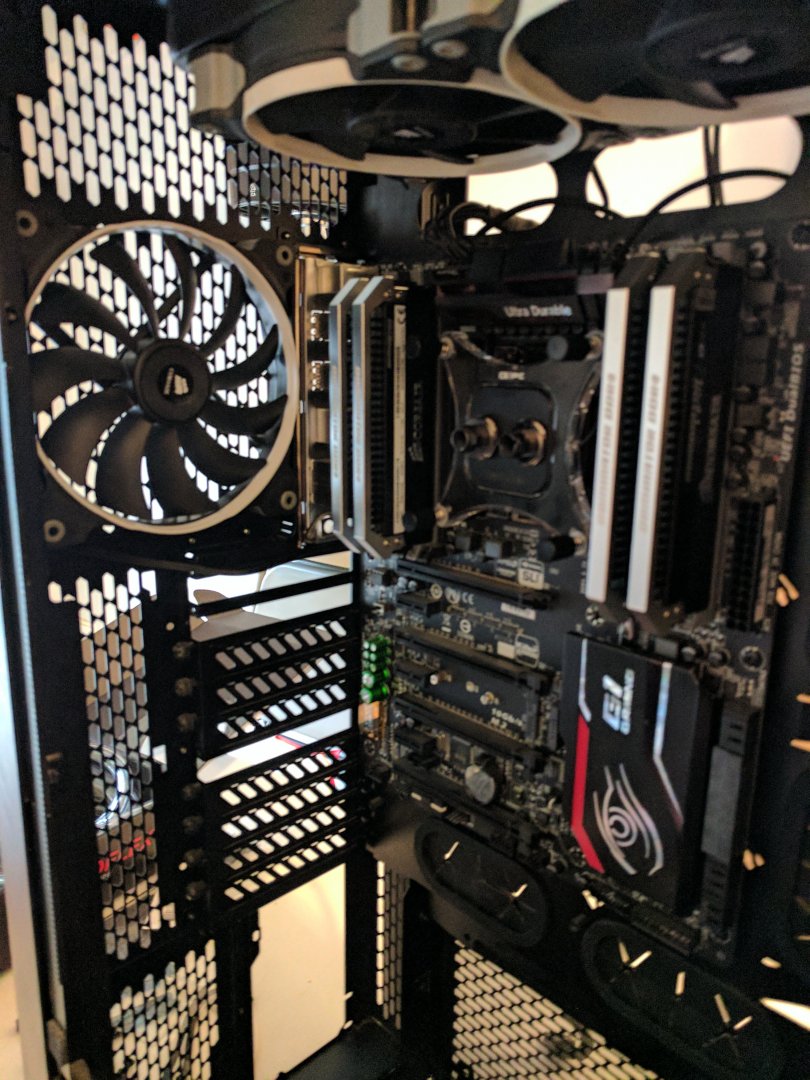

CPU BLOCK AND TOP RAD INSTALLED.

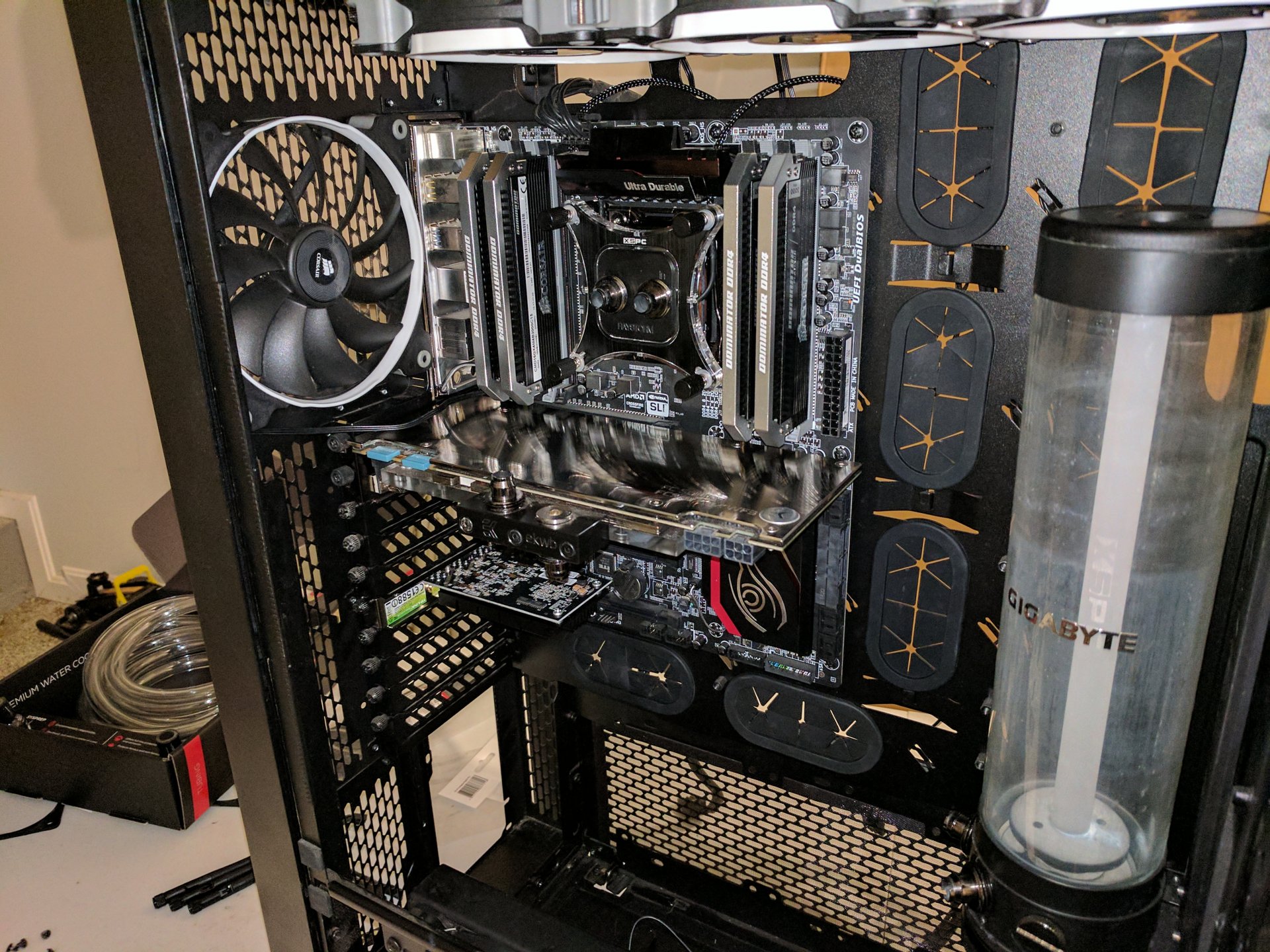

GPU AND RESERVOIR INSTALLED.

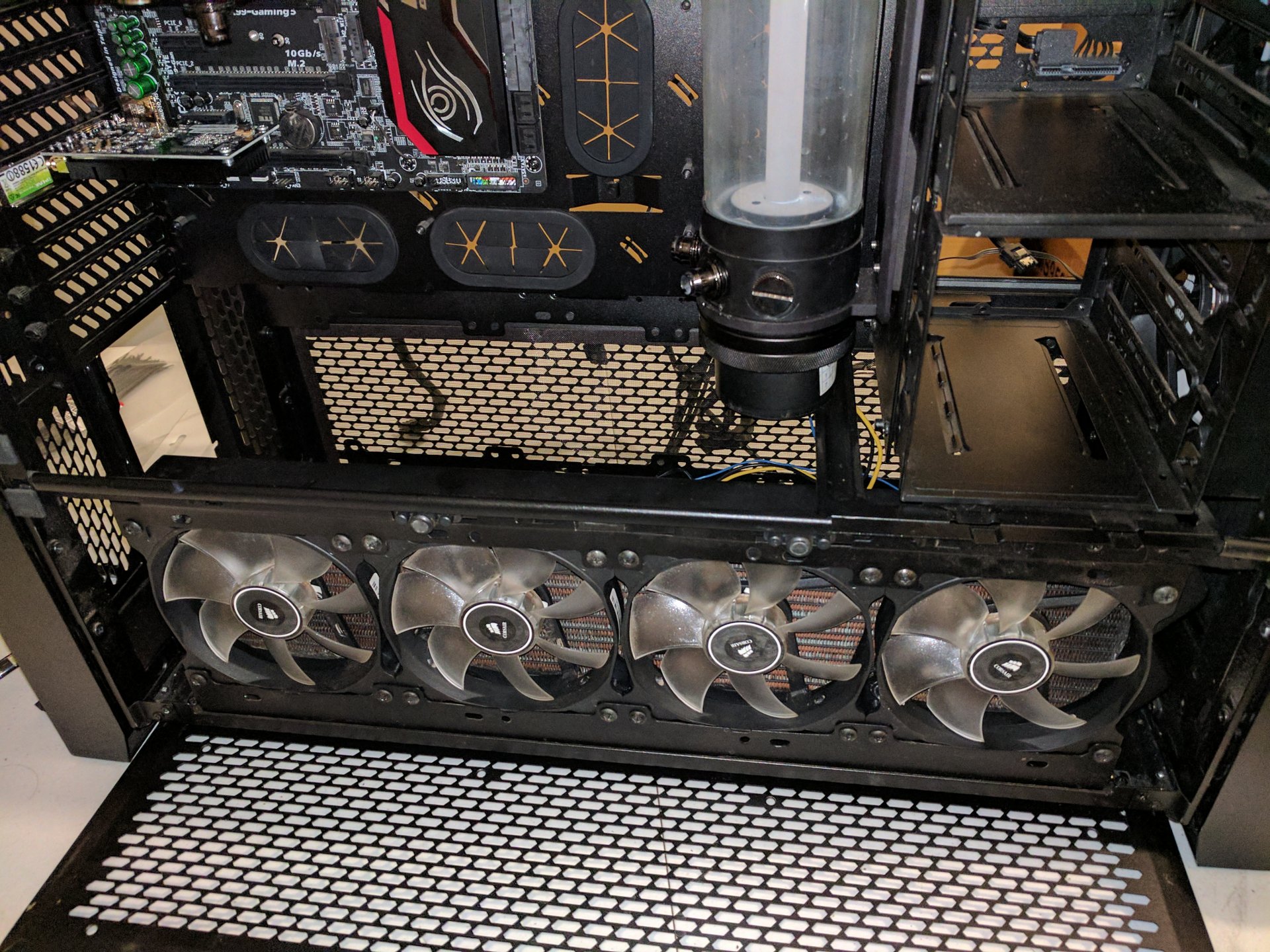

LOWER 4 X 120MM RAD AND FANS INSTALLED.

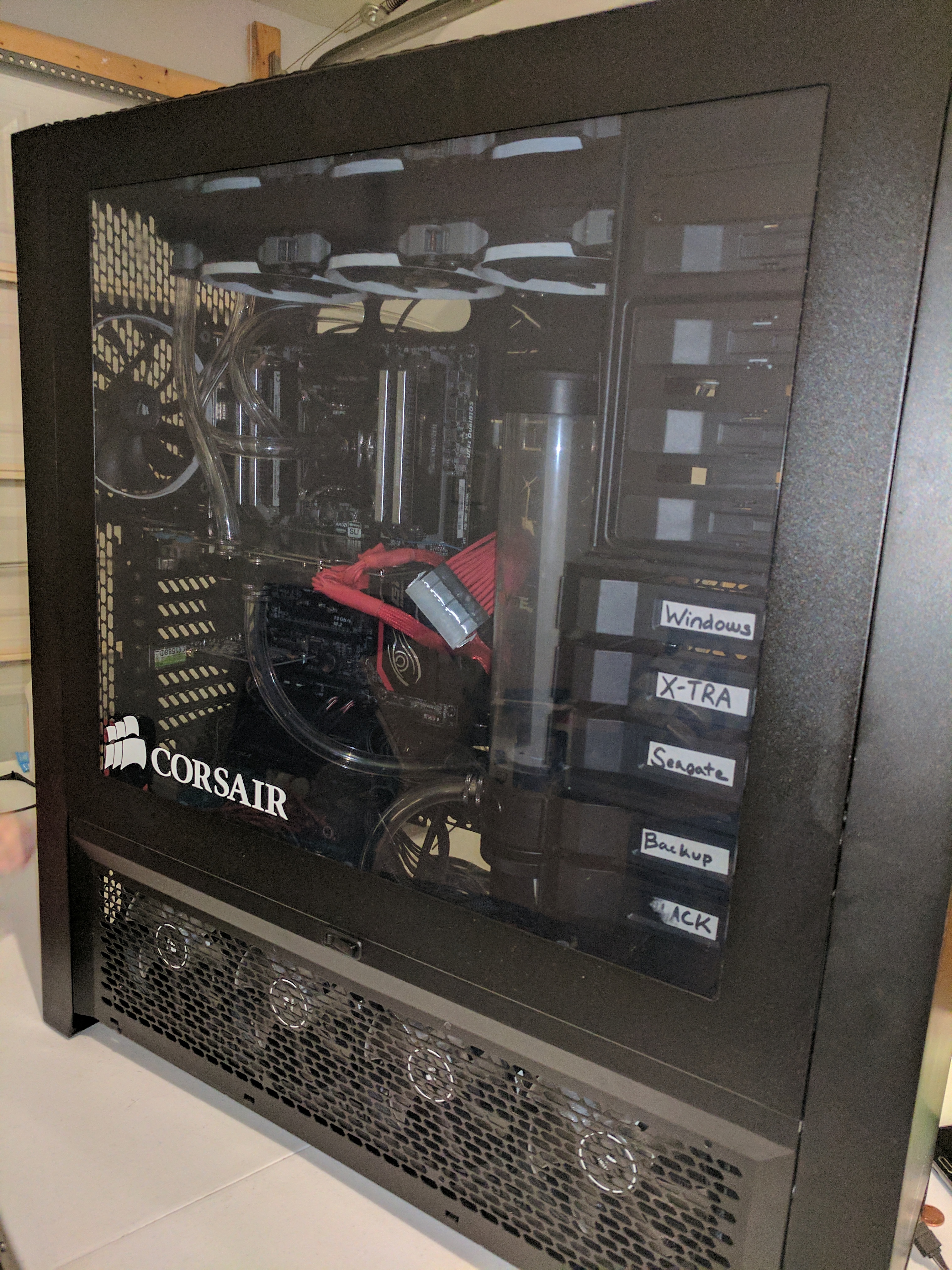

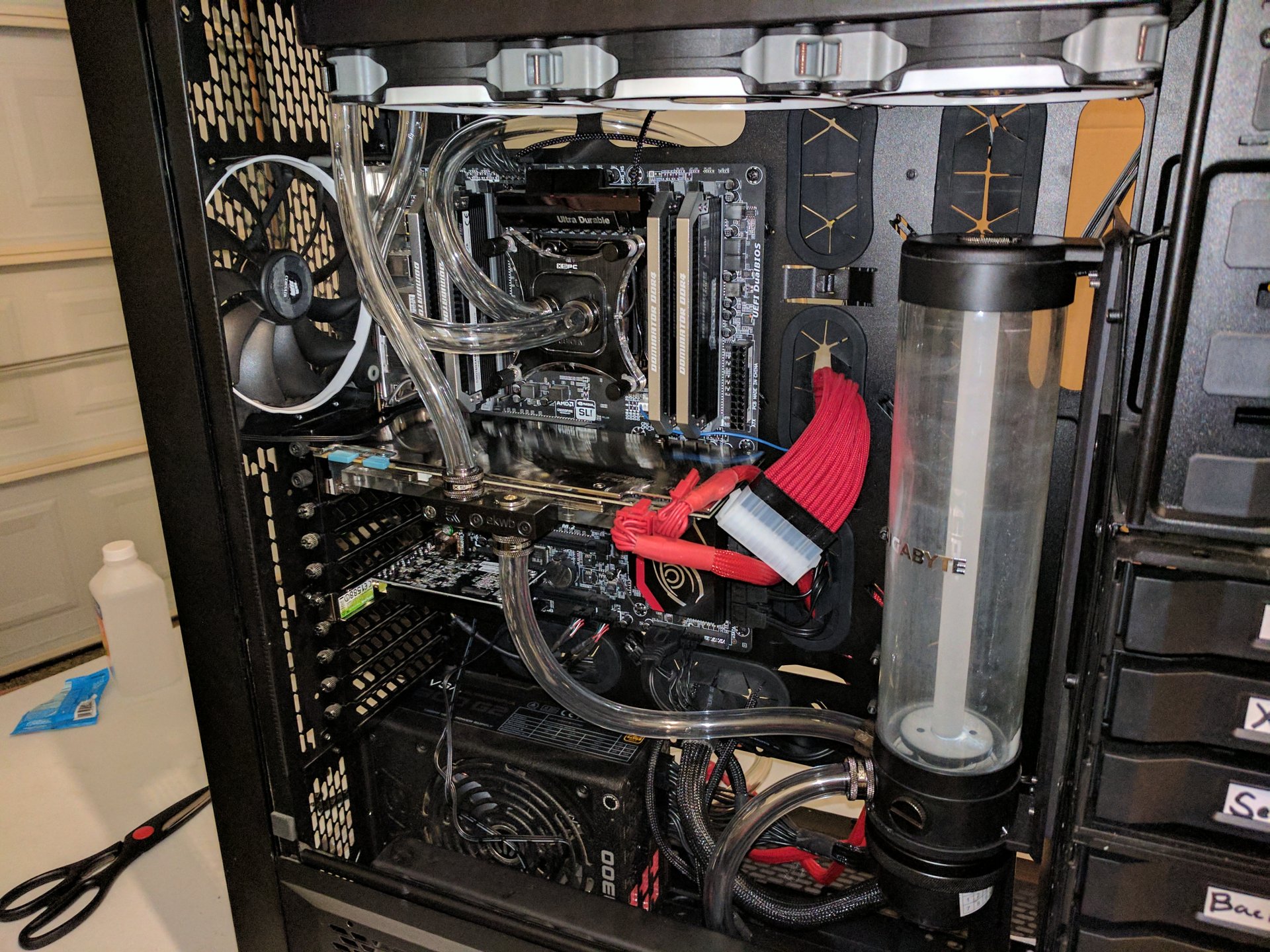

SYSTEM PLUMBED WITH PRIMOCHILL ULTRA CLEAR,

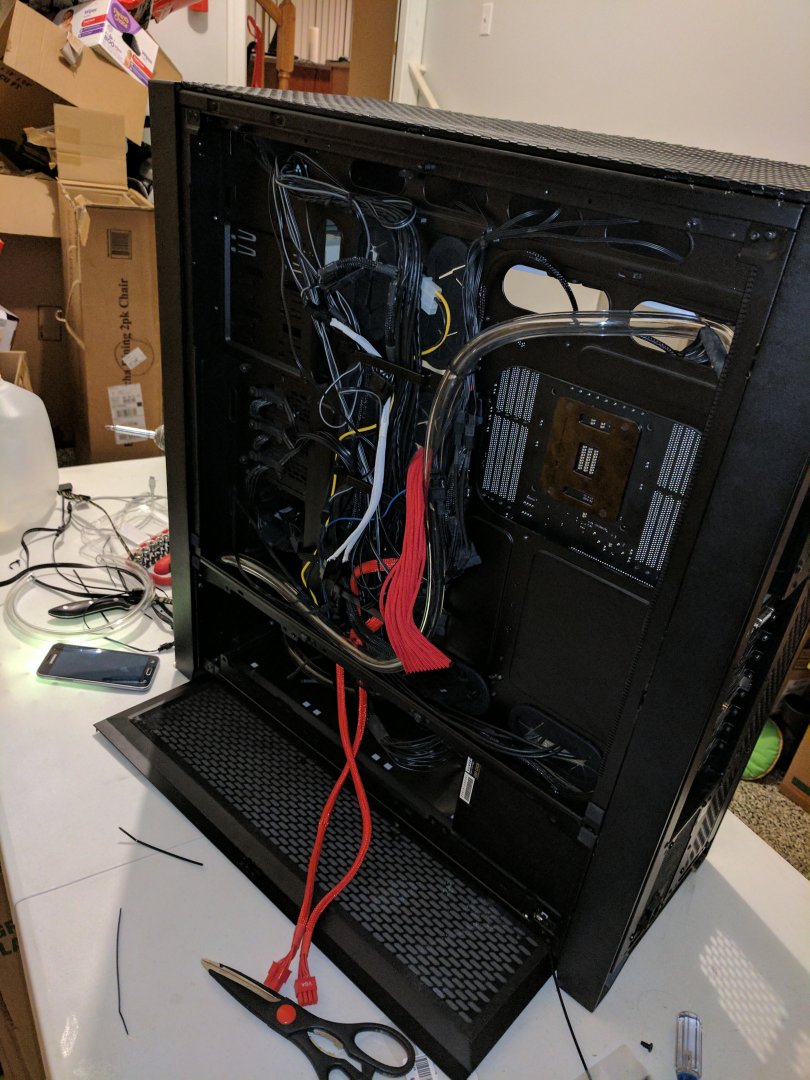

LONG LINE FROM THE CPU TO THE LOWER RAD HIDDEN WITH THE WIRE MESS THAT I GOTTA CLEAN UP. GOT THE IDEA FROM LINUS IN HIS ULTIMATE OVERKILL WATER COOLING GUIDE.
