Question about udm se

[Computersarethebest]

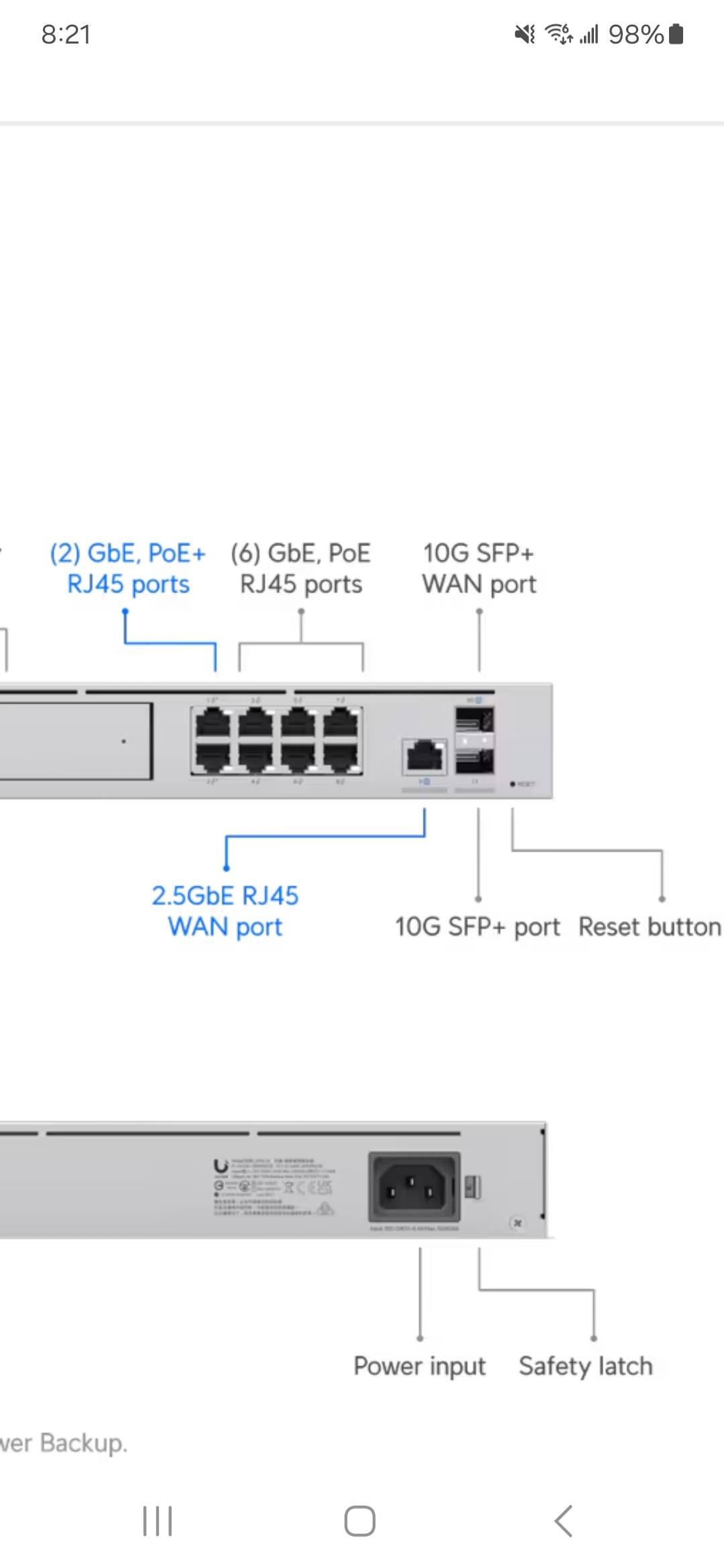

Hello i have a question about the 3 ports on the right hand side of this udm se.



It says 10g sfp+ wan port

10 g sfp+ port

2.5 gbe rj45 wan port....



So to my understanding I would plug my isp modem into the sfp or rj45 port with either a fiber or ethernet connection and the 10g sfp+ port would go to my switch and supply it with 10g if my isp is capable of delivering that speed?





Am I right?

[seanondemand]

You are correct - either of the ports marked WAN will hook up to the ISP’s equipment, and the other SFP port can go to a switch.

[Computersarethebest]

So i need to buy a sfp to ethernet adapter.... my home network is all ethernet.

[Computersarethebest]

Do I need to plud my isp into the 3 ports to the right or can I use the poe parts for my isp connection and my connections to the switch?

[johnt]

So you can configure the WAN line to any of those ports on the front, even any of the 1 Gbps ports. You could plug two 10 Gbps devices into the SFP+ ports and get 10 Gbps between them without a separate switch. Of course this would be an issue if your ISP provides 10 Gbps speed and you need one of those ports for WAN.

[Computersarethebest]

So i have 1 gig internet speed coming to my house, so I plan on using the 2.5 gig wan port and 1 of the 8 lan ports to go to my switch.



If my isp goes to 10g, I'll address that accordingly.

[Computersarethebest]

Thank u guys again
