CPU and GPU Usage capped?

[Philter]

Hello,



Nvidia RTX 2060 Super

AMD Ryzen 5 3600 6x3.6Ghz

2x8GB RAM 3200Mhz



While gaming:

Usage GPU: 80%

Usage CPU: 70%
Experiencing 40FPS less than people with the same GPU, CPU and RAM. There is no problem with the game settings

Temps CPU: up to 90 degrees Celsius and GPU: up to 80 degrees Celsius.



Drivers all updated, windows updated, reinstalled windows even. Optimized Windows Power Mode Management and Performance Options for the max performance. Also optimized Nvidia Settings.



What is wrong?



[HanZie82]

2 minutes ago, Philter said:

Hello,



Nvidia RTX 2060 Super

AMD Ryzen 5 3600 6x3.6Ghz

2x8GB RAM 3200Mhz



While gaming:

Usage GPU: 80%

Usage CPU: 70%
Experiencing 40FPS less than people with the same GPU, CPU and RAM. There is no problem with the game settings

Temps CPU: up to 90 degrees Celsius and GPU: up to 80 degrees Celsius.



Drivers all updated, windows updated, reinstalled windows even. Optimized Windows Power Mode Management and Performance Options for the max performance. Also optimized Nvidia Settings.



What is wrong?



Check the CPU per core speed, pretty sure that at least 1 core is at 100%.

Thats also a bit warm on both, might want to think about some better case ventilation.

[suedseefrucht]

5 minutes ago, Philter said:

Temps CPU: up to 90 degrees Celsius and GPU: up to 80 degrees Celsius.

There you have your answer.

Both, the CPU and the graphics card will drop the clock frequency to prevent overheating.

You can use GPU-Z to check your graphics cards thermal limits, temperature, clock speed and boost clock.

[mr fobs]

1 minute ago, suedseefrucht said:

Both, the CPU and the graphics card will drop the clock frequency to prevent overheating.

I second this. You either need better airflow in your case or to replace thermal paste.

[Philter]

2 minutes ago, HanZie82 said:

Check the CPU per core speed, pretty sure that at least 1 core is at 100%.

HW Monitor shows a value of around 50-80% and a max of 100% everywhere.

[Philter]

18 minutes ago, suedseefrucht said:

There you have your answer.

Both, the CPU and the graphics card will drop the clock frequency to prevent overheating.

You can use GPU-Z to check your graphics cards thermal limits, temperature, clock speed and boost clock.

It says VRel, VOp

[suedseefrucht]

11 minutes ago, Philter said:

Where exactly can I check this in GPU-Z?

4:38

[Philter]

Just now, suedseefrucht said:

4:38

It says Perf Cap Reason is VRel, VOp

[suedseefrucht]

1 minute ago, Philter said:

It says Perf Cap Reason is VRel, VOp

Temps: gpu-z-screen3_1-1-30.png (384×485) (cloudimg.io)

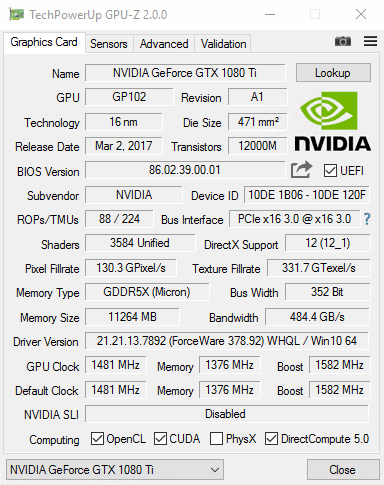

Clock speed: gpu-z-screen1_1-1-30.png (384×485) (cloudimg.io)

[Helpful Tech Witch]

19 minutes ago, Philter said:

HW Monitor shows a value of around 50-80% and a max of 100% everywhere.

There you go. All the cores have been maxed out at some point, probably at a similar time



don you have your ram xmp on?

[Philter]

2 minutes ago, suedseefrucht said:

Temps: gpu-z-screen3_1-1-30.png (384×485) (cloudimg.io)



Clock speed: gpu-z-screen1_1-1-30.png (384×485) (cloudimg.io)

Max Temp is 88 degrees, Clock speed is 1800Mhz while gaming and fans are at 80%

[Philter]

3 minutes ago, HelpfulTechWizard said:

There you go. All the cores have been maxed out at some point, probably at a similar time



don you have your ram xmp on?

yes

[Ralf]

I'm going to say that your PC is running too hot and it's reducing clocks. Most likely your case is at fault since the front is almost fully closed, air cant go inside. Remove the side panel and check what happens.
