What is this compatibility issue??

[Chocmud]

So i am using Pc part picker for my build, these are all of my chosen parts:

Component		Selection		Price
CPU			Intel Core i3-10100 3.6 GHz Quad-Core Processor	$168.00	Buy
Motherboard			Asus PRIME B460M-A Micro ATX LGA1200 Motherboard From parametric filter: Form Factor: ATX, Micro ATX; Chipset: Intel B460; Memory Type: DDR4; Memory Slots: 4 - 16	$129.00	Buy
Memory			Corsair Vengeance LPX 16 GB (2 x 8 GB) DDR4-3000 CL15 Memory From parametric filter: Form Factor: 288-pin DIMM; Speed: 2666 - 5000; Modules: 2 x 8GB	$92.00	Buy

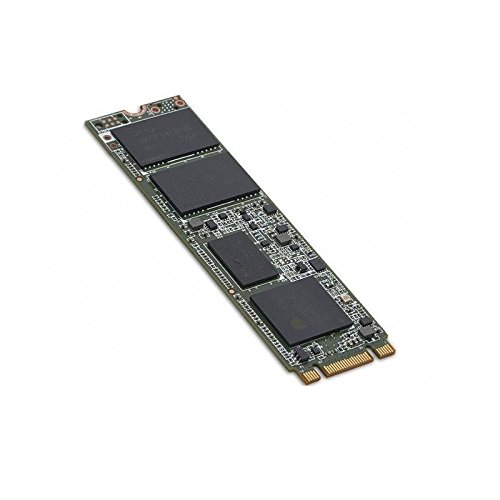

Storage			Intel 540s 480 GB M.2-2280 Solid State Drive From parametric filter: Capacity: 480 GB - 15360 GB; Type: SSD	$61.00	Buy
Video Card			Asus GeForce GTX 1050 Ti 4 GB Phoenix Video Card	$278.99	Buy
Case			Cougar MX330-X ATX Mid Tower Case	$72.60	Buy
Power Supply			Corsair CXM (2015) 450 W 80+ Bronze Certified Semi-modular ATX Power Supply From parametric selection: Show	$69.00









But it says that "The motherboard M.2 slot #1 shares bandwidth with a SATA 6.0 Gb/s port. When the M.2 slot is populated with a SATA M.2 drive, one SATA 6.0 Gb/s port is disabled."

What does that mean??????

Also is this an ok build?

Thanks (by the way i barely know anything about pcs)

[tkitch]

Post this instead:



[xdeathshot20]

basically the cpu of choice has x amount of pcie lanes.  nvme drives use usually 4 of those lanes.  Using those lanes can disable some of the sata ports as there isnt enough lanes for everything.  You will be using a sata based m.2 so you dont have to worry as they use less lanes then a pcie based drive.  Hope this helps a bit.

[SorryBella]

8 minutes ago, Chocmud said:

The motherboard M.2 slot #1 shares bandwidth with a SATA 6.0 Gb/s port. When the M.2 slot is populated with a SATA M.2 drive, one SATA 6.0 Gb/s port is disabled.

Exactly that. Some motherboard has a workaround for lack of bandwith by basically allocating them to other part of the system, in this case the m.2 gonna take a bandwith of one of the SATA port. In this case of your board, according to the manual, your board will disable the SATA port marked "SATA6G_1" from functioning when you plug in the m.2 SSD.

[Chocmud]

2 minutes ago, xdeathshot20 said:

basically the cpu of choice has x amount of pcie lanes.  nvme drives use usually 4 of those lanes.  Using those lanes can disable some of the sata ports as there isnt enough lanes for everything.  You will be using a sata based m.2 so you dont have to worry as they use less lanes then a pcie based drive.  Hope this helps a bit.

Ok thanks that helps, sorry i really dont know much yet. Just making sure I dont have to change anything?

[SorryBella]

Just now, Chocmud said:

Just making sure I dont have to change anything?

As far as i can tell, no.

[tkitch]

Just now, Chocmud said:

Ok thanks that helps, sorry i really dont know much yet. Just making sure I dont have to change anything?

as long as you're not planning on using ALL of the SATA and M.2 Ports at the same time?  You're fine.

[Chocmud]

2 minutes ago, SorryClaire said:

As far as i can tell, no.

ok thanks, i was worried for a bit

[Chocmud]

3 minutes ago, tkitch said:

as long as you're not planning on using ALL of the SATA and M.2 Ports at the same time?  You're fine.

ok thanks

[Chocmud]

11 minutes ago, xdeathshot20 said:

basically the cpu of choice has x amount of pcie lanes.  nvme drives use usually 4 of those lanes.  Using those lanes can disable some of the sata ports as there isnt enough lanes for everything.  You will be using a sata based m.2 so you dont have to worry as they use less lanes then a pcie based drive.  Hope this helps a bit.

That helps lots! thanks. What do you think about the parts list for some light gaming, would it do?

[tkitch]

probably okay?  If you can go up to the 10400 or 10500?  They're quite a bit better in terms of performance.

[Chocmud]

1 hour ago, tkitch said:

probably okay?  If you can go up to the 10400 or 10500?  They're quite a bit better in terms of performance.

Ok thanks again
