Phanteks aRGB strip installation

frozensun
By frozensun
in Cases and Mods
 Share
Posted

http://www.phanteks.com/PH-DRGBLED_CMBO.html

So I got Phanteks 2 led strips combo wihich came with extension cables,so I did youtube video assuming this is the way to install them:

Is everything okay,from how I describe installation in video?





Please do not take offence for my apparent confusion or rudeness,it's not intent me to be like that,it's just my BPD,be nice to me,and I'll return twice better,be rude and usually I get easly pissed of...I'll try to help anyone here,as long as it's something I dealt with,and even if you think I'm rude or not polite,forgive me,  it's not me it's my BPD.

Thanks for understanding.

Link to comment
https://linustechtips.com/topic/1314568-phanteks-argb-strip-installation/
Share on other sites
Link to post
Share on other sites
Posted
6 minutes ago, frozensun said:

So I got Phanteks 2 led strips combo wihich came with extension cables,so I did youtube video assuming this is the way to install them:

Is everything okay,from how I describe installation in video?

Yes, it should only go in one way due to the layout, but it is correct that the arrow goes into the 5V. Just make sure you don't accidentally touch the 12 V RGB header close by as you may fry the strip.

Recent builds:  Meshify C (Zero Tolerance!) & View 37 (Breathable Quad 2080Ti + 2990WX)

Best documented PC coolants

Older Builds

Spoiler

Full-custom loop builds: Meshify C (Full custom loop SLI), Ncase M1(8700K + 1080Ti Full custom loop)  Obsidian 900D (1950X + Quad 1080Ti) & Fractal Define C (1080 in SLI)

Air-cooled builds Air 740D (1920X + Quad 980Ti) & Fractal Define C (Version Air!)



Link to post
Share on other sites
Posted
  • Author
1 minute ago, Vins69 said:

STOP

You're using a 5v strip on a 12V connector

Noo,my 12 V connector is ocupied with RGB strip.

Look at the board in the video



Please do not take offence for my apparent confusion or rudeness,it's not intent me to be like that,it's just my BPD,be nice to me,and I'll return twice better,be rude and usually I get easly pissed of...I'll try to help anyone here,as long as it's something I dealt with,and even if you think I'm rude or not polite,forgive me,  it's not me it's my BPD.

Thanks for understanding.

Link to post
Share on other sites
Posted
  • Author
1 minute ago, Vins69 said:

I've seen it, just to be sure: we speak about the 4pin connector visible at 00:16 just after that 88 led boot code?

yes.



Please do not take offence for my apparent confusion or rudeness,it's not intent me to be like that,it's just my BPD,be nice to me,and I'll return twice better,be rude and usually I get easly pissed of...I'll try to help anyone here,as long as it's something I dealt with,and even if you think I'm rude or not polite,forgive me,  it's not me it's my BPD.

Thanks for understanding.

Link to post
Share on other sites
Posted
  • Author

So I can't plug strip directly.I need extension cable who has 3 holes.One of the hole marked with an arrow goes to pin on header where is marked +5 V,right?

And that is all.

Strip can connect with extension cable only one way,I see it.



Please do not take offence for my apparent confusion or rudeness,it's not intent me to be like that,it's just my BPD,be nice to me,and I'll return twice better,be rude and usually I get easly pissed of...I'll try to help anyone here,as long as it's something I dealt with,and even if you think I'm rude or not polite,forgive me,  it's not me it's my BPD.

Thanks for understanding.

Link to post
Share on other sites
Posted

That's a 12V connector, as the other one you have

the strip you have (and I also have) need a 3 pin connector for 5V strips

that's why:

1) you NEED that extension cable in any case

2) probably your mobo only offers 12V rbg, so you cannot connect it

Link to post
Share on other sites
Posted
  • Author

The connector is beneath 12 V connector (white one),look at 0:16

Board has 2xRGB and 2x aRGB Crosshair Hero VIII



Please do not take offence for my apparent confusion or rudeness,it's not intent me to be like that,it's just my BPD,be nice to me,and I'll return twice better,be rude and usually I get easly pissed of...I'll try to help anyone here,as long as it's something I dealt with,and even if you think I'm rude or not polite,forgive me,  it's not me it's my BPD.

Thanks for understanding.

Link to post
Share on other sites
Posted
3 minutes ago, Vins69 said:

Also in the video, you cannot put the cable in the mobo as it has a hole filled in order to prevent what you want to do right now 😄






Asus boards have a 4-1 pin addressable RGB header, is this what the point of confusion is?

Recent builds:  Meshify C (Zero Tolerance!) & View 37 (Breathable Quad 2080Ti + 2990WX)

Best documented PC coolants

Older Builds

Spoiler

Full-custom loop builds: Meshify C (Full custom loop SLI), Ncase M1(8700K + 1080Ti Full custom loop)  Obsidian 900D (1950X + Quad 1080Ti) & Fractal Define C (1080 in SLI)

Air-cooled builds Air 740D (1920X + Quad 980Ti) & Fractal Define C (Version Air!)



Link to post
Share on other sites
Posted
1 minute ago, Vins69 said:

Ah ok, that's why I've asked


Thats a fan header.

Recent builds:  Meshify C (Zero Tolerance!) & View 37 (Breathable Quad 2080Ti + 2990WX)

Best documented PC coolants

Older Builds

Spoiler

Full-custom loop builds: Meshify C (Full custom loop SLI), Ncase M1(8700K + 1080Ti Full custom loop)  Obsidian 900D (1950X + Quad 1080Ti) & Fractal Define C (1080 in SLI)

Air-cooled builds Air 740D (1920X + Quad 980Ti) & Fractal Define C (Version Air!)



Link to post
Share on other sites
Posted
  • Author
57 minutes ago, Vins69 said:

At the end, you can safely proceed with that adapter as For Science! said



so markings with an arrow on connector plugs to +5V pin?

I mean I see that can not connect the other waymjust want to be cautious,these things easily make a short if not installed correctly.




Please do not take offence for my apparent confusion or rudeness,it's not intent me to be like that,it's just my BPD,be nice to me,and I'll return twice better,be rude and usually I get easly pissed of...I'll try to help anyone here,as long as it's something I dealt with,and even if you think I'm rude or not polite,forgive me,  it's not me it's my BPD.

Thanks for understanding.

Link to post
Share on other sites
Posted
  • Author

These can be connected directly to motherboard 5V header without using controller,right?

http://www.phanteks.com/PH-DRGBLED_CMBO.html



Please do not take offence for my apparent confusion or rudeness,it's not intent me to be like that,it's just my BPD,be nice to me,and I'll return twice better,be rude and usually I get easly pissed of...I'll try to help anyone here,as long as it's something I dealt with,and even if you think I'm rude or not polite,forgive me,  it's not me it's my BPD.

Thanks for understanding.

Link to post
Share on other sites
Posted
8 hours ago, frozensun said:

These can be connected directly to motherboard 5V header without using controller,right?

http://www.phanteks.com/PH-DRGBLED_CMBO.html



THIS is a Phanteks exclusive ARGB connector.




THIS is a "standard" 3-pin ARGB header, found on most motherboards these days.

Yes, the Arrow is the +5V pin.




That LED kit comes with an adapter cable.

Read the tech specs of the things you are buying....






Both 12V RGB and 5V ARGB have the little arrow.

*SOME* 5V ARGB headers will have one of the pins blocked off, because it is unused.

You need to LOOK /  CONFIRM whether it is  5V or 12V yourself.



What do 5v and 12v RGB cables look like you ask?

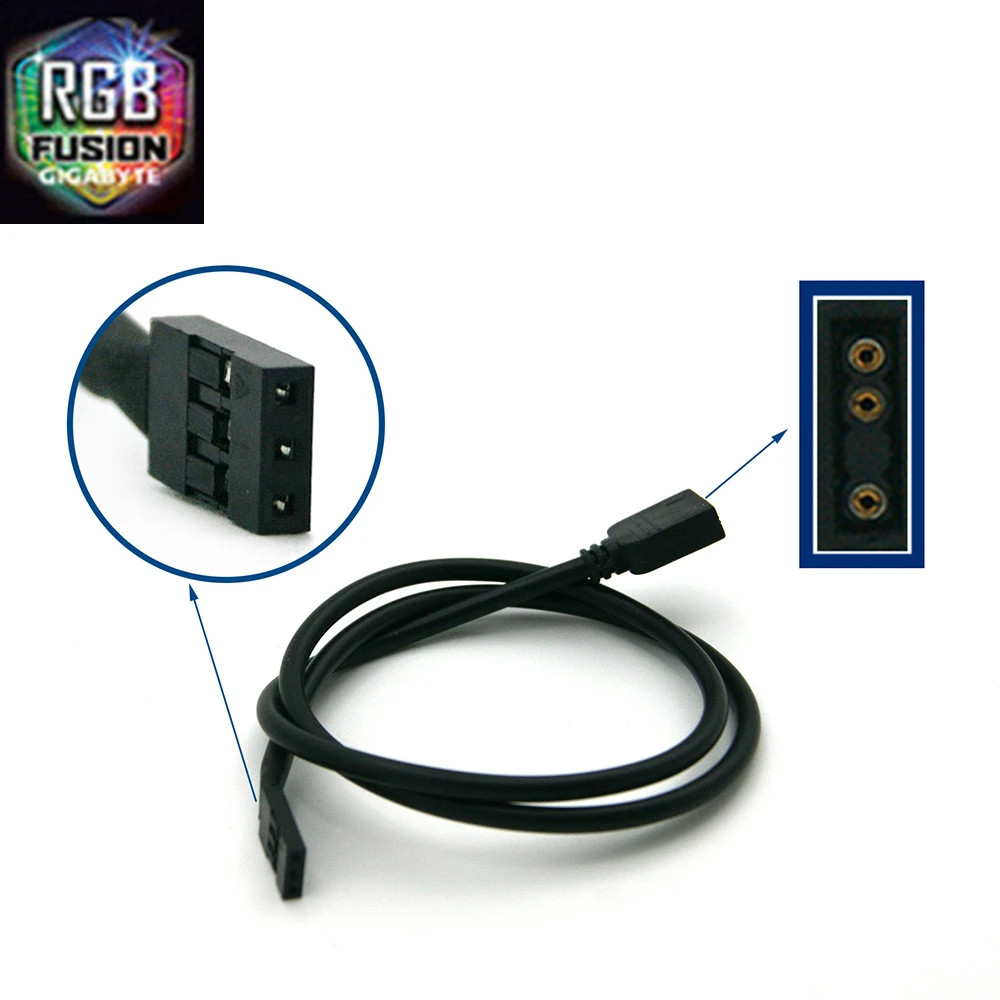

GIGA Motherboard AURA Adapter Cable For Gigabyte RGB FUSION 5Pin 4Pin 12V / 3Pin VDG 3Pin 5V AURA SYNC Header|Fans & Cooling| - AliExpress

AMD Ryzen 9000 Rig

  • AMD R7 9800X3D + Alphacool CORE 1 w/ Performance Mount Kit + Thermal Grizzly AM5 Contact Frame
  • Gigabyte X870E Aorus Pro Ice
  • 32GB (16GB X2) G.Skill Trident Z5 Neo RGB DDR5-6400
  • Sapphire NITRO+ 6800 XT Special Edition + EKwb Full Cover Block
  • Custom Loop w/ 2x 360mm Radiators
  • WD SN850X + WD SN750 + Samsung 980
  • EVGA P2 850W + Red/White CableMod Cables
  • Lian-Li O11 Dynamic EVO XL

AMD Ryzen 5000 Rig

  • AMD R7-5800X
  • Gigabyte B550 Aorus Pro AC
  • 32GB (16GB X 2) Crucial Ballistix RGB DDR4-3600
  • Gigabyte Vision RTX 3060 Ti OC
  • EKwb D-RGB 360mm AIO
  • Intel 660p NVMe 1TB + Crucial MX500 1TB + WD Black 1TB HDD
  • EVGA P2 850W + White CableMod cables
  • Lian-Li LanCool II Mesh - White

Intel i7-8086K / Z390 Rig (Decommissioned Q2' 2025)

Intel i7-6800K / X99 Rig (Officially Decommissioned, Dead CPU returned to Intel)
Intel i5-4690K / Z97 Rig (Decommissioned)

AMD FX-8350 / 990FX Rig (Decommissioned)

AMD Phenom II X6 1090T / 890FX Rig (Decommissioned)



<> Electrical Engineer , B.Eng <>

<> Electronics & Computer Engineering Technologist (Diploma + Advanced Diploma) <>

<> Electronics Engineering Technician for the Canadian Department of National Defence <>
