Slow transfer over LAN?

[pomtom44]

Hi everyone

I have a problem and I'm not sure where to start / how to fix.
I have a file server, (Windows 10) Running a few things (plex, backups, NAS)

When transfering a file to it, i seem to be limited to around 10MB/s. and the network card seems to hit 100% usage
But on the client its only about 15%

Both NIC's are gigabit, and im going though a gigabit switch
So im not sure where exactly to go from here

I have tried re-installing drivers, and tweeking settings on both NIC's following online guides, but nothing seems to help?

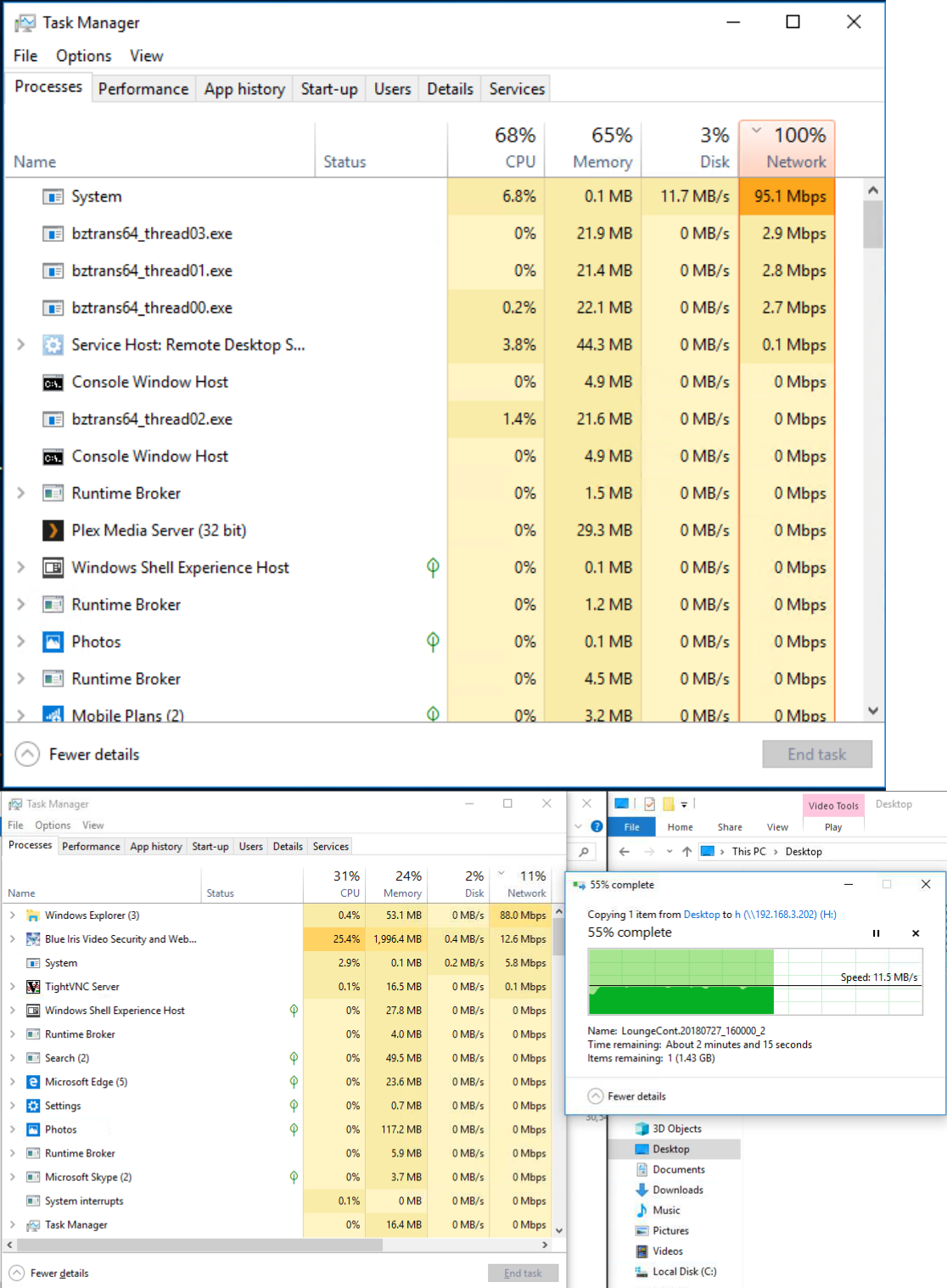

Pic of transfer attached.

Thanks in advance


[Wh0_Am_1]

What grade of Ethernet cable are you using, because these look like Cat 5 speeds.

[Alex Atkin UK]

Agreed, it looks like its only connecting at 100Mbit so I'd try a different ethernet cable if you can.

[beersykins]

One of your links is negotiating at 100 mbit instead of gigabit.



Usually you can use the lights on the switch as a quick indicator to which one it is.

[pomtom44]

Just now, Wh0_Am_1 said:

What grade of Ethernet cable are you using, because these look like Cat 5 speeds.

I'm fairly sure its cat5e but ill try a different one when I can next get to the hardware.
Would that be why the one end is maxing out at 100% on 100mbps while the other isnt?
One is reading a gigabit connection while the other only sees 100?

[beersykins]

Just now, pomtom44 said:

One is reading a gigabit connection while the other only sees 100?

If you swap cables between the two and it follows the cable then you know what's up.

[Snipergod87]

sounds like cable from the "server" to the switch is poor quality or not fully wired, and is negotiating at 100mbit, assuming all that switches ports at 1gbit.
