Ryzen Oc help

kaibsora
 Share
Posted

Soooo It has been a while since i have done any kind of overclocking to an amd proc. (Last one was the 6300 which i scrapped). Anywho. the problem i am having is getting the overclocked speed to actually work when i am running anything. If i stress test the cpu after applying the overclock in the bios it will show in task manager that it is 3.8ghz, but it will only go up to 3.76 in benchmarks. i am at a loss here as i even oced my 2.4ghz ram to 3ghz. the voltage i have my cpu at is 1.35, and it is stable and such. any ideas here?

Specs!

Spoiler

Gpu - zotac rtx 2060 super amp extreme

Mobo - gigabyte z270p-d3

CPU - Pentium g4600

ram - ddr4 single 8gb 2666

Cooler - stock cooler

os drive - Samsung 970 evo 256 m.2 nvme

Case - Phanteks p600s Black

psu - EVGA GQ 650w 80+ gold semi modular



Link to comment
https://linustechtips.com/topic/931579-ryzen-oc-help/
Share on other sites
Link to post
Share on other sites
Posted

that's just inaccuracies in measurements.

CPU: i7-2600K 4751MHz 1.44V (software) --> 1.47V at the back of the socket Motherboard: Asrock Z77 Extreme4 (BCLK: 103.3MHz) CPU Cooler: Noctua NH-D15 RAM: Adata XPG 2x8GB DDR3 (XMP: 2133MHz 10-11-11-30 CR2, custom: 2203MHz 10-11-10-26 CR1 tRFC:230 tREFI:14000) GPU: Asus GTX 1070 Dual (Super Jetstream vbios, +70(2025-2088MHz)/+400(8.8Gbps)) SSD: Samsung 840 Pro 256GB (main boot drive), Transcend SSD370 128GB PSU: Seasonic X-660 80+ Gold Case: Antec P110 Silent, 5 intakes 1 exhaust Monitor: AOC G2460PF 1080p 144Hz (150Hz max w/ DP, 121Hz max w/ HDMI) TN panel Keyboard: Logitech G610 Orion (Cherry MX Blue) with SteelSeries Apex M260 keycaps Mouse: BenQ Zowie FK1



Model: HP Omen 17 17-an110ca CPU: i7-8750H (0.125V core & cache, 50mV SA undervolt) GPU: GTX 1060 6GB Mobile (+80/+450, 1650MHz~1750MHz 0.78V~0.85V) RAM: 8+8GB DDR4-2400 18-17-17-39 2T Storage: HP EX920 1TB PCIe x4 M.2 SSD + Crucial MX500 1TB 2.5" SATA SSD, 128GB Toshiba PCIe x2 M.2 SSD (KBG30ZMV128G) gone cooking externally, 1TB Seagate 7200RPM 2.5" HDD (ST1000LM049-2GH172) left outside Monitor: 1080p 126Hz IPS G-sync



Desktop benching:

Cinebench R15 Single thread:168 Multi-thread: 833

SuperPi (v1.5 from Techpowerup, PI value output) 16K: 0.100s 1M: 8.255s 32M: 7m 45.93s

Link to comment
https://linustechtips.com/topic/931579-ryzen-oc-help/#findComment-11386446
Share on other sites
Link to post
Share on other sites
Posted

Task Manager doesnt display the CPU speeds correctly. Go download Ryzen Master or HWInfo to get the proper speeds.




Community Standards

Please make sure to Quote me or @ me to see your reply!

Just because I am a Moderator does not mean I am always right. Please fact check me and verify my answer.



"Beast Mode"

Ryzen 7 9800x3d | Arctic Liquid Freeze 3 Pro 360 | MSI X870 Tomahawk Wi-Fi | MSI RTX 5080 Gaming Trio OC | Gskill Flare X5 6000MT/s CL30

1tb WD Black SN850x NVMe | 4tb WD SN850x NVMe | Antec Flux Pro | Be Quiet Pure Power 13 M 1000w | OWC 10gb NIC



Dedicated Streaming Rig

 Ryzen 7 3700x | Asus B450-F Strix | 32gb Gskill Flare X 3200mhz | Corsair RM550x PSU | MSI Ventus 3060 12gb | 250gb 860 Evo m.2

Phanteks P300A |  Elgato HD60 Pro | Avermedia Live Gamer Duo | Avermedia 4k GC573 Capture Card



Link to comment
https://linustechtips.com/topic/931579-ryzen-oc-help/#findComment-11386456
Share on other sites
Link to post
Share on other sites
Posted
  • Author

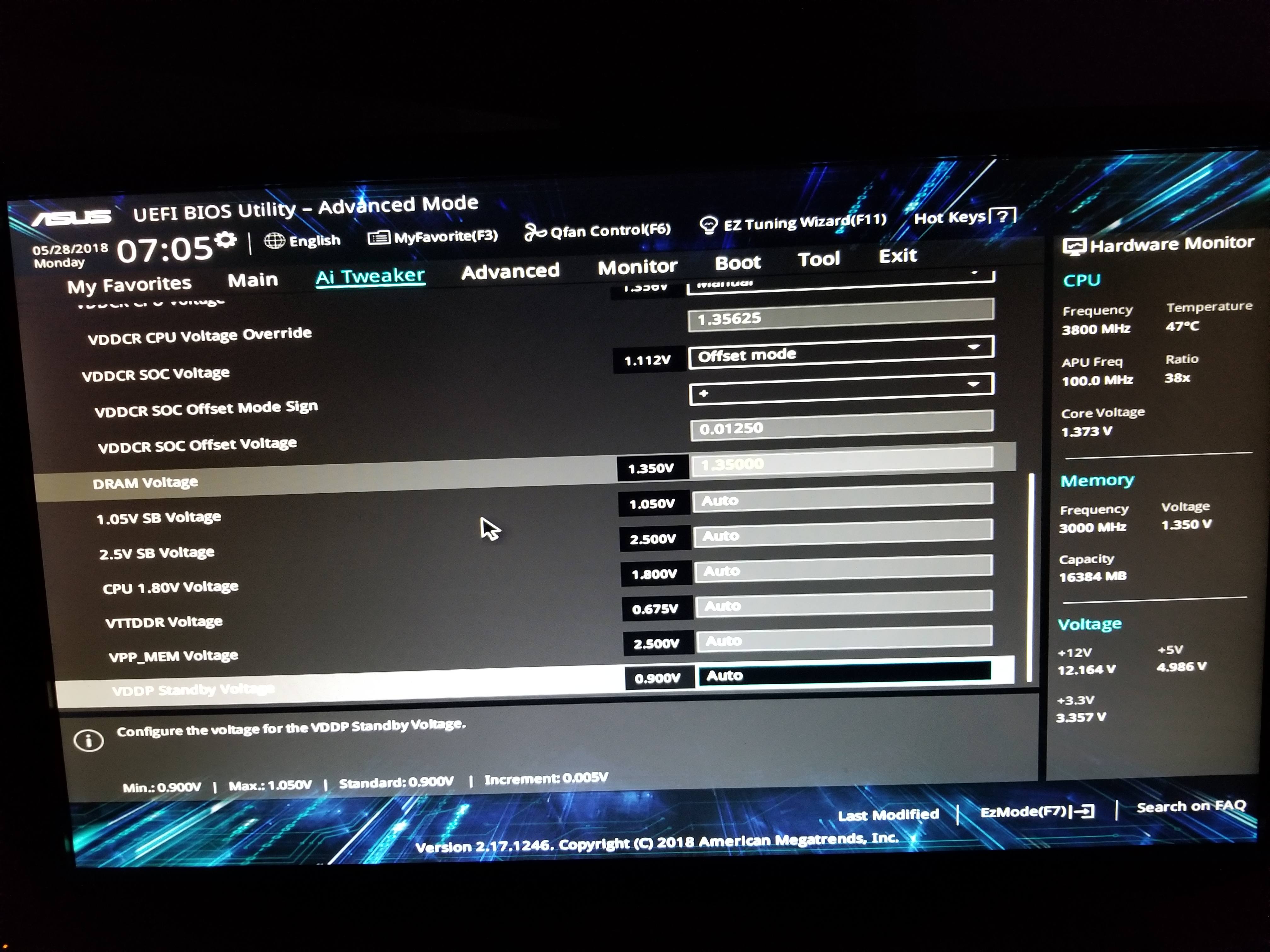

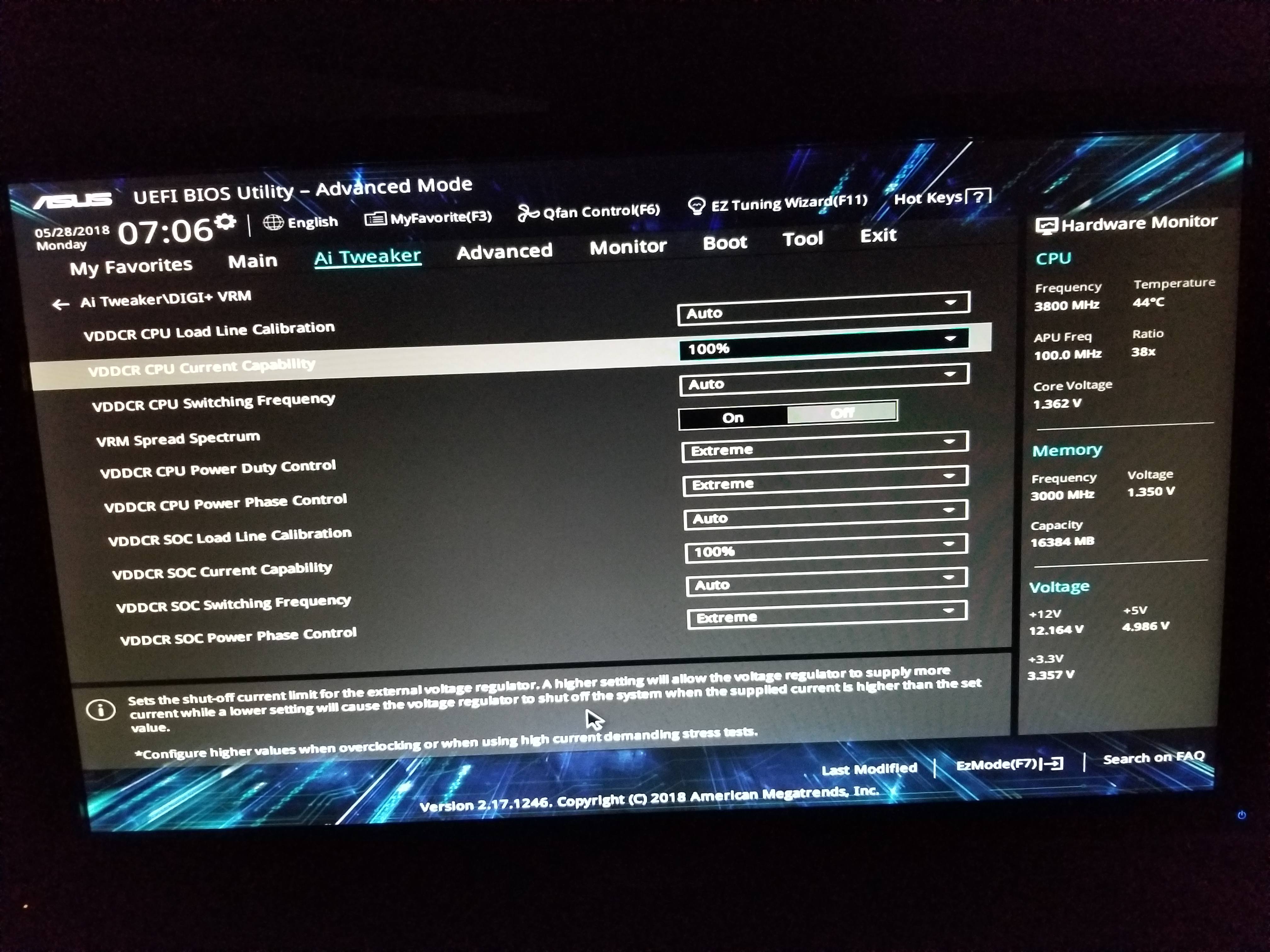

Pics of bios screen.

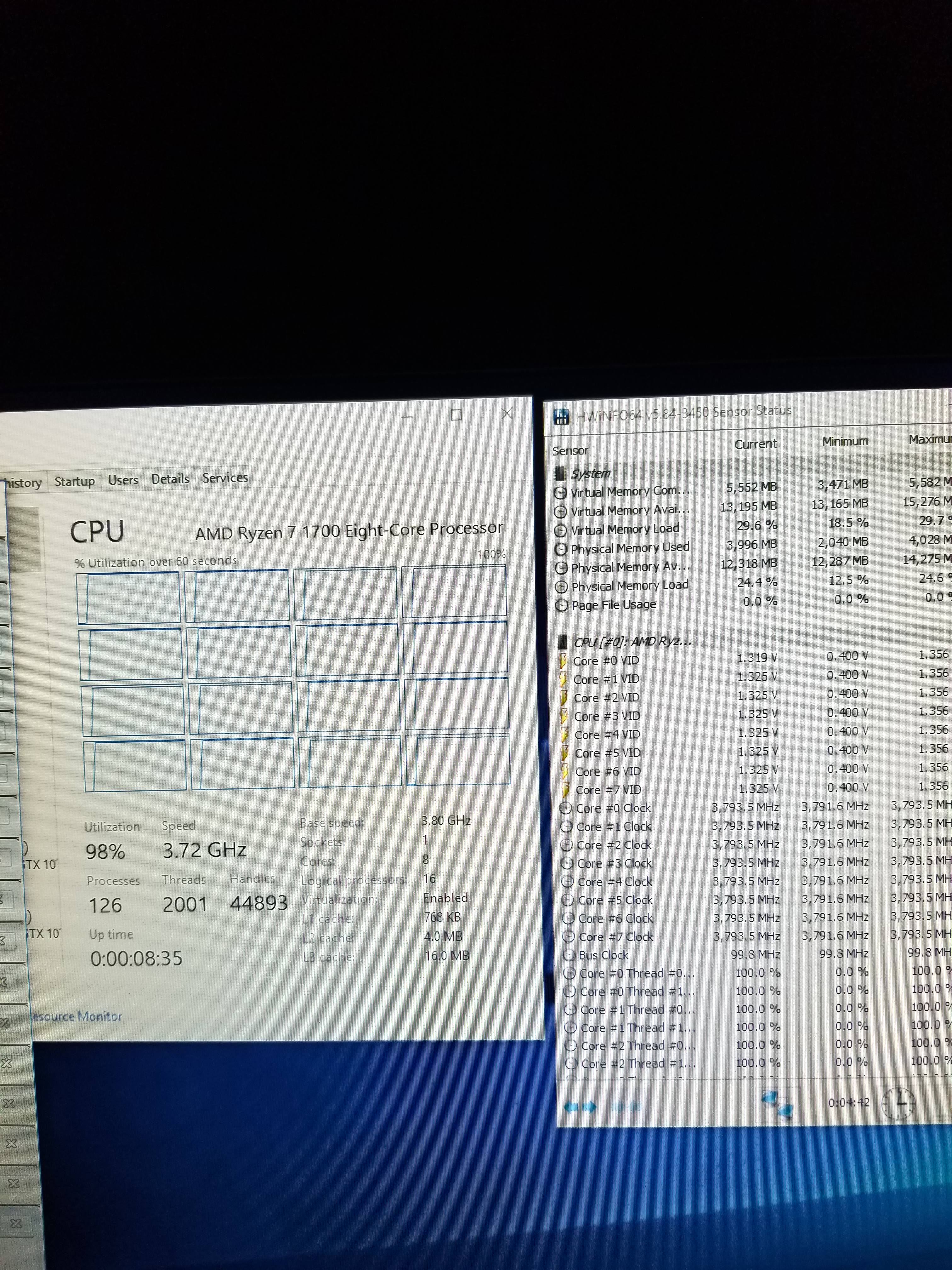

I highly doubt that as it also only utilises 99 percent of CPU during benches and sometimes will even clock down to 3.7ghz

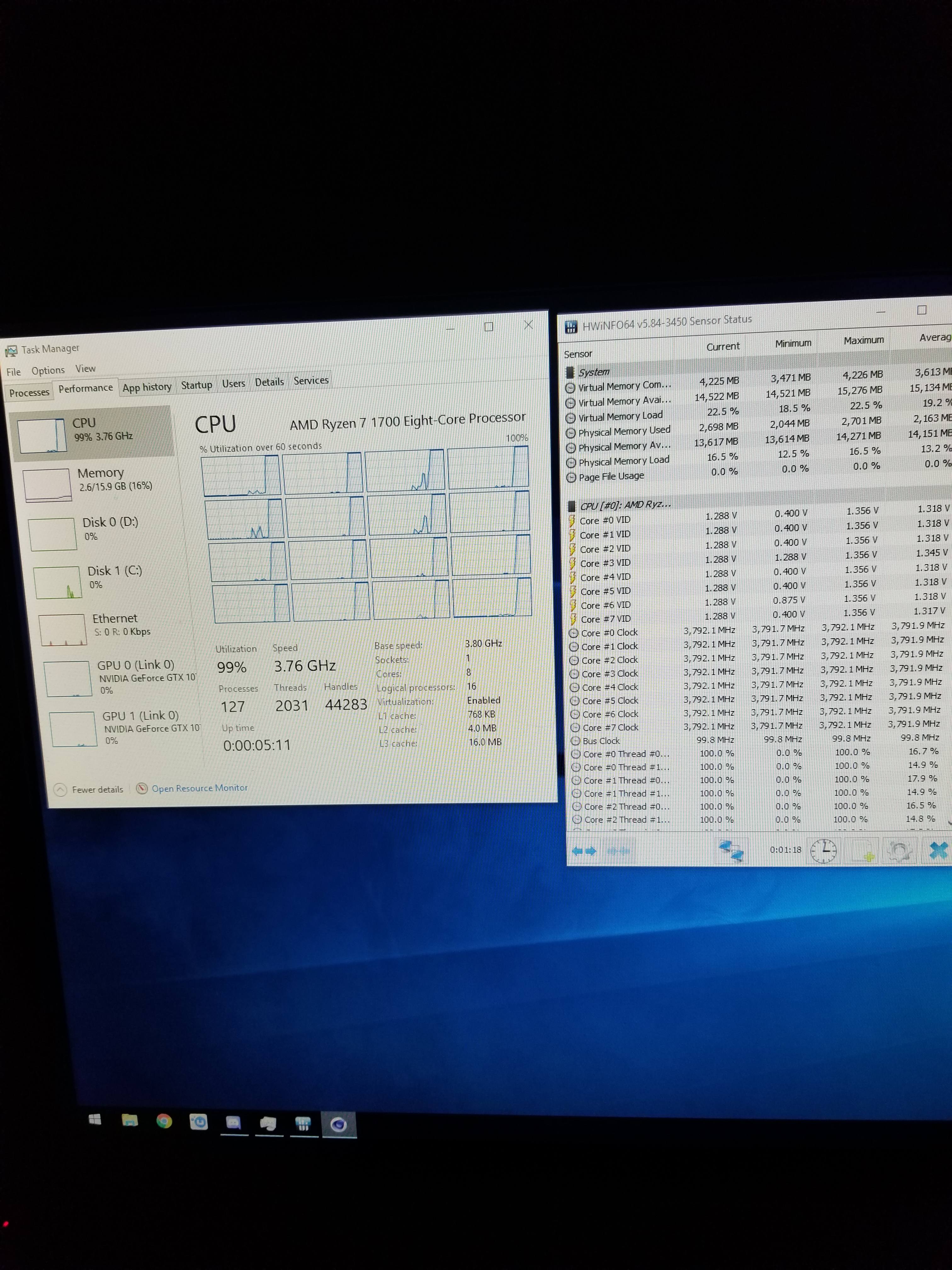

I also just noticed that hwinfo is showing that my voltages are at 1.325 and not 1.35 under load. And now it is sitting at 3.71 ghz in task manager :thinking:

Specs!

Spoiler

Gpu - zotac rtx 2060 super amp extreme

Mobo - gigabyte z270p-d3

CPU - Pentium g4600

ram - ddr4 single 8gb 2666

Cooler - stock cooler

os drive - Samsung 970 evo 256 m.2 nvme

Case - Phanteks p600s Black

psu - EVGA GQ 650w 80+ gold semi modular



Link to comment
https://linustechtips.com/topic/931579-ryzen-oc-help/#findComment-11386457
Share on other sites
Link to post
Share on other sites
Posted
  • Author

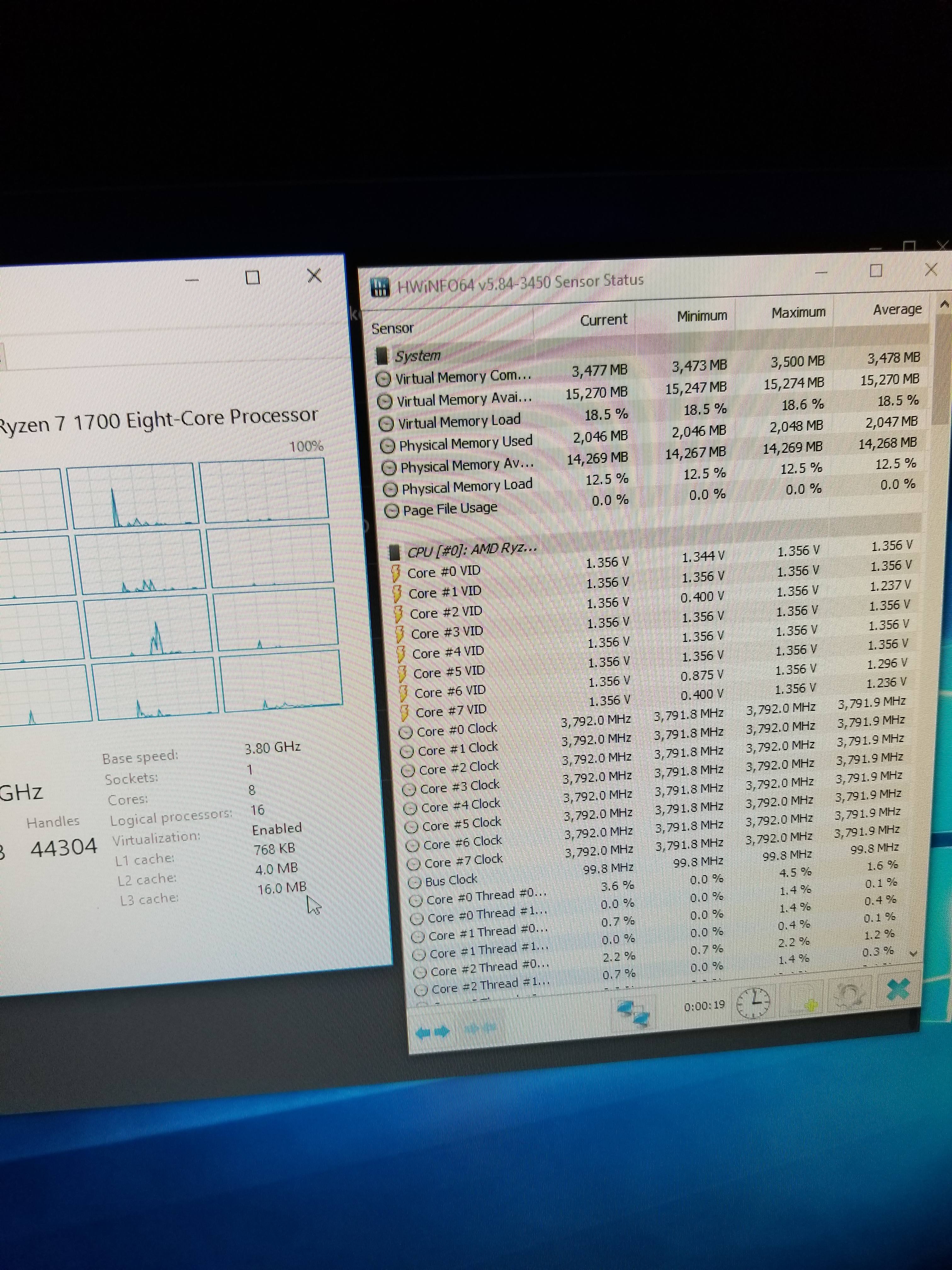

I've also noticed that the cpu vid goes up to 1.356v (what I have it set to) at idle but goes to 1.26 under load.

Specs!

Spoiler

Gpu - zotac rtx 2060 super amp extreme

Mobo - gigabyte z270p-d3

CPU - Pentium g4600

ram - ddr4 single 8gb 2666

Cooler - stock cooler

os drive - Samsung 970 evo 256 m.2 nvme

Case - Phanteks p600s Black

psu - EVGA GQ 650w 80+ gold semi modular



Link to comment
https://linustechtips.com/topic/931579-ryzen-oc-help/#findComment-11386500
Share on other sites
Link to post
Share on other sites
