Posted

  So as of a recent upgrade in my pc, I've come to own 3 Corsair SP and AP 120 fans and with 4 fans total in my case, things are a little on the louder side with only 3 pin fans that cannot be controlled via my motherboard.  Lately I've been looking into buying a Sentry 3 from NZXT as a fan controller for my NZXT Phantom 240 case.  Does anyone have any experience with these coolers and any advice?  I'm really not looking to spend a fortune and the $35 mark is tempting on this visually appealing controller.  (Granted my front door on my case is closed all the time so I won't see it anyways).  I'd like something that can adjust fan levels based on computer load/heat if possible.  Currently my rig consists of a MSI GTX 970 (with a blower cooler) and a all-in-one liquid cooling unit for my 4790k i7 CPU.

Link to comment
https://linustechtips.com/topic/621566-fan-controllers/
Share on other sites
Link to post
Share on other sites
Posted

I have those exact same fans in my system, I use Asus Z170-A. It has BIOS enabled fan control so that is what I use. I'm not sure if that is an Asus specific thing, but lots of motherboards probably come with something similar. There is also alot of software that you can download for fan control in most situations. You shouldn't NEED a fan hub to control the fans already in your system (assuming they're all plugged in)

Link to comment
https://linustechtips.com/topic/621566-fan-controllers/#findComment-8017441
Share on other sites
Link to post
Share on other sites
Posted
16 hours ago, Rebourn said:

Asrock z97 Anniversary Edition

The motherboard has pretty nice fan control that's probably as good as the Sentry.

Which fans are plugged into which headers? What settings are you using?

If you ever need help with a build, read the following before posting: http://linustechtips.com/main/topic/3061-build-plan-thread-recommendations-please-read-before-posting/
Also, make sure to quote a post or tag a member when replying or else they won't get a notification that you replied to them.

Link to comment
https://linustechtips.com/topic/621566-fan-controllers/#findComment-8020786
Share on other sites
Link to post
Share on other sites
Posted
2 hours ago, Rebourn said:

I have two fans plugged into Chassis Fan power outlets and my radiator fan plugged into a "pwr fan" outlet on the motherboard.  I've tried switching it between "Silent mode" and "standard mode" in the BIOS without any noticeable change in RPM

Pwr_fan just runs the fan at 100%. If you want  to control the fan speed, use a different header.

2 hours ago, Rebourn said:

Forgot to tag lol

You can add tags by editing the post.

If you ever need help with a build, read the following before posting: http://linustechtips.com/main/topic/3061-build-plan-thread-recommendations-please-read-before-posting/
Also, make sure to quote a post or tag a member when replying or else they won't get a notification that you replied to them.

Link to comment
https://linustechtips.com/topic/621566-fan-controllers/#findComment-8027389
Share on other sites
Link to post
Share on other sites
Posted
On 7/8/2016 at 7:34 PM, Rebourn said:

What about the ones in Chassis_fan?  Can't seem to control those with voltage

That should allow for manual fan control.

What settings are you using?

If you ever need help with a build, read the following before posting: http://linustechtips.com/main/topic/3061-build-plan-thread-recommendations-please-read-before-posting/
Also, make sure to quote a post or tag a member when replying or else they won't get a notification that you replied to them.

Link to comment
https://linustechtips.com/topic/621566-fan-controllers/#findComment-8040785
Share on other sites
Link to post
Share on other sites
Posted
17 minutes ago, Rebourn said:

I've tried "Standard" and "silent" modes with no changes in fan rpm

Which fan are you trying to control?

If you ever need help with a build, read the following before posting: http://linustechtips.com/main/topic/3061-build-plan-thread-recommendations-please-read-before-posting/
Also, make sure to quote a post or tag a member when replying or else they won't get a notification that you replied to them.

Link to comment
https://linustechtips.com/topic/621566-fan-controllers/#findComment-8055477
Share on other sites
Link to post
Share on other sites
Posted
3 hours ago, Rebourn said:

The chassis fans.  Which are 3-pin corsair SP and AF fans.  120mm

Are you changing the settings for the correct header? There should be more than one cha_fan header.

If you ever need help with a build, read the following before posting: http://linustechtips.com/main/topic/3061-build-plan-thread-recommendations-please-read-before-posting/
Also, make sure to quote a post or tag a member when replying or else they won't get a notification that you replied to them.

Link to comment
https://linustechtips.com/topic/621566-fan-controllers/#findComment-8062079
Share on other sites
Link to post
Share on other sites
Posted
1 minute ago, Rebourn said:

I believe so...  All my cha_fan's are plugged in so I figure atleast one of them should change in rpm

Double check which specific header your changing settings for and what the fan is plugged into.

If you ever need help with a build, read the following before posting: http://linustechtips.com/main/topic/3061-build-plan-thread-recommendations-please-read-before-posting/
Also, make sure to quote a post or tag a member when replying or else they won't get a notification that you replied to them.

Link to comment
https://linustechtips.com/topic/621566-fan-controllers/#findComment-8065004
Share on other sites
Link to post
Share on other sites
Posted
  • Author
5 minutes ago, WoodenMarker said:

Double check which specific header your changing settings for and what the fan is plugged into.

Checked it.  I only have two Cha_fan adjustments and I set them both to silent.  No drop in RPM.  My guess is it adjusts through PWM and since its a 3 Pin Fan, PWM won't work.  Do you know of any way to make it voltage controlled?

Link to comment
https://linustechtips.com/topic/621566-fan-controllers/#findComment-8065023
Share on other sites
Link to post
Share on other sites
Posted
5 minutes ago, Rebourn said:

Checked it.  I only have two Cha_fan adjustments and I set them both to silent.  No drop in RPM.  My guess is it adjusts through PWM and since its a 3 Pin Fan, PWM won't work.  Do you know of any way to make it voltage controlled?

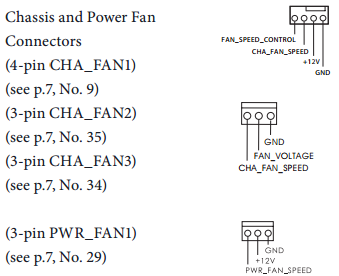

There should be 3 chassis headers and you should use cha_fan2 or cha_fan3 for DC control.


If you ever need help with a build, read the following before posting: http://linustechtips.com/main/topic/3061-build-plan-thread-recommendations-please-read-before-posting/
Also, make sure to quote a post or tag a member when replying or else they won't get a notification that you replied to them.

Link to comment
https://linustechtips.com/topic/621566-fan-controllers/#findComment-8065046
Share on other sites
Link to post
Share on other sites
Posted
1 minute ago, Rebourn said:

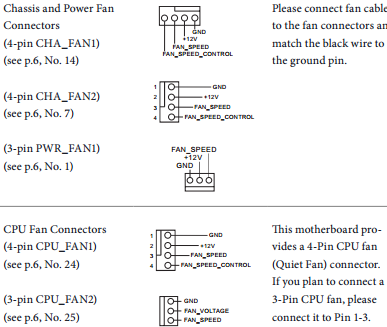

My user manual only lists 2 Cha_Fan headers and then the one PWR_Fan

Oh, I was looking at the wrong manual (Z97 Extreme4)--thought you had a different board from memory.

cpu_fan2 should work.




Another option is trying SpeedFan.

If you ever need help with a build, read the following before posting: http://linustechtips.com/main/topic/3061-build-plan-thread-recommendations-please-read-before-posting/
Also, make sure to quote a post or tag a member when replying or else they won't get a notification that you replied to them.

Link to comment
https://linustechtips.com/topic/621566-fan-controllers/#findComment-8065070
Share on other sites
Link to post
Share on other sites
