PSU sata splitters

1Scotty1
By 1Scotty1
in Power Supplies
 Share
Go to solution Solved by alpenwasser,

I have run up to twelve drives on one cable without issues. Should be fine.

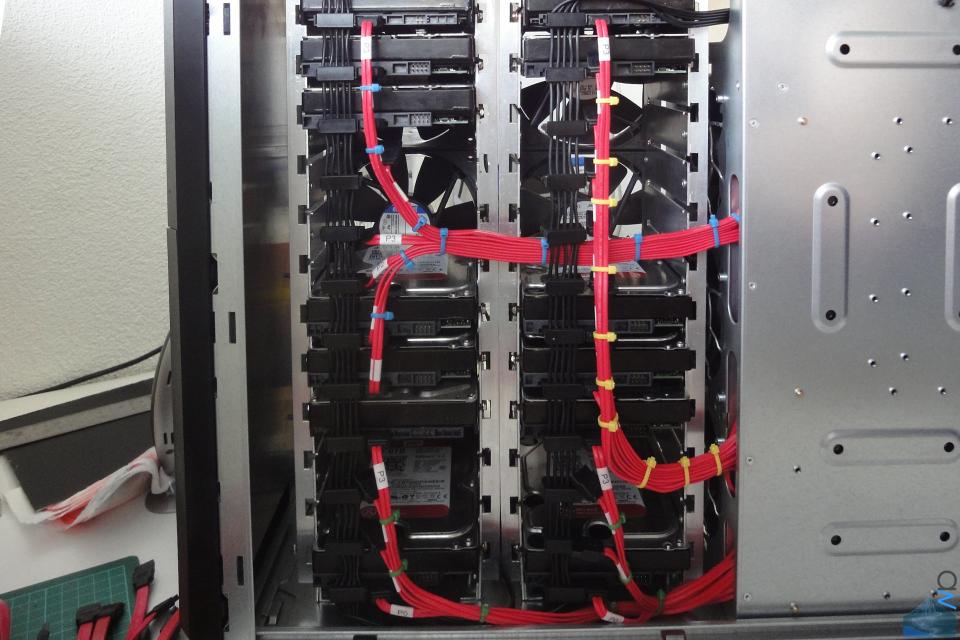

(It's not twelve on a single cable in this image since I've changed the config, but you get the idea.)

aw--apollo--2014-04-13--21--disk-rack-ca

Posted

Hey,

Probably a dumb question, but I need to check anyways. Picture the PSU SATA cable, long cable with 4 "outlets" all of them are used up and two are used on another PSU cable.

And I want to get rid of one PSU cable to reduce clutter and use two SATA splitters, so basically it will be a PSU cable with 6 "outlets".

Now the question - is it too much for one cable? Dont want to overload it :D

Thanks, LTT

Link to comment
Share on other sites
Link to post
Share on other sites
Posted
  • Solution

I have run up to twelve drives on one cable without issues. Should be fine.

(It's not twelve on a single cable in this image since I've changed the config, but you get the idea.)

aw--apollo--2014-04-13--21--disk-rack-ca

BUILD LOGS: HELIOS - Latest Update: 2015-SEP-06 ::: ZEUS - BOTW 2013-JUN-28 ::: APOLLO - Complete: 2014-MAY-10
OTHER STUFF: Cable Lacing Tutorial ::: What Is ZFS? ::: mincss Primer ::: LSI RAID Card Flashing Tutorial
FORUM INFO: Community Standards ::: The Moderating Team ::: 10TB+ Storage Showoff Topic

Link to comment
Share on other sites
Link to post
Share on other sites
Posted

I think it all depends of the PSU watts.

CPU:i7 9700k 5047.5Mhz All Cores Mobo: MSI MPG Z390 Gaming Edge AC, RAM:Corsair Vengeance LPX 16GB 3200MHz DDR4 OC 3467Mhz GPU:MSI RTX 2070 ARMOR 8GB OC Storage:Samsung SSD 970 EVO NVMe M.2 250GB, 2x SSD ADATA PRO SP900 256GB, HDD WD CB 2TB, HDD GREEN 2TB PSU: Seasonic focus plus 750w Gold Display(s): 1st: LG 27UK650-W, 4K, IPS, HDR10, 10bit(8bit + A-FRC). 2nd: Samsung 24" LED Monitor (SE390), Cooling:Fazn CPU Cooler Aero 120T Push/pull Corsair ML PRO Fans Keyboard: Corsair K95 Platinum RGB mx Rapidfire Mouse:Razer Naga Chroma  Headset: Razer Kraken 7.1 Chroma Sound: Logitech X-540 5.1 Surround Sound Speaker Case: Modded Case Inverted, 5 intake 120mm, one exhaust 120mm.

Link to comment
Share on other sites
Link to post
Share on other sites
Posted

I think it all depends of the PSU watts.

Yeah, your PSU needs to be able to handle the spin-up current for the drives, since it

can spike pretty high (not an issue if your machine does staggered spin-ups though).

Six drives should be fine though as long as you have a halfway decent PSU. My server

(the pic above) uses a 550W PSU, haven't had any issues so far. If you have a multi-rail

PSU, it might be a good idea to have a look at which rails support how much current,

since sometimes SATA rails aren't too powerful.
