Snake45
By Snake45
in Power Supplies
 Share
Posted

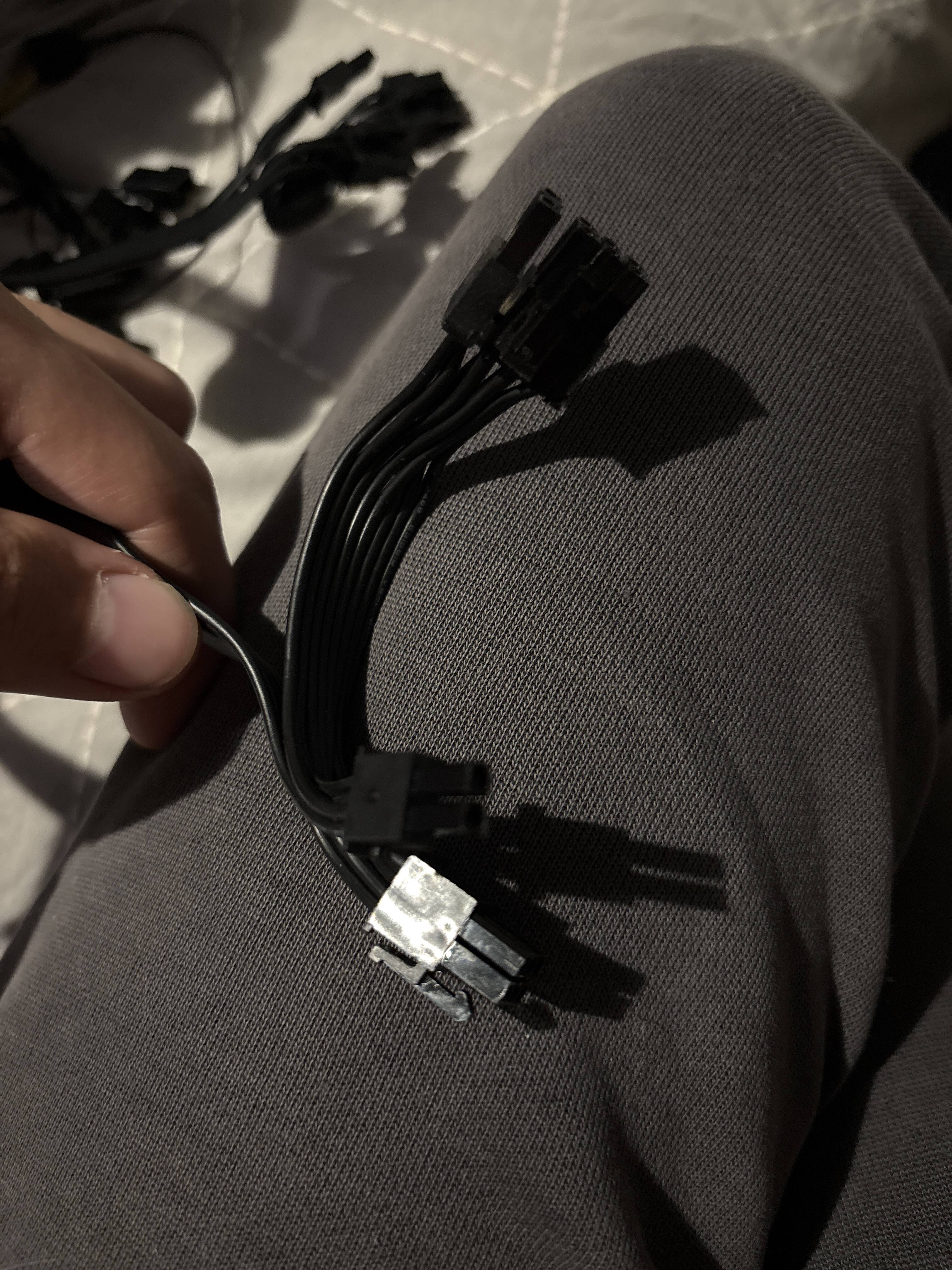

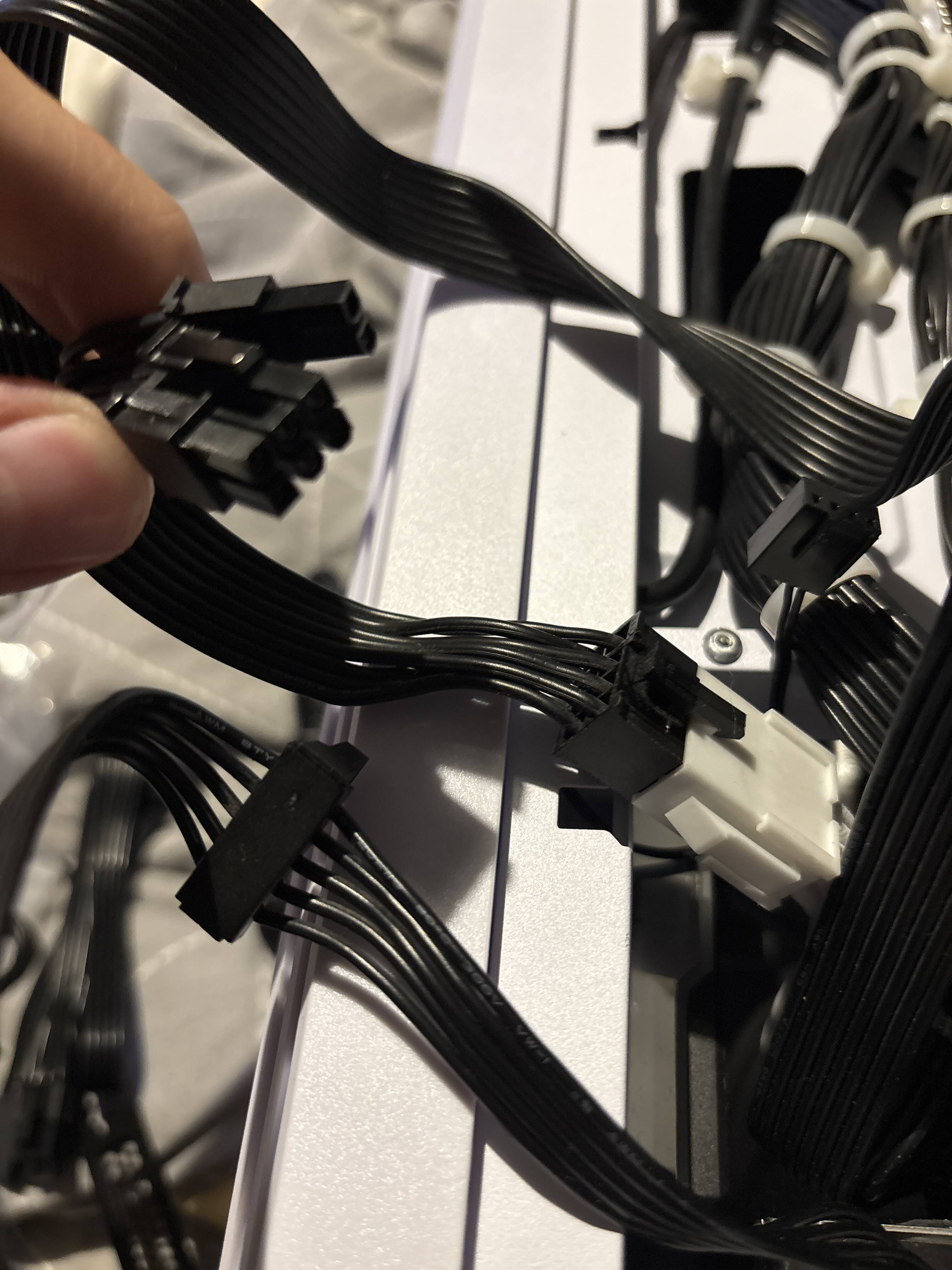

Please help.I just bought a unihub for my tl fans but i didnt see that you need a 6 pin connection to the power supply and the problem is i have only 2 6+2’s cables, both used on my gpu BUT they are double, so 1 6+2 actually has 2 6+2 connections as shown, can i use a spare one on my unihub or is it going to screw with my gpu.


Link to comment
https://linustechtips.com/topic/1610332-help/
Share on other sites
Link to post
Share on other sites
Posted
11 minutes ago, Snake45 said:

Please help.I just bought a unihub for my tl fans but i didnt see that you need a 6 pin connection to the power supply and the problem is i have only 2 6+2’s cables, both used on my gpu BUT they are double, so 1 6+2 actually has 2 6+2 connections as shown, can i use a spare one on my unihub or is it going to screw with my gpu.



What is your power supply and what is your GPU?

Link to comment
https://linustechtips.com/topic/1610332-help/#findComment-16715558
Share on other sites
Link to post
Share on other sites
Posted
15 minutes ago, Snake45 said:

Please help.I just bought a unihub for my tl fans but i didnt see that you need a 6 pin connection to the power supply and the problem is i have only 2 6+2’s cables, both used on my gpu BUT they are double, so 1 6+2 actually has 2 6+2 connections as shown, can i use a spare one on my unihub or is it going to screw with my gpu.



Should be fine, but for the sake of cable management I'd suggest 1 cable goes to GPU, and 1 goes to the unihub (what is a uniub? a fan controller? why does a fan controller use 6+2 and not sata? or molex?)

Although it would help to know the models of the PSU and GPU.

I might be experienced, but I'm human and I do make mistakes. Trust but Verify! I edit my messages after sending them alot, please refresh before posting your reply. Please try to be clear and specific, you'll get a better answer. Please remember to mark solutions once you have the information you need. Expand this signature for common PC building advice, a short bio and a list of my components.



Common build advice:

1) Buy the cheapest (well reviewed) motherboard that has the features you need. Paying more typically only gets you features you won’t use. 2) only get as much RAM as you need, getting more won’t (typically) make your PC faster. 3) While I recommend getting an NVMe drive, you don’t need to splurge for an expensive drive with DRam cache, DRamless drives are fine for gamers. 4) paying for looks is fine, just don’t break the bank. 5) Tower coolers are usually good enough, unless you go top tier Intel or plan on OCing. 6) OCing is a dead meme, you probably shouldn’t bother. 7) "Bottlenecks" rarely matter and "Future-proofing" is a myth. 8) AIOs don't noticably improve performance past 240mm.



Useful Websites:

https://www.productchart.com - helps compare monitors, https://uk.pcpartpicker.com - makes designing a PC easier.



Bio:

He/Him - I'm a PhD student working in the fields of reinforcement learning and traffic control. PCs are one of my hobbies and I've built many PCs and performed upgrades on a few laptops (for myself, friends and family). My personal computers include 4 windows (10/11) machines and a TrueNAS server (and I'm looking to move to dual booting Linux Mint on my main machine in future). Aside from computers, I also dabble in modding/homebrew retro consoles, support Southampton FC, and enjoy Scuba Diving and Skiing.

Fun Facts

1) When I was 3 years old my favourite toy was a scientific calculator. 2) My father is a British Champion ploughman in the Vintage Hydraulic Class. 3) On Speedrun.com, I'm the world record holder for the Dream Bobsleigh event on Mario & Sonic at the Olympic Winter Games 2010.



My Favourite Games: World of Tanks, Runescape, Subnautica, Metroid (Fusion and Dread), Spyro: Year of the Dragon (Original and Reignited Trilogy), Crash Bash, Mario Kart Wii, Balatro



My Computers: Primary: My main gaming rig - https://uk.pcpartpicker.com/user/will0hlep/saved/NByp3C Second: Hosts Discord bots as well as a Minecraft and Ark server, and also serves as a reinforcement learning sand box - https://uk.pcpartpicker.com/user/will0hlep/saved/cc9K7P NAS: TrueNAS Scale NAS hosting SMB shares, DDNS updater, pi-hole, and a Jellyfin server - https://uk.pcpartpicker.com/user/will0hlep/saved/m37w3C Foldatron: My folding@home and BOINC rig (partially donated to me by Folding Team Leader GOTSpectrum) - Mobile: Mini-ITX gaming rig for when I'm away from home -

Link to comment
https://linustechtips.com/topic/1610332-help/#findComment-16715559
Share on other sites
Link to post
Share on other sites
Posted
  • Author
2 minutes ago, will0hlep said:



Should be fine, but for the sake of cable management I'd suggest 1 cable goes to GPU, and 1 goes to the unihub (what is a uniub? a fan controller? why does a fan controller use 6+2 and not sata? or molex?)

yes its a fan controller dont ask me why it does lol, i used both cables as my gpu power because i was scared that if i used only 1 it would fry my gpu

Link to comment
https://linustechtips.com/topic/1610332-help/#findComment-16715561
Share on other sites
Link to post
Share on other sites
Posted
2 minutes ago, Snake45 said:

yes its a fan controller dont ask me why it does lol, i used both cables as my gpu power because i was scared that if i used only 1 it would fry my gpu

Using a single cable shouldn't fry the GPU because the worst case is the GPU dosn't get enough power because the PSU can't supply enough power over only 1 cable. In theory I guess you could cause a problem with your PSU, but only if it was faulty already.



Anyway, given the wattage of the PSU, it should have no issue powering a 6800XT over a single cable.

I might be experienced, but I'm human and I do make mistakes. Trust but Verify! I edit my messages after sending them alot, please refresh before posting your reply. Please try to be clear and specific, you'll get a better answer. Please remember to mark solutions once you have the information you need. Expand this signature for common PC building advice, a short bio and a list of my components.



Common build advice:

1) Buy the cheapest (well reviewed) motherboard that has the features you need. Paying more typically only gets you features you won’t use. 2) only get as much RAM as you need, getting more won’t (typically) make your PC faster. 3) While I recommend getting an NVMe drive, you don’t need to splurge for an expensive drive with DRam cache, DRamless drives are fine for gamers. 4) paying for looks is fine, just don’t break the bank. 5) Tower coolers are usually good enough, unless you go top tier Intel or plan on OCing. 6) OCing is a dead meme, you probably shouldn’t bother. 7) "Bottlenecks" rarely matter and "Future-proofing" is a myth. 8) AIOs don't noticably improve performance past 240mm.



Useful Websites:

https://www.productchart.com - helps compare monitors, https://uk.pcpartpicker.com - makes designing a PC easier.



Bio:

He/Him - I'm a PhD student working in the fields of reinforcement learning and traffic control. PCs are one of my hobbies and I've built many PCs and performed upgrades on a few laptops (for myself, friends and family). My personal computers include 4 windows (10/11) machines and a TrueNAS server (and I'm looking to move to dual booting Linux Mint on my main machine in future). Aside from computers, I also dabble in modding/homebrew retro consoles, support Southampton FC, and enjoy Scuba Diving and Skiing.

Fun Facts

1) When I was 3 years old my favourite toy was a scientific calculator. 2) My father is a British Champion ploughman in the Vintage Hydraulic Class. 3) On Speedrun.com, I'm the world record holder for the Dream Bobsleigh event on Mario & Sonic at the Olympic Winter Games 2010.



My Favourite Games: World of Tanks, Runescape, Subnautica, Metroid (Fusion and Dread), Spyro: Year of the Dragon (Original and Reignited Trilogy), Crash Bash, Mario Kart Wii, Balatro



My Computers: Primary: My main gaming rig - https://uk.pcpartpicker.com/user/will0hlep/saved/NByp3C Second: Hosts Discord bots as well as a Minecraft and Ark server, and also serves as a reinforcement learning sand box - https://uk.pcpartpicker.com/user/will0hlep/saved/cc9K7P NAS: TrueNAS Scale NAS hosting SMB shares, DDNS updater, pi-hole, and a Jellyfin server - https://uk.pcpartpicker.com/user/will0hlep/saved/m37w3C Foldatron: My folding@home and BOINC rig (partially donated to me by Folding Team Leader GOTSpectrum) - Mobile: Mini-ITX gaming rig for when I'm away from home -

Link to comment
https://linustechtips.com/topic/1610332-help/#findComment-16715563
Share on other sites
Link to post
Share on other sites
Posted
3 minutes ago, Hinjima said:

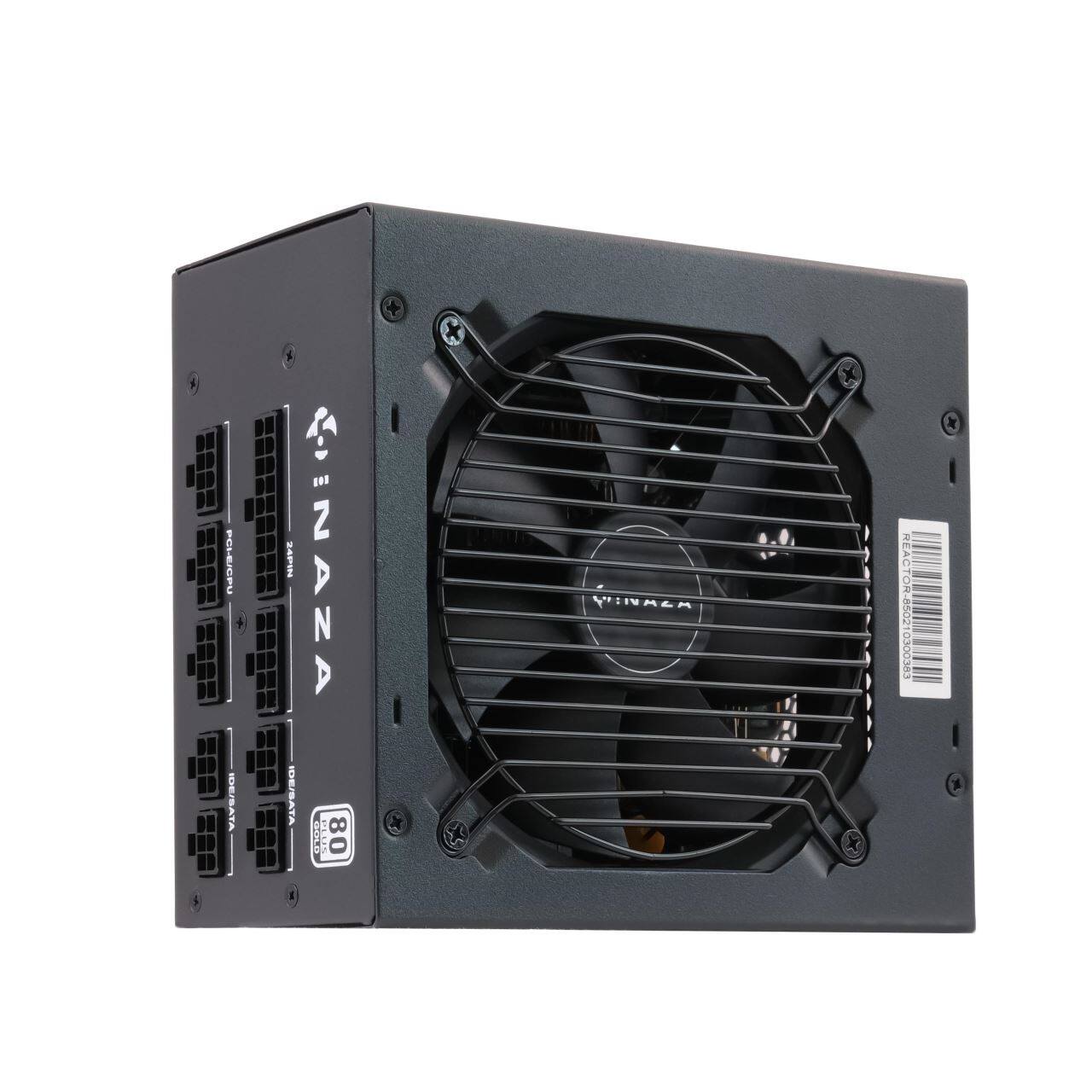

According to the PSU's website it comes with 4x 6+2 so did you lose 2 cables?

I thought that too, but the website means 4 connectors, not cables


I might be experienced, but I'm human and I do make mistakes. Trust but Verify! I edit my messages after sending them alot, please refresh before posting your reply. Please try to be clear and specific, you'll get a better answer. Please remember to mark solutions once you have the information you need. Expand this signature for common PC building advice, a short bio and a list of my components.



Common build advice:

1) Buy the cheapest (well reviewed) motherboard that has the features you need. Paying more typically only gets you features you won’t use. 2) only get as much RAM as you need, getting more won’t (typically) make your PC faster. 3) While I recommend getting an NVMe drive, you don’t need to splurge for an expensive drive with DRam cache, DRamless drives are fine for gamers. 4) paying for looks is fine, just don’t break the bank. 5) Tower coolers are usually good enough, unless you go top tier Intel or plan on OCing. 6) OCing is a dead meme, you probably shouldn’t bother. 7) "Bottlenecks" rarely matter and "Future-proofing" is a myth. 8) AIOs don't noticably improve performance past 240mm.



Useful Websites:

https://www.productchart.com - helps compare monitors, https://uk.pcpartpicker.com - makes designing a PC easier.



Bio:

He/Him - I'm a PhD student working in the fields of reinforcement learning and traffic control. PCs are one of my hobbies and I've built many PCs and performed upgrades on a few laptops (for myself, friends and family). My personal computers include 4 windows (10/11) machines and a TrueNAS server (and I'm looking to move to dual booting Linux Mint on my main machine in future). Aside from computers, I also dabble in modding/homebrew retro consoles, support Southampton FC, and enjoy Scuba Diving and Skiing.

Fun Facts

1) When I was 3 years old my favourite toy was a scientific calculator. 2) My father is a British Champion ploughman in the Vintage Hydraulic Class. 3) On Speedrun.com, I'm the world record holder for the Dream Bobsleigh event on Mario & Sonic at the Olympic Winter Games 2010.



My Favourite Games: World of Tanks, Runescape, Subnautica, Metroid (Fusion and Dread), Spyro: Year of the Dragon (Original and Reignited Trilogy), Crash Bash, Mario Kart Wii, Balatro



My Computers: Primary: My main gaming rig - https://uk.pcpartpicker.com/user/will0hlep/saved/NByp3C Second: Hosts Discord bots as well as a Minecraft and Ark server, and also serves as a reinforcement learning sand box - https://uk.pcpartpicker.com/user/will0hlep/saved/cc9K7P NAS: TrueNAS Scale NAS hosting SMB shares, DDNS updater, pi-hole, and a Jellyfin server - https://uk.pcpartpicker.com/user/will0hlep/saved/m37w3C Foldatron: My folding@home and BOINC rig (partially donated to me by Folding Team Leader GOTSpectrum) - Mobile: Mini-ITX gaming rig for when I'm away from home -

Link to comment
https://linustechtips.com/topic/1610332-help/#findComment-16715566
Share on other sites
Link to post
Share on other sites
Posted
  • Author
3 minutes ago, will0hlep said:

Using a single cable shouldn't fry the GPU because the worst case is the GPU dosn't get enough power because the PSU can't supply enough power over only 1 cable. In theory I guess you could cause a problem with your PSU, but only if it was faulty already.



Anyway, given the wattage of the PSU, it should have no issue powering a 6800XT over a single cable.

i will give this a try, if i dont reply im burning

Link to comment
https://linustechtips.com/topic/1610332-help/#findComment-16715568
Share on other sites
Link to post
Share on other sites
Posted
Just now, Snake45 said:

no, i thought so too but the ‘4’ cables came like this



Its not a terrible PSU so one cable for the GPU should be enough.

Its a 300w GPU and each 6+2 pin is rated for 150w, the GPU can pull 75w from the PCIE slot though.



Should be safe to use 1 cable with 2x6+2 for the GPU and use the other cable for the fan hub.

Link to comment
https://linustechtips.com/topic/1610332-help/#findComment-16715571
Share on other sites
Link to post
Share on other sites
