nvme question

JQam
By JQam
in Storage Devices
 Share
Posted

This is my build as of now https://pcpartpicker.com/user/jaisonb/saved/#view=wWyFt6



The Sabrent 1TB is my windows drive in the PCIe 4 slot.  The Crucial mx500 is my Fedora drive. Kingston 2TB  is my games and media drive in the PCIe3 slot. The Seagate is a backup to the Kingston.



 I bought Crucial P5 Plus 1TB Gen4 and Crucial P5 Plus 2TB Gen4 drives to replace the existing NVME drives.  The plan was to replace the Kingston with the 2TB P5 and throw the Kingston into the Thinkpad that needs more storage.    Apparently my system wasn't agreeing with the 2TB P5 gen 4 in the gen 3 slot.  It was up less than a day and the drive would constantly drop off. I thought the drive had overheated and kill itself.  I decided to swap the gen 3 Sabrent and gen 4 crucial  around to match the appropriate lanes.  The drive appears to be working ok with no weird errors.



Now I just don't know if i should bother swapping out the Sabrent for the P5 1TB.



I thought these drives were backwards compatible.  Was the 2TB P5 just pulling to much power or something?

Link to comment
https://linustechtips.com/topic/1530167-nvme-question/
Share on other sites
Link to post
Share on other sites
Posted

It is backwards compatible, i have a WD SN750 SE gen4 on 3x slot and i've never had any any issue without doing anything except to connect it, maybe your port is broken? dropping the drive sounds like a disconnection for me or a bad contact, good luck...



Also i've just thought about that, check your SATA DRIVES if you have any and change their SATA PORT, some of them interfere with Pcie lanes!

Link to comment
https://linustechtips.com/topic/1530167-nvme-question/#findComment-16127277
Share on other sites
Link to post
Share on other sites
Posted
  • Author
9 minutes ago, noob0saur said:

Also i've just thought about that, check your SATA DRIVES if you have any and change their SATA PORT, some of them interfere with Pcie lanes!

Thanks for the reply. Maybe it was just a weird contact issue.  Yes, I do know that using the second NVME disables SATA 5 and 6.  I do have an SSD and HDD in SATA ports 1 and 2.

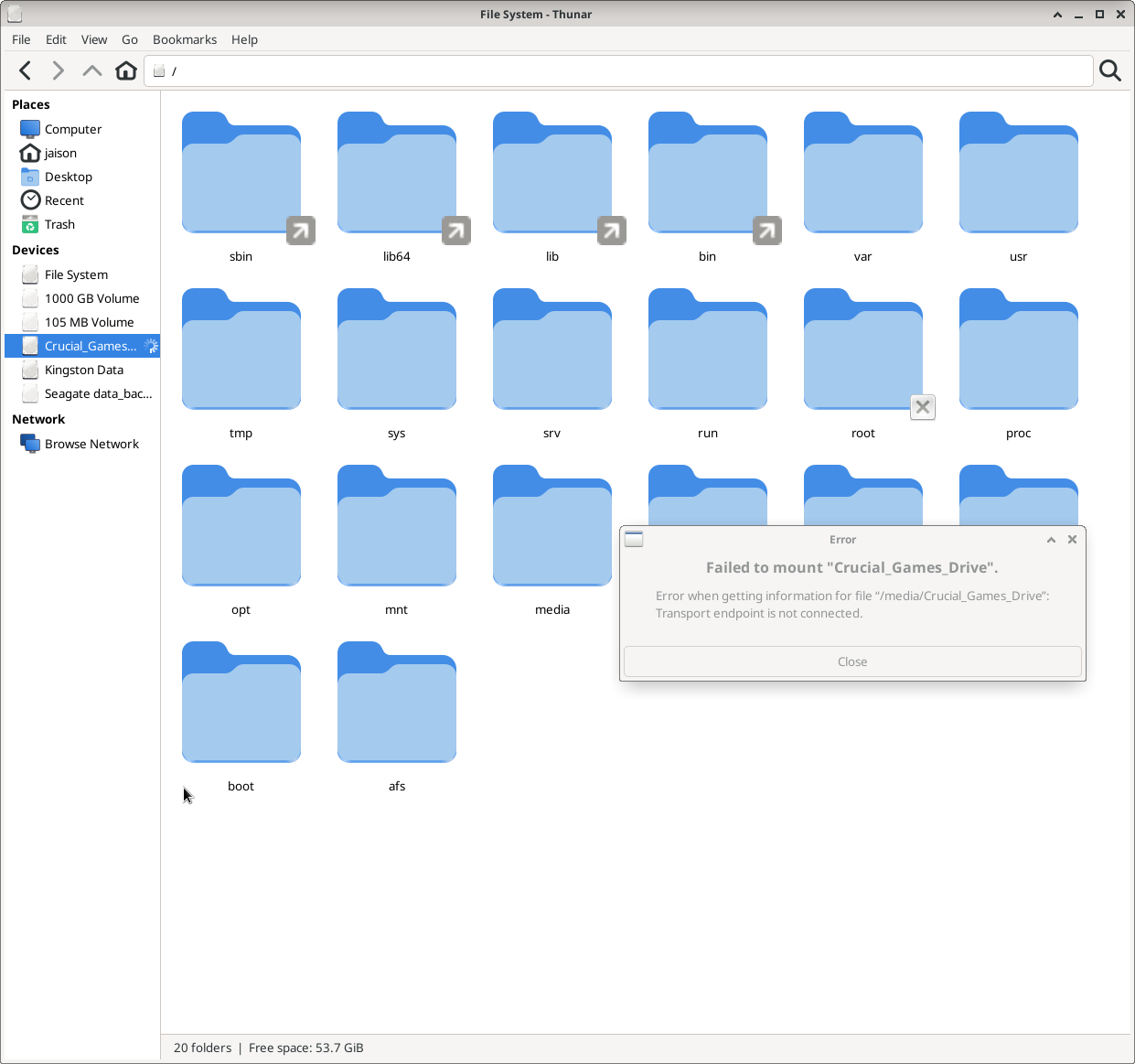

Here's a shot of an issue I was having. The access I had to the drive in windows would still be there but all the folders were empty.  Eventually it just disappeared altogether even in UEFI BIOS.






Link to comment
https://linustechtips.com/topic/1530167-nvme-question/#findComment-16127295
Share on other sites
Link to post
Share on other sites
Posted
59 minutes ago, JQam said:

Thanks for the reply. Maybe it was just a weird contact issue.  Yes, I do know that using the second NVME disables SATA 5 and 6.  I do have an SSD and HDD in SATA ports 1 and 2.



Here's a shot of an issue I was having. The access I had to the drive in windows would still be there but all the folders were empty.  Eventually it just disappeared altogether even in UEFI BIOS.






So probably a weird contact issue, i don't see anything else, i would have said a D.O.A drive but you said it worked on another port...

Link to comment
https://linustechtips.com/topic/1530167-nvme-question/#findComment-16127356
Share on other sites
Link to post
Share on other sites
Posted
  • Author
59 minutes ago, noob0saur said:

So probably a weird contact issue, i don't see anything else, i would have said a D.O.A drive but you said it worked on another port...

 All seems fine.  I haven't done any large fill transfers myself but it hasn't crashed while running CrystalDiskMark.  I'll see what happens when I put the other gen 4 drive in the gen 3 slot.

Link to comment
https://linustechtips.com/topic/1530167-nvme-question/#findComment-16127407
Share on other sites
Link to post
Share on other sites
Posted

The power problem is only with the first gen M.2 8TB SSD.

And for the PCIe gen, the device should negotiate the speed they should run at.
If the mobo max slot is gen 3, and the SSD is gen 4, the the SSD have to downgrade to PCIE 3.0 (so it should be the SSD fault for not downgrading)
If there's an UEFi update for the mobo, I would update it (it shouldn't matter, but you can try)





Spoiler
CPU : Intel 14gen i7-14700K
COOLER :  Thermalright Peerless Assassin 120 White + Thermaltake toughfan 12 white + Thermal Grizzly - CPU Contact Frame Intel 13./14. +  Coollaboratory Liquid Ultra
GPU : MSI RTX 2070 Armor @GPU 2050MHz Mem 8200MHz -> USB C 10Gb/s cable 2m -> Unitek 4x USB HUB 10 Gb/s (Y-HB08003)
MOBO : MSI MEG Z690 UNIFY
RAM :  Corsair VENGEANCE DDR5 RAM 64 GB (2 x 32 GB) 6400 MHz CL32 (CMK64GX5M2B6400C32)
SSD : Intel Optane 905P 960GB U.2 (OS) + 2 x WD SN850X 4TB + 2 x PNY CS3140 2TB + PLX88024 PCIe switch (PCIE 4.0 x8 -> 4 x M.2 PCIe 4.0 x4) -> 4 x Plextor M8PeG 1TB + flexiDOCK MB014SP-B -> Crucial MX500 2TB + GoodRam Iridium PRO 960GB + Samsung 850 Pro 512GB
HDD : WD White 18TB WD180EDFZ + SATA port multiplier adp6st0-j05 (JMB575) ->  WD Gold 8TB WD8002FRYZ + WD Gold 4TB WD4002FYYZ + WD Red PRO 4TB WD4001FFSX + WD Green 2TB WD20EARS
EXTERNAL
HDD/SSD :  		XT-XINTE LM906 (JMS583) -> Plextor M8PeG 1TB + WD My Passport slim 1TB + LaCie Porsche Design Mobile Drive 1TB USB-C + Zalman ZM-VE350 -> Goodram IRDM PRO 240GB
PSU :  Super Flower leadex platinum 750 W biały -> Bitfenix alchemy extensions białe/białe + AsiaHorse 16AWG White
UPS :  CyberPower CP1500EPFCLCD -> Brennenstuhl primera-line 8 -> Brennenstuhl primera-line 10
LCD : LG 32UD59-B + LG flatron IPS236 -> Silverstone SST-ARM11BC
CASE :  Fractal R5 Biały + Lian Li BZ-H06A srebrny + flexiDOCK MB014SP-B + 6 x Thermaltake toughfan 14 white + Thermalright TL-B8W
SPEAKERS :  PC -> TOSLINK 2m -> Linkfor ULK073 1x4 Digital SPDIF Splitter (B07MJ4TLWQ) -> TOSLINK 0.5m -> Aiyima A80 ( or Aune S6 Pro -> RCA ->  Aiyima A80 ) -> Polk S20e black -> Monoprice stand 16250
HEADPHONES : PC -> TOSLINK 2m -> Linkfor ULK073 1x4 Digital SPDIF Splitter (B07MJ4TLWQ) -> TOSLINK 0.5m -> Aune S6 Pro -> 2 x Monoprice Premier 1.8m 16AWG 3-pin XLR -> Monoprice Monolith THX AAA 887 -> 4-pin XLR na 2 x 3.5mm 16 cores OCC 2m Cable -> HiFiMAN Edition XS -> sheepskin pads + 4-pin XLR na 2 x 2.5mm ABLET silver 2m  Cable -> Monoprice Monolith M1060 + Brainwavz HM100 -> Brainwavz sheepskin oval pads + Wooden double Ɪ Stand + Audio-Technica ATH-MSR7BK -> sheepskin pads + Multibrackets MB1893 + Sennheiser Momentum 3 +  Philips Fidelio X2HR/00 + JBL J88 White
MIC :  Tonor TC30 -> Mozos SB38
KEYBOARD : Corsair STRAFE RGB Cherry MX Silent (EU) + Glorious PC Gaming Race Stealth Slim - Full Size Black + Kensington VeriMark / PQI MyLockey
MOUSE :  Logitech MX ERGO + 2 x Logitech MX Performance + Logitech G Pro wireless + Logitech G Pro Gaming -> Hotline Games 2.0 Plus + Corsair MM500 3xl + Corsair MM300 Extended + Razer goliathus control
CONTROLLERS :  Razer Wolverine V3 Tournament Edition 8K PC (B0F94C9C43) -> brainwavz audio Controller Holder UGC2 + Microsoft xbox series x controller pc (1VA-00002) + Ravcore Javelin
NET :  Intel E810-XXVDA2 2 x 25GbE SFP28 (PCIE 4.0 x8) -> 2 x FTLX8571D3BCV-IT -> 2 x Digitus (DK-HD2533-05/3) -> Qnap TS-932X-2G + 2 x ASUS ZenWiFi Pro XT12
NAS :  Qnap TS-932X-2G -> Kingston 16GB 2400Mhz CL14 (HX424S14IB/16) -> 9 x Crucial MX500 2TB -> 2 x FTLX8571D3BCV-IT -> Noctua NF-P14s redux 1200 PWM -> QNAP TR-004
Link to comment
https://linustechtips.com/topic/1530167-nvme-question/#findComment-16127415
Share on other sites
Link to post
Share on other sites
Posted

My guess is your 2TB NVME is faulty.   I met a lot of NVME users having a defecting drives if size is above 1TB.  Even my previous 2TB NVME drive only lasts me 3 years.  then if i store a lot of data in it, like above 1TB, it will fail to work and not being detected.

Link to comment
https://linustechtips.com/topic/1530167-nvme-question/#findComment-16130558
Share on other sites
Link to post
Share on other sites
  • 2 weeks later...
Posted
  • Author
On 9/9/2023 at 11:18 AM, MeowMilev said:

My guess is your 2TB NVME is faulty.

Knowing my luck, it probably is.  It has been holding steady in the PCIe4 slot though.  Definitely have some backups.



On 9/6/2023 at 6:00 PM, kokosnh said:

And for the PCIe gen, the device should negotiate the speed they should run at.
If the mobo max slot is gen 3, and the SSD is gen 4, the the SSD have to downgrade to PCIE 3.0 (so it should be the SSD fault for not downgrading)

That's what I thought.

Link to comment
https://linustechtips.com/topic/1530167-nvme-question/#findComment-16141287
