144hz not working

KayPeters123
By KayPeters123
in Graphics Cards
 Share
Posted

So i bought a new 144 monitor today. When i go to 'change resolution' in the NVIDEA control panel i cant go higher than 60 hz. But when i go to desktop size and position i do get the option to go all the way to 144. So is it capped at 60 hz ornot??



EDIT: i had it connected to HDMI but i changed it to display port considering i have an nvidea card. still cant go above 60 at the 'change resolution' section

2019-07-19 (2).png

2019-07-19 (3).png

Link to comment
Share on other sites
Link to post
Share on other sites
Posted

What cable are you using?  Is the cable able to carry up to 144hz?  Is it HDMI or DP?

Workstation Laptop: Dell Precision 7540, Xeon E-2276M, 32gb DDR4, Quadro T2000 GPU, 4k display

Wifes Rig: ASRock B550m Riptide, Ryzen 5 5600X, Sapphire Nitro+ RX 6700 XT, 16gb (2x8) 3600mhz V-Color Skywalker RAM, ARESGAME AGS 850w PSU, 1tb WD Black SN750, 500gb Crucial m.2, DIYPC MA01-G case

My Rig: ASRock B450m Pro4, Ryzen 5 3600, ARESGAME River 5 CPU cooler, EVGA RTX 2060 KO, 16gb (2x8) 3600mhz TeamGroup T-Force RAM, ARESGAME AGV750w PSU, 1tb WD Black SN750 NVMe Win 10 boot drive, 3tb Hitachi 7200 RPM HDD, Fractal Design Focus G Mini custom painted.

NVIDIA GeForce RTX 2060 video card benchmark result - AMD Ryzen 5 3600,ASRock B450M Pro4 (3dmark.com)

Daughter 1 Rig: ASrock B450 Pro4, Ryzen 7 1700 @ 4.2ghz all core 1.4vCore, AMD R9 Fury X w/ Swiftech KOMODO waterblock, Custom Loop 2x240mm + 1x120mm radiators in push/pull 16gb (2x8) Patriot Viper CL14 2666mhz RAM, Corsair HX850 PSU, 250gb Samsun 960 EVO NVMe Win 10 boot drive, 500gb Samsung 840 EVO SSD, 512GB TeamGroup MP30 M.2 SATA III SSD, SuperTalent 512gb SATA III SSD, CoolerMaster HAF XM Case.

https://www.3dmark.com/3dm/37004594?

Daughter 2 Rig: ASUS B350-PRIME ATX, Ryzen 7 1700, Sapphire Nitro+ R9 Fury Tri-X, 16gb (2x8) 3200mhz V-Color Skywalker, ANTEC Earthwatts 750w PSU, MasterLiquid Lite 120 AIO cooler in Push/Pull config as rear exhaust, 250gb Samsung 850 Evo SSD, Patriot Burst 240gb SSD, Cougar MX330-X Case



Link to comment
Share on other sites
Link to post
Share on other sites
Posted

Look at the resolution panel...  You are in TV resolutions, which are limited.  NV shows 1920x1080 for TV and PC as two different entries in that control panel, and only the PC ones can go above 60hz.



IMHO, just set resolution and refresh rate in the windows display settings.

Link to comment
Share on other sites
Link to post
Share on other sites
Posted
  • Author
5 minutes ago, Tristerin said:

What cable are you using?  Is the cable able to carry up to 144hz?  Is it HDMI or DP?

Displayport, i have to considering i have nvidea card

Link to comment
Share on other sites
Link to post
Share on other sites
Posted
  • Author
Just now, KayPeters123 said:

Displayport, i have to considering i have nvidea card

just changed it

Link to comment
Share on other sites
Link to post
Share on other sites
Posted
  • Author

I bought a aoc 2790px27 today. plan on using it with an NVIDEA card so i have it hooked up to a display port. However, when i go to advanced display settings it shows just 60hz. Even when i go to the NVIDEA control panel, it wont let me go above 60???

2019-07-19 (4).png

2019-07-19 (2).png

Link to comment
Share on other sites
Link to post
Share on other sites
Posted
1 minute ago, KayPeters123 said:

I bought a aoc 2790px27 today. plan on using it with an NVIDEA card so i have it hooked up to a display port. However, when i go to advanced display settings it shows just 60hz. Even when i go to the NVIDEA control panel, it wont let me go above 60???

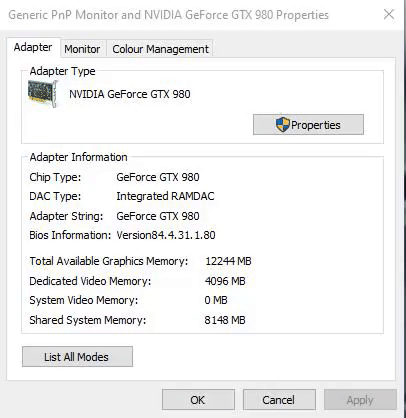

Click "Display adapter properties for Display 1" go to the second tab in the window that opens and set the refresh rate there.



618350edae57db8a763f0ec2f660e7ac.gif < You'll get a list of supported resolutions. So click what you want.



Our Grace. The Feathered One. He shows us the way. His bob is majestic and shows us the path. Follow unto his guidance and His example. He knows the one true path. Our Saviour. Our Grace. Our Father Birb has taught us with His humble heart and gentle wing the way of the bob. Let us show Him our reverence and follow in His example. The True Path of the Feathered One. ~ Dimboble-dubabob III

Link to comment
Share on other sites
Link to post
Share on other sites
Posted

In the Nvidia control panel resolution list, scroll down to below the PC line, it should have your resolution and let you set the proper refresh rate there.

Link to comment
Share on other sites
Link to post
Share on other sites
