Drive Power?

sushisky
By sushisky
in Storage Devices
 Share
Posted

I was just wondering how you guys are powering your drives without it looking absolutely apocalyptic behind your side panel, since sadly, I'm having trouble with mine :( . I can't use the pass thru sata power cables, since I need to get power to 4 ssds mounting vertically, and the pass thru cables would look quite bad and bulge a bit. So I decided to use straight sata power cables which are connected to molex 4 pin ( 1-1, to make it easier to sleeve). But I can't find a molex 4 pin power distribution board that will fit behind the case. Any suggestions or work arounds? If I have to I'll make the board.

Link to comment
https://linustechtips.com/topic/383943-drive-power/
Share on other sites
Link to post
Share on other sites
Posted

You're not alone. My side panel squeezes on and I've already broken one SATA power because of how much they have to twist and bend. It's pretty atrocious back there.

Good luck with your system - I only have 3 drives I need to power and it's already bad enough.

I actually couldn't underclock my 5 year old GPU to make it as slow as a next-gen console.

#pcmasterraceproblems

~Slick

Link to comment
https://linustechtips.com/topic/383943-drive-power/#findComment-5183554
Share on other sites
Link to post
Share on other sites
Posted

I use one of these for my HDD's leaving room to expand and a molex to dual sata splitter for the ssd's behind the motherboard tray. The amount of space you have back there depends on the case, the R4 is quite good for me.

CPU: i7 5820K 4.0GHz @1.15V | MOBO: Asus X99 Sabertooth | GPU: Gigabyte Windforce GTX 980Ti, LTT Orange | CASE: NZXT H440 Black 2015 | COOLER: Noctua NH-D15S w/ LTT Fans | RAM: 32GB Patriot 3000MHz | STORAGE: 512GB Samsung 950 Pro, 960GB Sandisk Ultra II 3 x 8TB Seagate HDD's | PSU: 750W Seasonic X series, black / orange cablemod cables| Monitors: 3x Asus VX24AH's | AUDIO OUT: Microlab SOLO 8C, Sennheiser HD 650's, Audio engine D1 Amp / DAC | AUDIO IN: Blue Snowball | Keyboard: CM Storm QuickFire TK MX Green | Mouse: Logitech G900 Proteus Spectrum + RSI Extended Mouse Pad | PCPP Link: http://nz.pcpartpicker.com/list/hPjFd6

Link to comment
https://linustechtips.com/topic/383943-drive-power/#findComment-5183624
Share on other sites
Link to post
Share on other sites
Posted

I was just wondering how you guys are powering your drives without it looking absolutely apocalyptic behind your side panel, since sadly, I'm having trouble with mine :( . I can't use the pass thru sata power cables, since I need to get power to 4 ssds mounting vertically, and the pass thru cables would look quite bad and bulge a bit. So I decided to use straight sata power cables which are connected to molex 4 pin ( 1-1, to make it easier to sleeve). But I can't find a molex 4 pin power distribution board that will fit behind the case. Any suggestions or work arounds? If I have to I'll make the board.

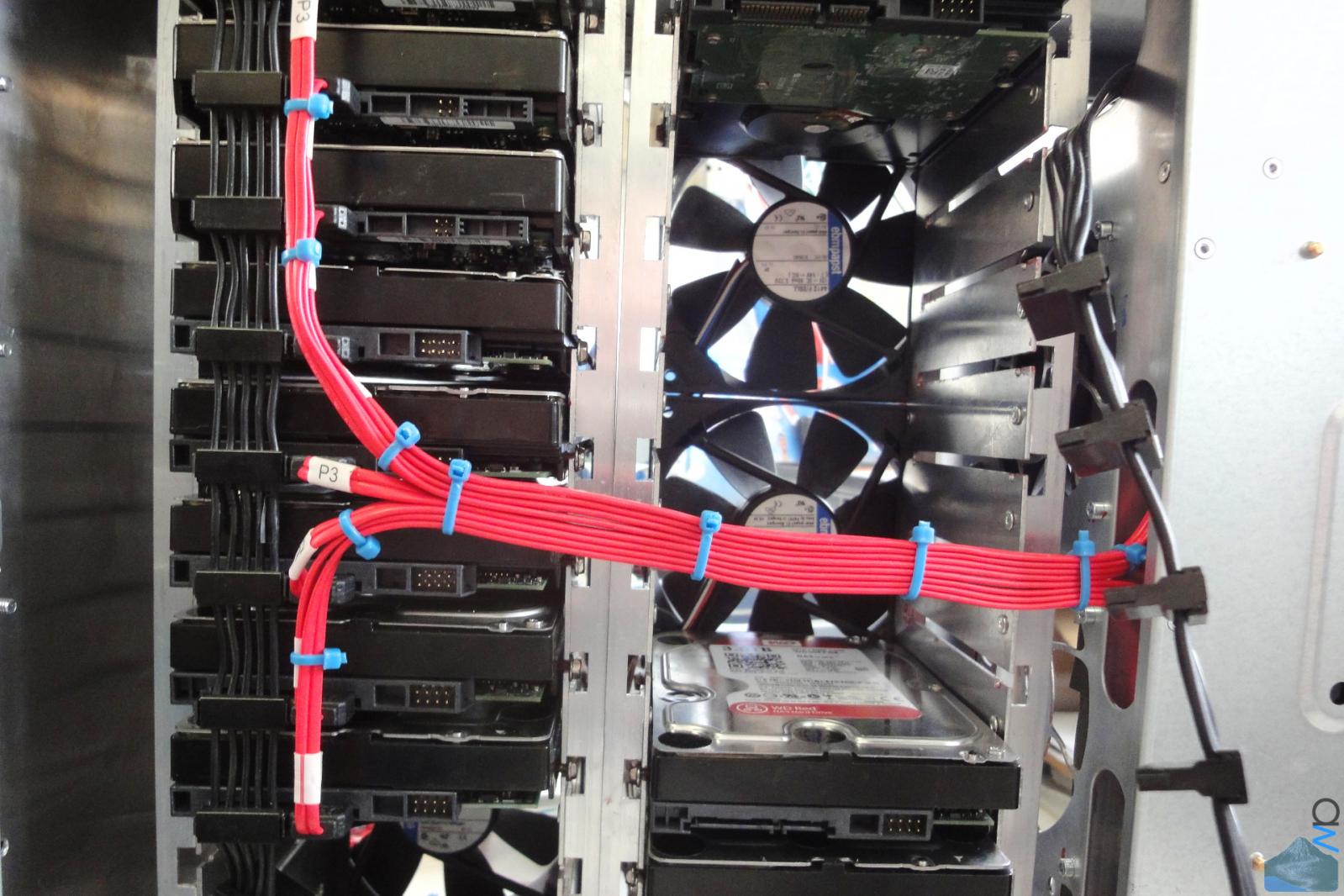

This is what I did in my server: 1 cable, 12 drives, with two cables that gets me 24 drives:

aw--apollo--2014-04-13--17--cable-loom-c


BUILD LOGS: HELIOS - Latest Update: 2015-SEP-06 ::: ZEUS - BOTW 2013-JUN-28 ::: APOLLO - Complete: 2014-MAY-10
OTHER STUFF: Cable Lacing Tutorial ::: What Is ZFS? ::: mincss Primer ::: LSI RAID Card Flashing Tutorial
FORUM INFO: Community Standards ::: The Moderating Team ::: 10TB+ Storage Showoff Topic

Link to comment
https://linustechtips.com/topic/383943-drive-power/#findComment-5183751
Share on other sites
Link to post
Share on other sites
