HWmonitor - Package (Node 0)

camieabz
By camieabz
in CPUs, Motherboards, and Memory
 Share
Go to solution Solved by SavageNeo,

the package temp is inside the cpu and the "cpu" temp is the censor on top of it.



also use "HWInfo64" not "HWMonitor" for more accurate and more readings overall.



12 minutes ago, camieabz said:

but the general theme was that the Node 0 value was a 20°C offest from CPU temp.

no. see above.



Posted

Hallo. I was monitoring my CPU while doing a spot of gaming, just to the see the min (few minutes after boot) and max (gaming) values. It occurred to me that I occasionally take my CPU temp as the temp, and sometimes I read the Package (Node 0) value, which most of the time doesn't set off alarm bells anyway. I read a couple of non-informative mentions of it online. Most didn't have much of an idea what it was for, but the general theme was that the Node 0 value was a 20°C offest from CPU temp.



Just curious if this value applies to my CPU at all (2700x)? Also, why is max value offset at 10°C ?

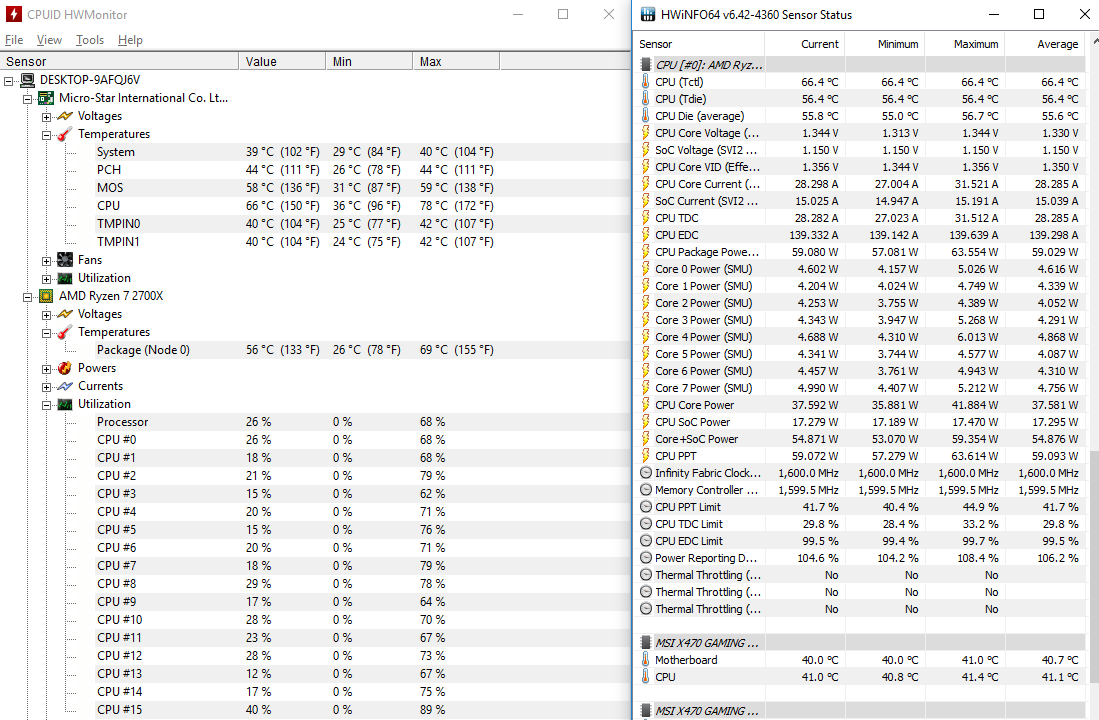

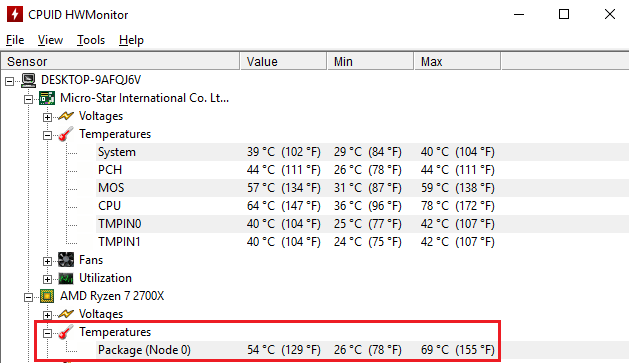

A pic included for example. CPU loads didn't exceed 68%, and highest loaded thread was 89%. Room temps were 22°C to °24C.




~ Gaming since 1980 ~



PassMark | UserBench

Link to comment
https://linustechtips.com/topic/1306572-hwmonitor-package-node-0/
Share on other sites
Link to post
Share on other sites
Posted
  • Solution

the package temp is inside the cpu and the "cpu" temp is the censor on top of it.



also use "HWInfo64" not "HWMonitor" for more accurate and more readings overall.



12 minutes ago, camieabz said:

but the general theme was that the Node 0 value was a 20°C offest from CPU temp.

no. see above.



I Use my knowledge as business owner and self taught technician aswell as an AI to help people. AI might be controversial but it actually works pretty well 90% of the time.

Link to post
Share on other sites
Posted

everything seems fine. if you are not fine with your temps and voltage on idle consider making a negative voltage offset in the bios. that mostly applies on idle. i run my 3700x at -0.075V on the bios

I Use my knowledge as business owner and self taught technician aswell as an AI to help people. AI might be controversial but it actually works pretty well 90% of the time.

Link to post
Share on other sites
Posted
  • Author

Nah, it's all good. I was a little curious at the CPU max of 78°C (HWmonitor) when CPU load max was 68%, but I came to the conclusion that the fan was doing what it had to, to maintain 70°C on the 'Node 0' (Tdie). I only started noticing because my better half overdid the central heating, and the room was cooking at 24°C. 🙂

~ Gaming since 1980 ~



PassMark | UserBench

Link to post
Share on other sites
Posted
8 minutes ago, camieabz said:

CPU max of 78°C (HWmonitor) when CPU load max was 68%

seems reasonable wilt low end/ stock cooler. what cooler do you have?

I Use my knowledge as business owner and self taught technician aswell as an AI to help people. AI might be controversial but it actually works pretty well 90% of the time.

Link to post
Share on other sites
