corsair LL120

[Bryan 2760]

Hello everyone, im trying to put my new pc build together but im running into trouble with the fans. I have 6 fans im trying to install but they all need to be connected to a fan header which i know is on the motherboard. I have the asrock z97 anniversary and i can only find 3 fan headers? how do i connect 6 of them. Thank you!

[WoodenMarker]

There should be 2 cpu_fan headers and 2 cha_fan headers. There's also a pwr_fan header but it only provides power and no form of control. If you want to use 6 fans, use fan splitters.

[Airdragonz]

The 6 fans will need to be connected to either a fan controller, or fan splitters from the headers on your motherboard

[Bryan 2760]

2 minutes ago, WoodenMarker said:

There should be 2 cpu_fan headers and 2 cha_fan headers. There's also a pwr_fan header but it only provides power and no form of control. If you want to use 6 fans, use fan splitters.

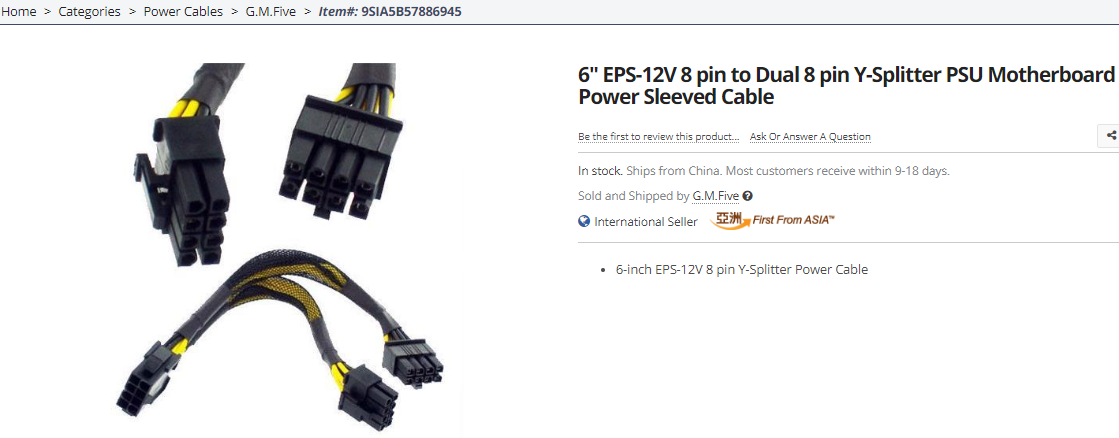

would something liek this work? https://www.newegg.com/Product/Product.aspx?Item=9SIA5B57886945&ignorebbr=1&source=region&nm_mc=KNC-GoogleMKP-PC&cm_mmc=KNC-GoogleMKP-PC-_-pla-G.M.Five-_-Power+Cables-_-9SIA5B57886945&gclid=Cj0KCQiA1sriBRD-ARIsABYdwwGyYxa_t0M4nbb9ekJ6iXIctKAOcWuLXI33Y5QJwrdfV_mAzoOO98waAhWrEALw_wcB&gclsrc=aw.ds

[WoodenMarker]

7 minutes ago, Bryan 2760 said:

would something liek this work? https://www.newegg.com/Product/Product.aspx?Item=9SIA5B57886945&ignorebbr=1&source=region&nm_mc=KNC-GoogleMKP-PC&cm_mmc=KNC-GoogleMKP-PC-_-pla-G.M.Five-_-Power+Cables-_-9SIA5B57886945&gclid=Cj0KCQiA1sriBRD-ARIsABYdwwGyYxa_t0M4nbb9ekJ6iXIctKAOcWuLXI33Y5QJwrdfV_mAzoOO98waAhWrEALw_wcB&gclsrc=aw.ds

I'm assuming you posted the wrong link?



Something like this would work: https://www.newegg.com/Product/Product.aspx?Item=N82E16812423163&Description=fan splitter&cm_re=fan_splitter-_-12-423-163-_-Product

[Bryan 2760]

5 minutes ago, WoodenMarker said:

I'm assuming you posted the wrong link?



Something like this would work: https://www.newegg.com/Product/Product.aspx?Item=N82E16812423163&Description=fan splitter&cm_re=fan_splitter-_-12-423-163-_-Product

Ok thank you very much! before i order it. is this my only option to get all my 6 fans working on my asrock z97 anniversary motherboard?

[WoodenMarker]

1 minute ago, Bryan 2760 said:

Ok thank you very much! before i order it. is this my only option to get all my 6 fans working on my asrock z97 anniversary motherboard?

You either need splitters, a hub which is often effectively the same thing, or a dedicated fan controller. A fan splitter is the simplest option.

[Bryan 2760]

3 minutes ago, WoodenMarker said:

You either need splitters, a hub which is often effectively the same thing, or a dedicated fan controller. A fan splitter is the simplest option.

Sorry for asking so much questions, but would this also work? https://www.amazon.com/EKWB-EK-Cable-Y-Splitter-3-Fan-2-Pack/dp/B078G53932/ref=sr_1_13?s=electronics&ie=UTF8&qid=1548983552&sr=1-13&keywords=fan+splitter+cable im trying to find one on amazon because im trying to get the build finish asap otherwise i have to use my computer wiht no fans running till the new egg one arrives :l

[WoodenMarker]

3 minutes ago, Bryan 2760 said:

Sorry for asking so much questions, but would this also work? https://www.amazon.com/EKWB-EK-Cable-Y-Splitter-3-Fan-2-Pack/dp/B078G53932/ref=sr_1_13?s=electronics&ie=UTF8&qid=1548983552&sr=1-13&keywords=fan+splitter+cable im trying to find one on amazon because im trying to get the build finish asap otherwise i have to use my computer wiht no fans running till the new egg one arrives :l

Yeah, it's essentially the same thing.

You can use up to 4-5 fans without splitters so it's no like you actually need the splitters asap.

It's a bit cheaper here: https://www.amazon.com/WinnerEco-Cable-Splitter-Sleeved-Extension/dp/B06XVBR23R/ref=sr_1_11?s=electronics&ie=UTF8&qid=1548983169&sr=1-11&keywords=fan splitter&tag=linus21-20
