Help asked, html image draw

Glennieboyyy007 · July 18, 2018

This post has become irrelevant kind of. no need to reply on this post anymore!!!

Hey there,

So i am trying to make my own background that i will use with Wallpaper engine. i'm still pretty noob at programming, that's why i'm here.

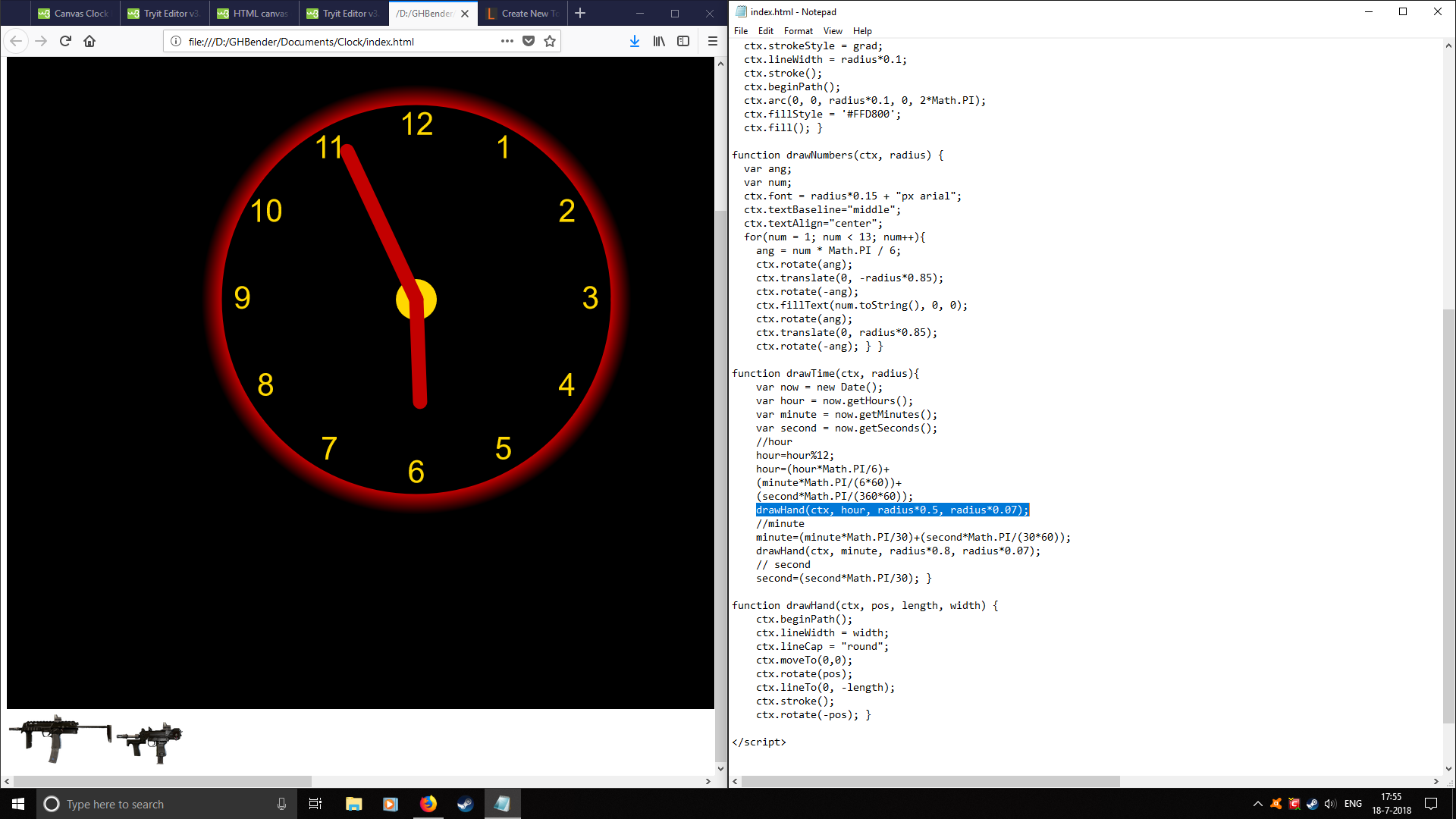

I am trying to make a clock in html that uses images as hands of the clock. i have the clock itself working, thanks to the internet, but i seem to be unable to get the image as the hand of the clock.

This is what i have so far


<!DOCTYPE html>
<html>
<body>

<canvas id="canvas" width="1920" height="1080" style="background-color:#000000">
</canvas>

<img src="https://orig00.deviantart.net/cfd1/f/2018/199/c/0/mp7_by_ghbendr-dchktx7.png" alt="MP7" style="width:15%;">
<img src="https://orig00.deviantart.net/a223/f/2018/199/4/a/bearing_9_by_ghbendr-dchkug5.png" alt="Bearing_9" style="width:10%;">


<script>
var canvas = document.getElementById("canvas");
var ctx = canvas.getContext("2d");
var radius = canvas.height / 2;
ctx.translate(radius, radius);
radius = radius * 0.50
setInterval(drawClock, 1000/144);

function drawClock() {
  drawFace(ctx, radius);
  drawNumbers(ctx, radius);
  drawTime(ctx, radius); }

function drawFace(ctx, radius) {
  var grad;
  ctx.beginPath();
  ctx.arc(0, 0, radius, 0, 2*Math.PI);
  ctx.fillStyle = '#000000';
  ctx.fill();
  grad = ctx.createRadialGradient(0,0,radius*0.95, 0,0,radius*1.05);
  grad.addColorStop(0, '#C30000');
  grad.addColorStop(1, '#000000');
  ctx.strokeStyle = grad;
  ctx.lineWidth = radius*0.1;
  ctx.stroke();
  ctx.beginPath();
  ctx.arc(0, 0, radius*0.1, 0, 2*Math.PI);
  ctx.fillStyle = '#FFD800';
  ctx.fill(); }

function drawNumbers(ctx, radius) {
  var ang;
  var num;
  ctx.font = radius*0.15 + "px arial";
  ctx.textBaseline="middle";
  ctx.textAlign="center";
  for(num = 1; num < 13; num++){
    ang = num * Math.PI / 6;
    ctx.rotate(ang);
    ctx.translate(0, -radius*0.85);
    ctx.rotate(-ang);
    ctx.fillText(num.toString(), 0, 0);
    ctx.rotate(ang);
    ctx.translate(0, radius*0.85);
    ctx.rotate(-ang); } }

function drawTime(ctx, radius){
    var now = new Date();
    var hour = now.getHours();
    var minute = now.getMinutes();
    var second = now.getSeconds();
    //hour
    hour=hour%12;
    hour=(hour*Math.PI/6)+
    (minute*Math.PI/(6*60))+
    (second*Math.PI/(360*60));
    drawHand(ctx, hour, radius*0.5, radius*0.07);
    //minute
    minute=(minute*Math.PI/30)+(second*Math.PI/(30*60));
    drawHand(ctx, minute, radius*0.8, radius*0.07);
    // second
    second=(second*Math.PI/30); }

function drawHand(ctx, pos, length, width) {
    ctx.beginPath();
    ctx.lineWidth = width;
    ctx.lineCap = "round";
    ctx.moveTo(0,0);
    ctx.rotate(pos);
    ctx.lineTo(0, -length);
    ctx.stroke();
    ctx.rotate(-pos); }

</script>



</body>
</html>
