OpenVPN DHCP?

[Sir Asvald]

So I created a VPN server on my Raspberry Pi 3 and the IP address it's assigning start in 10.0.8.x I want to change it to a different IP network. How do I do it?



Thanks.

[Dujith]

Change the server in the server.conf

Remember to do it everywhere and after ofc restart for it to take affect.

But there is a massive Wiki and FAQ for it. Not to be that guy, but do some research yourself first  (and yeah, i am being that guy  )



[Sir Asvald]

36 minutes ago, Dujith said:

Change the server in the server.conf

Remember to do it everywhere and after ofc restart for it to take affect.

But there is a massive Wiki and FAQ for it. Not to be that guy, but do some research yourself first  (and yeah, i am being that guy  )



Tried changing it. Now I can't access the internet when I connect via the VPN and i can't access it via SSH.

[Dujith]

Well, is the computer you are trying to ssh with in the same subnet you changed it too?

[Sir Asvald]

Just now, Dujith said:

Well, is the computer you are trying to ssh with in the same subnet you changed it too?

Yes.

[Dujith]

What did you change in the config file? did you add a route to the gateway? or just changed the server ip?

[Sir Asvald]

2 minutes ago, Dujith said:

What did you change in the config file? did you add a route to the gateway? or just changed the server ip?

I changed it back to the default. It's working. I don't want to mess with it again.

[Dujith]

post your server.conf so i can point to what u need to change and why



[Dujith]

Better yet, i take it you want to access another subnet from the vpn right? if so a simple route to that network would work

something like



route 192.168.1.0 255.255.255.0
push "route 192.168.1.0 255.255.255.0"



[Sir Asvald]

2 minutes ago, Dujith said:

Better yet, i take it you want to access another subnet from the vpn right? if so a simple route to that network would work

something like



route 192.168.1.0 255.255.255.0
push "route 192.168.1.0 255.255.255.0"



Spoiler



[Sir Asvald]

5 minutes ago, Dujith said:

Better yet, i take it you want to access another subnet from the vpn right? if so a simple route to that network would work

something like



route 192.168.1.0 255.255.255.0
push "route 192.168.1.0 255.255.255.0"

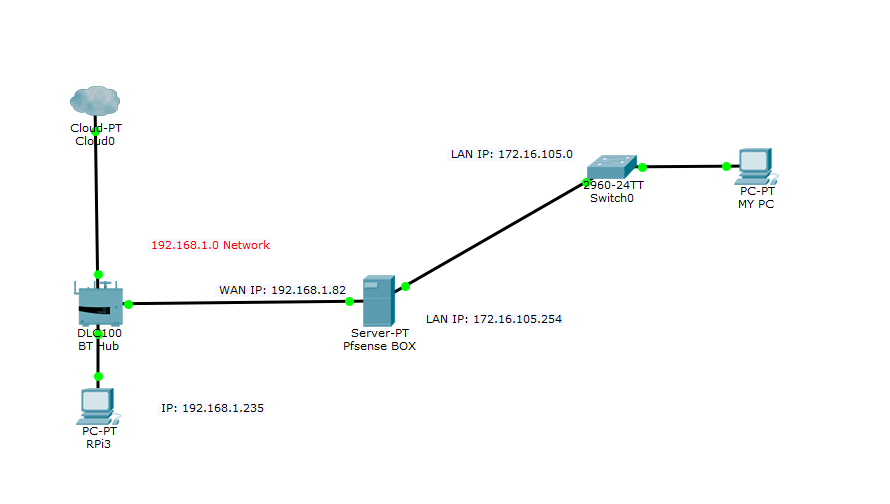

That is correct I want to able to connect to my 172.16.105.x network which is on the LAN side of the pfsense box. Here's a diagram of the network:



[Dujith]

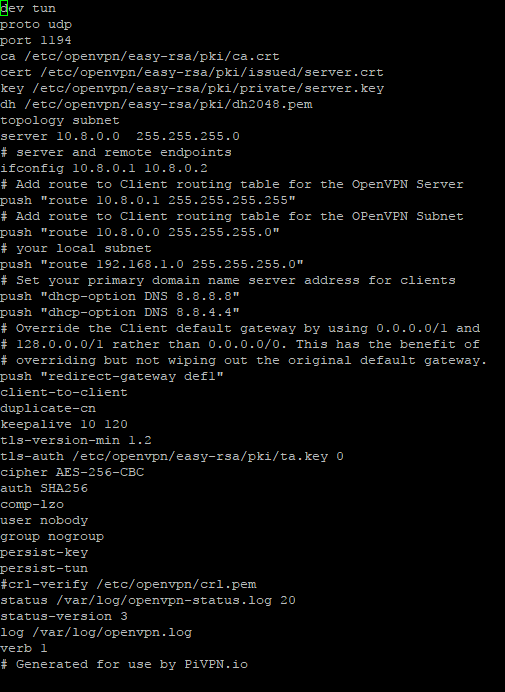

In that file i saw quickly there is already an entry for the local network, just change that

[Sir Asvald]

2 minutes ago, Dujith said:

In that file i saw quickly there is already an entry for the local network, just change that

I want access both 192.168.1.0 and 172.16.105.0 networks..



Do I add 172.16.105.0 to the route as well?

[Dujith]

according to your schematic that should be handled by the pfsense box.



Might be incorrect tho, also why didn't you setup the openvpn on the fp box?

[Sir Asvald]

2 minutes ago, Dujith said:

according to your schematic that should be handled by the pfsense box.



Might be incorrect tho, also why didn't you setup the openvpn on the fp box?

I tried it and it didn't work.
