Rad fan headers

[mnsmix]

I have the stock cooler of my fx 9590. Its a coller master with 120mm rad with a fan on each side.

my mb has two sys fans one cpu and one pwr fans..

so i have the two fans ans the pump.

where should each one go?

lol its my first water cooler so I really don't know.

ps.

Whats pwr fan? Haha

Tnx

[airdeano]

you'd use the CPU_FAN header with a 4-pin fan splitter:



to allow the mobo to control the fan curve.

[mnsmix]

Does this splitter supposed to come with the cooler?

And where dies the pump go?

[airdeano]

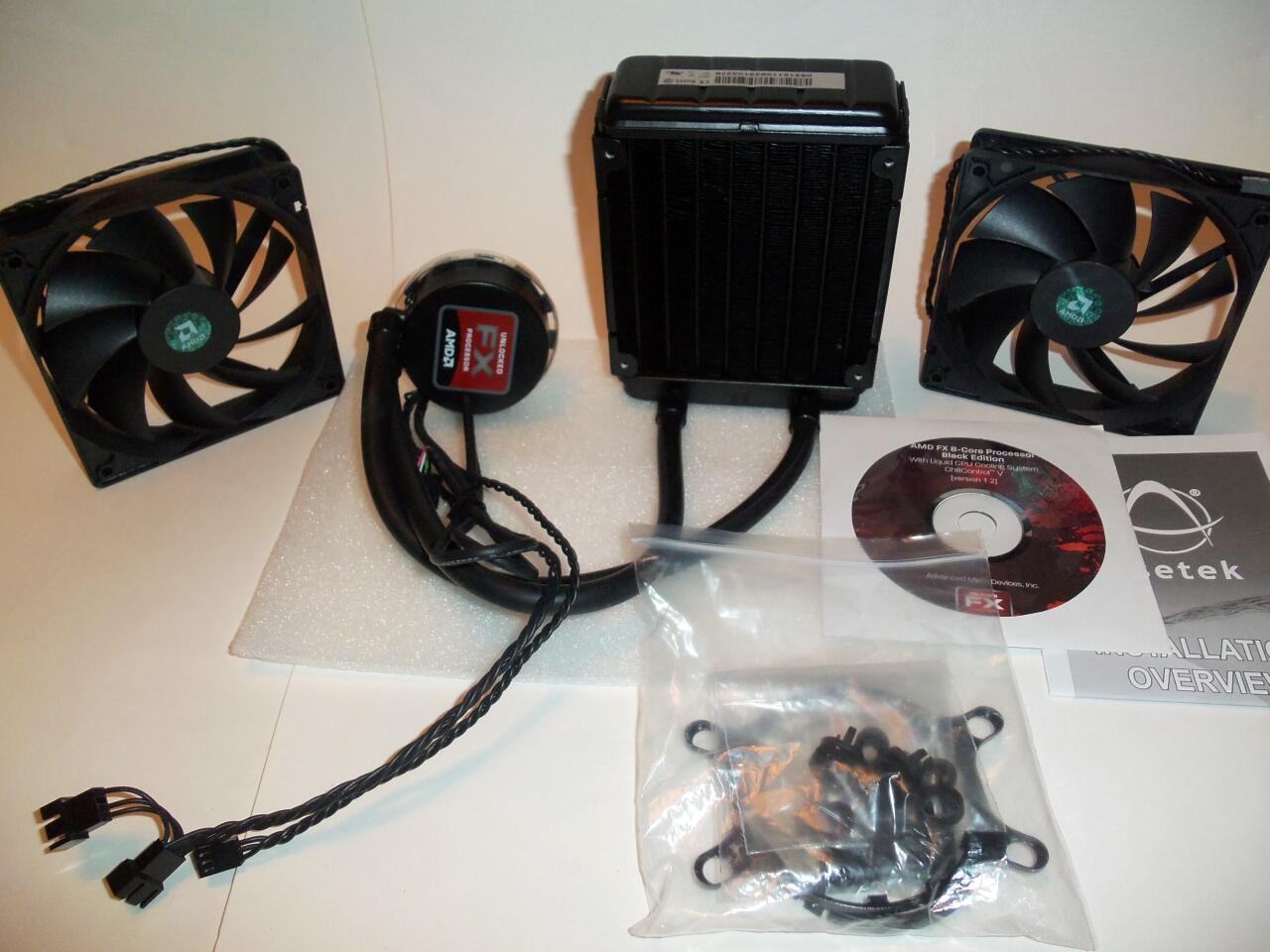

the single 3-pin header goes to the CPU_FAN header. (this is similar to the Tt water extreme (Asetek based AIO)

the fans plug into the 4-pin split harness (AMD has their own software for fan/thermal control).





otherwise, you'd have to purchase a separate 4-pin PWM fan splitter, run the cooler from PWR_FAN (12v) and the fans from CPU_FAN header.
