HDD data connect plastic broke

Rumman
By Rumman
in Storage Devices
 Share
Posted
27 minutes ago, Rumman said:

My HDD data jack port plastic broken off. How to get my HDD working? Can I use any other Western Digital HDD circuit board/Logic board and replace it? I saw that replacing the circuit board require to change the BIOS chip of the HDD circuit board.


Repair shop should be able to solder another one on for you since you can remove that section without opening the drive.




"Do what makes the experience better" - in regards to PCs and Life itself.



Onyx: Ryzen 7 7800X3D / Gigabyte B650 AORUS Pro AX / ASRock Taichi 7900xtx OC / G. Skill Flare X5 6000CL36 64GB (4x16GB) / Samsung 980 1TB x3 / Super Flower Leadex V Plat Pro 1000 / EK-AIO 360 Basic w/ Silent Wings fans / Fractal Design North XL (black mesh) / LG - UltraGear 45" OLED QHD 240Hz / Mackie CR5BT / SteelSeries Arctis Nova Pro / Cherry MX Board 3.0 / Logitech G502 - https://valid.x86.fr/my9nnr



7800X3D - PBO +200, CO -30 all cores, 4.90GHz all core, 5.05GHz single core, Cinebench 23: 18401 multi, 1779 single



Khaleesi: Ryzen 5 5600X3D (+200, -30) - ASRock B550M Pro4 - G. Skill Ripjaws V 16GB 3200CL16 - Asus Prime 9060XT 16GB - Samsung 980 1TB + Crucial MX500 1TB - Cudy AX3000 PCIe Wifi 6 - EVGA SuperNOVA 650 P2 - Thermalright Frozen Notte RGB 360 White V2 - NZXT H6 Flow RGB White - LG 34" 3440x1440



NAS/Plex/Game Server  Ryzen 9 5900XT 16c/32t - Gigabyte B550M AORUS Elite AX - TeamGroup T-Force Vulcan 64GB 3200CL16 - MSI 1050Ti 4GB - Crucial P3 Plus 500GB + TeamGroup MP44L 2TB (Game) + WD Red Plus 4TBx2 (Plex) - TP-Link AC1200 PCIe Wifi - EVGA SuperNOVA 650 P2 - Thermalright Peerless Assassin 120SE - ASUS Prime AP201 - Currently Hosting: Enshrouded x2, Hytale, Icarus, Windrose. Project Zomboid, Dune Awakening.



Sage: Ryzen 7 7800X3D (+200, -30) - Gigabyte B650 Gaming X V2 - ASRock Steel Legend 7900GRE - G. Skill Flare X5 32GB 6000CL32 - TeamGroup MP44L 2TB - Super Flower Leadex Platinum SE 1000w - NZXT H5 Elite



Emma: i9 9900K @5.2Ghz - Gigabyte Z370 AORUS Gaming 5 - MSI 6900XT Gaming X Trio - G. Skill Ripjaws V 32GB 3200CL16 - 750 EVO 512GB + 2x 860 EVO 1TB (RAID0) - Super Flower Combat FG 850w - Thermaltake Water 3.0 Ultimate 360 - Fractal Design Define R6 - TP-Link AC1900 PCIe Wifi



GF Rig: Steam Deck 512GB OLED, Vizio 43" 4K TV



Extra parts: ASUS 6650XT - Gigabyte 1080Ti - Cooler Master Q300L - Gigabyte 450w PSU - Super Flower Leadex V Plat Pro 850w



OnePlus Ecosystem:

OnePlus 11 5G - 16GB RAM, 256GB NAND, Eternal Green. OnePlus Watch 2 - Radiant Steel, OnePlus Buds Pro 2 - Eternal Green

3D Printing:

Bambu Lab X1 Carbon, AMS, AMS2 Pro (thank you MicroCenter!)

Other Interesting Tech:

- 2021 Volvo S60 Recharge T8 PHEV Polestar Engineered - 415hp/495tq 2.0L 4cyl. turbocharged, supercharged and electrified.

Link to post
Share on other sites
Posted

If you need to ask, you shouldn't be doing that :old-eyeroll:



Unless there's very important data on it (and I'm not referring to save-games :old-eyeroll:), write it off and replace with a new drive. If it does have valuable data, get a quote from data-recovery businesses.

"You don't need eyes to see, you need vision"



(Faithless, 'Reverence' from the 1996 Reverence album)

Link to post
Share on other sites
Posted
31 minutes ago, Rumman said:

Western Digital HDD circuit board/Logic board and replace it

I wouldn't try it as you may lose all your data even if it's the same brand and model, since it may store specific data on how to read/write your disk so you may lose everything on your HDD if you do that!

Other solutions would be:

  1. Replace the connector yourself or go in a repair shop
  2. If you have plenty of SATA connectors you could sacrifice one of them and solder the wires in the right order and transfer your data, but make sure it's the right order and make sure to not overheat the drive or board, you could permanently* kill it or make it harder to recover your data!

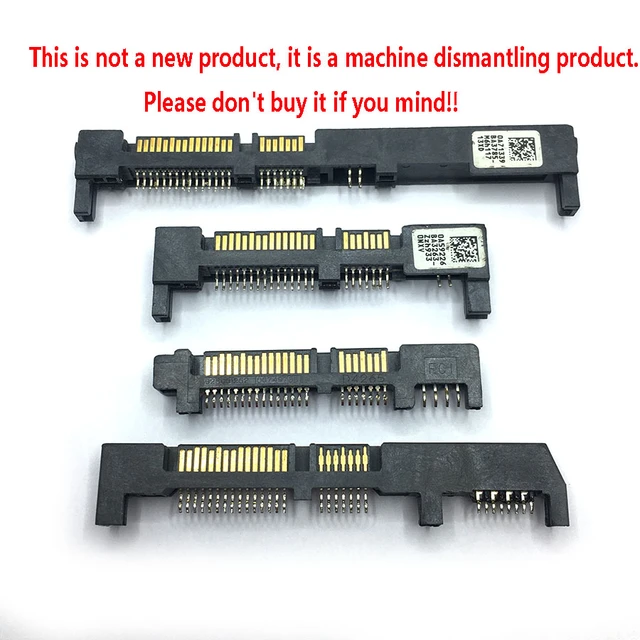

You could buy those, if you know how to solder (See image below):
Sata Hard Drive Connector , Sata Choice Medical
If you don't know how to solder or don't have the equipment in a repair shop, they'll back up your data for you probably
> Another risky way to get back your data would just be to solder a SATA cable directly on the pins, but this is extremely janky and risky!

Any inexperienced attempts at changing components of your HDD may result in you loosing all your data !

Other people might suggest you better, have a nice day! (I might have completely over-complicated the solution)


TLDR; if you're asking here you're probably better off going in a repair shop they'll replace the connector for you

I tend to write long messages, don't take it personally! I just really enjoy learning, researching, and having deep (respectful) conversations or debates!
Feel free to correct me anytime!
