Where to connect 2 CPU fans? (Enermax ETS-T40F)

Tokarn

This is my first build with a fan hub & 2 CPU fans so I'm a little confused here...



Case: Phanteks Enthoo Luxe

CPU Cooler: Enermax ETS-T40F

Mobo: ASUS z170 pro



The case comes with a fan hub with a tag that says to plug it into CPU_FAN...which means my actual CPU fan needs to go into CPU_OPT...but this cooler has 2 fans. Where am I supposed to plug in the second CPU fan? I tried it on CHA_FAN2 but it was ~250rpm slower than the other fan which I've been told is a deal breaker.



Do I just need to get a Y splitter?



My build is based on this one here: https://youtu.be/iVEOn1twkYQ?t=9m17s



It looks like he put one fan into CHA_FAN2 and the other into CPU_OPT like I was thinking...no splitters...so...eh? Wouldn't they always be running at different speeds then?

Link to comment
Share on other sites

Link to post
Share on other sites

Just plug the fans into the hub.

If you ever need help with a build, read the following before posting: http://linustechtips.com/main/topic/3061-build-plan-thread-recommendations-please-read-before-posting/
Also, make sure to quote a post or tag a member when replying or else they won't get a notification that you replied to them.

Link to comment
Share on other sites

Link to post
Share on other sites

I thought about that but they are 4 pin and the hub only has 3 pins. Plug in anyway...?

Link to comment
Share on other sites

Link to post
Share on other sites

I thought about that but they are 4 pin and the hub only has 3 pins. Plug in anyway...?

Yes, 3pin fans work fine on a 4pin header.

If you ever need help with a build, read the following before posting: http://linustechtips.com/main/topic/3061-build-plan-thread-recommendations-please-read-before-posting/
Also, make sure to quote a post or tag a member when replying or else they won't get a notification that you replied to them.

Link to comment
Share on other sites

Link to post
Share on other sites

Other way around ^^; 4 pin fans and 3 pins on the hub. Will that work too?

Link to comment
Share on other sites

Link to post
Share on other sites

Other way around ^^; 4 pin fans and 3 pins on the hub. Will that work too?

Yep.



You need to quote a post or tag a member or else they won't get a notification you replied to them.

If you ever need help with a build, read the following before posting: http://linustechtips.com/main/topic/3061-build-plan-thread-recommendations-please-read-before-posting/
Also, make sure to quote a post or tag a member when replying or else they won't get a notification that you replied to them.

Link to comment
Share on other sites

Link to post
Share on other sites

Yep.

You need to quote a post or tag a member or else they won't get a notification you replied to them.

Righto, thanks for the help.

Link to comment
Share on other sites

Link to post
Share on other sites

Yes, 3pin fans work fine on a 4pin header.

Tried plugging them in the fan hub and neither of them work :T

Link to comment
Share on other sites

Link to post
Share on other sites

Tried plugging them in the fan hub and neither of them work :T

Is the hub plugged into the cpu_fan header?

If you ever need help with a build, read the following before posting: http://linustechtips.com/main/topic/3061-build-plan-thread-recommendations-please-read-before-posting/
Also, make sure to quote a post or tag a member when replying or else they won't get a notification that you replied to them.

Link to comment
Share on other sites

Link to post
Share on other sites

Is the hub plugged into the cpu_fan header?

Yes the 4 pin from the hub is connected to cpu_fan. The 2 cpu fans are connected to fan 1 & 2 on the hub, and the chassis fans are in the rest.

Link to comment
Share on other sites

Link to post
Share on other sites

Ok wait...I let it run for a few more seconds and the cpu fans turned on. Was expecting them to be instant like before. All the fans are running significantly slower now...which is actually nice because the noise was driving me crazy...but is this safe? Hmm.

Link to comment
Share on other sites

Link to post
Share on other sites

Yeah im getting a cpu fan error on boot...oy

"Ensure that the cpu fan is properly installed on the cpu_fan header or adjust/disable the fan soeed low limit option in the uefi bios."

Link to comment
Share on other sites

Link to post
Share on other sites

Ok wait...I let it run for a few more seconds and the cpu fans turned on. Was expecting them to be instant like before. All the fans are running significantly slower now...which is actually nice because the noise was driving me crazy...but is this safe? Hmm.

As long as your temps are low enough, it's fine.

Yeah im getting a cpu fan error on boot...oy

"Ensure that the cpu fan is properly installed on the cpu_fan header or adjust/disable the fan soeed low limit option in the uefi bios."

Just disable the low limit option.

If you ever need help with a build, read the following before posting: http://linustechtips.com/main/topic/3061-build-plan-thread-recommendations-please-read-before-posting/
Also, make sure to quote a post or tag a member when replying or else they won't get a notification that you replied to them.

Link to comment
Share on other sites

Link to post
Share on other sites

As long as your temps are low enough, it's fine.

Just disable the low limit option.

Ok...just having a hard time finding that. All im seeing us Q-Fan Control with presets or manual control, and an Optimize All routine. Will keep looking..unless im supposed to just increase the minimum speed, but I have no idea where to put it.
Link to comment
Share on other sites

Link to post
Share on other sites

Ok...just having a hard time finding that. All im seeing us Q-Fan Control with presets or manual control, and an Optimize All routine. Will keep looking..unless im supposed to just increase the minimum speed, but I have no idea where to put it.

There should be a low limit option.

If you ever need help with a build, read the following before posting: http://linustechtips.com/main/topic/3061-build-plan-thread-recommendations-please-read-before-posting/
Also, make sure to quote a post or tag a member when replying or else they won't get a notification that you replied to them.

Link to comment
Share on other sites

Link to post
Share on other sites

There should be a low limit option.

Ah, it was in a drop down menu in the monitor section. So I set it to ignore and still got the error. Guess I'll try increasing it instead..? Should I change the mode or profile? Its on PWM and Turbo right now. Hell should I disable Q-fan entirely or what?

Thanks again for the help so far.

Link to comment
Share on other sites

Link to post
Share on other sites

Ah, it was in a drop down menu in the monitor section. So I set it to ignore and still got the error. Guess I'll try increasing it instead..? Should I change the mode or profile? Its on PWM and Turbo right now. Hell should I disable Q-fan entirely or what?

Thanks again for the help so far.

Q-fan is just a preset. If you want to customize the fan speeds, you can do so.

Not sure what Turbo is--can you post a picture?

If you ever need help with a build, read the following before posting: http://linustechtips.com/main/topic/3061-build-plan-thread-recommendations-please-read-before-posting/
Also, make sure to quote a post or tag a member when replying or else they won't get a notification that you replied to them.

Link to comment
Share on other sites

Link to post
Share on other sites

Q-fan is just a preset. If you want to customize the fan speeds, you can do so.

Not sure what Turbo is--can you post a picture?

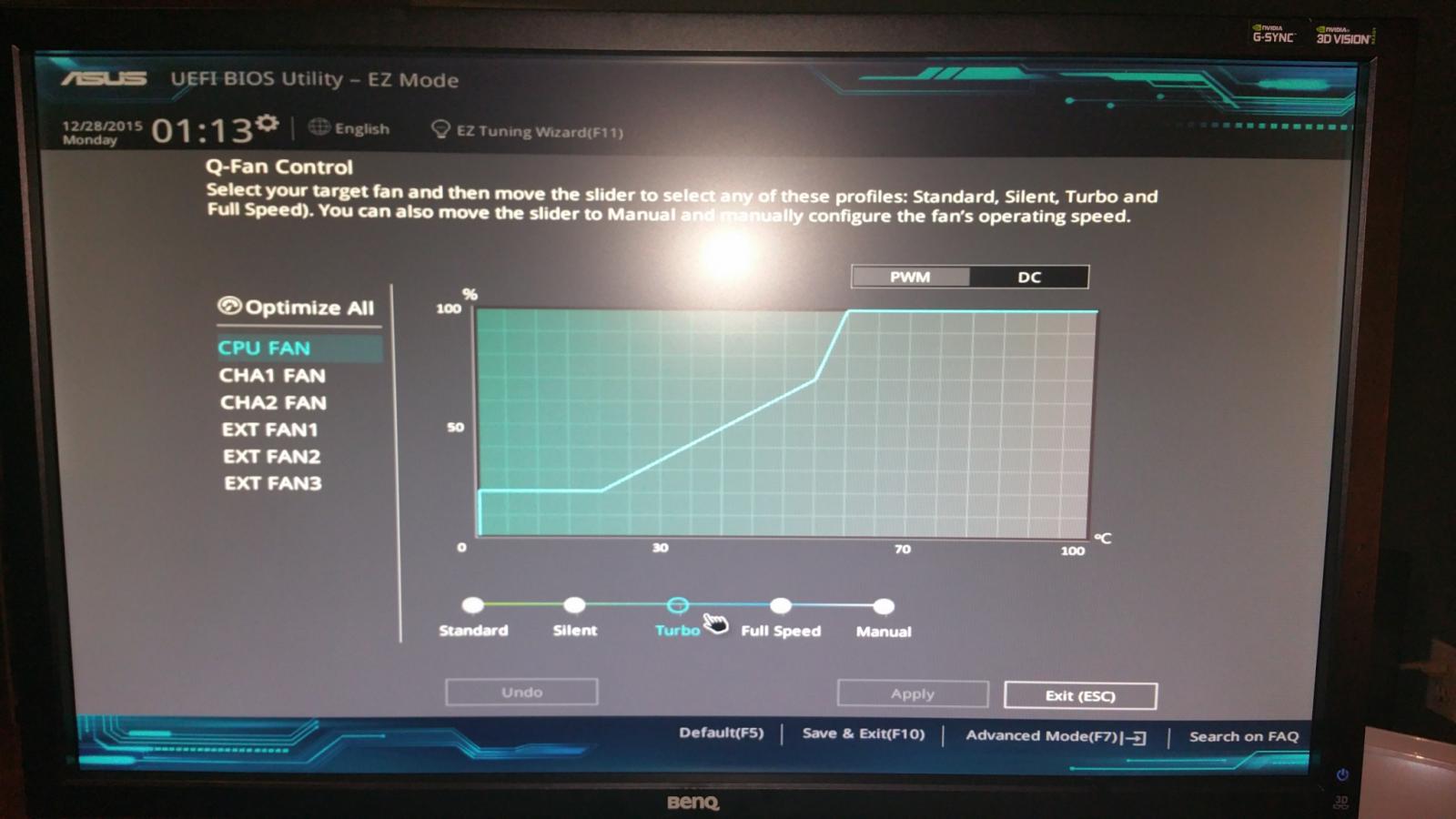

Here's what I'm working with...

post-296974-0-70113500-1451287024_thumb.

post-296974-0-98379100-1451287034_thumb.

post-296974-0-68505900-1451287049_thumb.

post-296974-0-43312600-1451287065_thumb.

Link to comment
Share on other sites

Link to post
Share on other sites

Here's what I'm working with...

What's the drop down menu for CPU Fan Profile?

If you ever need help with a build, read the following before posting: http://linustechtips.com/main/topic/3061-build-plan-thread-recommendations-please-read-before-posting/
Also, make sure to quote a post or tag a member when replying or else they won't get a notification that you replied to them.

Link to comment
Share on other sites

Link to post
Share on other sites

What's the drop down menu for CPU Fan Profile?

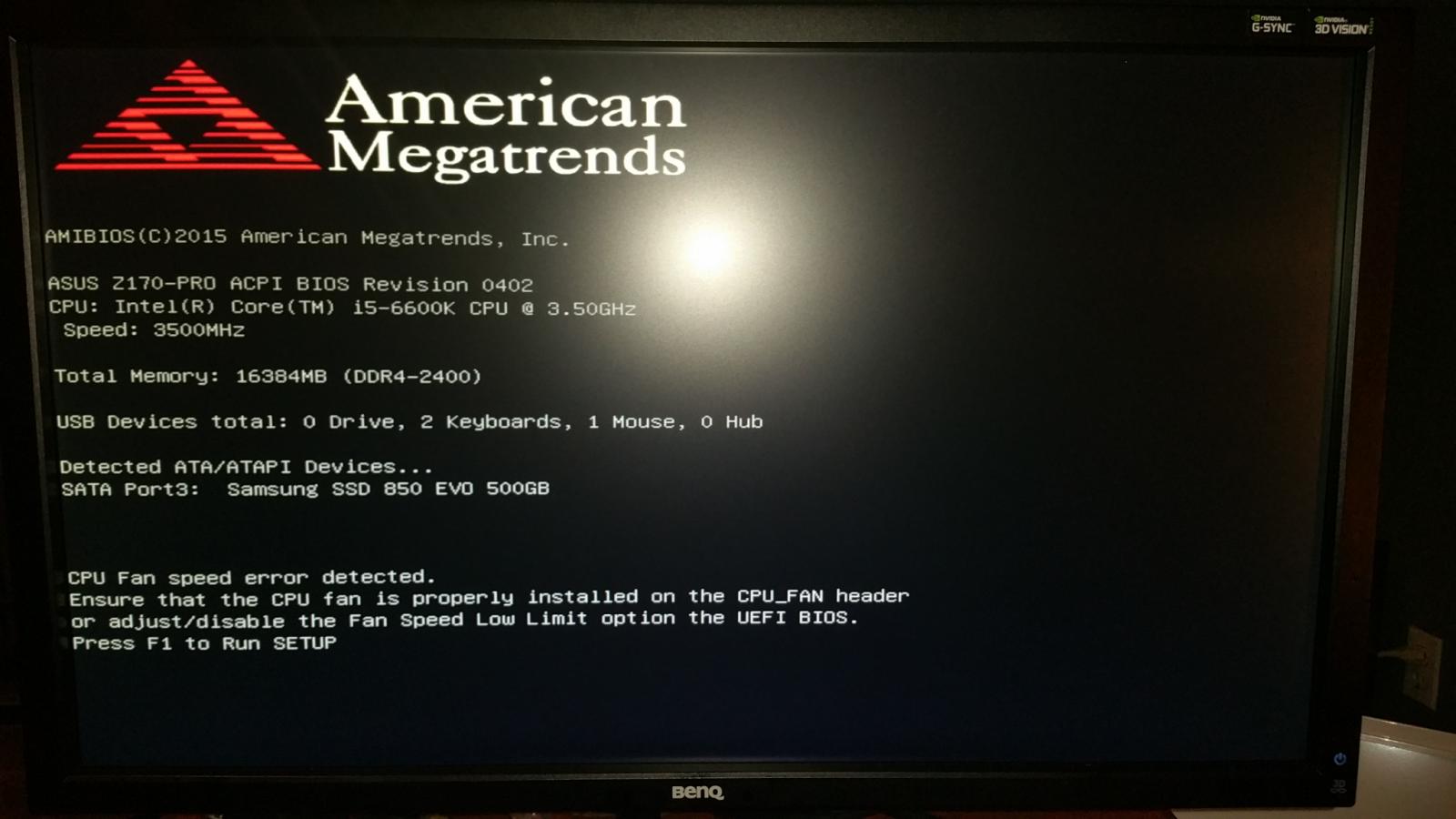

Standard, Silent, Turbo, Manual. Tried manual with no luck. Heres the exact error btw. Maybe I need a different kind of fan hub? I read some only work at full speed or something.

post-296974-0-16142000-1451287746_thumb.

Link to comment
Share on other sites

Link to post
Share on other sites

Standard, Silent, Turbo, Manual. Tried manual with no luck. Heres the exact error btw. Maybe I need a different kind of fan hub? I read some only work at full speed or something.

Does the fan error stop the system from booting into the OS?

If you ever need help with a build, read the following before posting: http://linustechtips.com/main/topic/3061-build-plan-thread-recommendations-please-read-before-posting/
Also, make sure to quote a post or tag a member when replying or else they won't get a notification that you replied to them.

Link to comment
Share on other sites

Link to post
Share on other sites

Does the fan error stop the system from booting into the OS?

Yes it just hangs unless I press F1 to enter bios. No other keys do anything.

Link to comment
Share on other sites

Link to post
Share on other sites

You could try plugging the hub into another pwm header on the motherboard and the cpu fans into the 2 cpu fan headers.

If you ever need help with a build, read the following before posting: http://linustechtips.com/main/topic/3061-build-plan-thread-recommendations-please-read-before-posting/
Also, make sure to quote a post or tag a member when replying or else they won't get a notification that you replied to them.

Link to comment
Share on other sites

Link to post
Share on other sites
