Going to buy 50 bucks of watercooling stuff, how should I lay it out?

I am going to be buying a new tube style reservoir, and I want to have a "flowing water" effect in it. So I pretty much have to have it flow into the top of it. I want to position the pump (in red) to face towards the side panel, and push into the top radiator. Would it even be feasible to have a fill port on something like this? Or will I have to move the inlet on the res to one of the bottom four holes? What about a drain port? Emptying and filling the existing rig is sketchy AF.



Existing rig:




Possible planned new setup:




Would something like this even be a good idea? How do you think I should do it? I want the res mounted above the pump, and the pump between the HDD/fan sandwich and the front radiator.

Link to comment
Share on other sites

Link to post
Share on other sites

Yeah that'

that's cool (Get it! Ha.  no but seriously it is cool)

Judge a product on its own merits AND the company that made it.

How to setup MSI Afterburner OSD | How to make your AMD Radeon GPU more efficient with Radeon Chill | (Probably) Why LMG Merch shipping to the EU is expensive

Oneplus 6 (Early 2023 to present) | HP Envy 15" x360 R7 5700U (Mid 2021 to present) | Steam Deck (Late 2022 to present)



Mid 2023 AlTech Desktop Refresh - AMD R7 5800X (Mid 2023), XFX Radeon RX 6700XT MBA (Mid 2021), MSI X370 Gaming Pro Carbon (Early 2018), 32GB DDR4-3200 (16GB x2) (Mid 2022

Noctua NH-D15 (Early 2021), Corsair MP510 1.92TB NVMe SSD (Mid 2020), beQuiet Pure Wings 2 140mm x2 & 120mm x1 (Mid 2023),

Link to comment
Share on other sites

Link to post
Share on other sites

You'd have to fill into the res and then gravity would bring the water to the pump and keep it filled.

My rig: Intel Core i7-8700K OC 4.8 | NZXT Kraken X62 | ASUS Z370-F | 16 GB Trident Z RGB 3000 (2x8) | EVGA 1070 SC | EVGA SuperNova NEX650G1 | NZXT H700 | Samsung 250GB 850-EVO | 2x 2TB Seagate Barracuda HDDs

Link to comment
Share on other sites

Link to post
Share on other sites

-SNIP-



I would run it from the CPU to the top rad, top rad to the front rad then front down to the res/pump much cleaner and shorter tubing runs.

Link to comment
Share on other sites

Link to post
Share on other sites

I would do it so it goes res -> pump -> gpu -> cpu -> rad -> res

Thats that. If you need to get in touch chances are you can find someone that knows me that can get in touch.

Link to comment
Share on other sites

Link to post
Share on other sites

I would run it from the CPU to the top rad, top rad to the front rad then front down to the res/pump much cleaner and shorter tubing runs.

The issue I have here is that the tube coming out of the pump is difficult to route to anything on the left side due to the HDD fanwich.

Link to comment
Share on other sites

Link to post
Share on other sites

The issue I have here is that the tube coming out of the pump is difficult to route to anything on the left side due to the HDD fanwich.



How about a dual rotary 90 fitting to get it over to the GPU area.

Link to comment
Share on other sites

Link to post
Share on other sites

The link from the pump to the GPU is a difficult run due to space restrictions

Have the HDD hidden behind the res

Thats that. If you need to get in touch chances are you can find someone that knows me that can get in touch.

Link to comment
Share on other sites

Link to post
Share on other sites

How about a dual rotary 90 fitting to get it over to the GPU area.

Maybe I can position the pump so it points towards the other side panel (non windowed) so I can run a tube to the GPU without getting in the way

Link to comment
Share on other sites

Link to post
Share on other sites

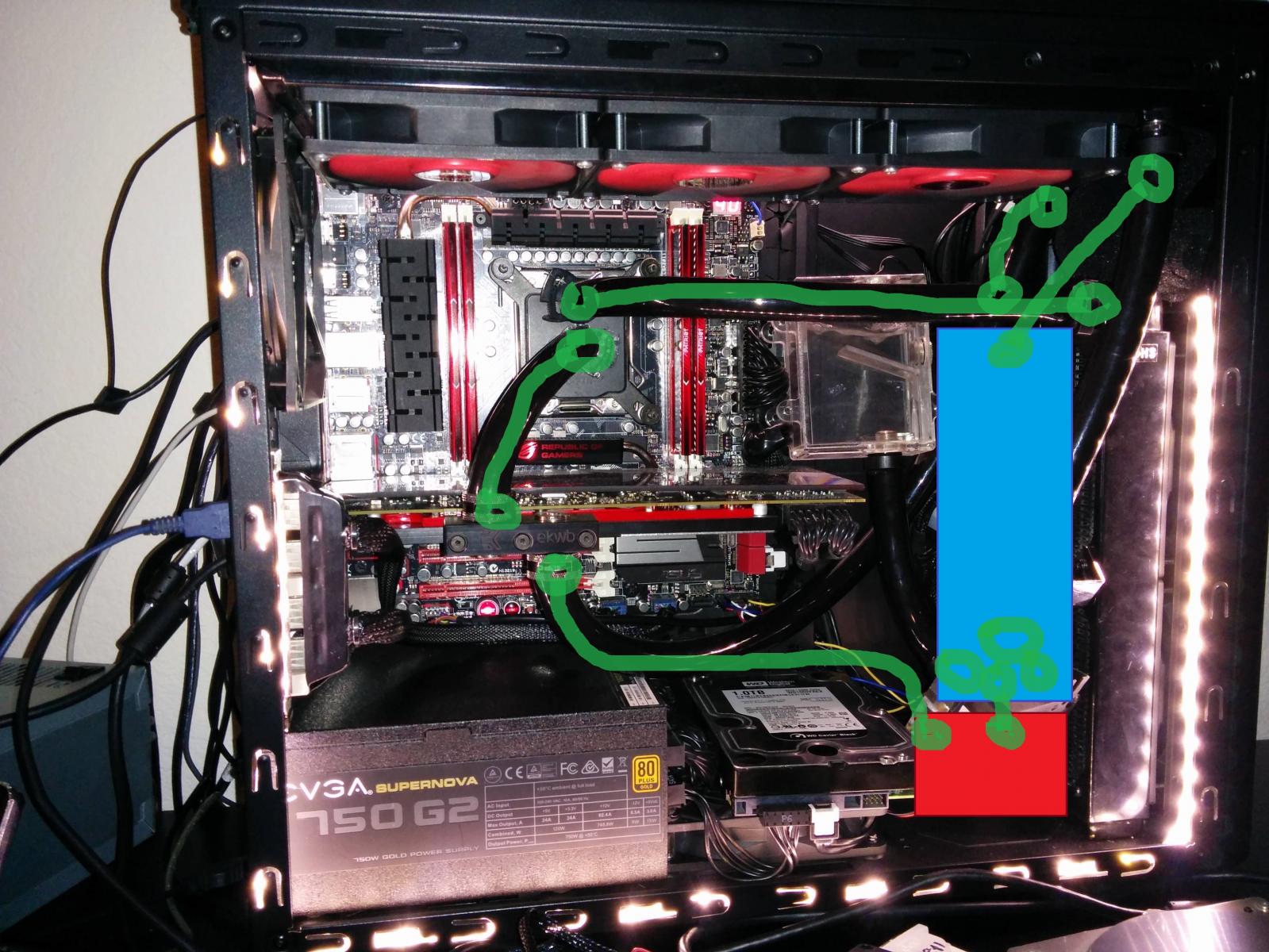

Perhaps something like this:


Where should I put fill/drain ports?



Yeah that looks good, I would use the extra ports on the res and have the drain face out the back side if you can where you can to attach an extra hose to drain off of.
