Issues with M.2 SATA, internet and no XMP after upgrade to Aorus X870 Elite WiFi7

Andarthiel
 Share
Posted

Hi,

I recently upgraded to an Aorus X870 Elite WiFi7, I upgraded several other parts (AMD Ryzen 5 7600X3D, DarkRock TF2, Corsair Dominator Titanium 7400mhz 32GB DDR5 kit and MSI 5070 Shadow 2X)

Everything went well although I did notice that there are two 8-pins for the CPU and I only but I read online that it isn't necessary unless you're doing OC.

However, I had several issues after I finished the upgrade:



Problem 1:

It detected my Samsung 970 EVO Plus 1TB NVME but not my 870 EVO M2 SATA even though they are both 2280 and should be compatible with my motherboard and I tried swapping them to different slots as well as updating the motherboard drivers. The 870 EVO doesn't even appear in the BIOS.



Problem 2

I have wired network through a Powerline Adapter but even after updating the lan drivers to the latest it either takes a long time identifying the network, dropping out saying it has no internet(can't connect to DHCP)or has internet but when I go to Chrome it can't load anything saying the site can't be reached. Also I have no Wi-Fi adapter even though the motherboard wifi is plugged in and I have installed the latest drivers. I tried Reset Network and using the netsh ipconfig command prompts.



Problem 3:

I tried using XMP1 and 2 profiles however in both cases it tries to train the memory but eventually fails to boot. Because I'm using the DarkRock TF2 I only have enough clearance to populate the two furthest right RAM slots which means I probably can't use dual channel but I'm not sure if that would affect how XMP work.



Can anyone please help me? Especially the networking and m.2 issues are annoying as that m.2 drive has my games on it and I use this PC as a Plex Media server so I need the internet back.



Link to post
Share on other sites
Posted
1 hour ago, Andarthiel said:

Problem 1:

It detected my Samsung 970 EVO Plus 1TB NVME but not my 870 EVO M2 SATA even though they are both 2280 and should be compatible with my motherboard and I tried swapping them to different slots as well as updating the motherboard drivers. The 870 EVO doesn't even appear in the BIOS.

The "870 EVO M2 SATA" is a SATA m.2 SSD, which is different from an NVMe m.2 SSD, like your "Samsung 970 EVO Plus 1TB NVME".

In order to use it, you'll need a SATA compatiable M.2 slot on your motherboard.
However, SATA m.2 is fast becoming a dead standard because whatever you want, 2.5" SATA SSDs or NVMe m.2 SSDs will make more sense. Therefore, your new board (like most new boards) doesn't have any m.2 slots that support SATA m.2 drives (All 4 slots are NVME m.2 only).

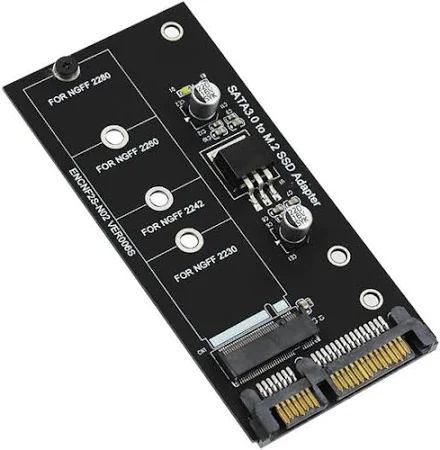

To continue using the SATA m.2 drive, you will need a converter. Like this:




Context: m.2 is the class of connector, while NVMe and SATA are "competing" specification

I might be experienced, but I'm human and I do make mistakes. Trust but Verify! I edit my messages after sending them alot, please refresh before posting your reply. Please try to be clear and specific, you'll get a better answer. Please remember to mark solutions once you have the information you need. Expand this signature for common PC building advice, a short bio and a list of my components.



Common build advice:

1) Buy the cheapest (well reviewed) motherboard that has the features you need. Paying more typically only gets you features you won’t use. 2) only get as much RAM as you need, getting more won’t (typically) make your PC faster. 3) While I recommend getting an NVMe drive, you don’t need to splurge for an expensive drive with DRam cache, DRamless drives are fine for gamers. 4) paying for looks is fine, just don’t break the bank. 5) Tower coolers are usually good enough, unless you go top tier Intel or plan on OCing. 6) OCing is a dead meme, you probably shouldn’t bother. 7) "Bottlenecks" rarely matter and "Future-proofing" is a myth. 8) AIOs don't noticably improve performance past 240mm.



Useful Websites:

https://www.productchart.com - helps compare monitors, https://uk.pcpartpicker.com - makes designing a PC easier.



Bio:

He/Him - I'm a PhD student working in the fields of reinforcement learning and traffic control. PCs are one of my hobbies and I've built many PCs and performed upgrades on a few laptops (for myself, friends and family). My personal computers include 4 windows (10/11) machines and a TrueNAS server (and I'm looking to move to dual booting Linux Mint on my main machine in future). Aside from computers, I also dabble in modding/homebrew retro consoles, support Southampton FC, and enjoy Scuba Diving and Skiing.

Fun Facts

1) When I was 3 years old my favourite toy was a scientific calculator. 2) My father is a British Champion ploughman in the Vintage Hydraulic Class. 3) On Speedrun.com, I'm the world record holder for the Dream Bobsleigh event on Mario & Sonic at the Olympic Winter Games 2010.



My Favourite Games: World of Tanks, Runescape, Subnautica, Metroid (Fusion and Dread), Spyro: Year of the Dragon (Original and Reignited Trilogy), Crash Bash, Mario Kart Wii, Balatro



My Computers: Primary: My main gaming rig - https://uk.pcpartpicker.com/user/will0hlep/saved/NByp3C Second: Hosts Discord bots as well as a Minecraft and Ark server, and also serves as a reinforcement learning sand box - https://uk.pcpartpicker.com/user/will0hlep/saved/cc9K7P NAS: TrueNAS Scale NAS hosting SMB shares, DDNS updater, pi-hole, and a Jellyfin server - https://uk.pcpartpicker.com/user/will0hlep/saved/m37w3C Foldatron: My folding@home and BOINC rig (partially donated to me by Folding Team Leader GOTSpectrum) - Mobile: Mini-ITX gaming rig for when I'm away from home -

Link to post
Share on other sites
Posted
36 minutes ago, Andarthiel said:

I upgraded several other parts (AMD Ryzen 5 7600X3D, DarkRock TF2, Corsair Dominator Titanium 7400mhz 32GB DDR5 kit and MSI 5070 Shadow 2X)



Problem 3:

I tried using XMP1 and 2 profiles however in both cases it tries to train the memory but eventually fails to boot. Because I'm using the DarkRock TF2 I only have enough clearance to populate the two furthest right RAM slots which means I probably can't use dual channel but I'm not sure if that would affect how XMP work.

AM5 should be considered incompatiable with any RAM faster than 6000Mhz, unless you really know what your doing. I suggest returning the RAM and getting a 2x16GB 6000Mhz CL30 kit instead.

I might be experienced, but I'm human and I do make mistakes. Trust but Verify! I edit my messages after sending them alot, please refresh before posting your reply. Please try to be clear and specific, you'll get a better answer. Please remember to mark solutions once you have the information you need. Expand this signature for common PC building advice, a short bio and a list of my components.



Common build advice:

1) Buy the cheapest (well reviewed) motherboard that has the features you need. Paying more typically only gets you features you won’t use. 2) only get as much RAM as you need, getting more won’t (typically) make your PC faster. 3) While I recommend getting an NVMe drive, you don’t need to splurge for an expensive drive with DRam cache, DRamless drives are fine for gamers. 4) paying for looks is fine, just don’t break the bank. 5) Tower coolers are usually good enough, unless you go top tier Intel or plan on OCing. 6) OCing is a dead meme, you probably shouldn’t bother. 7) "Bottlenecks" rarely matter and "Future-proofing" is a myth. 8) AIOs don't noticably improve performance past 240mm.



Useful Websites:

https://www.productchart.com - helps compare monitors, https://uk.pcpartpicker.com - makes designing a PC easier.



Bio:

He/Him - I'm a PhD student working in the fields of reinforcement learning and traffic control. PCs are one of my hobbies and I've built many PCs and performed upgrades on a few laptops (for myself, friends and family). My personal computers include 4 windows (10/11) machines and a TrueNAS server (and I'm looking to move to dual booting Linux Mint on my main machine in future). Aside from computers, I also dabble in modding/homebrew retro consoles, support Southampton FC, and enjoy Scuba Diving and Skiing.

Fun Facts

1) When I was 3 years old my favourite toy was a scientific calculator. 2) My father is a British Champion ploughman in the Vintage Hydraulic Class. 3) On Speedrun.com, I'm the world record holder for the Dream Bobsleigh event on Mario & Sonic at the Olympic Winter Games 2010.



My Favourite Games: World of Tanks, Runescape, Subnautica, Metroid (Fusion and Dread), Spyro: Year of the Dragon (Original and Reignited Trilogy), Crash Bash, Mario Kart Wii, Balatro



My Computers: Primary: My main gaming rig - https://uk.pcpartpicker.com/user/will0hlep/saved/NByp3C Second: Hosts Discord bots as well as a Minecraft and Ark server, and also serves as a reinforcement learning sand box - https://uk.pcpartpicker.com/user/will0hlep/saved/cc9K7P NAS: TrueNAS Scale NAS hosting SMB shares, DDNS updater, pi-hole, and a Jellyfin server - https://uk.pcpartpicker.com/user/will0hlep/saved/m37w3C Foldatron: My folding@home and BOINC rig (partially donated to me by Folding Team Leader GOTSpectrum) - Mobile: Mini-ITX gaming rig for when I'm away from home -

Link to post
Share on other sites
Posted
23 minutes ago, Andarthiel said:

Problem 2

I have wired network through a Powerline Adapter but even after updating the lan drivers to the latest it either takes a long time identifying the network, dropping out saying it has no internet(can't connect to DHCP)or has internet but when I go to Chrome it can't load anything saying the site can't be reached. Also I have no Wi-Fi adapter even though the motherboard wifi is plugged in and I have installed the latest drivers. I tried Reset Network and using the netsh ipconfig command prompts.

For the powerline Adapter, is it known working? have you tried it with a different machine?

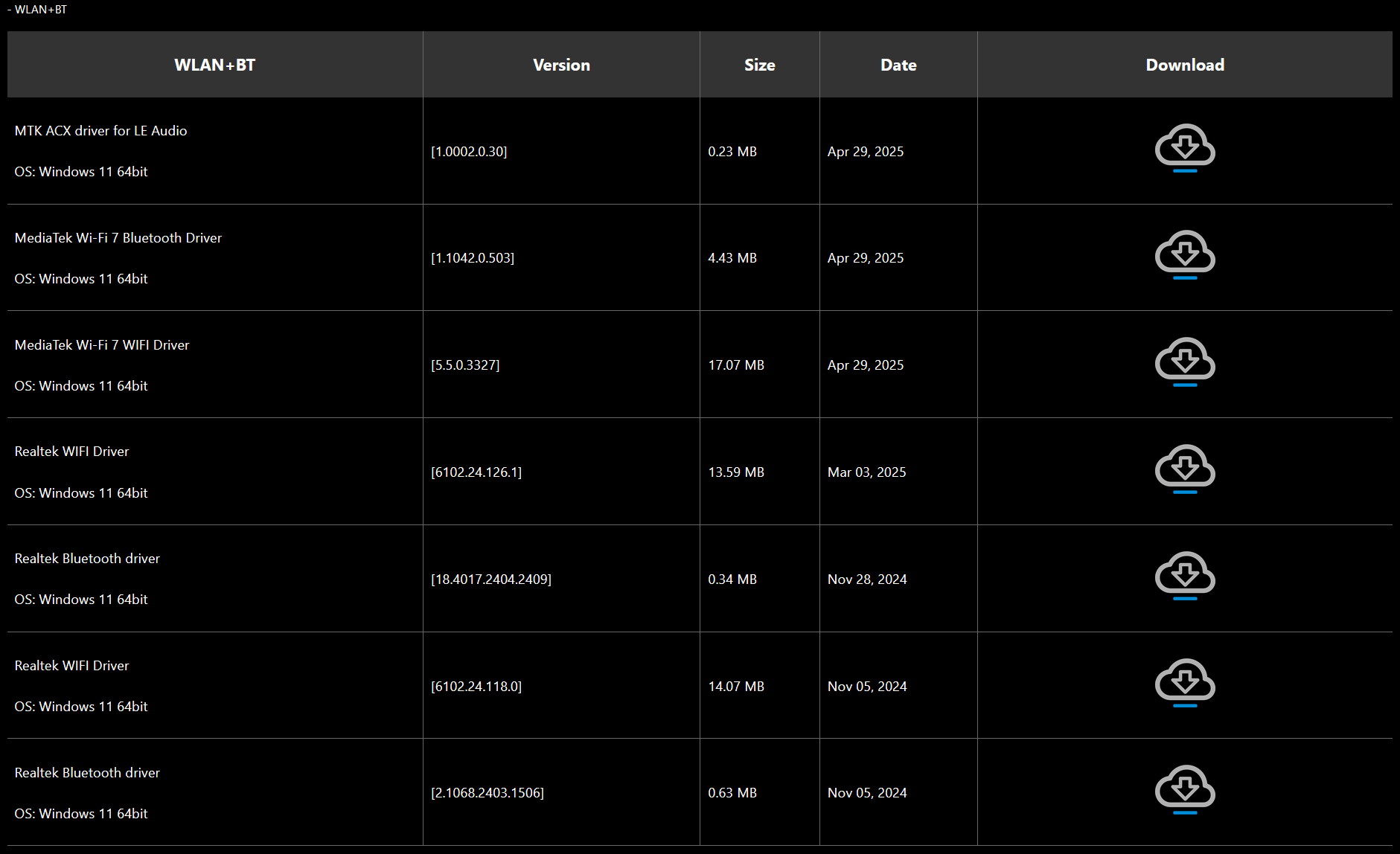

For the Wi-Fi, which drivers (from the list below) did you install?


I might be experienced, but I'm human and I do make mistakes. Trust but Verify! I edit my messages after sending them alot, please refresh before posting your reply. Please try to be clear and specific, you'll get a better answer. Please remember to mark solutions once you have the information you need. Expand this signature for common PC building advice, a short bio and a list of my components.



Common build advice:

1) Buy the cheapest (well reviewed) motherboard that has the features you need. Paying more typically only gets you features you won’t use. 2) only get as much RAM as you need, getting more won’t (typically) make your PC faster. 3) While I recommend getting an NVMe drive, you don’t need to splurge for an expensive drive with DRam cache, DRamless drives are fine for gamers. 4) paying for looks is fine, just don’t break the bank. 5) Tower coolers are usually good enough, unless you go top tier Intel or plan on OCing. 6) OCing is a dead meme, you probably shouldn’t bother. 7) "Bottlenecks" rarely matter and "Future-proofing" is a myth. 8) AIOs don't noticably improve performance past 240mm.



Useful Websites:

https://www.productchart.com - helps compare monitors, https://uk.pcpartpicker.com - makes designing a PC easier.



Bio:

He/Him - I'm a PhD student working in the fields of reinforcement learning and traffic control. PCs are one of my hobbies and I've built many PCs and performed upgrades on a few laptops (for myself, friends and family). My personal computers include 4 windows (10/11) machines and a TrueNAS server (and I'm looking to move to dual booting Linux Mint on my main machine in future). Aside from computers, I also dabble in modding/homebrew retro consoles, support Southampton FC, and enjoy Scuba Diving and Skiing.

Fun Facts

1) When I was 3 years old my favourite toy was a scientific calculator. 2) My father is a British Champion ploughman in the Vintage Hydraulic Class. 3) On Speedrun.com, I'm the world record holder for the Dream Bobsleigh event on Mario & Sonic at the Olympic Winter Games 2010.



My Favourite Games: World of Tanks, Runescape, Subnautica, Metroid (Fusion and Dread), Spyro: Year of the Dragon (Original and Reignited Trilogy), Crash Bash, Mario Kart Wii, Balatro



My Computers: Primary: My main gaming rig - https://uk.pcpartpicker.com/user/will0hlep/saved/NByp3C Second: Hosts Discord bots as well as a Minecraft and Ark server, and also serves as a reinforcement learning sand box - https://uk.pcpartpicker.com/user/will0hlep/saved/cc9K7P NAS: TrueNAS Scale NAS hosting SMB shares, DDNS updater, pi-hole, and a Jellyfin server - https://uk.pcpartpicker.com/user/will0hlep/saved/m37w3C Foldatron: My folding@home and BOINC rig (partially donated to me by Folding Team Leader GOTSpectrum) - Mobile: Mini-ITX gaming rig for when I'm away from home -

Link to post
Share on other sites
Posted
  • Author
50 minutes ago, will0hlep said:

For the powerline Adapter, is it known working? have you tried it with a different machine?



For the Wi-Fi, which drivers (from the list below) did you install?


They worked perfectly on my old setup perfectly and had stable wired internet.



I used the first and second on that list but I just realised that I should have downloaded the 3rd on that list.



Thanks, I 'll find an adapter for the 870 EVO and get lower speed RAM

Link to post
Share on other sites
Posted
5 minutes ago, Andarthiel said:

They worked perfectly on my old setup perfectly and had stable wired internet.



I used the first and second on that list but I just realised that I should have downloaded the 3rd on that list.



Thanks, I 'll find an adapter for the 870 EVO and get lower speed RAM

Let me know how the new drivers go

I might be experienced, but I'm human and I do make mistakes. Trust but Verify! I edit my messages after sending them alot, please refresh before posting your reply. Please try to be clear and specific, you'll get a better answer. Please remember to mark solutions once you have the information you need. Expand this signature for common PC building advice, a short bio and a list of my components.



Common build advice:

1) Buy the cheapest (well reviewed) motherboard that has the features you need. Paying more typically only gets you features you won’t use. 2) only get as much RAM as you need, getting more won’t (typically) make your PC faster. 3) While I recommend getting an NVMe drive, you don’t need to splurge for an expensive drive with DRam cache, DRamless drives are fine for gamers. 4) paying for looks is fine, just don’t break the bank. 5) Tower coolers are usually good enough, unless you go top tier Intel or plan on OCing. 6) OCing is a dead meme, you probably shouldn’t bother. 7) "Bottlenecks" rarely matter and "Future-proofing" is a myth. 8) AIOs don't noticably improve performance past 240mm.



Useful Websites:

https://www.productchart.com - helps compare monitors, https://uk.pcpartpicker.com - makes designing a PC easier.



Bio:

He/Him - I'm a PhD student working in the fields of reinforcement learning and traffic control. PCs are one of my hobbies and I've built many PCs and performed upgrades on a few laptops (for myself, friends and family). My personal computers include 4 windows (10/11) machines and a TrueNAS server (and I'm looking to move to dual booting Linux Mint on my main machine in future). Aside from computers, I also dabble in modding/homebrew retro consoles, support Southampton FC, and enjoy Scuba Diving and Skiing.

Fun Facts

1) When I was 3 years old my favourite toy was a scientific calculator. 2) My father is a British Champion ploughman in the Vintage Hydraulic Class. 3) On Speedrun.com, I'm the world record holder for the Dream Bobsleigh event on Mario & Sonic at the Olympic Winter Games 2010.



My Favourite Games: World of Tanks, Runescape, Subnautica, Metroid (Fusion and Dread), Spyro: Year of the Dragon (Original and Reignited Trilogy), Crash Bash, Mario Kart Wii, Balatro



My Computers: Primary: My main gaming rig - https://uk.pcpartpicker.com/user/will0hlep/saved/NByp3C Second: Hosts Discord bots as well as a Minecraft and Ark server, and also serves as a reinforcement learning sand box - https://uk.pcpartpicker.com/user/will0hlep/saved/cc9K7P NAS: TrueNAS Scale NAS hosting SMB shares, DDNS updater, pi-hole, and a Jellyfin server - https://uk.pcpartpicker.com/user/will0hlep/saved/m37w3C Foldatron: My folding@home and BOINC rig (partially donated to me by Folding Team Leader GOTSpectrum) - Mobile: Mini-ITX gaming rig for when I'm away from home -

Link to post
Share on other sites
Posted
  • Author
8 hours ago, will0hlep said:

The "870 EVO M2 SATA" is a SATA m.2 SSD, which is different from an NVMe m.2 SSD, like your "Samsung 970 EVO Plus 1TB NVME".

In order to use it, you'll need a SATA compatiable M.2 slot on your motherboard.
However, SATA m.2 is fast becoming a dead standard because whatever you want, 2.5" SATA SSDs or NVMe m.2 SSDs will make more sense. Therefore, your new board (like most new boards) doesn't have any m.2 slots that support SATA m.2 drives (All 4 slots are NVME m.2 only).



To continue using the SATA m.2 drive, you will need a converter. Like this:




Context: m.2 is the class of connector, while NVMe and SATA are "competing" specification

Excep that's a B key m.2 to SSD. The EVO 870 is B-M key (two notches). I did find the SimpleComm EC421 which has B-M key to PCIe, would that work?



Link to post
Share on other sites
Posted
11 minutes ago, Andarthiel said:

Except that's a B key m.2 to SSD. The EVO 870 is B-M key (two notches).

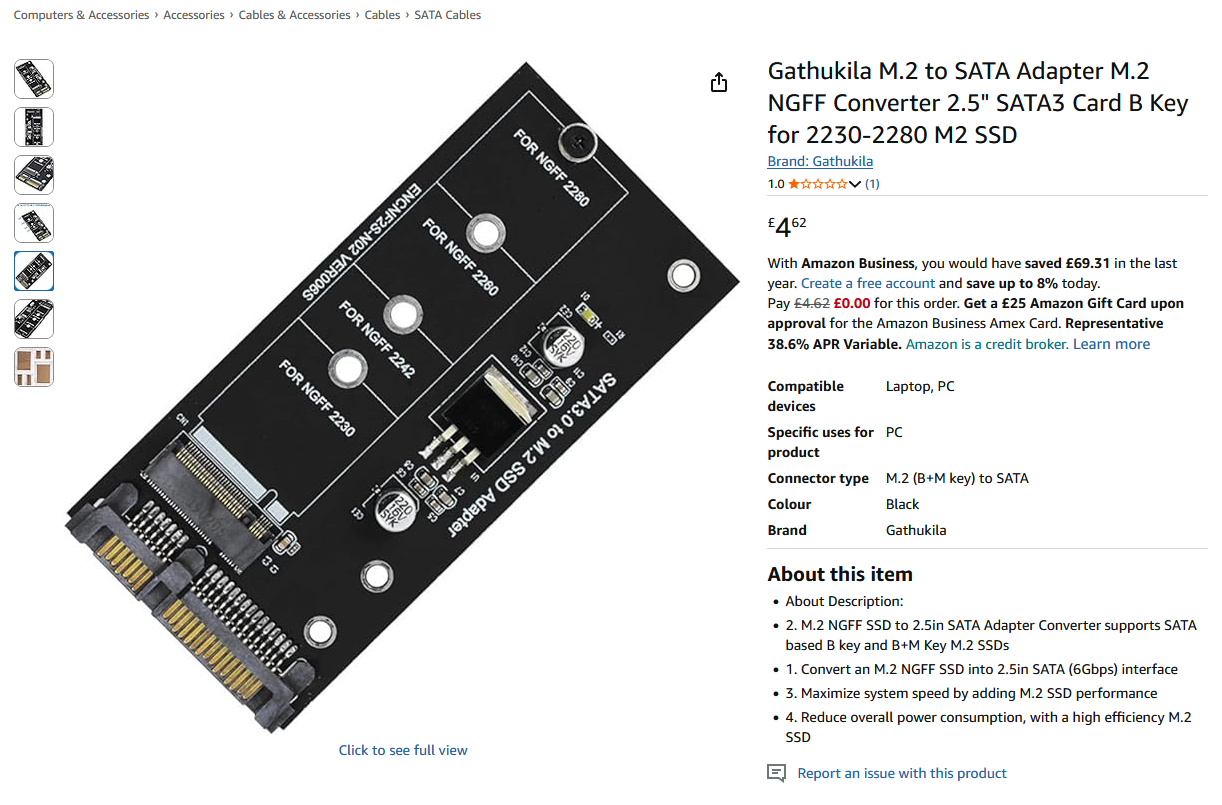

This doesn't actually matter. The adapter I suggested is compatible. See the description bottom right.



Both B keyed slots and M keyed slots can support B+M keyed SATA m.2 SSDs... they just don't have to. Read carefully before buying.




I might be experienced, but I'm human and I do make mistakes. Trust but Verify! I edit my messages after sending them alot, please refresh before posting your reply. Please try to be clear and specific, you'll get a better answer. Please remember to mark solutions once you have the information you need. Expand this signature for common PC building advice, a short bio and a list of my components.



Common build advice:

1) Buy the cheapest (well reviewed) motherboard that has the features you need. Paying more typically only gets you features you won’t use. 2) only get as much RAM as you need, getting more won’t (typically) make your PC faster. 3) While I recommend getting an NVMe drive, you don’t need to splurge for an expensive drive with DRam cache, DRamless drives are fine for gamers. 4) paying for looks is fine, just don’t break the bank. 5) Tower coolers are usually good enough, unless you go top tier Intel or plan on OCing. 6) OCing is a dead meme, you probably shouldn’t bother. 7) "Bottlenecks" rarely matter and "Future-proofing" is a myth. 8) AIOs don't noticably improve performance past 240mm.



Useful Websites:

https://www.productchart.com - helps compare monitors, https://uk.pcpartpicker.com - makes designing a PC easier.



Bio:

He/Him - I'm a PhD student working in the fields of reinforcement learning and traffic control. PCs are one of my hobbies and I've built many PCs and performed upgrades on a few laptops (for myself, friends and family). My personal computers include 4 windows (10/11) machines and a TrueNAS server (and I'm looking to move to dual booting Linux Mint on my main machine in future). Aside from computers, I also dabble in modding/homebrew retro consoles, support Southampton FC, and enjoy Scuba Diving and Skiing.

Fun Facts

1) When I was 3 years old my favourite toy was a scientific calculator. 2) My father is a British Champion ploughman in the Vintage Hydraulic Class. 3) On Speedrun.com, I'm the world record holder for the Dream Bobsleigh event on Mario & Sonic at the Olympic Winter Games 2010.



My Favourite Games: World of Tanks, Runescape, Subnautica, Metroid (Fusion and Dread), Spyro: Year of the Dragon (Original and Reignited Trilogy), Crash Bash, Mario Kart Wii, Balatro



My Computers: Primary: My main gaming rig - https://uk.pcpartpicker.com/user/will0hlep/saved/NByp3C Second: Hosts Discord bots as well as a Minecraft and Ark server, and also serves as a reinforcement learning sand box - https://uk.pcpartpicker.com/user/will0hlep/saved/cc9K7P NAS: TrueNAS Scale NAS hosting SMB shares, DDNS updater, pi-hole, and a Jellyfin server - https://uk.pcpartpicker.com/user/will0hlep/saved/m37w3C Foldatron: My folding@home and BOINC rig (partially donated to me by Folding Team Leader GOTSpectrum) - Mobile: Mini-ITX gaming rig for when I'm away from home -

Link to post
Share on other sites
Posted
10 minutes ago, Andarthiel said:

I did find the SimpleComm EC421 which has B-M key to PCIe, would that work?

I don't think I'd recommend external options for this.

I might be experienced, but I'm human and I do make mistakes. Trust but Verify! I edit my messages after sending them alot, please refresh before posting your reply. Please try to be clear and specific, you'll get a better answer. Please remember to mark solutions once you have the information you need. Expand this signature for common PC building advice, a short bio and a list of my components.



Common build advice:

1) Buy the cheapest (well reviewed) motherboard that has the features you need. Paying more typically only gets you features you won’t use. 2) only get as much RAM as you need, getting more won’t (typically) make your PC faster. 3) While I recommend getting an NVMe drive, you don’t need to splurge for an expensive drive with DRam cache, DRamless drives are fine for gamers. 4) paying for looks is fine, just don’t break the bank. 5) Tower coolers are usually good enough, unless you go top tier Intel or plan on OCing. 6) OCing is a dead meme, you probably shouldn’t bother. 7) "Bottlenecks" rarely matter and "Future-proofing" is a myth. 8) AIOs don't noticably improve performance past 240mm.



Useful Websites:

https://www.productchart.com - helps compare monitors, https://uk.pcpartpicker.com - makes designing a PC easier.



Bio:

He/Him - I'm a PhD student working in the fields of reinforcement learning and traffic control. PCs are one of my hobbies and I've built many PCs and performed upgrades on a few laptops (for myself, friends and family). My personal computers include 4 windows (10/11) machines and a TrueNAS server (and I'm looking to move to dual booting Linux Mint on my main machine in future). Aside from computers, I also dabble in modding/homebrew retro consoles, support Southampton FC, and enjoy Scuba Diving and Skiing.

Fun Facts

1) When I was 3 years old my favourite toy was a scientific calculator. 2) My father is a British Champion ploughman in the Vintage Hydraulic Class. 3) On Speedrun.com, I'm the world record holder for the Dream Bobsleigh event on Mario & Sonic at the Olympic Winter Games 2010.



My Favourite Games: World of Tanks, Runescape, Subnautica, Metroid (Fusion and Dread), Spyro: Year of the Dragon (Original and Reignited Trilogy), Crash Bash, Mario Kart Wii, Balatro



My Computers: Primary: My main gaming rig - https://uk.pcpartpicker.com/user/will0hlep/saved/NByp3C Second: Hosts Discord bots as well as a Minecraft and Ark server, and also serves as a reinforcement learning sand box - https://uk.pcpartpicker.com/user/will0hlep/saved/cc9K7P NAS: TrueNAS Scale NAS hosting SMB shares, DDNS updater, pi-hole, and a Jellyfin server - https://uk.pcpartpicker.com/user/will0hlep/saved/m37w3C Foldatron: My folding@home and BOINC rig (partially donated to me by Folding Team Leader GOTSpectrum) - Mobile: Mini-ITX gaming rig for when I'm away from home -

Link to post
Share on other sites
