X870 stuck on single dash with code 15

[BlazingRengoku]

Hi folks, I recently built my very first PC. Specs are as follows:

1. MSI x870 tomahawk
2. Ryzen 7600
3. MSI 750W PSU
4. Radeon 9070 XT
5. 32G - 2x16 gb CL30 6000 MTs Ram
6. 2 TB SSD

Issue is exactly what the title says, I have no output from the GPU and I am constantly stuck on code 15 with a single dash on the monitor from the onboard graphics.

People online said it’s just memory training, so I left it - overnight! - woke up and it was still stuck at code 15.

What should I do?

It won’t boot at all



Browser, version and OS:



Steps to reproduce/what were you doing before it happened?





What happened?





What did you expect to happen?





Link to a page where it happened, if applicable:



Screenshots of the issue, if applicable:



Any other relevant details:





If it's a cloudflare error, what was the ray ID from the bottom of the error page?

[GuiltySpark_]

That is indeed memory training. If it was me, I’d reseat memory and try again. Move memory around and try again. Clear CMOS and try again, and update BIOS and try again.

[BetteBalterZen]

15 also mean memory training on my motherboard. Which ports have you installed the RAM in? A2 and B2, right?

[BlazingRengoku]

10 minutes ago, BetteBalterZen said:

15 also mean memory training on my motherboard. Which ports have you installed the RAM in? A2 and B2, right?

Yes A2 and B2, I left it overnight and it’s still stuck there in the morning.

[BetteBalterZen]

4 minutes ago, BlazingRengoku said:

Yes A2 and B2, I left it overnight and it’s still stuck there in the morning.

Try each stick, one at a time, using A2 port. To rule out if any works at all.

If you get to post with either of the sticks, then update BIOS to the latest one and then try dual channel again.

[BlazingRengoku]

4 minutes ago, BetteBalterZen said:

Try each stick, one at a time, using A2 port. To rule out if any works at all.

If you get to post with either of the sticks, then update BIOS to the latest one and then try dual channel again.

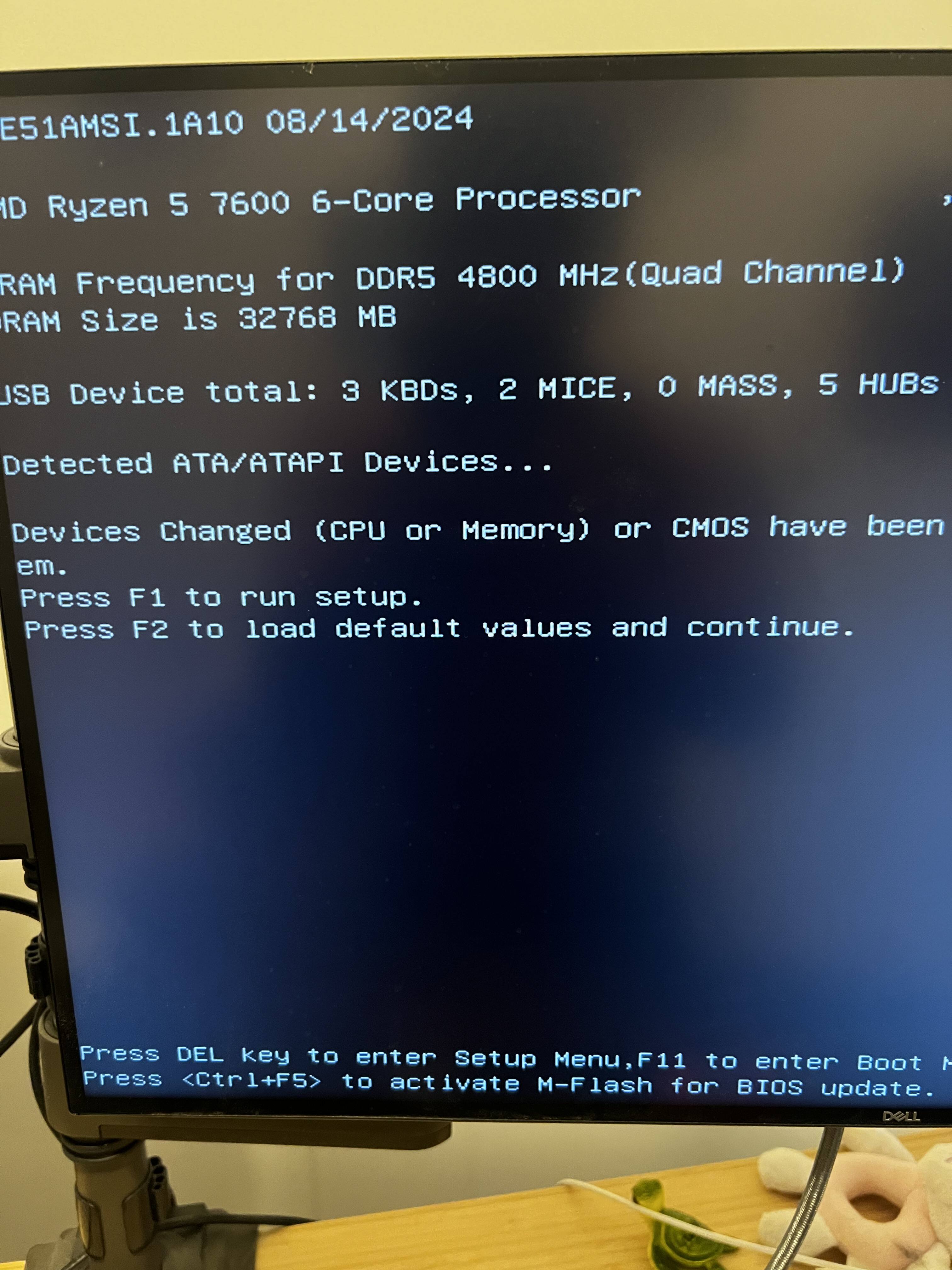

Ok clearing CMOS did something, I am now stuck on the following:





[BetteBalterZen]

1 minute ago, BlazingRengoku said:

Ok clearing CMOS did something, I am now stuck on the following:





It says Quad channel. Are you using 4 sticks?



Great that you are in at least. I would recommend updating BIOS as the next thing.

[BlazingRengoku]

25 minutes ago, GuiltySpark_ said:

That is indeed memory training. If it was me, I’d reseat memory and try again. Move memory around and try again. Clear CMOS and try again, and update BIOS and try again.

Cleaning CMOS did something, I still don’t have a display from my GPU but I get this output from my onboard graphics:



Button mashing is not working?

[BlazingRengoku]

Just now, BetteBalterZen said:

It says Quad channel. Are you using 4 sticks?



Great that you are in at least. I would recommend updating BIOS as the next thing.

No I am just using 2 sticks - it’s weird it says that - also mashing buttons isn’t taking me anywhere… am I doing something wrong here?



I am pressing F1 repeatedly, I also tried DEL.

[GuiltySpark_]

DDR5 will be reported as quad-channel in some cases due to its design. On a consumer board, 2-sticks and 4-sticks is still dual channel.



2 minutes ago, BlazingRengoku said:

No I am just using 2 sticks - it’s weird it says that - also mashing buttons isn’t taking me anywhere… am I doing something wrong here?



I am pressing F1 repeatedly, I also tried DEL.

Try a different keyboard? Different USB port?

[BetteBalterZen]

3 minutes ago, BlazingRengoku said:

No I am just using 2 sticks - it’s weird it says that - also mashing buttons isn’t taking me anywhere… am I doing something wrong here?



I am pressing F1 repeatedly, I also tried DEL.

As per @GuiltySpark_'s comment, no, seem like your setup is correct.

Whenever the keyboard thing is fixed, go for a BIOS update.

[BlazingRengoku]

1 minute ago, BetteBalterZen said:

As per @GuiltySpark_'s comment, no, seem like your setup is correct.

Whenever the keyboard thing is fixed, go for a BIOS update.

Update: getting a code 64 on mobo now - still at the same screen

[BetteBalterZen]

Just now, BlazingRengoku said:

Update: getting a code 64 on mobo now - still at the same screen

Is this during BIOS updating or?

[BlazingRengoku]

Just now, BetteBalterZen said:

Is this during BIOS updating or?

No just the same screen, I haven’t tried BIOS update because I still can’t get the keyboard to work - and I know it’s a working keyboard so i am a bit confused.



can I update bios without a working keyboard?

[BetteBalterZen]

Just now, BlazingRengoku said:

No just the same screen, I haven’t tried BIOS update because I still can’t get the keyboard to work - and I know it’s a working keyboard so i am a bit confused.



can I update bios without a working keyboard?

Some motherboards have a BIOS update port and a button to enable BIOS updating, I believe even without a CPU on some boards. Maybe you can initiate a BIOS update like this on your board?

[BetteBalterZen]

2 minutes ago, BlazingRengoku said:

No just the same screen, I haven’t tried BIOS update because I still can’t get the keyboard to work - and I know it’s a working keyboard so i am a bit confused.



can I update bios without a working keyboard?

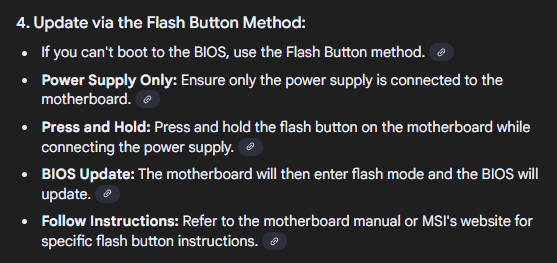

Google's AI found this:

[PDifolco]

50 minutes ago, BlazingRengoku said:

Ok clearing CMOS did something, I am now stuck on the following:







You aren't stuck, it's the normal first boot screen, just press F1

[BlazingRengoku]

2 hours ago, PDifolco said:



You aren't stuck, it's the normal first boot screen, just press F1

Keyboard doesn’t work for some reason, tried all USB ports and I am sure my keyboard works.



currently I tried flashing bios but now I’ve been stuck at flash red light for hours

[BlazingRengoku]

3 hours ago, BetteBalterZen said:

Google's AI found this:

Tried flashing bios to the latest version, stuck with a red light flashing for hours on end.



running out of ideas..

[PDifolco]

1 hour ago, BlazingRengoku said:

Tried flashing bios to the latest version, stuck with a red light flashing for hours on end.



running out of ideas..

Try with another kit of RAM
