Help 12vhpwr too short to reach psu

JDaniel
 Share
Go to solution Solved by Kilrah,

The way you're asking about. PSU -> PSU supplied PCIe cables -> Adapter.

Posted

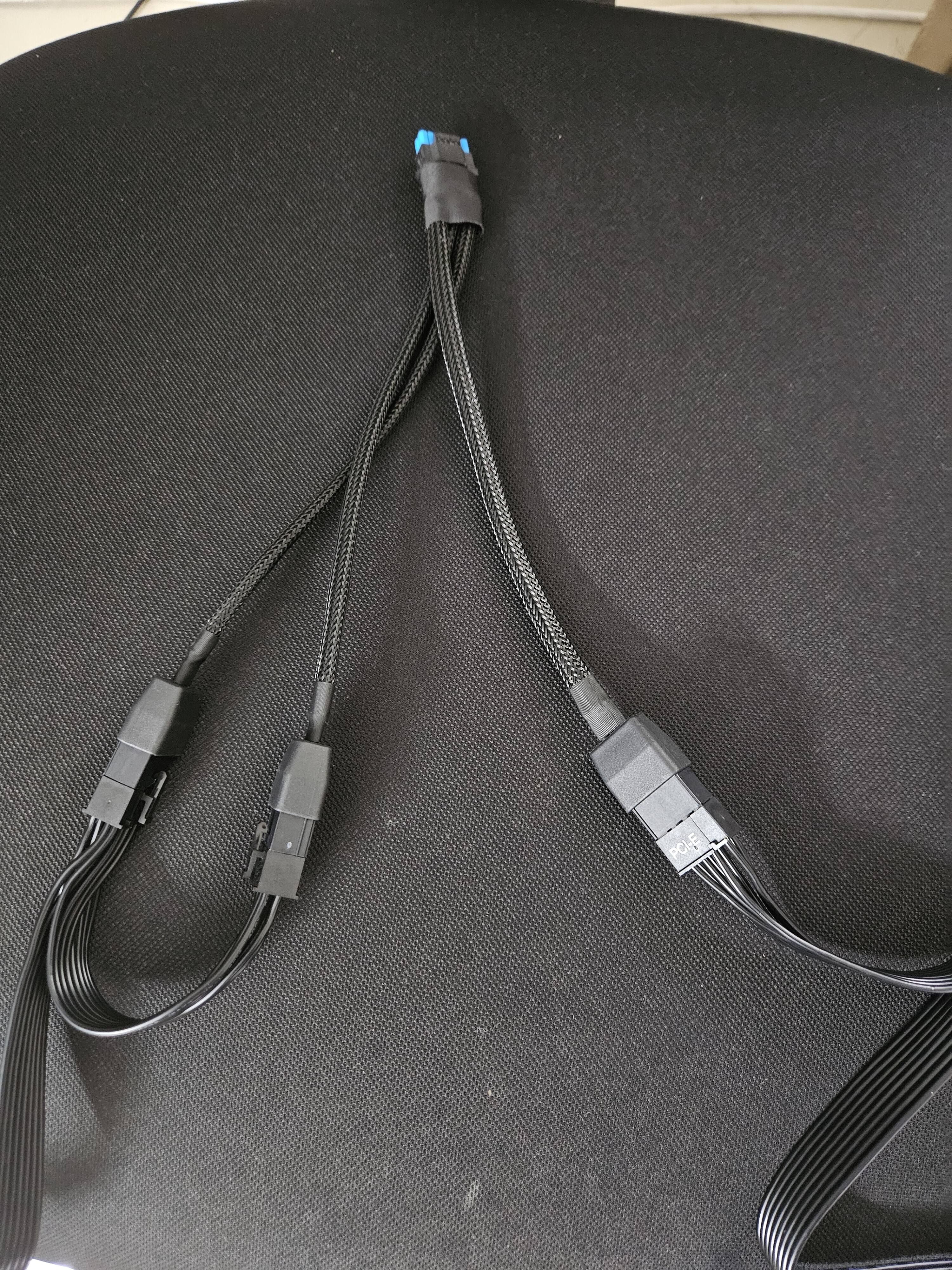

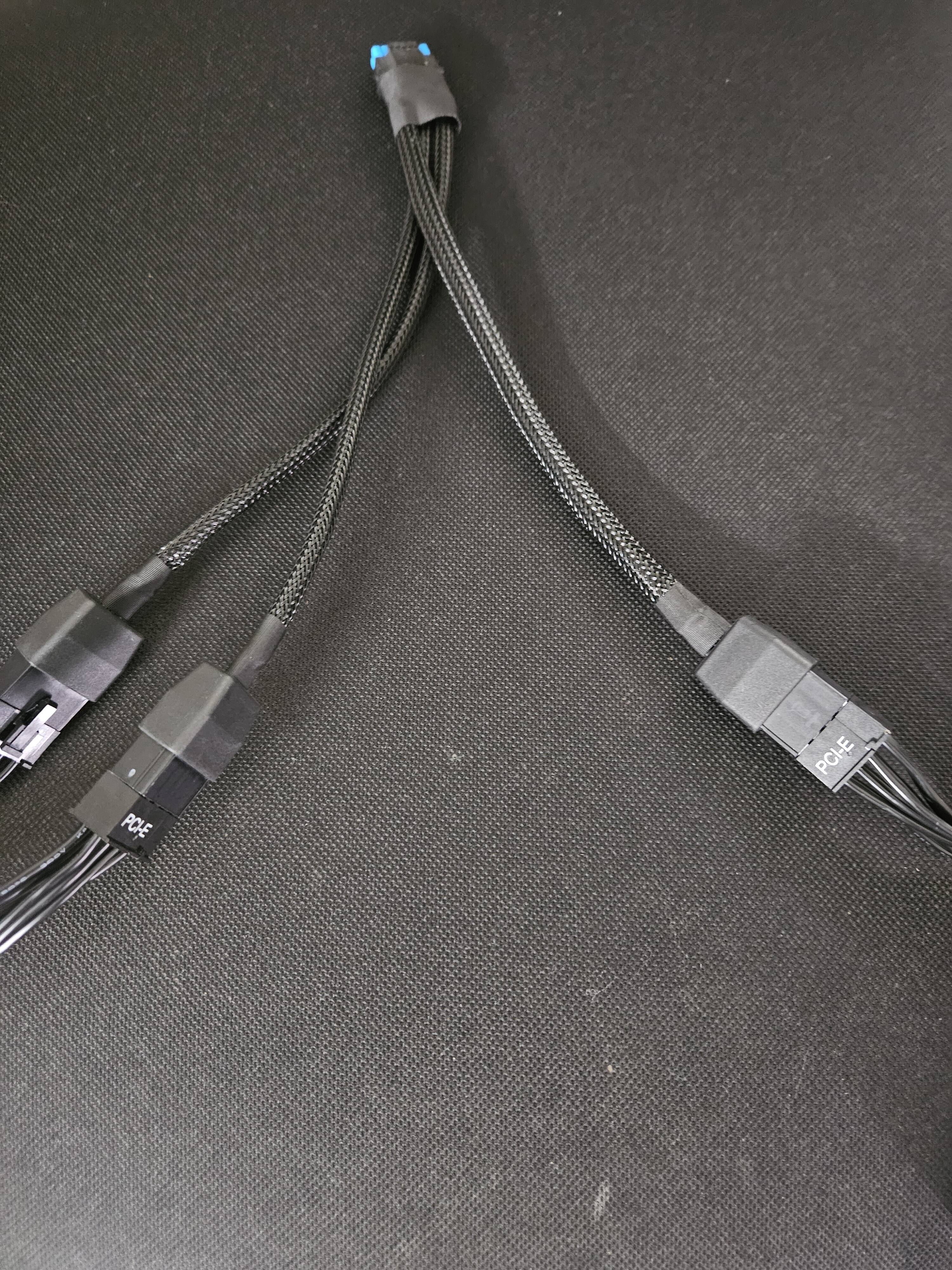

I have sapphire nitro + rx 9070xt and I got the 12vhpwr to 3x8 pin connector. It is too short for my case. Can I connect my psu pcie cable to the 8 connectors ?. Also I only have 2 pcie cables so have to daisy chain also. Provide images for reference.



PS: My first build.



Link to comment
https://linustechtips.com/topic/1614975-help-12vhpwr-too-short-to-reach-psu/
Share on other sites
Link to post
Share on other sites
Posted

You arent supposed to plug the octopus cable directly into the psu.

Interim 15 T200 OKF("F" intel processors are specifically archituctured for gaming) maybe upgrad to 13'900 | Peeralight cpu fan | Stryx Z690-A Wife(which is branded by ASUS and it's ROG label) | Thermotake 16x 8x2GO SODINM 2400mjz cl22 (2 of them with the mood lighting) | 980 EVO 1TB m.2 ssd card + Kensington 2TB SATA nvme + WD BLACK PRO ULTRA MAX 4TB GAMING DESTROYER HHD | Echa etc 3060 duel fan dissipator 12 GBi(It never overheats over 70°c) and Azrock with the radian 550 XT Tiachi | NEXT H510 Vit Klar Svart | Seasonice 600watts voeding(rated for 100.000 hours, running since 2010, ballpark estimate 8 hours a day which should make it good for 34 years) | Nocturna case fans | 0LED Duel moniter



New build in progress: Ryen™ 8 7700x3D with a copper pipe fan | Z60e-A | Kingstron RENEGATE 16x2 Go hyenix | Phantek 2 the thar mesh in front | lead lex black label psu + AsiaHorse białe/białe | 1080 Pro 8TB 15800MB/S NvMe(for gaming this increase fps and charging time, cooled by a M.2 slot with coolblock and additional thermopad) and faster 4000GB HHD | MAI GeForce GTX 2070 Ti Ventura 3x and RTX 6800 | Corshair psu

Link to post
Share on other sites
Posted
  • Solution

The way you're asking about. PSU -> PSU supplied PCIe cables -> Adapter.

F@H
Desktop: i9-13900K, ASUS Z790-E, 64GB DDR5-6000 CL36, RTX3080, 2TB MP600 Pro XT, 2TB SX8200Pro, 2x16TB Ironwolf RAID0, Corsair HX1200, Antec Vortex 360 AIO, Thermaltake Versa H25 TG, Samsung 4K curved 49" TV, 23" secondary, Mountain Everest Max

Mobile SFF rig: i9-9900K, Noctua NH-L9i, Asrock Z390 Phantom ITX-AC, 32GB, GTX1070, 2x1TB SX8200Pro RAID0, 2x5TB 2.5" HDD RAID0, Athena 500W Flex (Noctua fan), Custom 4.7l 3D printed case



Asus Zenbook UM325UA, Ryzen 7 5700u, 16GB, 1TB, OLED



GPD Win 2

Link to post
Share on other sites
Posted

That is an adapter cable. It's not meant to reach your power supply and you wouldn't be able to plug it in to the power supply anyway. You are supposed to plug your PCIe 8pin power cables in to it and it adapts it to a 12VHPWR/12V-2X6 to plug in to the graphics card. It's to allow you to use the card with power supplies which do not come with the native 12VHPWR cable. If your PSU comes with the 12VHPWR cable then you don't need the adapter and can just use the 12VHPWR cable that came included with the power supply. If your PSU didn't come with the cable then use the PCIe cables plugged in to the adapter.

CPU: Intel i7 6700k  | Motherboard: Gigabyte Z170x Gaming 5 | RAM: 2x16GB 3000MHz Corsair Vengeance LPX | GPU: Gigabyte Aorus GTX 1080ti | PSU: Corsair RM750x (2018) | Case: BeQuiet SilentBase 800 | Cooler: Arctic Freezer 34 eSports | SSD: Samsung 970 Evo 500GB + Samsung 840 500GB + Crucial MX500 2TB | Monitor: Acer Predator XB271HU + Samsung BX2450

Link to post
Share on other sites
Posted
59 minutes ago, JDaniel said:

sapphire nitro + rx 9070xt

It's interesting to see that some AMD cards are implementing this power connector.

CPU: Intel i7 6700k  | Motherboard: Gigabyte Z170x Gaming 5 | RAM: 2x16GB 3000MHz Corsair Vengeance LPX | GPU: Gigabyte Aorus GTX 1080ti | PSU: Corsair RM750x (2018) | Case: BeQuiet SilentBase 800 | Cooler: Arctic Freezer 34 eSports | SSD: Samsung 970 Evo 500GB + Samsung 840 500GB + Crucial MX500 2TB | Monitor: Acer Predator XB271HU + Samsung BX2450

Link to post
Share on other sites
Posted
58 minutes ago, Spotty said:

It's interesting to see that some AMD cards are implementing this power connector.

not some, this is just Sapphire Nitro+ as far as I know

Note: Users receive notifications after Mentions & Quotes.

Feel free: To ask any question, no matter what question it is, I will try to answer. I know a lot about PCs but not everything.

current PC:

Ryzen 5 5600 |16GB DDR4 3200Mhz | B450 | GTX 1080 ti [further details on my profile]

PC configs I used before:

  1. Pentium G4500 | 4GB/8GB DDR4 2133Mhz | H110 | GTX 1050
  2. Ryzen 3 1200 3,5Ghz / OC:4Ghz | 8GB DDR4 2133Mhz / 16GB 3200Mhz | B450 | GTX 1050
  3. Ryzen 3 1200 3,5Ghz | 16GB 3200Mhz | B450 | GTX 1080 ti
Link to post
Share on other sites
Posted
On 6/13/2025 at 10:42 AM, podkall said:

not some, this is just Sapphire Nitro+ as far as I know

Asrock 7900XTX Creator(blower style) and 9070XT Taichi uses 12v-2x6 too.

Interim 15 T200 OKF("F" intel processors are specifically archituctured for gaming) maybe upgrad to 13'900 | Peeralight cpu fan | Stryx Z690-A Wife(which is branded by ASUS and it's ROG label) | Thermotake 16x 8x2GO SODINM 2400mjz cl22 (2 of them with the mood lighting) | 980 EVO 1TB m.2 ssd card + Kensington 2TB SATA nvme + WD BLACK PRO ULTRA MAX 4TB GAMING DESTROYER HHD | Echa etc 3060 duel fan dissipator 12 GBi(It never overheats over 70°c) and Azrock with the radian 550 XT Tiachi | NEXT H510 Vit Klar Svart | Seasonice 600watts voeding(rated for 100.000 hours, running since 2010, ballpark estimate 8 hours a day which should make it good for 34 years) | Nocturna case fans | 0LED Duel moniter



New build in progress: Ryen™ 8 7700x3D with a copper pipe fan | Z60e-A | Kingstron RENEGATE 16x2 Go hyenix | Phantek 2 the thar mesh in front | lead lex black label psu + AsiaHorse białe/białe | 1080 Pro 8TB 15800MB/S NvMe(for gaming this increase fps and charging time, cooled by a M.2 slot with coolblock and additional thermopad) and faster 4000GB HHD | MAI GeForce GTX 2070 Ti Ventura 3x and RTX 6800 | Corshair psu

Link to post
Share on other sites
Posted
1 hour ago, Ralf said:

Asrock 7900XTX Creator(blower style) and 9070XT Taichi uses 12v-2x6 too.

Yeah but those are fancy cards.



Sapphire Nitro + is pretty price/performance higher-end model, that I'd expect to rather have 2 or 3 8pin power connectors.

Note: Users receive notifications after Mentions & Quotes.

Feel free: To ask any question, no matter what question it is, I will try to answer. I know a lot about PCs but not everything.

current PC:

Ryzen 5 5600 |16GB DDR4 3200Mhz | B450 | GTX 1080 ti [further details on my profile]

PC configs I used before:

  1. Pentium G4500 | 4GB/8GB DDR4 2133Mhz | H110 | GTX 1050
  2. Ryzen 3 1200 3,5Ghz / OC:4Ghz | 8GB DDR4 2133Mhz / 16GB 3200Mhz | B450 | GTX 1050
  3. Ryzen 3 1200 3,5Ghz | 16GB 3200Mhz | B450 | GTX 1080 ti
Link to post
Share on other sites
