my i5-12400f doesnt go above 3.99-4.00 ghz

[Gem_Star4071]

ive been trying to get my core speed onto 4.4ghz. it just doesnt go above 4.02 max, after some time it starts shifting onto a 3.99-4.00 ghz in task manager and 3990.24 in cpu-z. i have a msi b760m-e motherboard with a 230w/v powersupply

[Hinjima]

5 minutes ago, Gem_Star4071 said:

ive been trying to get my core speed onto 4.4ghz. it just doesnt go above 4.02 max, after some time it starts shifting onto a 3.99-4.00 ghz in task manager and 3990.24 in cpu-z. i have a msi b760m-e motherboard with a 230w/v powersupply





The 4.4Ghz boost clock is the max turbo frequency, its only going to hit this speed on 1 or 2 cores, not all of them.

For sustained loads and gaming it will sit around 3.99Ghz that you mention.

Try to HwInfo64 to check each individual core's clock speed.

[Gem_Star4071]

6 minutes ago, Hinjima said:

The 4.4Ghz boost clock is the max turbo frequency, its only going to hit this speed on 1 or 2 cores, not all of them.

For sustained loads and gaming it will sit around 3.99Ghz that you mention.

Try to HwInfo64 to check each individual core's clock speed.

it just doesnt go above 3.99 anytime

[jmwhite33]

Well considering neither your motherboard or CPU support overclocking, not sure what you are trying to achieve.

Seems like your pretty much stuck in that respect.





[Gem_Star4071]

3 minutes ago, jmwhite33 said:



oh my god how do i remove this extra quote, sorry im new to this





3 minutes ago, jmwhite33 said:

Well considering neither your motherboard or CPU support overclocking, not sure what you are trying to achieve.

Seems like your pretty much stuck in that respect.





animating on a beefy program that depends on cpu for rendering

[Tetras]

Open something that records the clock speed over time, like hwinfo's sensor tab and report back if any of the cores hit that speed.



13 minutes ago, Gem_Star4071 said:



animating on a beefy program that depends on cpu for rendering

This will almost certainly be multithreaded, so if your CPU doesn't boost above 4 Ghz you won't actually lose much (if any) performance for this task.



On my Intel CPUs with this boost behaviour, you can only observe the boost above the all-core clock for very brief moments, e.g. task manager barely registers it.

[leclod]

For information, you probably could activate AVX512 and Intel Speed Shift in the Bios (not sure if you need it)

Not sure what HVCI stands for.

Edited May 22 by leclod

[Gem_Star4071]

17 minutes ago, leclod said:

For information, you probably could activate AVX512 and Intel Speed Shift in the Bios

Not sure what HVCI stands for.

ooooooo ok ill try

[Gem_Star4071]

45 minutes ago, Tetras said:

if your CPU doesn't boost above 4 Ghz you won't actually lose much (if any) performance for this task.

every single hz counts on this program, why else would i use ltsc

[leclod]

Just now, Gem_Star4071 said:

every single hz counts on this program, why else would i use ltsc

I'm stuck at 4GHz most of the time too

[Gem_Star4071]

Just now, leclod said:

I'm stuck at 4GHz most of the time too

yeah i can see that, ill try modifying what you said in bios now.

[Gem_Star4071]

31 minutes ago, leclod said:

For information, you probably could activate AVX512 and Intel Speed Shift in the Bios (not sure if you need it)

Not sure what HVCI stands for.

this is the solution but you have to enable c state

[leclod]

4 minutes ago, Gem_Star4071 said:

this is the solution but you have to enable c state

what do you mean, you've seen an improvement ?

[Gem_Star4071]

Just now, leclod said:

what do you mean, you've seen an improvement ?

yeah just turn on c state with it, some cores take rest for 0.3s but the rest at high power, it does reach more frequency now

[Tetras]

19 minutes ago, Gem_Star4071 said:

every single hz counts on this program, why else would i use ltsc

You seem to be missing my point? If the program is using multiple cores/threads (rendering almost certainly will), then the highest boost is 4 Ghz.



It will only hit higher clocks when lightly threaded.

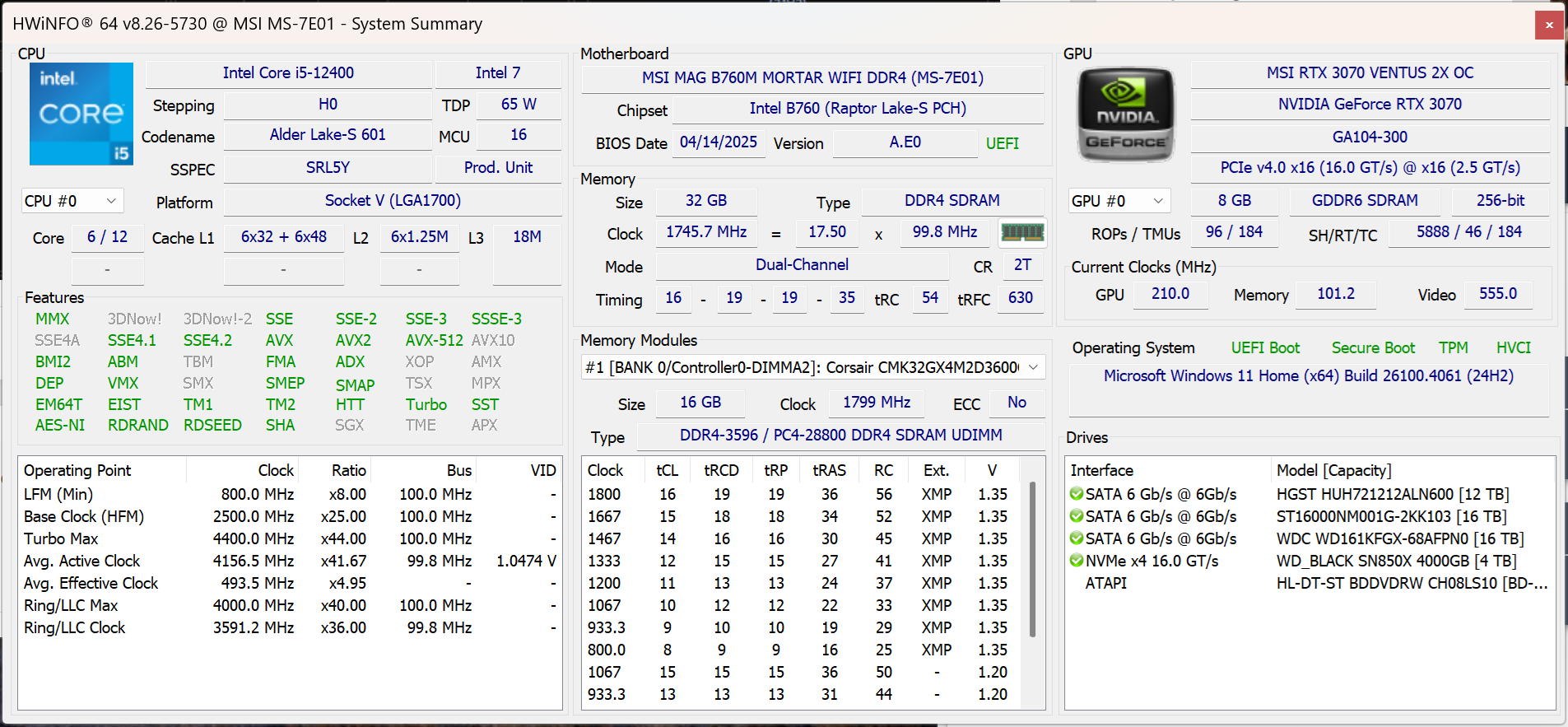

The average clock reported on hwinfo is higher than 4 Ghz, which would suggest your CPU is boosting higher than 4 Ghz now, but it is mainly operating at high(er) load than the single/lightly threaded boost clock.

[Gem_Star4071]

3 minutes ago, Tetras said:

You seem to be missing my point? If the program is using multiple cores/threads (rendering almost certainly will), then the highest boost is 4 Ghz.



It will only hit higher clocks when lightly threaded.



The average clock reported on hwinfo is higher than 4 Ghz, which would suggest your CPU is boosting higher than 4 Ghz now, but it is mainly operating at high(er) load than the single/lightly threaded boost clock.

i have ran task manger and cpu z on another monitor while doing normal windows stuff and when its rendering, it didnt go up till now

[Gem_Star4071]

4 minutes ago, Tetras said:

You seem to be missing my point? If the program is using multiple cores/threads (rendering almost certainly will), then the highest boost is 4 Ghz.



It will only hit higher clocks when lightly threaded.



The average clock reported on hwinfo is higher than 4 Ghz, which would suggest your CPU is boosting higher than 4 Ghz now, but it is mainly operating at high(er) load than the single/lightly threaded boost clock.

i needed higher clocks so that i can save a minute or two
