Hello, where do I connect the RGB and Pơwer wire? I see that its head has 3 pins, but in my mainboard, the front has 4 pins?

[cool_cool]

Can you tell me where you plug it in? I don't have a RGB controller.



[strange13930]

4 minutes ago, cool_cool said:

Can you tell me where you plug it in? I don't have a RGB controller.



the three pins for your argb connecter so if your motherboard only has one then you will need to buy a splitter.. what motherboard Do you have

[cool_cool]

3 minutes ago, strange13930 said:

the three pins for your argb connecter so if your motherboard only has one then you will need to buy a splitter.. what motherboard Do you have

MSI X670E GAMING PLUS WIFI

https://www.msi.com/Motherboard/X670E-GAMING-PLUS-WIFI



[GuiltySpark_]

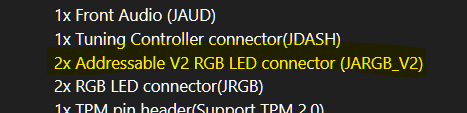

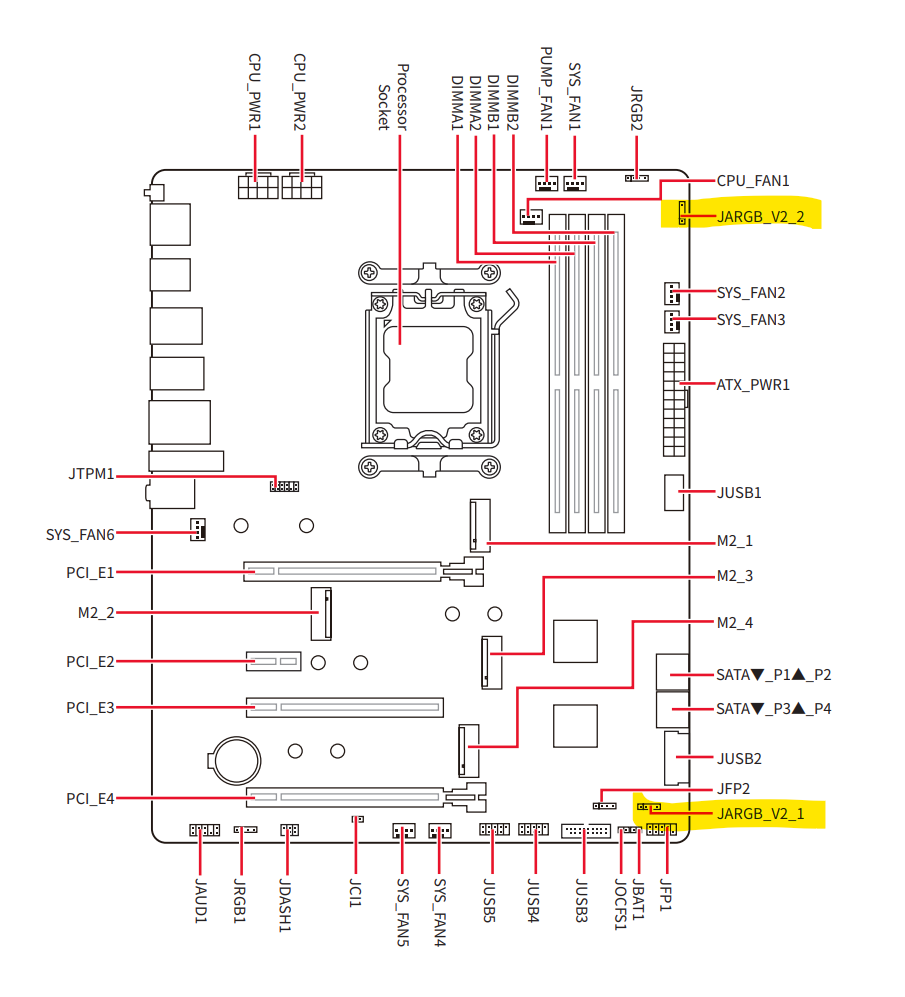

You have two 3-pin ARGB headers. If you have more than two devices, the picture you shared shows the ARGB cables are daisy chainable.



[The_Sc4m]

i found another one (page 27)



X670EGAMINGPLUSWIFI_EN.pdf

[GuiltySpark_]

5 minutes ago, The_Sc4m said:

i found another one (page 27)



X670EGAMINGPLUSWIFI_EN.pdf 5.23 MB · 4 downloads

If you're talking about ARGB, there are only 2, highlighted above.







Are you also looking for help in identifying your 4-pin PWM fan power headers?

[Poinkachu]

1 hour ago, The_Sc4m said:

i found another one (page 27)



X670EGAMINGPLUSWIFI_EN.pdf 5.23 MB · 7 downloads

JRGB is for 12v RGB, which utilizes 4 pins.
JARGB is the 5v RGB (ARGB), which only uses 3 pins. On some MSI boards, usually older ones, it sometimes named JRAINBOW as well.

Also for future info, the V2 in that JARGB_V2 means that that ARGB header is Gen 2.

They are different kind, and must not be mix matched unless you are using some special controller that explicitly say it allows you to do so.

[cool_cool]

1 hour ago, GuiltySpark_ said:

You have two 3-pin ARGB headers. If you have more than two devices, the picture you shared shows the ARGB cables are daisy chainable.



Thank you very much. It's solved. What about the power connector of the fan. This one. Where should i put it ? Or I just need to plug in 3-pin ARGB header  ?



[GuiltySpark_]

2 minutes ago, cool_cool said:

Thank you very much. It's solved. What about the power connector of the fan. This one. Where should i put it ? Or I just need to plug in 3-pin ARGB header  ?

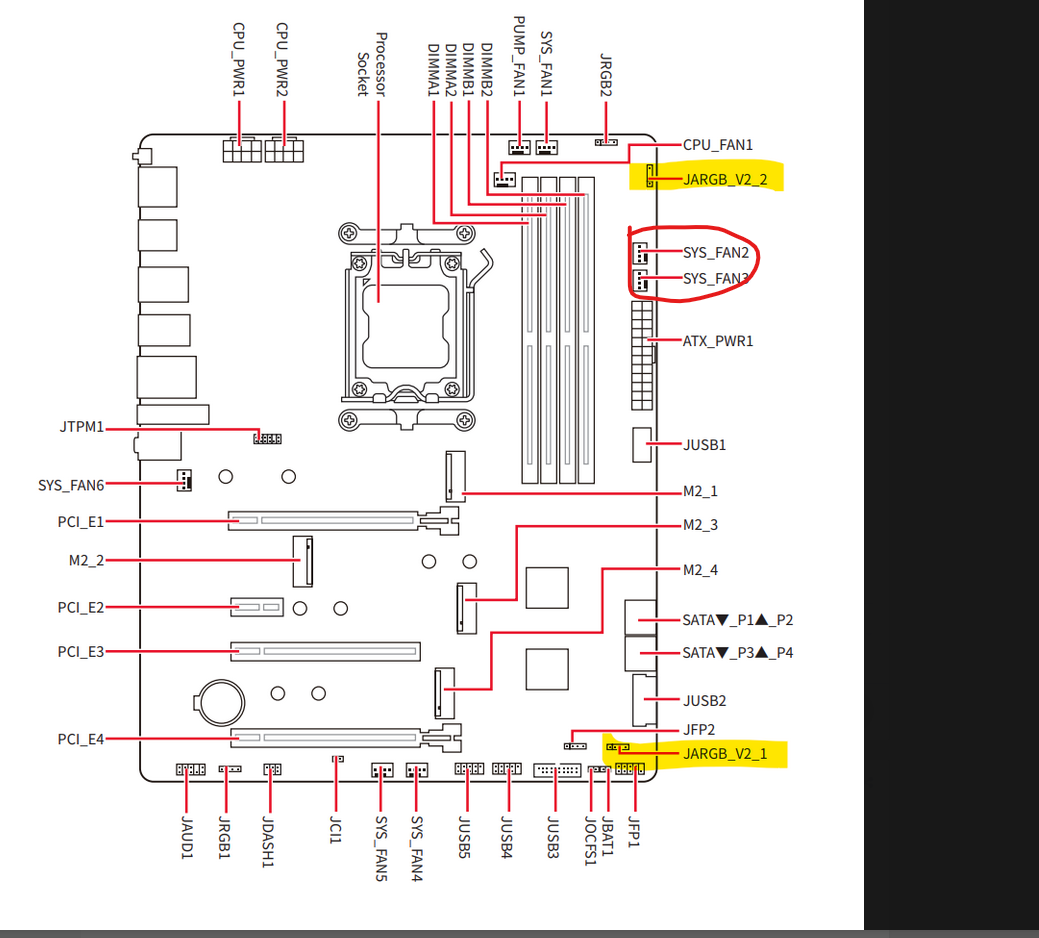

You have 7 fan headers depending on the type of fan or pump you're connecting (which we don't know).



In Pink. Take note of which one you use so you can control that particular header in the BIOS.



[cool_cool]

1 hour ago, GuiltySpark_ said:

If you're talking about ARGB, there are only 2, highlighted above.







Are you also looking for help in identifying your 4-pin PWM fan power headers?

Yes, this part the power connector ?

[GuiltySpark_]

3 minutes ago, cool_cool said:

Yes, this part the power connector ?

Yes, that's one of them, see above. I highlighted all your fan headers in pink.
